◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#36207) — 26 parça

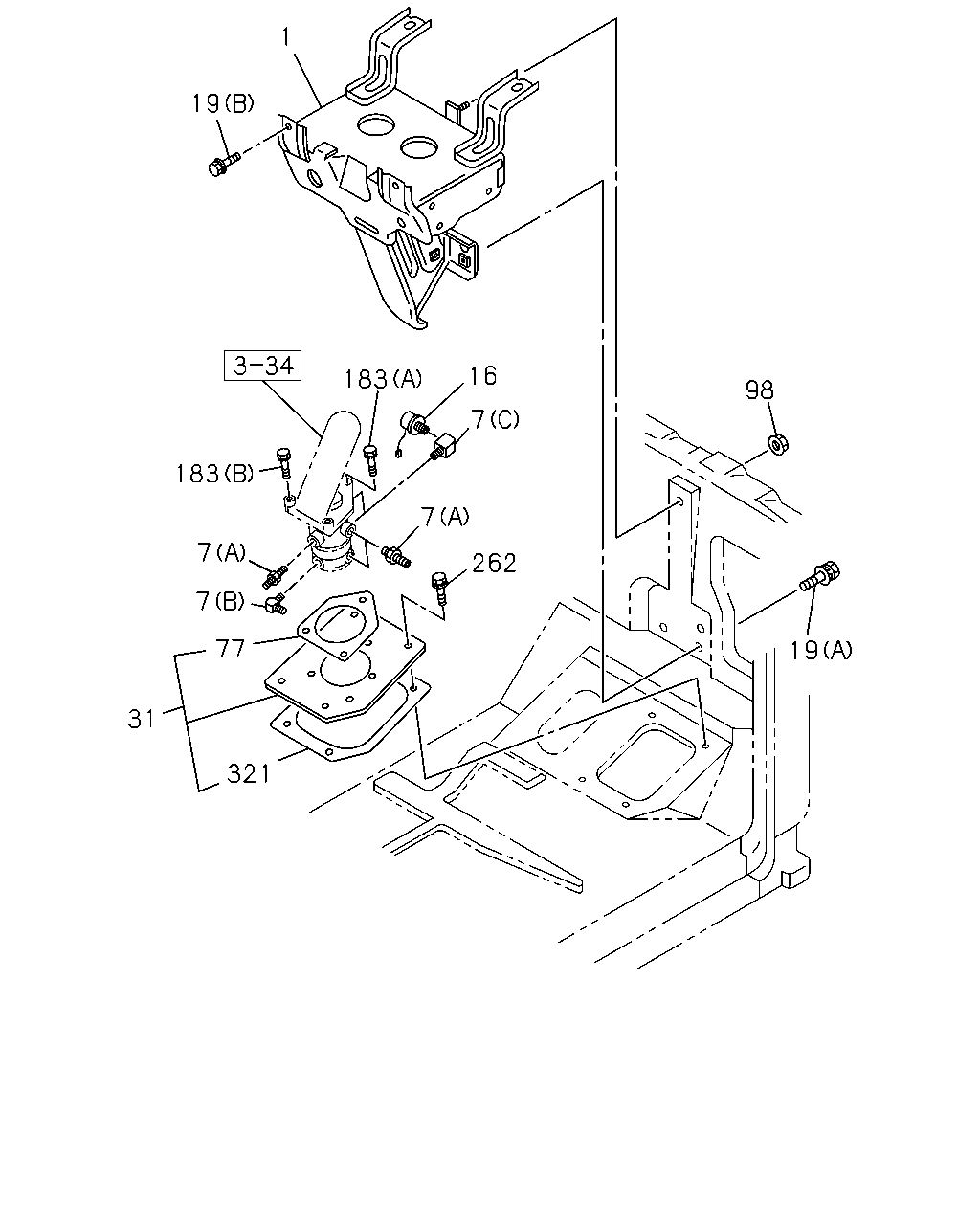

çizim 152079
1 19 16 183 98 7 183 7 7 262 7 77 19 31 321
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL 1-73908-050-3 01 1 9510-9510 ● ● ●
1 BRACKET ASM; PEDAL 1-73908-050-7 01 1 9511-9607 ● ●
1 BRACKET ASM; PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-050-7 01 1 9511-9607 ●
1 BRACKET ASM; PEDAL 1-73908-050-8 01 1 9608- ● ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-050-8 01 1 9608- ●
1 BRACKET ASM; PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73998-935-8 01 1 9511-9607 ●
1 BRACKET ASM; PEDAL
A/T<X9D> 		1-73998-935-9 01 1 9608-9705 ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> AIR ASSIST CLUTCH<PK1> 		1-73998-935-9 01 1 9608-9705 ●
1 BRACKET ASM; PEDAL
A/T<X9D> 		1-73908-280-1 01 1 9706- ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> AIR ASSIST CLUTCH<PK1> 		1-73908-280-1 01 1 9706- ●
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 9510- ● ● ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9510- ● ● ●
7 CONNECTOR; BRK VALVE
(C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 9510- ● ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-141-1 02 1 9510-9511 ● ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-1 02 1 9512- ● ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 9510- ● ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0904 ● ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ● ●
31 PLATE; MTG,BRKT VLV 1-73996-329-1 01 1 9510- ● ● ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 9510- ● ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9510- ● ● ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 9510- ● ● ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 9510- ● ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0904 ● ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ● ●
321 SEAL; VALVE 1-73996-143-0 01 1 9510- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
