3-08A — PARKING BRAKE (#36205) — 74 parça

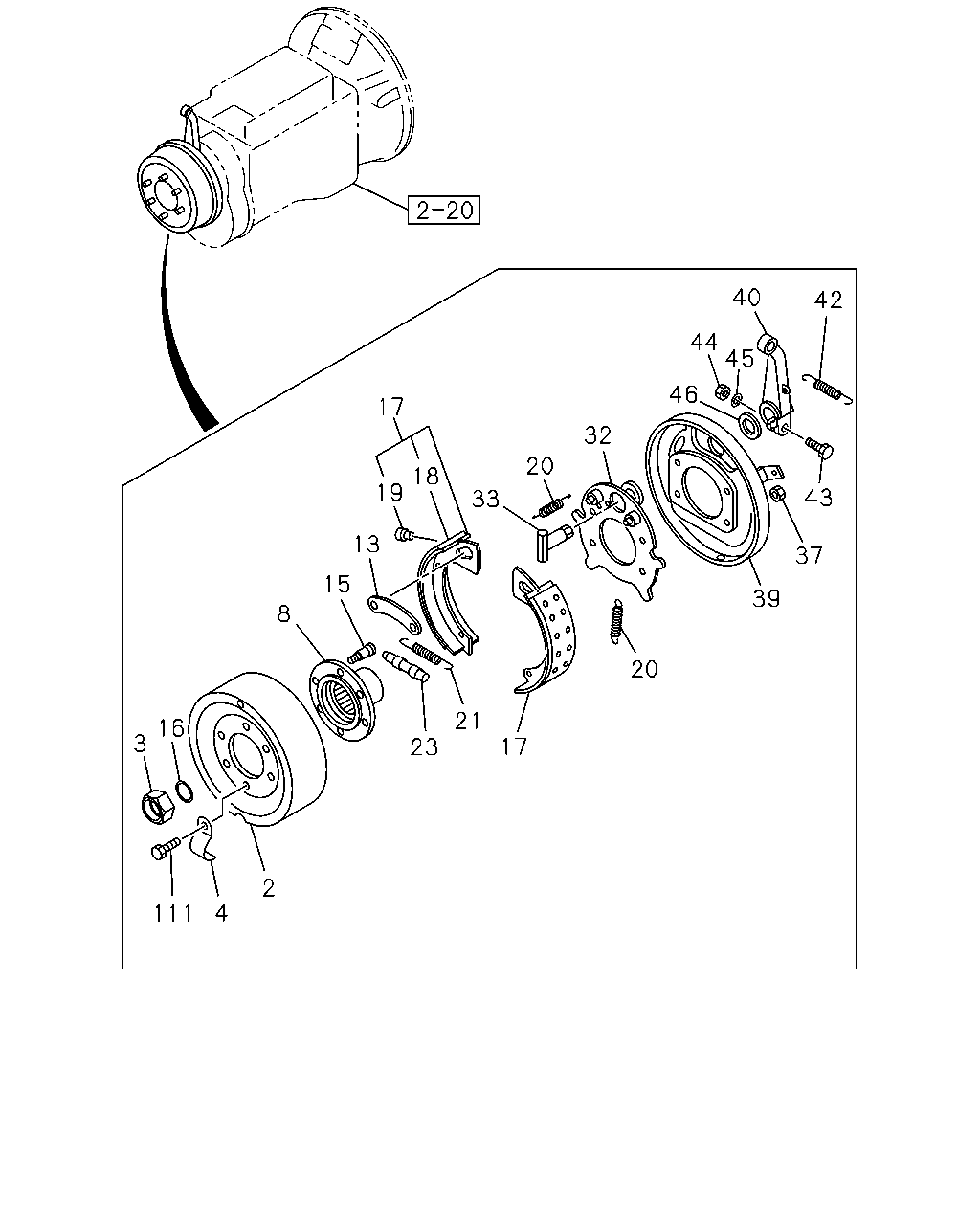

çizim 152210
40 42 44 45 46 17 32 20 18 19 43 33 13 37 15 39 8 20 21 16 3 17 23 2 4 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 DRUM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46211-019-0 01 1 9510-9510 ● ●
2 DRUM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46211-019-0 01 1 9511- ● ● ● ●
3 NUT; LK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE 		1-09449-063-0 01 1 9510-9510 ● ●
3 NUT; LK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE 		1-09449-063-0 01 1 9511-0805 ● ● ● ●
3 NUT; LK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE 		8-98014-140-0 01 1 0806- ● ● ● ●
4 COVER; ADJ HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46219-030-0 02 1 9510-9510 ● ●
4 COVER; ADJ HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46219-030-0 02 1 9511- ● ● ● ●
8 FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37243-235-0 01 1 9510-9510 ● ●
8 FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37243-235-0 01 1 9511-1002 ● ● ● ●
8 FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98153-193-0 01 1 1003- ● ● ● ●
13 BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-46239-002-0 01 1 0412- ● ● ● ●
13 BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-46239-002-0 01 1 9510-9510 ● ●
13 BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-46239-002-0 01 1 9511-0410 ● ● ● ●
15 BOLT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55 		1-46219-039-0 04 1 9510-9510 ● ●
15 BOLT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55 		1-46219-039-0 04 1 9511-0707 ● ● ● ●
15 BOLT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55 		8-98023-172-0 04 1 0708- ● ● ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5 		1-09623-380-0 01 1 9510-9510 ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5 		1-09623-380-0 01 1 9511- ● ● ● ●
17 SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46220-022-1 02 1 0412- ● ● ● ●
17 SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46220-022-0 02 1 9510-9510 ● ●
17 SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46220-022-0 02 1 9511-0410 ● ● ● ●
18 LINING; BRK,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46225-023-0 02 1 0412- ● ● ● ●
18 LINING; BRK,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46225-023-0 02 1 9510-9510 ● ●
18 LINING; BRK,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46225-023-0 02 1 9511-0410 ● ● ● ●
19 RIVET; LINING,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09732-012-0 32 1 0412-0807 ● ● ● ●
19 RIVET; LINING,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09732-058-0 32 1 0808- ● ● ● ●
19 RIVET; LINING,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09732-012-0 32 1 9510-9510 ● ●
19 RIVET; LINING,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09732-012-0 32 1 9511-0410 ● ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-434-0 02 1 0412- ● ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-434-0 02 1 9510-9510 ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-434-0 02 1 9511-0410 ● ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-516-0 01 1 0412- ● ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-516-0 01 1 9510-9510 ● ●
21 SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-516-0 01 1 9511-0410 ● ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46240-003-0 01 1 0412- ● ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46240-003-0 01 1 9510-9510 ● ●
23 SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46240-003-0 01 1 9511-0410 ● ● ● ●
32 PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-039-0 01 1 0412- ● ● ● ●
32 PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-039-0 01 1 9510-9510 ● ●
32 PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-039-0 01 1 9511-0410 ● ● ● ●
33 SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46251-010-0 01 1 0412- ● ● ● ●
33 SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46251-006-0 01 1 9510-9510 ● ●
33 SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46251-006-0 01 1 9511-0410 ● ● ● ●
37 NUT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE 		1-09440-048-0 04 1 9510-9510 ● ●
37 NUT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE 		1-09440-048-0 04 1 9511-0604 ● ● ● ●
37 NUT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE 		8-97365-444-0 04 1 0605- ● ● ● ●
39 COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-038-0 01 1 0412- ● ● ● ●
39 COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-038-0 01 1 9510-9510 ● ●
39 COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-038-0 01 1 9511-0410 ● ● ● ●
40 LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46252-046-0 01 1 0412- ● ● ● ●
40 LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46252-013-0 01 1 9510-9510 ● ●
40 LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46252-013-0 01 1 9511-0410 ● ● ● ●
42 SPRING; RETURN,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09583-104-0 01 1 9510-9510 ● ●
42 SPRING; RETURN,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09583-104-0 01 1 9511- ● ● ● ●
43 BOLT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		0-10811-040-0 01 1 0412-0710 ● ● ● ●
43 BOLT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-595-0 01 1 0711- ● ● ● ●
43 BOLT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		0-10811-040-0 01 1 9510-9510 ● ●
43 BOLT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		0-10811-040-0 01 1 9511-0410 ● ● ● ●
44 NUT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09111-410-0 01 1 0412-0512 ● ● ● ●
44 NUT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		0-91111-510-0 01 1 0601- ● ● ● ●
44 NUT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09111-410-0 01 1 9510-9510 ● ●
44 NUT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09111-410-0 01 1 9511-0410 ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-510-0 01 1 0412-0603 ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-010-0 01 1 9510-9510 ● ●
45 WASHER; LK,LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-010-0 01 1 9511-9608 ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-510-0 01 1 9609-0410 ● ● ● ●
46 WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09855-362-0 01 1 0412- ● ● ● ●
46 WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09855-362-0 01 1 9510-9510 ● ●
46 WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09855-362-0 01 1 9511-0410 ● ● ● ●
111 BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9510-9510 ● ●
111 BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511-0906 ● ● ● ●
111 BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50540-820-0 02 1 0907-1009 ● ● ● ●
111 BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50740-820-0 02 1 1010- ● ● ● ●
