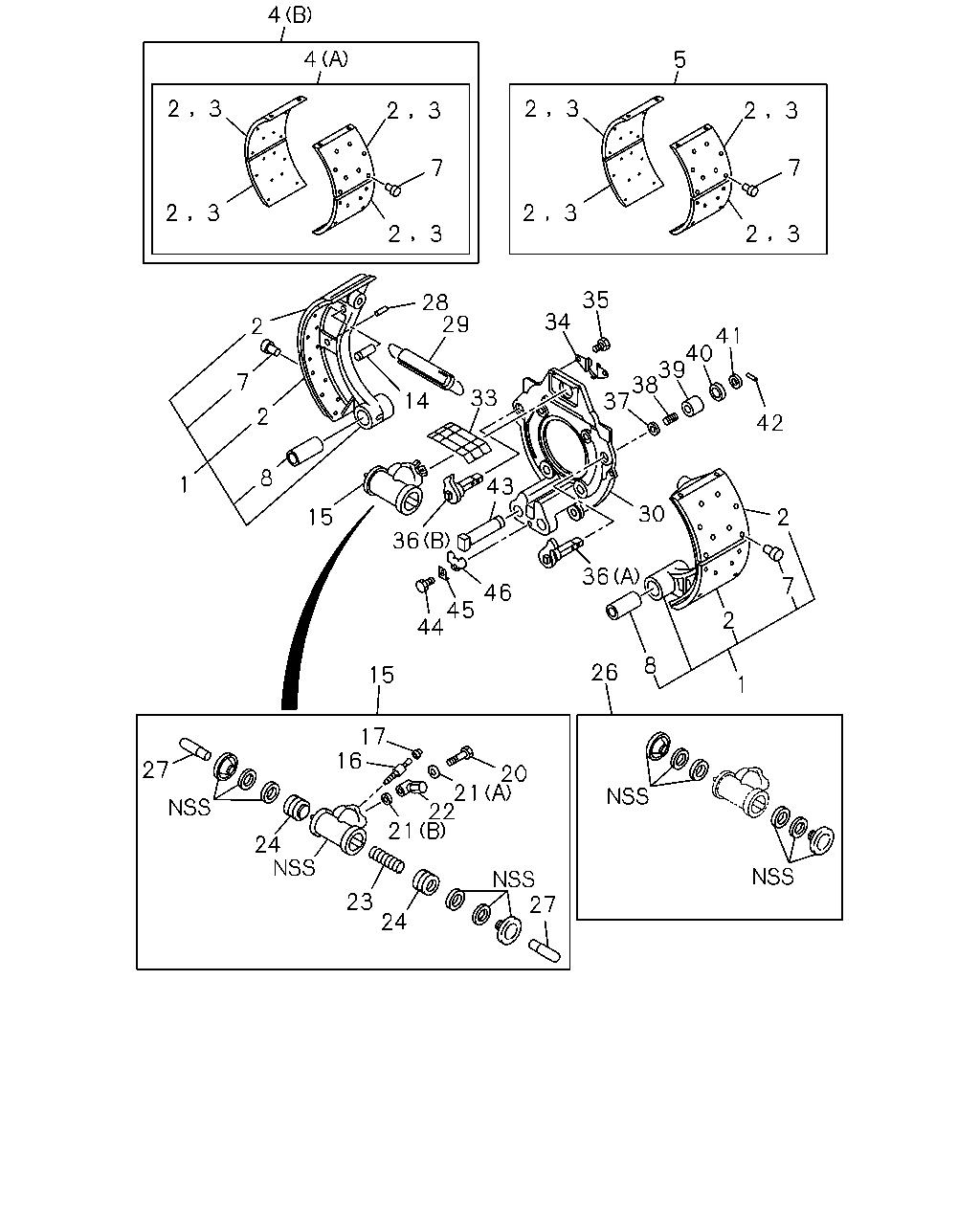

3-01 — FRONT WHEEL BRAKE (#36203) — 372 parça

4 4 2 3 2 3 7 2 3 2 3 5 2 3 2 3 2 3 7 2 3 2 7 2 1 8 15 28 14 35 34 33 41 40 39 38 37 42 2 1 7 2 8 26 36 30 43 46 45 44 15 36 27 24 17 16 20 21 22 21 23 24 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-709-0	01	1	0212-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-710-0	01	1	0212-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-711-0	01	1	0212-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-712-0	01	1	0212-	●
1	SHOE; BRK,FRT BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-325-0	04	1	9811-0004	●	●
1	SHOE; BRK,FRT BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-325-0	04	1	0005-0211	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-325-0	04	1	0212-0603	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47170-441-0	04	1	0604-	●
1	SHOE; BRK,FRT THAILAND EQUIPMENT(PM9)	1-47120-325-0	04	1	9510-9802	●	●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-706-0	04	1	9811-0211	●	●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	9811-0211			●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-706-0	04	1	0212-0603	●	●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	0212-0603			●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	0604-		●	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47120-706-0	04	1	0604-	●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	9803-9810	●	●	●
1	SHOE; BRK,FRT EXC. THAILAND EQUIPMENT(PM9)	1-47110-962-0	04	1	9510-9802	●	●
1	SHOE; BRK,FRT	1-47110-962-0	04	1	9510-9802			●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-793-0	04	1	0212-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-795-0	04	1	0212-	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-418-0	08	1	9811-0004	●	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-418-0	08	1	0005-0211	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-418-0	08	1	0212-0603	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-758-0	08	1	0604-	●
2	LINING; FRT BRK SHOE,STANDARD THAILAND EQUIPMENT(PM9)	1-47125-418-0	08	1	9510-9802	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. THAILAND EQUIPMENT(PM9)	1-47115-867-0	08	1	9510-9802	●	●
2	LINING; FRT BRK SHOE,STANDARD	1-47115-867-0	08	1	9510-9802			●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	9803-9810	●	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-811-0	08	1	9811-0211	●	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	9811-0211			●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-811-0	08	1	0212-0603	●	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	0212-0603			●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	0604-		●	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-811-0	08	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-794-0	04	1	0212-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-796-0	04	1	0212-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-419-0	08	1	9811-0004	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-419-0	08	1	0005-0211	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-419-0	08	1	0212-0603	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-759-0	08	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE THAILAND EQUIPMENT(PM9)	1-47125-419-0	08	1	9510-9802	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. THAILAND EQUIPMENT(PM9)	1-47115-869-0	08	1	9510-9802	●	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47115-869-0	08	1	9510-9802			●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	9803-9810	●	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-812-0	08	1	9811-0211	●	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	9811-0211			●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-812-0	08	1	0212-0603	●	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	0212-0603			●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	0604-		●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-812-0	08	1	0604-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-497-0	01	1	0212-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-499-0	01	1	0212-	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F049(FS4) (A)	1-88310-299-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-299-0	02	1	0005-0211	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-299-0	02	1	0212-0603	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY> (A)	1-88311-353-1	02	1	0604-	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7) (A)	1-88310-493-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD THAILAND EQUIPMENT(PM9) (A)	1-88310-299-0	02	1	9510-9802	●	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) (A)	1-88310-495-0	02	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	0005-0211	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	0005-0211			●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	0212-0603	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	0212-0603			●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	0604-		●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY> (A)	1-88310-495-0	02	1	0604-	●
4	LINING SET; FRT BRK,STANDARD EXC. THAILAND EQUIPMENT(PM9) (A)	1-88302-956-0	02	1	9510-9802	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88302-956-0	02	1	9510-9802			●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) (A)	1-88310-495-0	02	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	9803-9810			●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	9811-0004			●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) BEST VALUE PARTS	1-87610-125-0	01	1	0212-	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) (B) BEST VALUE PARTS	1-87610-125-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	0005-0211	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	0005-0211			●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	0212-0603	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	0212-0603			●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	0604-		●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY> (B) BEST VALUE PARTS	1-87610-125-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) (B) BEST VALUE PARTS	1-87610-125-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	9803-9810			●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	9811-0004			●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-498-0	01	1	0212-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-500-0	01	1	0212-	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F049(FS4)	1-88310-300-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-300-0	02	1	0005-0211	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-300-0	02	1	0212-0603	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88311-354-1	02	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	1-88310-494-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE THAILAND EQUIPMENT(PM9)	1-88310-300-0	02	1	9510-9802	●	●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F063(FS7)	1-88310-496-0	02	1	9803-9810	●	●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	0005-0211	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	0005-0211			●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	0212-0603	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	0212-0603			●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	0604-		●	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88310-496-0	02	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE EXC. THAILAND EQUIPMENT(PM9)	1-88310-001-0	02	1	9510-9802	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-001-0	02	1	9510-9802			●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F049(FS4)	1-88310-496-0	02	1	9803-9810	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	9803-9810			●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F049(FS4) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	9811-0004			●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9510-	●	●	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9510-	●	●	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9510-	●	●	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47601-122-0	01	1	0012-0211	●	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47601-122-0	01	1	0212-0603	●	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F063(FS7)	1-47601-122-0	01	1	0604-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47601-122-0	01	1	0604-	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47601-123-0	01	1	0012-0211	●	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47601-123-0	01	1	0212-0603	●	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F063(FS7)	1-47601-123-0	01	1	0604-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47601-123-0	01	1	0604-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-690-0	01	1	9510-0011	●	●	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-690-0	01	1	0012-0211	●	●	●
15	CYLINDER; WHEEL,FRT BRK BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	1-47600-690-0	01	1	0012-0211	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4)	1-47600-690-0	01	1	0212-0603	●	●	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	1-47600-690-0	01	1	0212-0603	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-690-0	01	1	0604-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47600-690-0	01	1	0604-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4)	1-47600-690-0	01	1	0604-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-690-0	01	1	0604-			●
15	CYLINDER; WHEEL,FRT BRK	1-47600-689-0	01	1	9510-0011	●	●	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-689-0	01	1	0012-0211	●	●	●
15	CYLINDER; WHEEL,FRT BRK BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	1-47600-689-0	01	1	0012-0211	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4)	1-47600-689-0	01	1	0212-0603	●	●	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	1-47600-689-0	01	1	0212-0603	●
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049(FS4)	1-47600-689-0	01	1	0604-		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47600-689-0	01	1	0604-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4)	1-47600-689-0	01	1	0604-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-689-0	01	1	0604-			●
16	SCREW; BLEEDER,FRT BRK L=66.5	1-47615-005-0	02	1	9510-0211	●	●	●
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5	1-47615-005-0	02	1	0212-	●	●	●
17	CAP; BLEEDER,FRT WHEEL CYL OD=12	1-47619-011-0	02	1	9510-0211	●	●	●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0212-	●	●	●
20	BOLT; JOINT M12X40.5 EYE BOLT	1-47634-006-0	02	1	9510-0211	●	●	●
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	0212-	●	●	●
21	GASKET; UNION BOLT (A) ID=15.2	1-09630-019-0	02	1	9510-0211	●	●	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	0212-	●	●	●
21	GASKET; UNION BOLT (B) ID=12.2	1-09630-020-0	02	1	9510-0211	●	●	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	0212-	●	●	●
22	JOINT; PIPE	1-47631-057-1	02	1	9510-0211	●	●	●
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	0212-	●	●	●
23	SPRING; COIL	9-09940-435-0	02	1	9510-0211	●	●	●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09940-435-0	02	1	0212-	●	●	●
24	PISTON; FRT WHEEL CYL FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47624-389-0	04	1	0012-0211	●	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47624-389-0	04	1	0212-0603	●	●
24	PISTON; FRT WHEEL CYL FRONT AXLE F063(FS7)	1-47624-389-0	04	1	0604-		●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47624-389-0	04	1	0604-	●
24	PISTON; FRT WHEEL CYL	9-47624-211-0	04	1	9510-0011	●	●	●
24	PISTON; FRT WHEEL CYL FRONT AXLE F049(FS4)	9-47624-211-0	04	1	0012-0211	●	●	●
24	PISTON; FRT WHEEL CYL BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	9-47624-211-0	04	1	0012-0211	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4)	9-47624-211-0	04	1	0212-0603	●	●	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	9-47624-211-0	04	1	0212-0603	●
24	PISTON; FRT WHEEL CYL FRONT AXLE F049(FS4)	9-47624-211-0	04	1	0604-		●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	9-47624-211-0	04	1	0604-	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4)	9-47624-211-0	04	1	0604-	●
24	PISTON; FRT WHEEL CYL	9-47624-211-0	04	1	0604-			●
26	CUP SET; FRT WHEEL CYL FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-87830-676-0	02	1	0012-0211	●	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-87830-676-0	02	1	0212-0603	●	●
26	CUP SET; FRT WHEEL CYL FRONT AXLE F063(FS7)	1-87830-676-0	02	1	0604-		●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-87830-676-0	02	1	0604-	●
26	CUP SET; FRT WHEEL CYL ID=33.3	1-87830-525-0	02	1	9510-0011	●	●	●
26	CUP SET; FRT WHEEL CYL FRONT AXLE F049(FS4) ID=33.3	1-87830-525-0	02	1	0012-0211	●	●	●
26	CUP SET; FRT WHEEL CYL BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7) ID=33.3	1-87830-525-0	02	1	0012-0211	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4) ID=33.3	1-87830-525-0	02	1	0212-0603	●	●	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7) ID=33.3	1-87830-525-0	02	1	0212-0603	●
26	CUP SET; FRT WHEEL CYL FRONT AXLE F049(FS4) ID=33.3	1-87830-525-0	02	1	0604-		●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F063(FS7) BRK LINING MATERIAL L808 NON ASBESTOS<BHY> ID=33.3	1-87830-525-0	02	1	0604-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT AXLE F049(FS4) ID=33.3	1-87830-525-0	02	1	0604-	●
26	CUP SET; FRT WHEEL CYL ID=33.3	1-87830-525-0	02	1	0604-			●
27	ROD; PUSH	1-47621-009-0	04	1	9510-0211	●	●	●
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	0212-	●	●	●
28	PIN; SHOE ADJ CAM GUIDE	1-47116-002-0	04	1	9510-0211	●	●	●
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	0212-	●	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	0212-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-269-1	02	1	9510-0211	●	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	0212-	●	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-3	01	1	0212-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-3	01	1	0212-	●
30	BRACKET; ANCHOR,FRT	1-47137-149-0	02	1	9510-9901	●	●	●
30	BRACKET; ANCHOR,FRT	1-47137-435-0	02	1	9902-0211	●	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	0212-	●	●	●
33	COVER; WHEEL CYL	1-47159-080-0	02	1	9510-0211	●	●	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-080-0	02	1	0212-	●	●	●
34	PLATE; DIRECTION,FRT	1-47159-094-0	02	1	9510-0211	●	●	●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	0212-	●	●	●
35	BOLT; FRT WHEEL CYL M12X35 W/LK WASHER	0-50051-235-0	04	1	9510-0211	●	●	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	0212-0906	●	●	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-	●	●	●
36	CAM ASM; ADJ (A)	1-47165-058-1	02	1	9510-0211	●	●	●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	0212-	●	●	●
36	CAM ASM; ADJ (B)	1-47165-059-1	02	1	9510-0211	●	●	●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	0212-	●	●	●
37	WASHER; ADJ CAM	1-47169-033-0	04	1	9510-0211	●	●	●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	0212-	●	●	●
38	SPRING; ADJ CAM	1-47169-046-0	04	1	9510-0211	●	●	●
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	0212-	●	●	●
39	BOOT; ADJ CAM	1-47169-034-0	04	1	9510-0211	●	●	●
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	0212-	●	●	●
40	COVER; BOOT,ADJ CAM	1-47169-031-0	04	1	9510-0211	●	●	●
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	0212-	●	●	●
41	INDICATOR	1-47169-032-1	04	1	9510-0211	●	●	●
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	0212-	●	●	●
42	PIN; SPINDLE	1-47169-030-0	04	1	9510-0211	●	●	●
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	0212-	●	●	●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9510-	●	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9510-0512	●	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-	●	●	●
45	WASHER; LK	1-47133-011-0	02	1	9510-	●	●	●
46	PLATE; LOCK	1-47133-005-0	02	1	9510-	●	●	●

2 3 2 3 7 3 2 2 3 2 3 2 3 2 3 2 3 1 2 2 7 8 14 13 9 12 43 29 1 5 4 4 4 44 47 45 46 48 30 57 31 109 109 51 50 53 52 58 59 62 60 55 54 56 63 61 64 49 2 3 7 3 2 3 2 3 3 2 7 2 3 2 2 3 5 3 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-709-0	01	1	0212-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-710-0	01	1	0212-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-711-0	01	1	0212-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-712-0	01	1	0212-	●
1	SHOE; BRK,FRT BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-325-0	04	1	9811-0004	●	●
1	SHOE; BRK,FRT BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-325-0	04	1	0005-0211	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-325-0	04	1	0212-0603	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47170-441-0	04	1	0604-	●
1	SHOE; BRK,FRT THAILAND EQUIPMENT(PM9)	1-47120-325-0	04	1	9510-9802	●	●
1	SHOE; BRK,FRT EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-706-0	04	1	9811-0211	●	●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	9811-0211			●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47120-706-0	04	1	0212-0603	●	●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	0212-0603			●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	0604-		●	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47120-706-0	04	1	0604-	●
1	SHOE; BRK,FRT	1-47120-706-0	04	1	9803-9810	●	●	●
1	SHOE; BRK,FRT EXC. THAILAND EQUIPMENT(PM9)	1-47110-962-0	04	1	9510-9802	●	●
1	SHOE; BRK,FRT	1-47110-962-0	04	1	9510-9802			●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-793-0	04	1	0212-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-795-0	04	1	0212-	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-418-0	08	1	9811-0004	●	●
2	LINING; FRT BRK SHOE,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-418-0	08	1	0005-0211	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-418-0	08	1	0212-0603	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-758-0	08	1	0604-	●
2	LINING; FRT BRK SHOE,STANDARD THAILAND EQUIPMENT(PM9)	1-47125-418-0	08	1	9510-9802	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. THAILAND EQUIPMENT(PM9)	1-47115-867-0	08	1	9510-9802	●	●
2	LINING; FRT BRK SHOE,STANDARD	1-47115-867-0	08	1	9510-9802			●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	9803-9810	●	●	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-811-0	08	1	9811-0211	●	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	9811-0211			●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-811-0	08	1	0212-0603	●	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	0212-0603			●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-811-0	08	1	0604-		●	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-811-0	08	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-794-0	04	1	0212-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-796-0	04	1	0212-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-419-0	08	1	9811-0004	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-419-0	08	1	0005-0211	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-419-0	08	1	0212-0603	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47126-759-0	08	1	0604-	●
3	LINING; FRT BRK SHOE,OVER SIZE THAILAND EQUIPMENT(PM9)	1-47125-419-0	08	1	9510-9802	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. THAILAND EQUIPMENT(PM9)	1-47115-869-0	08	1	9510-9802	●	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47115-869-0	08	1	9510-9802			●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	9803-9810	●	●	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-812-0	08	1	9811-0211	●	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	9811-0211			●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-47125-812-0	08	1	0212-0603	●	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	0212-0603			●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-812-0	08	1	0604-		●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-47125-812-0	08	1	0604-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-497-0	01	1	0212-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-499-0	01	1	0212-	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F049(FS4) (A)	1-88310-299-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-299-0	02	1	0005-0211	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-299-0	02	1	0212-0603	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY> (A)	1-88311-353-1	02	1	0604-	●
4	LINING SET; FRT BRK,STANDARD BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7) (A)	1-88310-493-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD THAILAND EQUIPMENT(PM9) (A)	1-88310-299-0	02	1	9510-9802	●	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) (A)	1-88310-495-0	02	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	0005-0211	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	0005-0211			●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	0212-0603	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	0212-0603			●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	0604-		●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY> (A)	1-88310-495-0	02	1	0604-	●
4	LINING SET; FRT BRK,STANDARD EXC. THAILAND EQUIPMENT(PM9) (A)	1-88302-956-0	02	1	9510-9802	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88302-956-0	02	1	9510-9802			●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) (A)	1-88310-495-0	02	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	9803-9810			●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (A)	1-88310-495-0	02	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD (A)	1-88310-495-0	02	1	9811-0004			●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) BEST VALUE PARTS	1-87610-125-0	01	1	0212-	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) (B) BEST VALUE PARTS	1-87610-125-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	0005-0211	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	0005-0211			●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	0212-0603	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	0212-0603			●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	0604-		●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY> (B) BEST VALUE PARTS	1-87610-125-0	01	1	0604-	●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) (B) BEST VALUE PARTS	1-87610-125-0	01	1	9803-9810	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	9803-9810			●
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049(FS4) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> (B) BEST VALUE PARTS	1-87610-125-0	01	1	9811-0004	●	●
4	LINING SET; FRT BRK,STANDARD (B) BEST VALUE PARTS	1-87610-125-0	01	1	9811-0004			●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-498-0	01	1	0212-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-500-0	01	1	0212-	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F049(FS4)	1-88310-300-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-300-0	02	1	0005-0211	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-300-0	02	1	0212-0603	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88311-354-1	02	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> FRONT AXLE F063(FS7)	1-88310-494-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE THAILAND EQUIPMENT(PM9)	1-88310-300-0	02	1	9510-9802	●	●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F063(FS7)	1-88310-496-0	02	1	9803-9810	●	●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F063(FS7) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	0005-0211	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	0005-0211			●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	0212-0603	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	0212-0603			●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	0604-		●	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>	1-88310-496-0	02	1	0604-	●
5	LINING SET; FRT BRK,OVER SIZE EXC. THAILAND EQUIPMENT(PM9)	1-88310-001-0	02	1	9510-9802	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-001-0	02	1	9510-9802			●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F049(FS4)	1-88310-496-0	02	1	9803-9810	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	9803-9810			●
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F049(FS4) EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>	1-88310-496-0	02	1	9811-0004	●	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-496-0	02	1	9811-0004			●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9510-	●	●	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9510-	●	●	●
9	PIN; SHOE HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-060-0	04	1	0212-	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-007-0	04	1	0212-	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	0212-	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9510-	●	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	0212-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-269-1	02	1	9510-0211	●	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	0212-	●	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-3	01	1	0212-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-3	01	1	0212-	●
30	BRACKET; ANCHOR,FRT	1-47137-149-0	02	1	9510-9901	●	●	●
30	BRACKET; ANCHOR,FRT	1-47137-435-0	02	1	9902-0211	●	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	0212-	●	●	●
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	0212-	●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9510-	●	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9510-0512	●	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-	●	●	●
45	WASHER; LK	1-47133-011-0	02	1	9510-	●	●	●
46	PLATE; LOCK	1-47133-005-0	02	1	9510-	●	●	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-051-0	01	1	0212-	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-052-0	01	1	0212-	●
48	RING; SPACER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	0212-	●
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	01	1	0212-0512	●
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0212-0512	●
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●
50	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	0212-	●
51	COLLAR; RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-016-0	02	1	0212-	●
52	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	0212-	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-043-0	01	1	0212-	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-044-0	01	1	0212-	●
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-004-0	02	1	0212-	●
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-021-0	02	1	0212-	●
56	CLIP; ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	02	1	0212-	●
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	0212-0512	●
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
58	PIN; SPLIT,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	0212-0606	●
58	PIN; SPLIT,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	0-81124-028-0	02	1	0607-	●
59	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	0212-	●
60	JOINT; JAW,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-1	02	1	0212-	●
61	PIN; JAW JOINT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	0212-	●
62	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	0212-0512	●
62	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0601-	●
63	NUT; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	04	1	0212-0512	●
63	NUT; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91110-516-0	04	1	0601-	●
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	04	1	0212-0603	●
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	04	1	0604-	●
109	BUSHING; CM/SHF,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	04	1	0212-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
