Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#362) — 152 parça

241 242 246 244 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9202-	●	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9202-	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15	9-09715-098-0	01	1	9202-	●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9202-	●	●

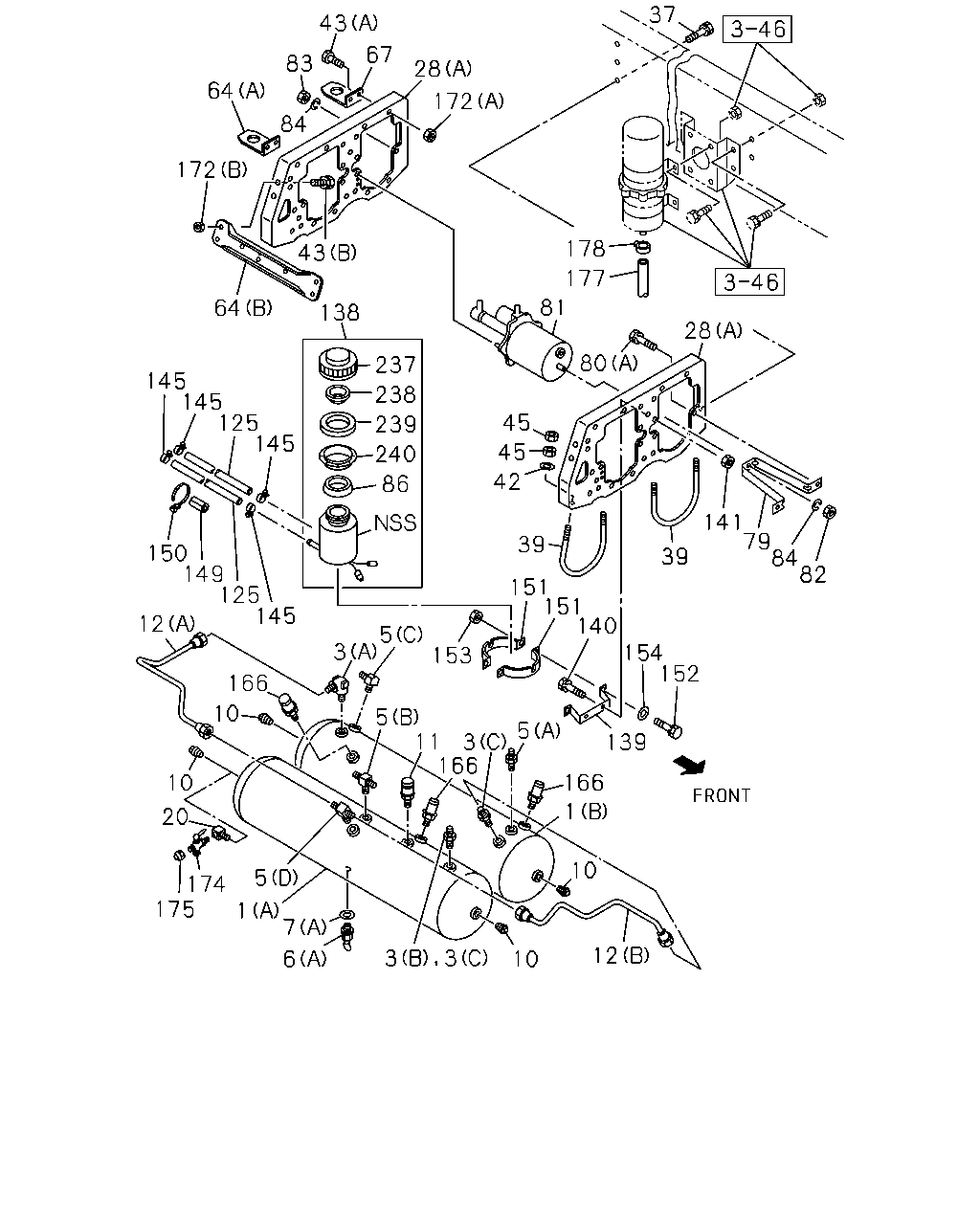

37 43 67 83 28 64 172 84 172 43 178 177 138 81 64 28 80 237 145 145 125 145 238 45 239 45 240 42 86 141 79 84 82 39 150 149 125 145 39 151 151 140 154 152 12 5 3 153 166 5 11 3 166 10 5 139 166 10 1 20 10 5 174 175 1 7 12 6 10 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (B)	1-48330-206-1	01	1	9202-	●	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9202-	●	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48330-150-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (C)	1-48410-182-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (D)	1-48410-132-2	01	1	9202-		●
5	UNION; AIR TANK (C)	1-09650-221-1	01	1	9202-9302	●	●
5	UNION; AIR TANK (C) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-	●	●
5	UNION; AIR TANK (A) M16	1-09650-245-1	01	1	9202-	●	●
5	UNION; AIR TANK (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-	●	●
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE<NF8>,PTO CONTROL AIR LINK TYPE<SEC>,TIR E INFLATOR DEVICE(SG4),PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8> (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302	●	●
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE<NF8>,PTO CONTROL AIR LINK TYPE<SEC>,TIR E INFLATOR DEVICE(SG4),PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-0	01	1	9202-9207	●	●
5	UNION; AIR TANK EXC. DUAL AIR GAUGE<UG2> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-0	01	1	9202-9207	●	●
5	UNION; AIR TANK PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE<NF8> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-0	01	1	9202-9207	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DUAL AIR GAUGE<UG2> EXC. TIRE INFLATOR DEVICE(SG4) (B) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9208-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (E) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9202-9302		●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-		●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9202-	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B) W/COVER	1-48312-004-1	01	1	9202-		●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	04	1	9202-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	03	1	9202-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	04	1	9202-	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	02	1	9202-		●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9202-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47481-349-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-011-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47482-864-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-012-0	01	1	9301-	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4)	9-09903-738-0	01	1	9202-9207	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4)	1-09660-501-0	01	1	9208-	●	●
28	BRACKET; AIR TANK (A)	1-53318-232-9	02	1	9202-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48317-430-0	02	1	9202-		●
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9202-	●	●
39	U-BOLT; AIR TANK L=210	1-48317-323-1	02	1	9202-	●	●
39	U-BOLT; AIR TANK L=195	1-48317-367-2	02	1	9202-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) L=245	1-48317-004-0	02	1	9202-9501		●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) L=250	1-48317-308-0	02	1	9502-		●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9202-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28080-820-0	04	1	9206-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X22 W/LK&PL WASHER	0-50141-022-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9206-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9202-	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-224-2	01	1	9202-9207	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	9208-	●	●
64	STAY; AIR TANK,MAIN (A)	8-94301-490-0	01	1	9202-	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9202-	●	●
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9202-	●	●
80	BOLT; BRKT (A) M10X25 W/LK WASHER	0-50041-025-0	04	1	9202-	●	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B) M10X20 W/LK WASHER	0-50041-020-0	04	1	9202-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-395-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-396-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-382-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-397-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-508-1	01	1	9202-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-509-1	01	1	9202-		●
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	04	1	9202-9205	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-110-0	04	1	9206-	●	●
83	NUT; AIR MASTER M10	9-09110-410-0	10	1	9202-9205	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9206-	●	●
84	WASHER; LK,AIR MASTER ID=10.2	9-09150-510-0	10	1	9202-9205	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER L=325 SERVICED BY L=1800	1-09360-320-0	02	1	9202-9205	●	●
125	HOSE; OIL TANK TO AIR MASTER L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9206-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9202-	●	●
139	BRACKET; OIL TANK	1-47537-112-1	01	1	9202-9205	●	●
139	BRACKET; OIL TANK	1-47537-081-1	01	1	9206-	●	●
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9202-9403	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9404-	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9202-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=15	1-09704-018-1	04	1	9202-9205	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9206-	●	●
149	SLEEVE; RUBBER,HOSE ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-9205	●	●
149	SLEEVE; RUBBER,HOSE ID=15 OD=19 L=50	1-09337-014-0	01	1	9206-9209	●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9210-	●	●
150	CLIP; BAND,RUBBER SLEEVE L=100	5-09707-036-0	02	1	9202-9205	●	●
150	CLIP; BAND,RUBBER SLEEVE L=100	5-09707-036-0	01	1	9206-9209	●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-0	01	1	9210-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9202-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	9202-9205	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9206-	●	●
154	WASHER; PL,OIL TANK TO BAND ID=8.4	9-09160-508-0	02	1	9202-9205	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5)	1-48340-040-0	01	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-0	01	1	9412-		●
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9202-	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9308-	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9202-	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9202-	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=250 SERVICED BY L=3000	0-02165-300-0	01	1	9202-9310	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9311-	●	●
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9202-9406	●	●
237	CAP; OIL TANK	1-47525-026-1	01	1	9202-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9202-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9202-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9202-	●	●

34 31 80 46 46 33 28 5 3 10 28 46 166 10 1 7 6 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (B)	1-48330-206-1	01	1	9202-	●	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9202-	●	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48330-150-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (C)	1-48410-182-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (D)	1-48410-132-2	01	1	9202-		●
5	UNION; AIR TANK (C)	1-09650-221-1	01	1	9202-9302	●	●
5	UNION; AIR TANK (C) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-	●	●
5	UNION; AIR TANK (A) M16	1-09650-245-1	01	1	9202-	●	●
5	UNION; AIR TANK (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-	●	●
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE<NF8>,PTO CONTROL AIR LINK TYPE<SEC>,TIR E INFLATOR DEVICE(SG4),PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8> (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302	●	●
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE<NF8>,PTO CONTROL AIR LINK TYPE<SEC>,TIR E INFLATOR DEVICE(SG4),PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-0	01	1	9202-9207	●	●
5	UNION; AIR TANK EXC. DUAL AIR GAUGE<UG2> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-0	01	1	9202-9207	●	●
5	UNION; AIR TANK PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE<NF8> (B) M12 & M16 & PT1/4 3WAY	1-09650-170-0	01	1	9202-9207	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DUAL AIR GAUGE<UG2> EXC. TIRE INFLATOR DEVICE(SG4) (B) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9208-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (E) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9202-9302		●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-		●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9202-	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B) W/COVER	1-48312-004-1	01	1	9202-		●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	04	1	9202-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	03	1	9202-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	04	1	9202-	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	02	1	9202-		●
28	BRACKET; AIR TANK (A)	1-53318-232-9	02	1	9202-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48317-430-0	02	1	9202-		●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9202-		●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5)	1-48317-431-2	01	1	9202-		●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	04	1	9202-		●
39	U-BOLT; AIR TANK L=210	1-48317-323-1	02	1	9202-	●	●
39	U-BOLT; AIR TANK L=195	1-48317-367-2	02	1	9202-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) L=245	1-48317-004-0	02	1	9202-9501		●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) L=250	1-48317-308-0	02	1	9502-		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (A) M8	9-09110-408-0	08	1	9202-		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B) M10	9-09110-510-0	04	1	9308-		●
80	BOLT; BRKT (A) M10X25 W/LK WASHER	0-50041-025-0	04	1	9202-	●	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (B) M10X20 W/LK WASHER	0-50041-020-0	04	1	9202-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5)	1-48340-040-0	01	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-0	01	1	9412-		●
