2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#36191) — 148 parça

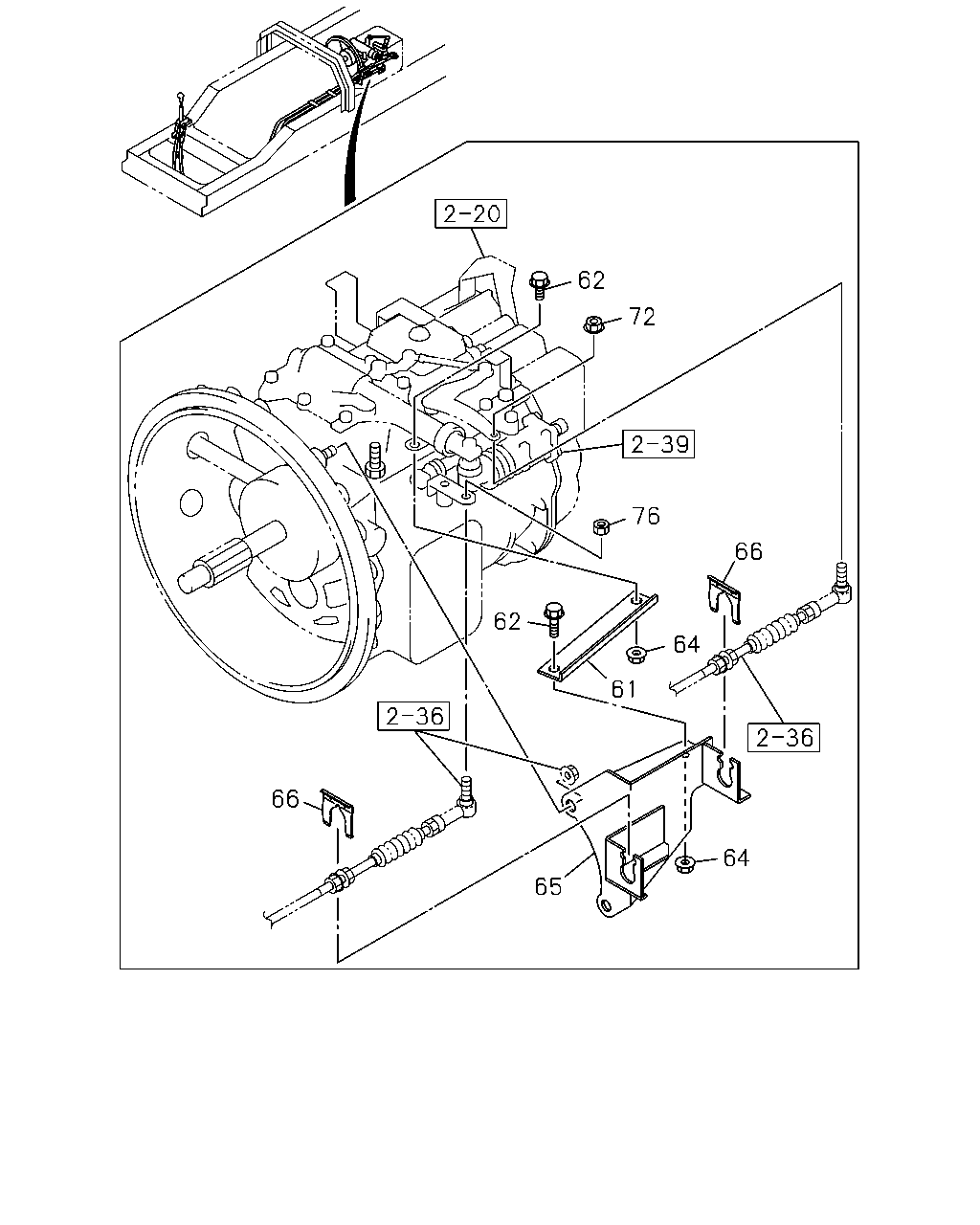

62 72 76 66 62 64 61 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9510-	●	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-				●	●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9510-	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	01	1	9803-9804	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9803-9804				●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	9805-0512	●	●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0512				●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●	●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-				●	●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605	●	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9802	●	●	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	02	1	9803-9804	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	9805-0512	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9510-9605	●	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9606-0602	●	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-554-2	01	1	9510-9802	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9510-9802				●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9803-				●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-677-0	01	1	9803-	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9510-	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-	●	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609	●	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-	●	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802	●	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9803-				●	●

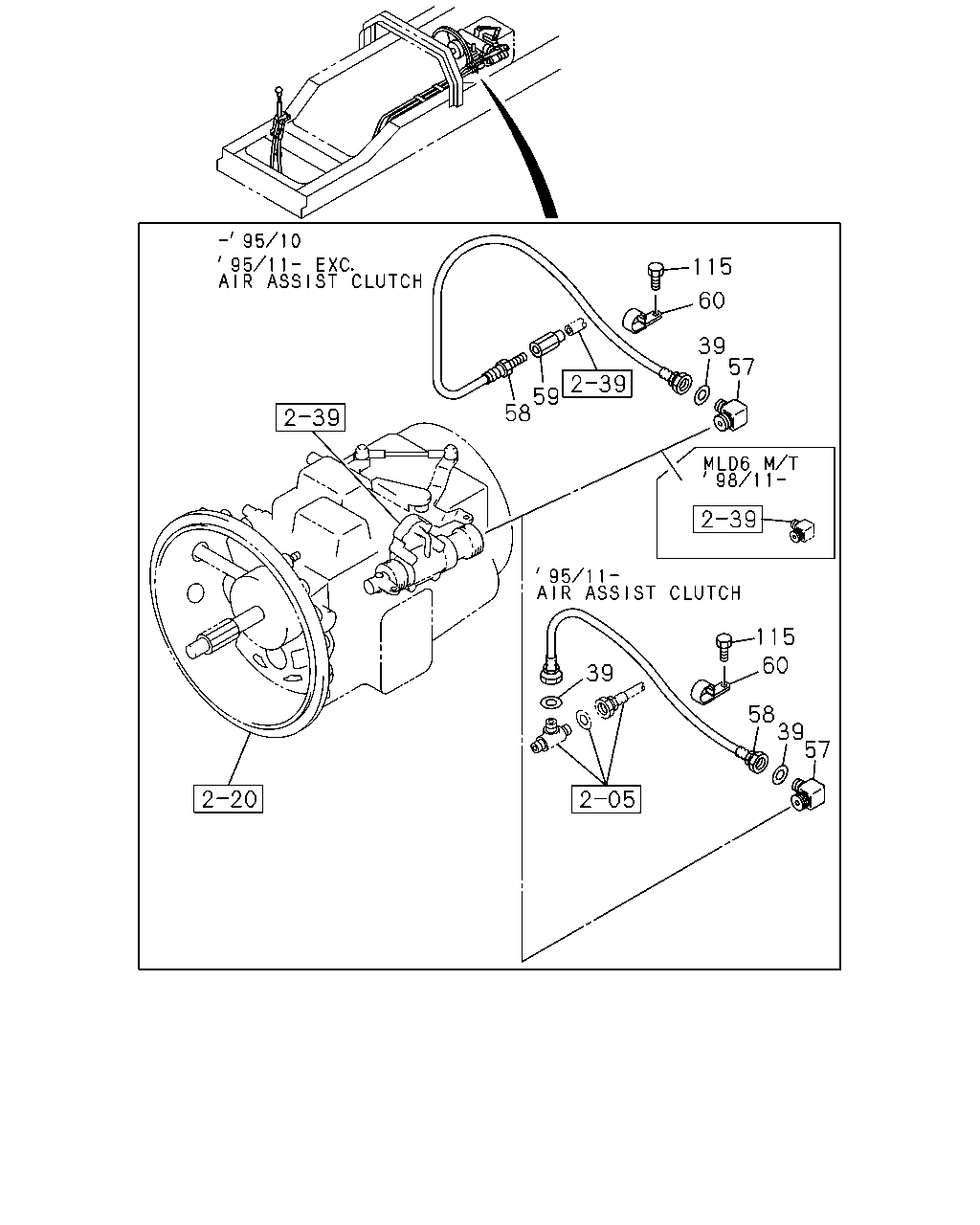

115 60 39 57 59 58 115 60 39 58 39 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9510-9510		●	●
39	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9510-9510				●	●
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9511-9802	●	●	●
39	GASKET; FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1> ID=11 OD=18	9-09572-510-0	01	1	9511-9802				●
39	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9511-9802					●
39	GASKET; FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=11 OD=18	9-09572-510-0	02	1	9511-9802				●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8>	1-09660-704-0	01	1	9510-9702	●	●	●
57	NIPPLE; POWER ASSISTOR	1-09660-704-0	01	1	9510-9702				●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8>	1-09660-704-0	01	1	9703-9802	●	●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(RR3)	1-09660-704-0	01	1	9703-9802				●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	9803-9902	●	●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> AUSTRALIA EQUIPMENT(RR3)	1-09660-987-0	01	1	9703-9802				●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> AUSTRALIA EQUIPMENT(RR3)	1-09661-002-1	01	1	9803-0004				●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(RR3) M12 & PT1/4 ELBOW	1-09661-001-1	01	1	9803-0004				●	●
57	NIPPLE; POWER ASSISTOR M12 & PT1/4 ELBOW	1-09661-001-1	01	1	0005-				●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=790	0-07120-790-0	01	1	9510-9510		●	●
58	HOSE; FLEX,POWER ASSISTOR L=790	0-07120-790-0	01	1	9510-9510				●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=790	0-07120-790-0	01	1	9511-9802	●	●	●
58	HOSE; FLEX,POWER ASSISTOR EXC. AIR ASSIST CLUTCH<PK1> L=790	0-07120-790-0	01	1	9511-9802				●
58	HOSE; FLEX,POWER ASSISTOR L=790	0-07120-790-0	01	1	9511-9802					●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=800	1-09363-695-0	01	1	9803-0004		●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=800	1-09363-695-0	01	1	9803-0004	●			●
58	HOSE; FLEX,POWER ASSISTOR L=800	1-09363-695-0	01	1	9803-0004					●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-674-0	01	1	0005-		●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=740	1-09363-674-0	01	1	0005-	●			●
58	HOSE; FLEX,POWER ASSISTOR L=740	1-09363-674-0	01	1	0005-					●
58	HOSE; FLEX,POWER ASSISTOR AIR ASSIST CLUTCH<PK1> L=820	1-09363-565-1	01	1	9511-9802				●
58	HOSE; FLEX,POWER ASSISTOR AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	9803-	●
58	HOSE; FLEX,POWER ASSISTOR AIR ASSIST CLUTCH<PK1> L=780	1-09363-620-0	01	1	9803-				●
59	CONNECTOR; AIR HOSE,SHIFT POWER ASSIST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0301-	●	●	●	●	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	9-09525-235-0	02	1	9510-0606	●	●	●
60	CLIP; FLEX HOSE ID=13 L=20	9-09525-235-0	02	1	9510-0606				●	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	0-95235-235-0	02	1	0607-	●	●	●
60	CLIP; FLEX HOSE ID=13 L=20	0-95235-235-0	02	1	0607-				●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	9510-9703	●	●	●
115	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9703				●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28680-820-0	02	1	9704-9812	●	●	●
115	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9704-9812				●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	9901-0512	●	●	●
115	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9901-0512				●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
115	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-				●	●

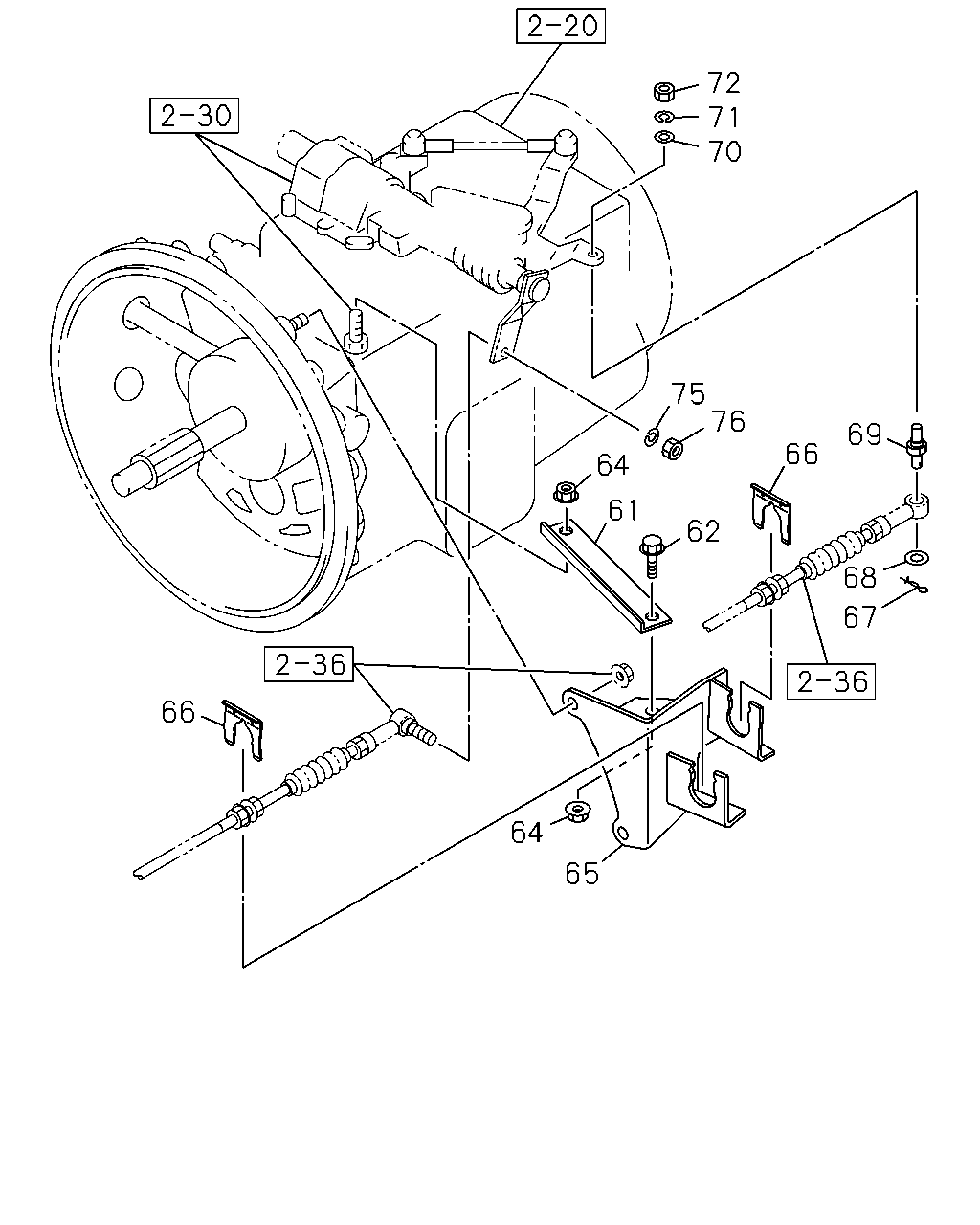

72 71 70 76 75 69 66 64 61 62 68 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9510-	●	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-				●	●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9510-	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	01	1	9803-9804	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9803-9804				●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	9805-0512	●	●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0512				●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●	●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-				●	●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605	●	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9802	●	●	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	02	1	9803-9804	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	9805-0512	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9510-9605	●	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9606-0602	●	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-554-2	01	1	9510-9802	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9510-9802				●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9803-				●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-677-0	01	1	9803-	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9510-	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-	●	●	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9510-9802	●	●	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9803-1509				●	●
67	PIN; SNAP,SELECT WIRE L=27.7	1-09987-141-0	01	1	1510-				●	●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9510-9702	●	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9510-9802	●	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9803-				●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9510-9802	●	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9803-0605				●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0606-				●	●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9510-9702	●	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609	●	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-	●	●	●	●	●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9510-9802	●	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802	●	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9803-				●	●

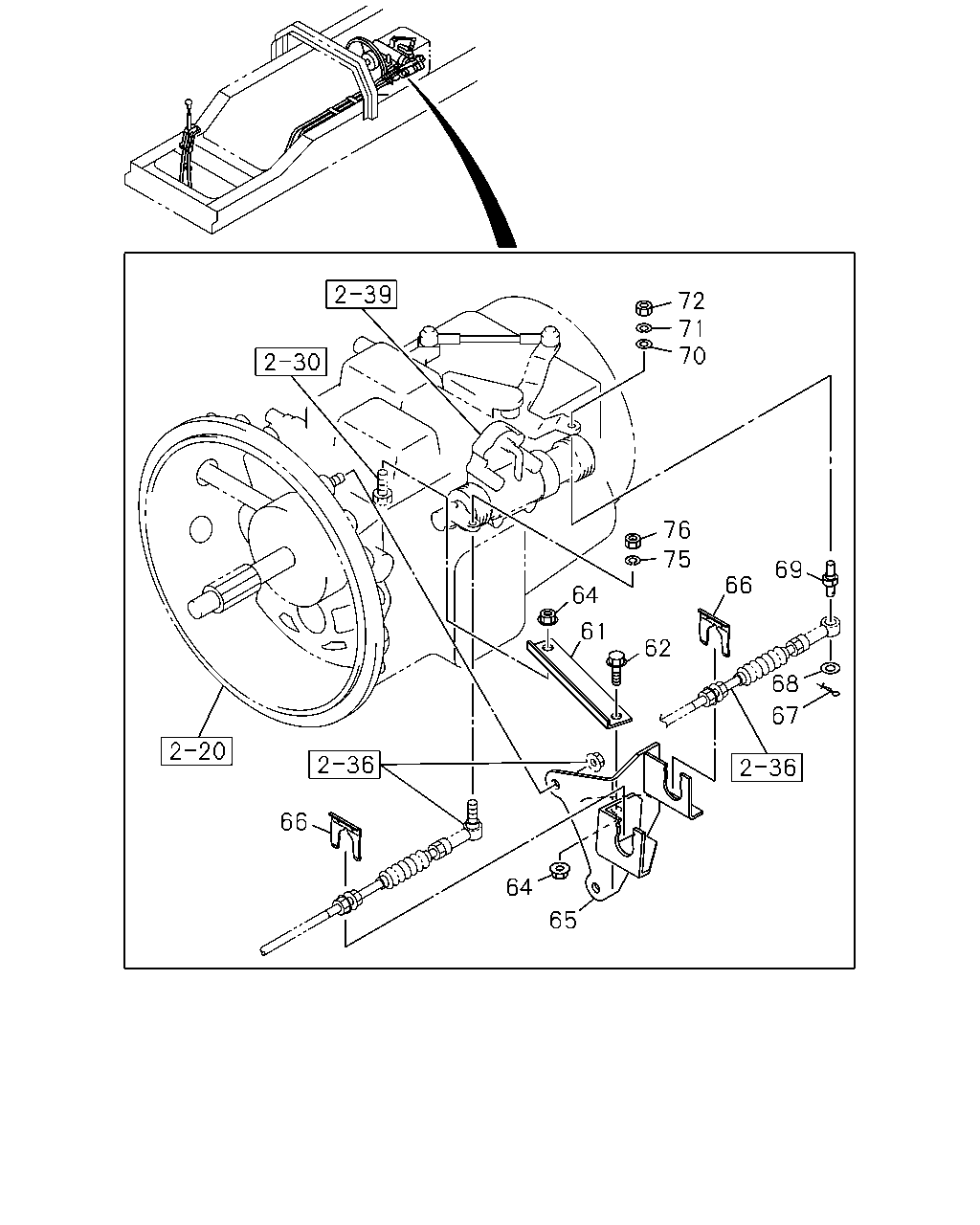

72 71 70 75 76 69 66 64 61 62 68 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9510-	●	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-				●	●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9510-	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	01	1	9803-9804	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9803-9804				●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	9805-0512	●	●	●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0512				●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●	●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-				●	●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605	●	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9802	●	●	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	02	1	9803-9804	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	9805-0512	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9510-9605	●	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9606-0602	●	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-554-2	01	1	9510-9802	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9510-9802				●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9803-				●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-677-0	01	1	9803-	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9510-	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-	●	●	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9510-9802	●	●	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9803-1509				●	●
67	PIN; SNAP,SELECT WIRE L=27.7	1-09987-141-0	01	1	1510-				●	●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9510-9702	●	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9510-9802	●	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9803-				●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9510-9802	●	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9803-0605				●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0606-				●	●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9510-9702	●	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609	●	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-	●	●	●	●	●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9510-9802	●	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802	●	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9803-				●	●
