2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#36190) — 73 parça

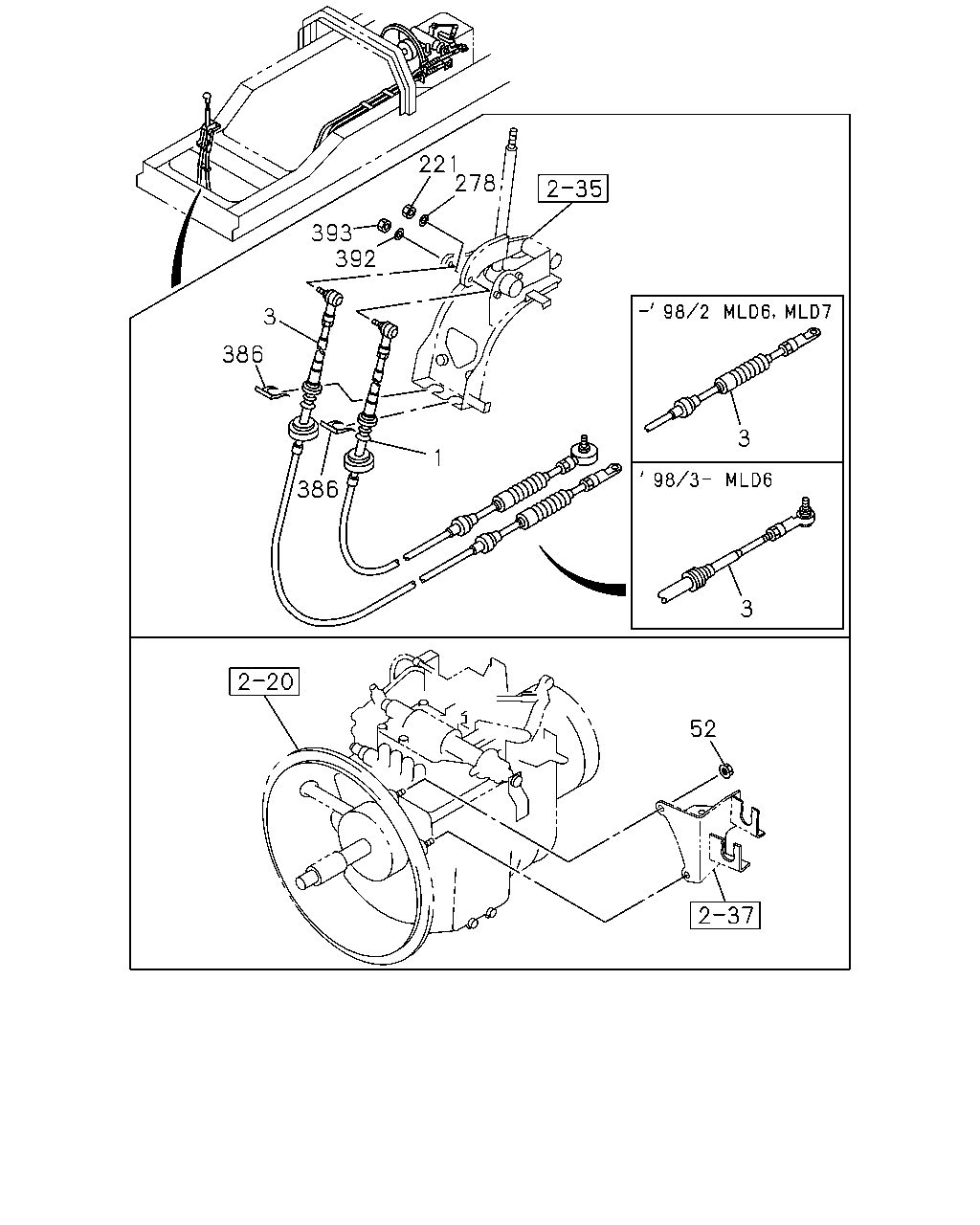

çizim 152052
221 278 393 392 3 386 3 1 386 3 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
6HK1 TCC ENG(81L) L=3677 		8-98038-354-0 01 1 0603-0603 ●
1 CABLE; SHIFT,TRANS CONT
6HK1 TCC ENG(81L) L=3507 		8-98046-615-0 01 1 0604- ●
1 CABLE; SHIFT,TRANS CONT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3625 		8-98030-732-0 01 1 0511- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3377 		1-33670-791-0 01 1 9510-9802 ● ● ●
1 CABLE; SHIFT,TRANS CONT
L=3377 		1-33670-791-0 01 1 9510-9802 ● ●
1 CABLE; SHIFT,TRANS CONT
L=3377 		1-33670-791-0 01 1 9803-0601 ● ●
1 CABLE; SHIFT,TRANS CONT
6HE1 TCC ENG(76L) L=3377 		1-33670-791-0 01 1 0602- ●
1 CABLE; SHIFT,TRANS CONT
L=3377 		1-33670-791-0 01 1 0602- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3465 		1-33671-053-0 01 1 9803- ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3504 		1-33670-789-0 01 1 9510-9802 ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3505 		1-33671-128-0 01 1 9803-0510 ● ● ●
1 CABLE; SHIFT,TRANS CONT
6HH1 STD ENG(65L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3505 		1-33671-128-0 01 1 0511-0511 ● ●
1 CABLE; SHIFT,TRANS CONT
6HH1 STD ENG(65L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3505 		1-33671-128-0 01 1 0511-0602 ● ●
1 CABLE; SHIFT,TRANS CONT
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3505 		1-33671-128-0 01 1 0511-0602 ●
1 CABLE; SHIFT,TRANS CONT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3505 		1-33671-128-0 01 1 0603- ● ●
1 CABLE; SHIFT,TRANS CONT
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3505 		1-33671-128-0 01 1 0603- ●
3 CABLE; SELECT,TRANS CONT
6HK1 TCC ENG(81L) L=3860 		8-98038-355-0 01 1 0603-0603 ●
3 CABLE; SELECT,TRANS CONT
6HK1 TCC ENG(81L) L=3760 		8-98046-616-0 01 1 0604- ●
3 CABLE; SELECT,TRANS CONT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3735 		8-98030-733-0 01 1 0511- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3619 		1-33670-402-4 01 1 9510-9802 ● ● ●
3 CABLE; SELECT,TRANS CONT
L=3619 		1-33670-402-4 01 1 9510-9802 ● ●
3 CABLE; SELECT,TRANS CONT
L=3619 		1-33670-402-4 01 1 9803-0601 ● ●
3 CABLE; SELECT,TRANS CONT
6HE1 TCC ENG(76L) L=3619 		1-33670-402-4 01 1 0602- ●
3 CABLE; SELECT,TRANS CONT
L=3619 		1-33670-402-4 01 1 0602- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3580 		1-33670-933-0 01 1 9803- ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3601 		1-33670-796-1 01 1 9510-9802 ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		1-33671-134-0 01 1 9803-0510 ● ● ●
3 CABLE; SELECT,TRANS CONT
6HH1 STD ENG(65L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		1-33671-134-0 01 1 0511-0511 ● ●
3 CABLE; SELECT,TRANS CONT
6HH1 STD ENG(65L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		1-33671-134-0 01 1 0511-0602 ● ●
3 CABLE; SELECT,TRANS CONT
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3600 		1-33671-134-0 01 1 0511-0602 ●
3 CABLE; SELECT,TRANS CONT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		1-33671-134-0 01 1 0603- ● ●
3 CABLE; SELECT,TRANS CONT
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,ASSISTOR SHIFT CONTROL<WX8> L=3600 		1-33671-134-0 01 1 0603- ●
52 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 9510-9605 ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9606-0602 ● ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9510-9802 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9803-1011 ● ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9510-9802 ● ● ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9510- ● ● ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9510-9802 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9510-9802 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9803-1011 ● ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ● ● ●

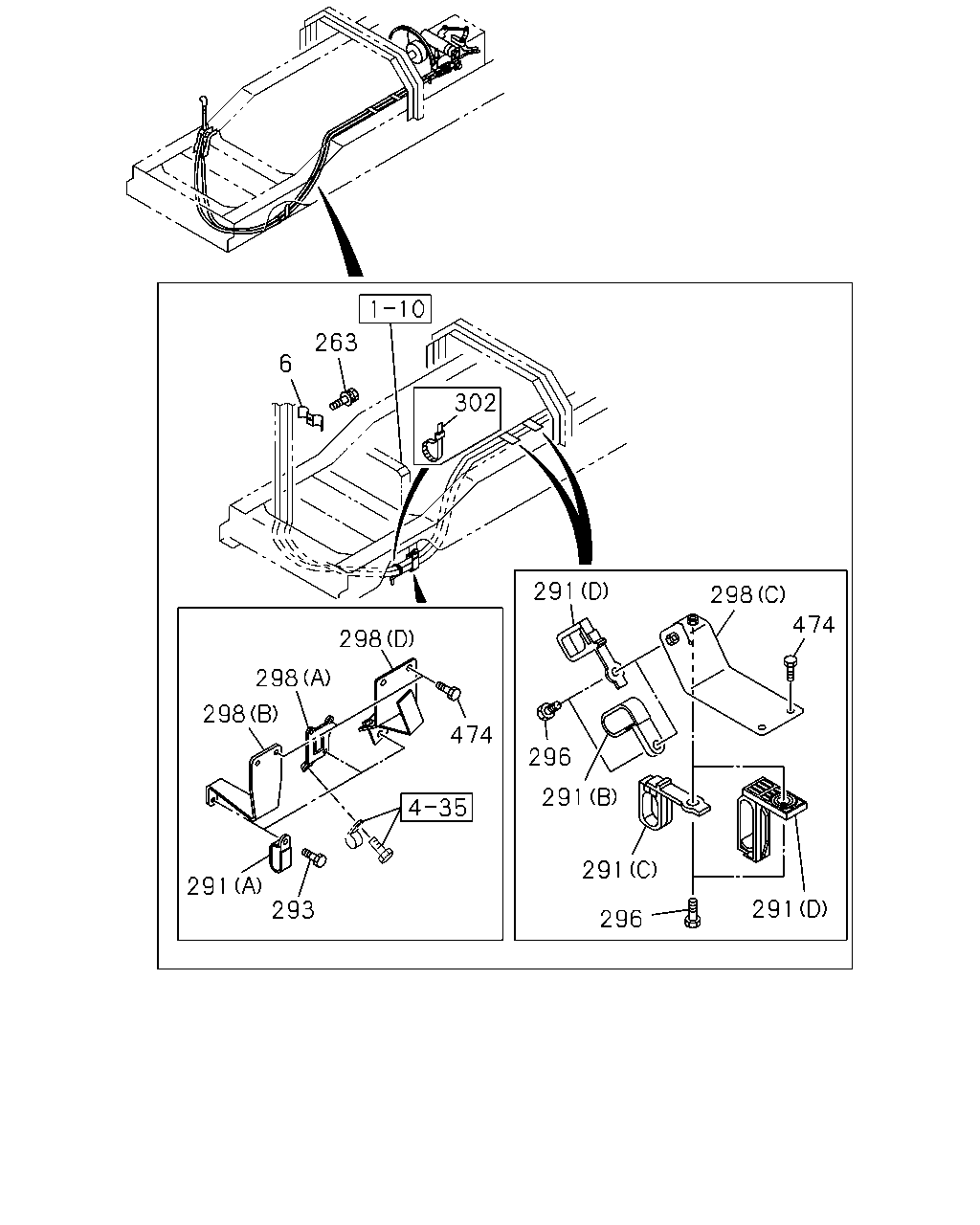

çizim 152069
263 6 302 291 298 474 298 298 298 474 296 291 291 291 293 291 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9510- ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9510-9812 ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09700-621-2 01 1 9510-9602 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9603-9609 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9510-0406 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		1-09701-307-2 01 1 0407- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9510-0606 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		1-09701-258-0 01 1 9702-9702 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9703-0506 ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507- ● ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512 ● ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE 		0-28680-825-0 02 1 9510-9610 ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 9611-0512 ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ● ● ● ●
298 BRACKET
6HK1 TCC ENG(81L) (D) 		1-36183-235-0 01 1 0603- ●
298 BRACKET
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) 		1-47478-690-0 01 1 0511- ●
298 BRACKET
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-36183-206-0 01 1 0207- ● ● ● ● ●
298 BRACKET
(A) 		1-82659-149-0 01 1 9510-0004 ● ● ● ● ●
298 BRACKET
(A) 		1-82659-149-0 01 1 0005-0206 ● ● ● ● ●
298 BRACKET
6HH1 STD 4VALVE ENG(1A6) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-82659-149-0 01 1 0207- ● ● ● ● ●
298 BRACKET
(A) 		1-82659-149-0 01 1 0207- ● ● ●
298 BRACKET
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-82659-149-0 01 1 0207- ●
298 BRACKET
6HE1 TCC ENG(76L) (A) 		1-82659-149-0 01 1 0207- ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9510- ● ● ● ● ●
474 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9510-0004 ● ● ● ● ●
474 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005- ● ● ● ● ●
