◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#3619) — 177 parça

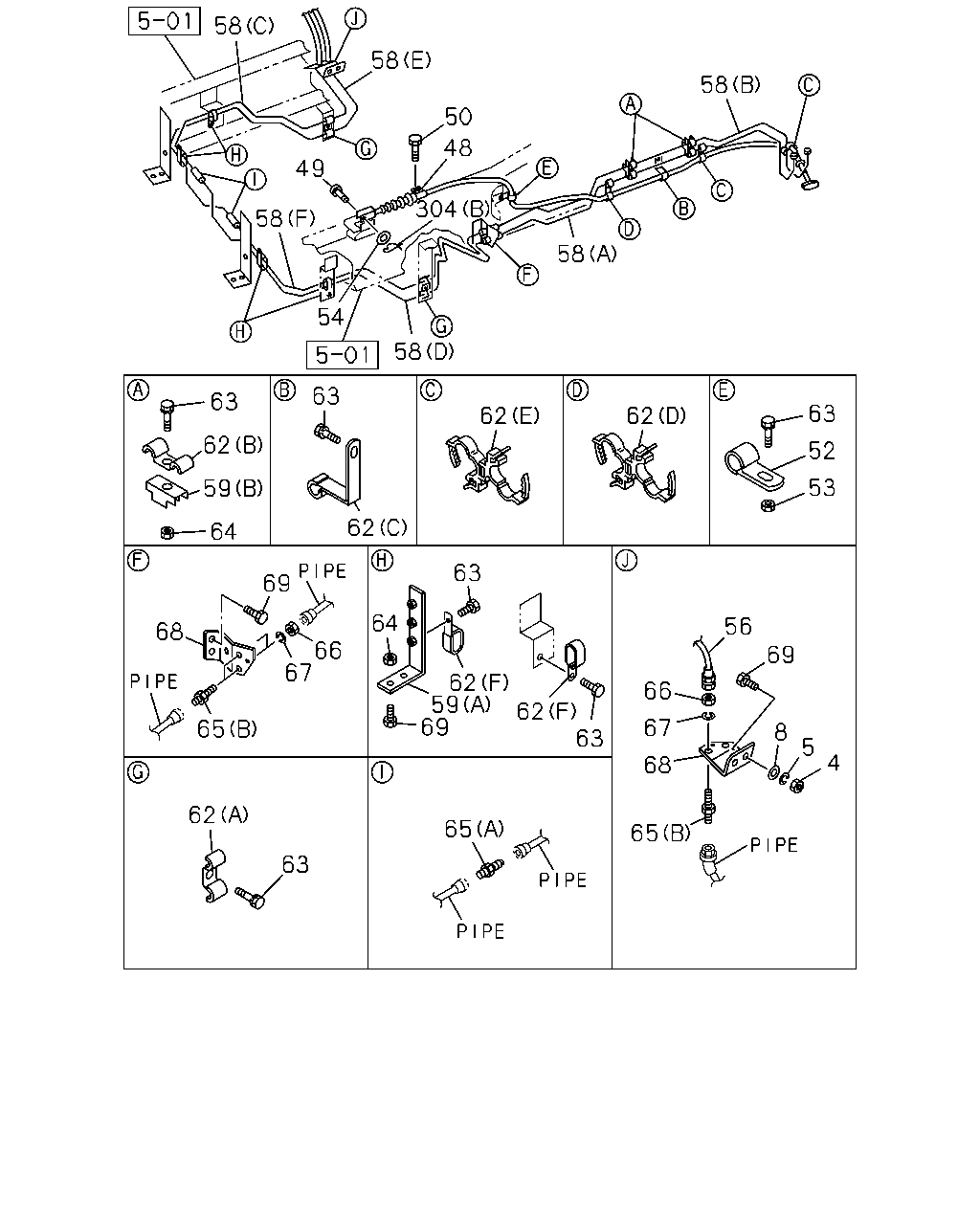

çizim 5043
58 58 58 50 48 49 304 58 58 54 58 63 63 63 62 62 62 52 53 59 62 64 69 63 64 56 68 66 67 69 62 59 62 69 63 66 67 65 8 5 4 68 62 65 65 63
BalonParca AdiParca NoAdetTipApplied Date
4 NUT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9307-
5 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 02 1 9307-
8 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 02 1 9307-
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> 		1-53458-436-4 01 1 9307-
49 PIN; JAW FIX
AUTO CAB TILT<WV2> 		9-08233-823-0 01 1 9307-
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9307-
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> ID=9 		9-09524-845-0 01 1 9307-
53 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9307-
54 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 9307-
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> UP L=500 		1-09364-530-2 01 1 9307-
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> DOWN L=400 		1-09364-835-1 01 1 9307-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1626 		1-47426-173-0 01 1 9307-9308
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1639 SERVICED BY L=1700 		1-47426-391-0 01 1 9309-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1634 SERVICED BY L=1700 		1-47426-391-0 01 1 9307-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L TYPE ENG<90L> (C) L=1641 SERVICED BY L=1700 		1-47426-391-0 01 1 9307-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L TYPE ENG<90L> (D) L=1804 SERVICED BY L=1950 		1-47426-393-0 01 1 9307-9310
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L TYPE ENG<90L> (D) L=1813 SERVICED BY L=1950 		1-47426-393-0 01 1 9311-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L TYPE ENG<90L> (F) L=1908 SERVICED BY L=1950 		1-47426-393-0 01 1 9307-9310
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L TYPE ENG<90L> (F) L=1939 SERVICED BY L=1950 		1-47426-393-0 01 1 9311-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> L TYPE ENG<90L> (E) L=1824 SERVICED BY L=1950 		1-47426-393-0 01 1 9307-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (C) L=1651 SERVICED BY L=1700 		1-47426-391-0 01 1 9307-9307
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (C) L=1641 SERVICED BY L=1700 		1-47426-391-0 01 1 9308-9309
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (C) L=1644 SERVICED BY L=1650 		1-49111-464-0 01 1 9310-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (D) L=1712 SERVICED BY L=1800 		1-47426-392-0 01 1 9307-9307
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (D) L=1700 SERVICED BY L=1800 		1-47426-392-0 01 1 9308-9309
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (D) L=1801 SERVICED BY L=2000 		1-49111-450-0 01 1 9310-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (F) L=1817 SERVICED BY L=1950 		1-47426-393-0 01 1 9307-9309
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (F) L=1702 SERVICED BY L=1800 		1-49111-465-0 01 1 9310-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (E) L=1826 SERVICED BY L=1950 		1-47426-393-0 01 1 9307-9307
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (E) L=1797 SERVICED BY L=1950 		1-47426-393-0 01 1 9308-9309
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> V TYPE ENG<91L> (E) L=1819 SERVICED BY L=2000 		1-49111-450-0 01 1 9310-
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (B) 		1-47475-427-1 02 1 9307-
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (A) 		1-47476-718-1 02 1 9307-9309
59 BRACKET; CLIP
AUTO CAB TILT<WV2> L TYPE ENG<90L> (A) 		1-47476-718-1 02 1 9310-
59 BRACKET; CLIP
AUTO CAB TILT<WV2> V TYPE ENG<91L> (A) 		1-47475-455-0 02 1 9310-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (A) ID=9 & 9 L=17 & 17 		1-09700-651-0 03 1 9307-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) ID=9 & 9 L=15 & 15 		1-09700-654-0 01 1 9307-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=10 		1-09700-868-0 02 1 9307-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (D) ID=6-10 & 6-10 		1-09709-192-1 02 1 9307-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (E) ID=6-10 & 10-14 		1-09709-201-1 01 1 9307-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (F) ID=9X2 L=20 		9-09534-835-0 04 1 9307-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> L TYPE ENG<90L> (F) ID=9X2 L=20 		9-09534-835-0 01 1 9307-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> V TYPE ENG<91L> (A) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 9307-
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X16 FLANGE 		0-28080-816-0 03 1 9307-
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 05 1 9307-
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 01 1 9307-
63 BOLT; CLIP
AUTO CAB TILT<WV2> M8X50 FLANGE 		0-28080-850-0 03 1 9307-
64 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9307-
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> (A) M14 STRAIGHT 		9-09223-008-1 02 1 9307-
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> (B) M14 		9-09223-308-1 04 1 9307-
66 NUT; UNION,OIL PIPE
AUTO CAB TILT<WV2> M14 		9-99111-414-0 02 1 9307-
67 WASHER; LK,UNION,OIL PIPE
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9307-
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47476-765-1 02 1 9307-
69 BOLT; BRKT
AUTO CAB TILT<WV2> M8X20 		0-20800-820-0 02 1 9307-
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9307-
304 PIN; SNAP
AUTO CAB TILT<WV2> (A) 		1-09747-015-0 02 1 9307-
304 PIN; SNAP
AUTO CAB TILT<WV2> (B) 		1-09987-141-0 01 1 9307-

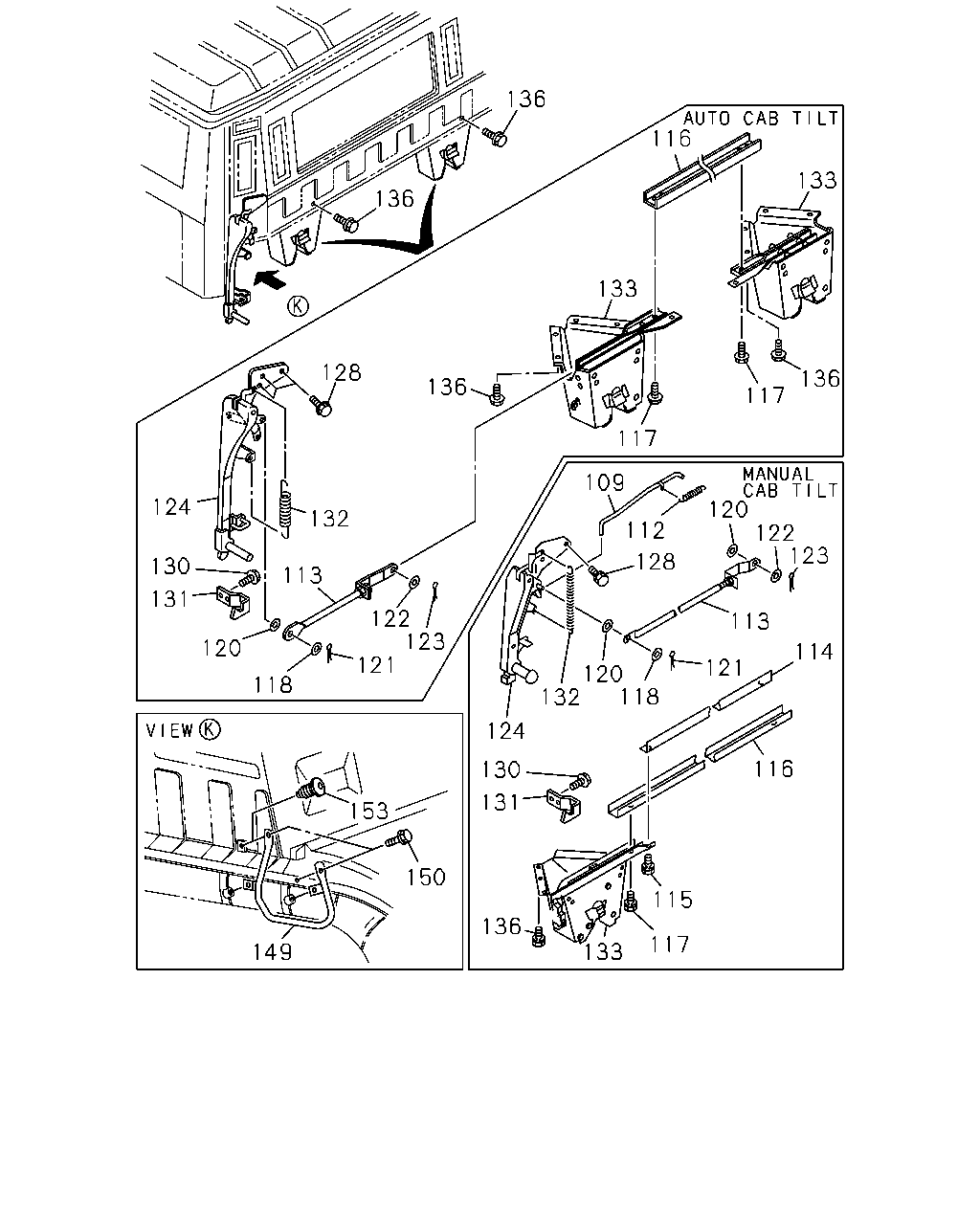

çizim 5044
136 116 133 136 133 128 136 136 117 117 120 122 123 109 124 132 112 128 130 113 131 122 123 113 120 114 121 121 120 132 118 118 124 116 130 131 153 150 115 136 117 133 149
BalonParca AdiParca NoAdetTipApplied Date
109 ROD; SAFETY,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-446-3 01 1 9002-
112 SPRING; RETURN,SAFETY ROD
EXC. AUTO CAB TILT<WV2> 		1-79717-417-0 01 1 9002-
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 9002-
114 ARM ASM; CONN,SAFETY
EXC. AUTO CAB TILT<WV2> 		1-79717-469-1 01 1 9002-
115 BOLT; CONN ARM
EXC. AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002-
116 ARM ASM; CONN 1-79717-435-1 01 1 9002-
117 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002-
118 WASHER; PL,CONNROD
ID=10.5 OD=18 		1-09985-173-0 01 1 9002-
120 WASHER; NYLON
ID=10.5 OD=16 		9-09855-178-0 01 1 9002-
121 PIN; SPLIT,CONNROD 1-09987-077-0 01 1 9002-
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 01 1 9002-
123 PIN; SPLIT,CAB LOCK ROD 1-09987-078-0 01 1 9002-
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> 		1-79717-595-2 01 1 9307-
124 LEVER ASM; HAND,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-494-9 01 1 9002-
128 BOLT; BRKT
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002-
130 BOLT; BRKT,SAFETY KEY
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9002-
131 BRACKET; SAFETY KEY 1-79717-501-1 01 1 9002-
132 SPRING; HAND LEVER 1-09985-148-0 01 1 9002-
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-614-1 01 1 9307-
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-613-1 01 1 9307-
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2>,CHINA EQUIPMENT(YT2) 		1-79717-506-6 01 1 9002-
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2>,CHINA EQUIPMENT(YT2) 		1-79717-505-6 01 1 9002-
133 LOCK ASM; CAB
CHINA EQUIPMENT(YT2) 		1-79717-532-0 01 1 9002-
133 LOCK ASM; CAB
CHINA EQUIPMENT(YT2) 		1-79717-531-0 01 1 9002-
136 BOLT; CAB LK
M8X20 		1-09980-529-0 16 1 9002-
149 HANDLE; TILT
EXC. AUTO CAB TILT<WV2> 		1-71997-490-1 01 1 9002-
150 BOLT; TILT HANDLE
AUTO CAB TILT<WV2> 		1-09980-495-0 05 1 9307-
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X25 W/LK&PL WASHER 		0-50100-625-0 04 1 9002-9204
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> 		0-50180-625-0 04 1 9205-
153 PLUG; DUMMY,GRIP TILT
AUTO CAB TILT<WV2> D4.7X11 		1-76378-154-0 01 1 9307-

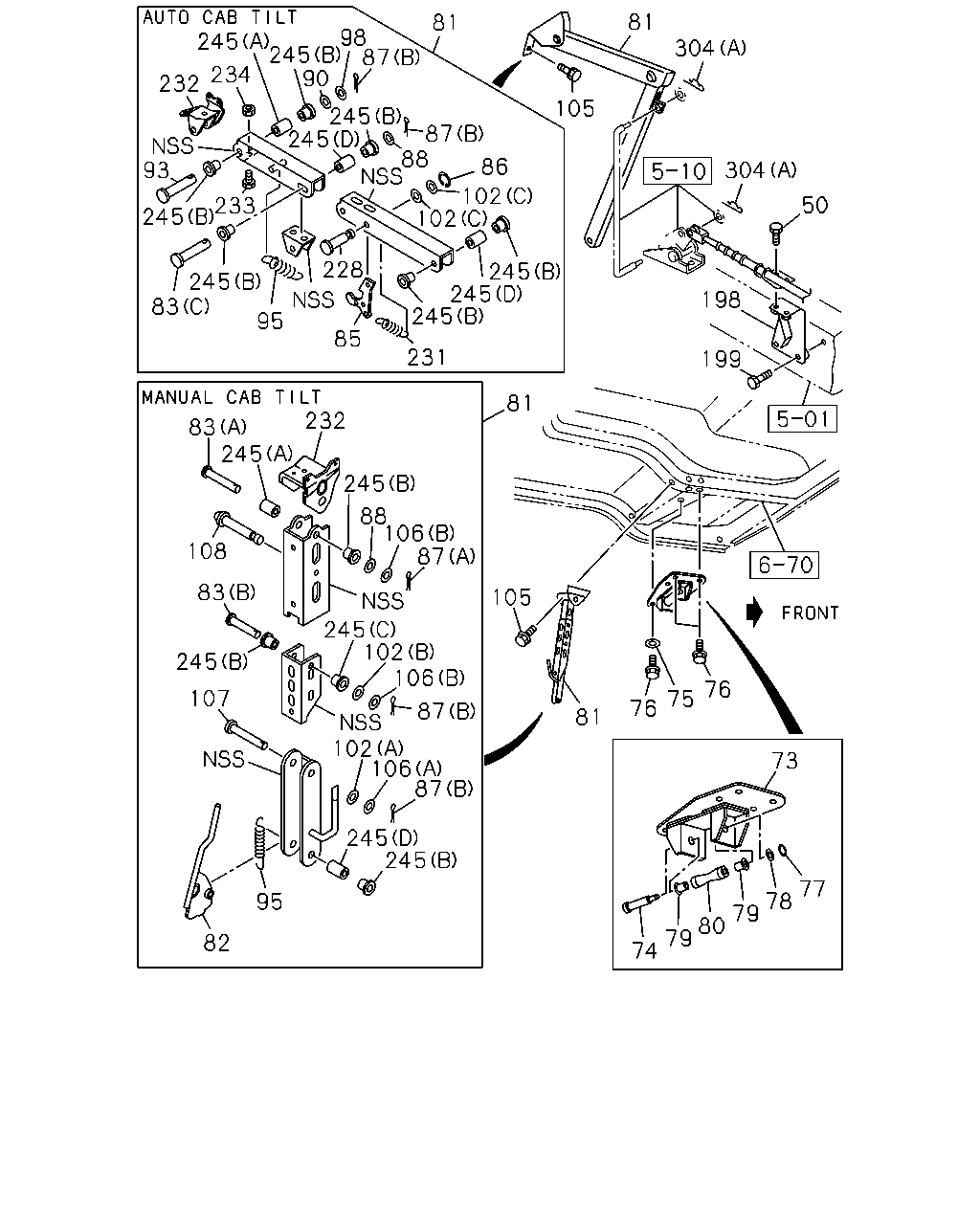

çizim 5045
245 98 245 87 90 245 87 245 88 102 102 81 81 304 234 232 93 105 86 304 50 233 245 228 245 245 245 245 83 198 95 85 199 231 232 81 83 245 245 88 106 87 108 83 105 245 102 106 245 102 106 87 76 107 75 76 87 81 73 245 245 77 78 79 80 79 74 95 82
BalonParca AdiParca NoAdetTipApplied Date
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9307-
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-859-0 02 1 9307-
73 PAD; TORSION BAR
EXC. AUTO CAB TILT<WV2> 		1-53459-645-0 02 1 9002-
74 PIN; ROLLER
14X65 		1-53459-345-0 02 1 9002-
75 WASHER; PL,PAD 1-09985-111-0 02 1 9002-
76 BOLT; PAD
M10X25 		9-01971-025-0 06 1 9002-9002
76 BOLT; PAD
M10X25 W/LK&PL WASHER 		0-50141-025-0 06 1 9003-
77 RING; SNAP 1-09588-032-0 02 1 9002-
78 WASHER; PL
ID=15 OD=26 		9-09164-514-0 02 1 9002-
79 BUSHING; ROLLER 5-33659-053-0 04 1 9002-
80 ROLLER 1-53459-357-2 02 1 9002-
81 STAY ASM; CAB TILT
AUTO CAB TILT<WV2> 		1-62500-656-2 01 1 9307-
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-214-1 01 1 9002-
82 LEVER; CAB STAY LK
EXC. AUTO CAB TILT<WV2> 		1-62500-416-0 01 1 9002-
83 PIN; JOINT,CAB STAY
AUTO CAB TILT<WV2> (C) 		1-09744-116-0 01 1 9307-
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) OD=14 L=62 		9-08234-462-0 01 1 9002-
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) OD=14 L=66 		9-08234-466-0 01 1 9002-
85 LEVER; LOCK,CAB STAY
AUTO CAB TILT<WV2> 		1-61100-003-1 01 1 9307-
86 RING; SNAP,LOCK LEVER,CAB STAY
AUTO CAB TILT<WV2> ID=6 		9-09185-406-0 01 1 9307-
87 PIN; SPLIT,CAB STAY PIN
(B) L=30 L=30 		1-09987-080-0 02 1 9002-
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (A) OD=2.8 L=18 		9-08113-018-0 01 1 9002-
88 WASHER; PL,CAB STAY PIN
ID=15 		9-09160-514-0 01 1 9002-
90 WASHER; PL,CAB STAY
AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9307-
93 PIN; CAB STAY
AUTO CAB TILT<WV2> OD=14 L=66 		9-08234-466-0 01 1 9307-
95 SPRING; RETURN,CAB STAY
AUTO CAB TILT<WV2> 		1-62500-655-0 01 1 9307-
95 SPRING; RETURN,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-09585-064-1 01 1 9002-
98 WASHER; CAB STAY
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9307-
102 WASHER; PL,CAB STAY
AUTO CAB TILT<WV2> (C) 		1-09503-174-1 02 1 9307-
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 01 1 9002-
105 BOLT; CAB STAY
M10X25 W/LK&PL WASHER 		1-09980-488-0 03 1 9002-
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=11.3 		5-09550-001-0 01 1 9002-
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 OD=25 		8-11053-111-0 02 1 9002-
107 PIN; LK LEVER
EXC. AUTO CAB TILT<WV2> 		9-08234-033-0 01 1 9002-
108 PIN; ADJ,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-62500-518-0 01 1 9002-
198 BRACKET; CABLE
AUTO CAB TILT<WV2> 		1-53459-924-3 01 1 9307-
199 BOLT; BRKT
AUTO CAB TILT<WV2> M10X40 W/LK WASHER 		0-50041-040-0 02 1 9307-
228 PIN; SAFETY LOCK SPRING,CAB STAY
AUTO CAB TILT<WV2> 		1-62500-563-0 01 1 9307-
231 SPRING; RETURN,LOCK LEVER,CAB STAY
AUTO CAB TILT<WV2> 		1-09583-229-0 01 1 9307-
232 BRACKET; SUPPORT,CAB TILT STAY
AUTO CAB TILT<WV2> 		1-65500-228-2 01 1 9307-
232 BRACKET; SUPPORT,CAB TILT STAY
EXC. AUTO CAB TILT<WV2> 		1-65570-215-1 01 1 9002-
233 BOLT; LIMIT SW ADJ,CAB STAY
AUTO CAB TILT<WV2> 		1-09000-330-0 01 1 9307-
234 NUT; LIMIT SW ADJ BOLT,CAB STAY
AUTO CAB TILT<WV2> 		9-09111-408-0 01 1 9307-
245 BUSHING; CAB STAY
(A) L=41.0 		1-53459-626-0 01 1 9002-
245 BUSHING; CAB STAY
(C) L=31.5 		1-53459-627-0 01 1 9002-9306
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (C) L=31.5 		1-53459-627-0 01 1 9307-
245 BUSHING; CAB STAY
(D) L=27.5 		1-53459-628-0 01 1 9002-9306
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (D) L=27.5 		1-53459-628-0 01 1 9307-
245 BUSHING; CAB STAY
(B) L=12.0 		1-53459-971-0 06 1 9002-
245 BUSHING; CAB STAY
AUTO CAB TILT<WV2> (D) L=27.5 		1-53459-628-0 02 1 9307-
304 PIN; SNAP
AUTO CAB TILT<WV2> (A) 		1-09747-015-0 02 1 9307-
304 PIN; SNAP
AUTO CAB TILT<WV2> (B) 		1-09987-141-0 01 1 9307-

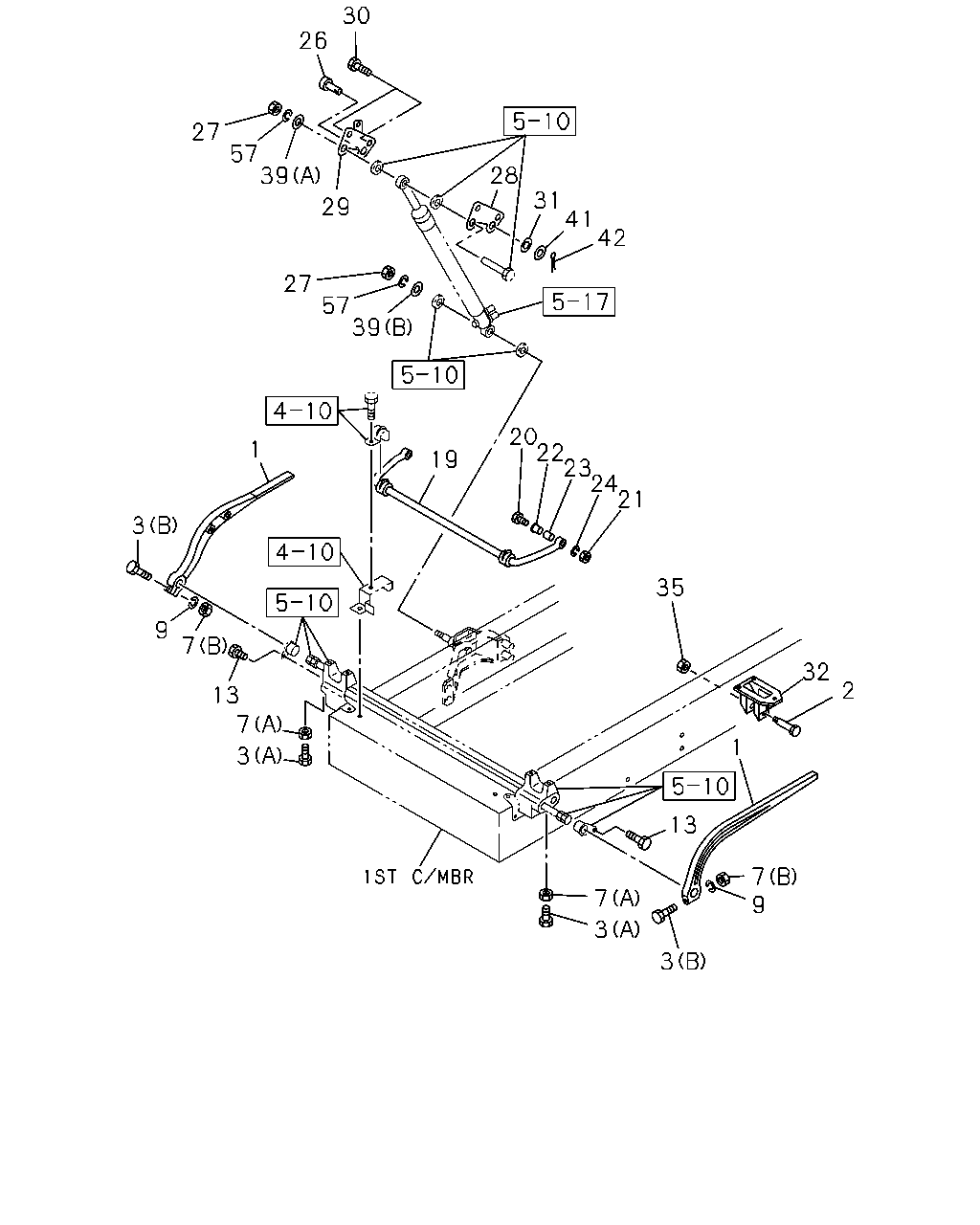

çizim 5123
30 26 27 57 39 28 31 41 42 29 27 57 39 20 22 23 24 21 1 19 3 35 9 7 32 2 13 7 1 3 13 7 9 7 3 3
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; TORSION BAR 1-53459-342-4 01 1 9002-
1 LEVER; TORSION BAR 1-53459-341-4 01 1 9002-
2 PIN; HANGER
AUTO CAB TILT<WV2> 		1-53459-452-0 02 1 9307-
3 BOLT; LEVER
(A) M10X30 		1-09000-283-0 02 1 9002-
3 BOLT; LEVER
(B) M12X65 		9-91061-265-0 02 1 9002-
7 NUT; LK,LEVER
(A) M10 		9-09110-510-0 02 1 9002-
7 NUT; LK,LEVER
(B) M12 		9-99110-512-0 02 1 9002-
9 WASHER; LK
ID=12.2 		9-09150-612-0 02 1 9002-
13 BOLT; BUSHING,TORSION BAR
M6X16 		9-01970-616-0 02 1 9002-9005
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9006-
19 BAR; STAB,CAB SUSP 1-53459-788-1 01 1 9002-9404
19 BAR; STAB,CAB SUSP
EXC. TAIWAN EQUIPMENT(WW5) 		1-53459-788-1 01 1 9405-
19 BAR; STAB,CAB SUSP
TAIWAN EQUIPMENT(WW5) 		1-53458-612-0 01 1 9405-
20 BOLT 1-09000-353-0 02 1 9002-
21 NUT
M10 		9-09111-410-0 02 1 9002-
22 BUSHING; STABILIZER 1-53459-786-1 01 1 9002-
23 TUBE; DIST 1-53459-787-3 02 1 9002-
24 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9002-
26 PIN; STAY
AUTO CAB TILT<WV2> 		9-08234-452-0 01 1 9307-
27 NUT; OIL CYL
AUTO CAB TILT<WV2> M14 		9-99110-514-0 02 1 9307-
28 BRACKET; OIL CYL,UPR,INNER
AUTO CAB TILT<WV2> 		1-53459-842-0 01 1 9307-
29 BRACKET; OIL CYL,UPR,OUTER
AUTO CAB TILT<WV2> 		1-53459-841-0 01 1 9307-
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9307-
31 WASHER; WAVE
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9307-
32 HANGER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-53459-451-4 02 1 9307-
35 NUT; BRKT
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9307-
35 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9307-
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> (A) ID=15 		9-09160-514-0 01 1 9307-
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> (B) ID=15 OD=30 		9-09160-614-0 01 1 9307-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9307-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 01 1 9307-
57 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9307-

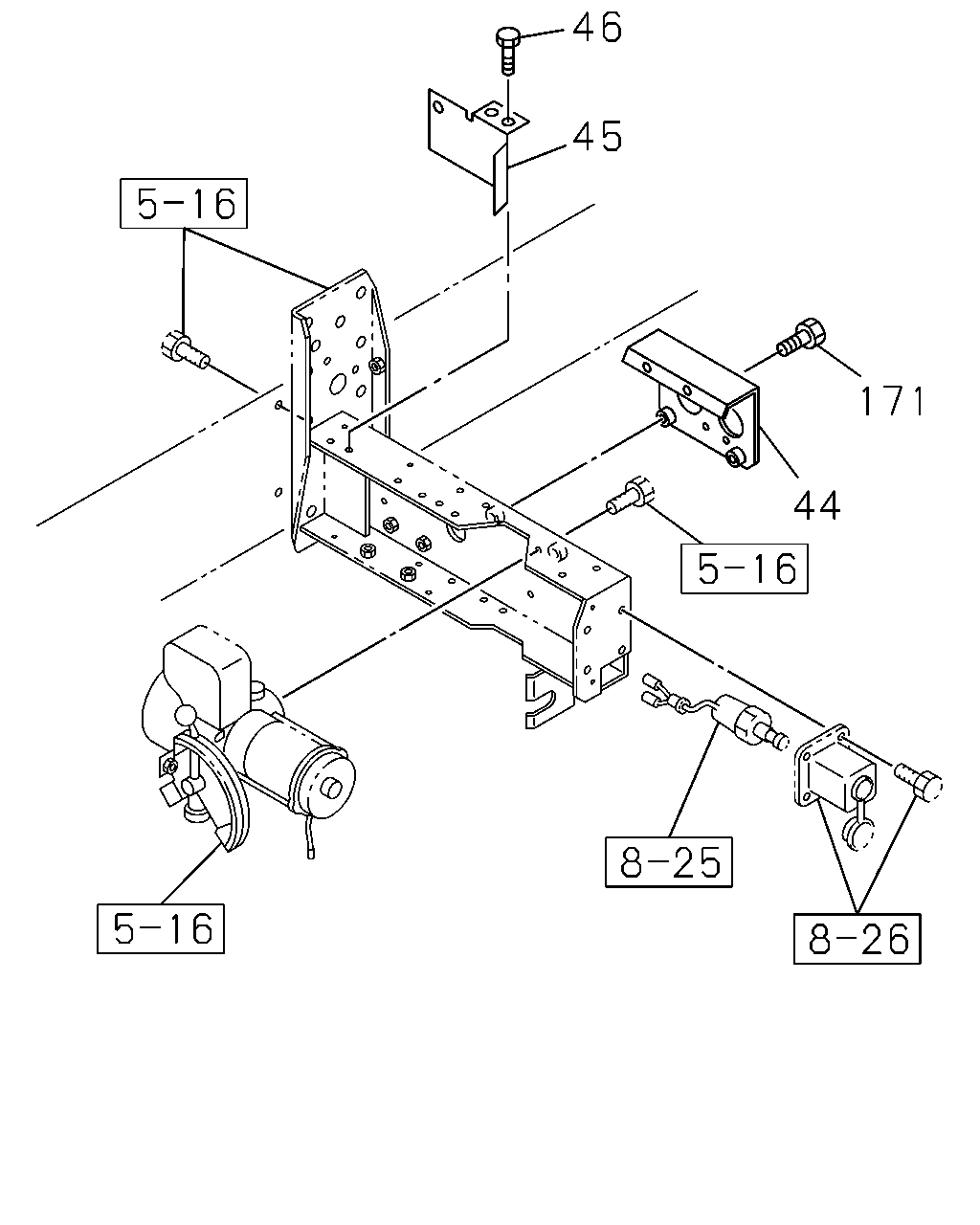

çizim 6513
46 45 171 44
BalonParca AdiParca NoAdetTipApplied Date
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53458-232-1 01 1 9307-
45 PROTECTOR; HEAT
6RB1TC-N ENG(29L) AUTO CAB TILT<WV2> 		1-53458-445-0 01 1 9307-9501
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> L TYPE ENG<90L> 		1-53458-445-0 01 1 9502-
46 BOLT; HEAT PROTECTOR
6RB1TC-N ENG(29L) AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9307-9501
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 02 1 9502-
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X30 FLANGE 		0-28080-830-0 02 1 9307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
