◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25A - SPEEDOMETER DRIVEN GEAR ▶
2-25A — SPEEDOMETER DRIVEN GEAR (#36185) — 30 parça

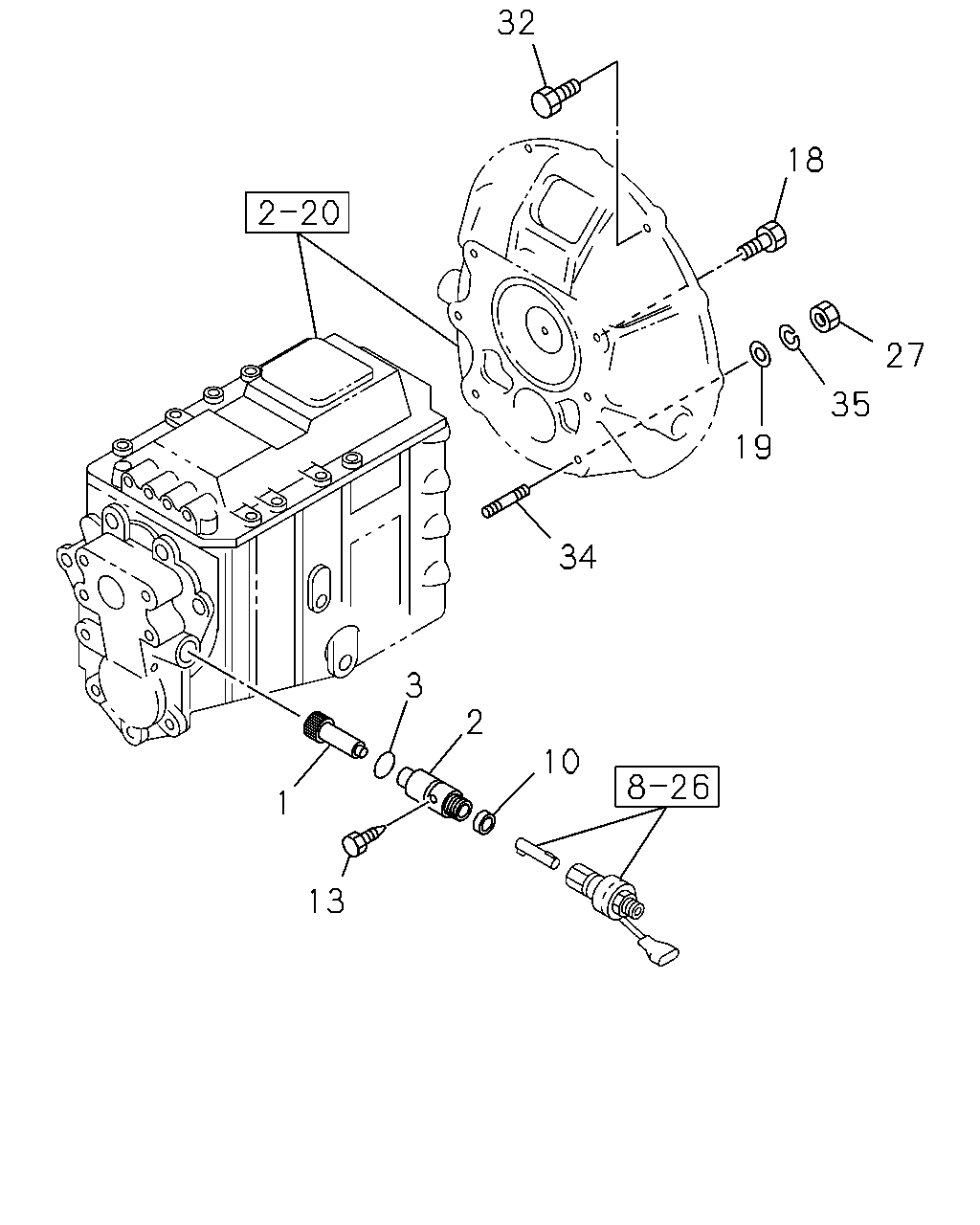

çizim 152047
32 18 27 35 19 34 3 2 10 1 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-3 01 1 9510-9510 ● ● ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9511- ● ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9510-9510 ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9511- ● ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9510-9510 ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9511- ● ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9510-9510 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9511- ● ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9510-9510 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9511-0805 ● ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9510-9510 ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9511-0512 ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 0601- ● ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9510-9510 ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9511-0605 ● ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0606- ● ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9510-9510 ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9511-0512 ● ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X32 W/LK&PL WASHER 		0-50151-032-0 10 1 9510-9606 ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28781-030-0 10 1 9607-0512 ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28751-030-0 10 1 0601- ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X20,M10X26 L=56 		1-09049-014-1 02 1 9510-0805 ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X20,M10X26 L=56 		8-98010-334-0 02 1 0806- ● ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9510-9510 ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9511- ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9510-9510 ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9511-0603 ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
