◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#36182) — 16 parça

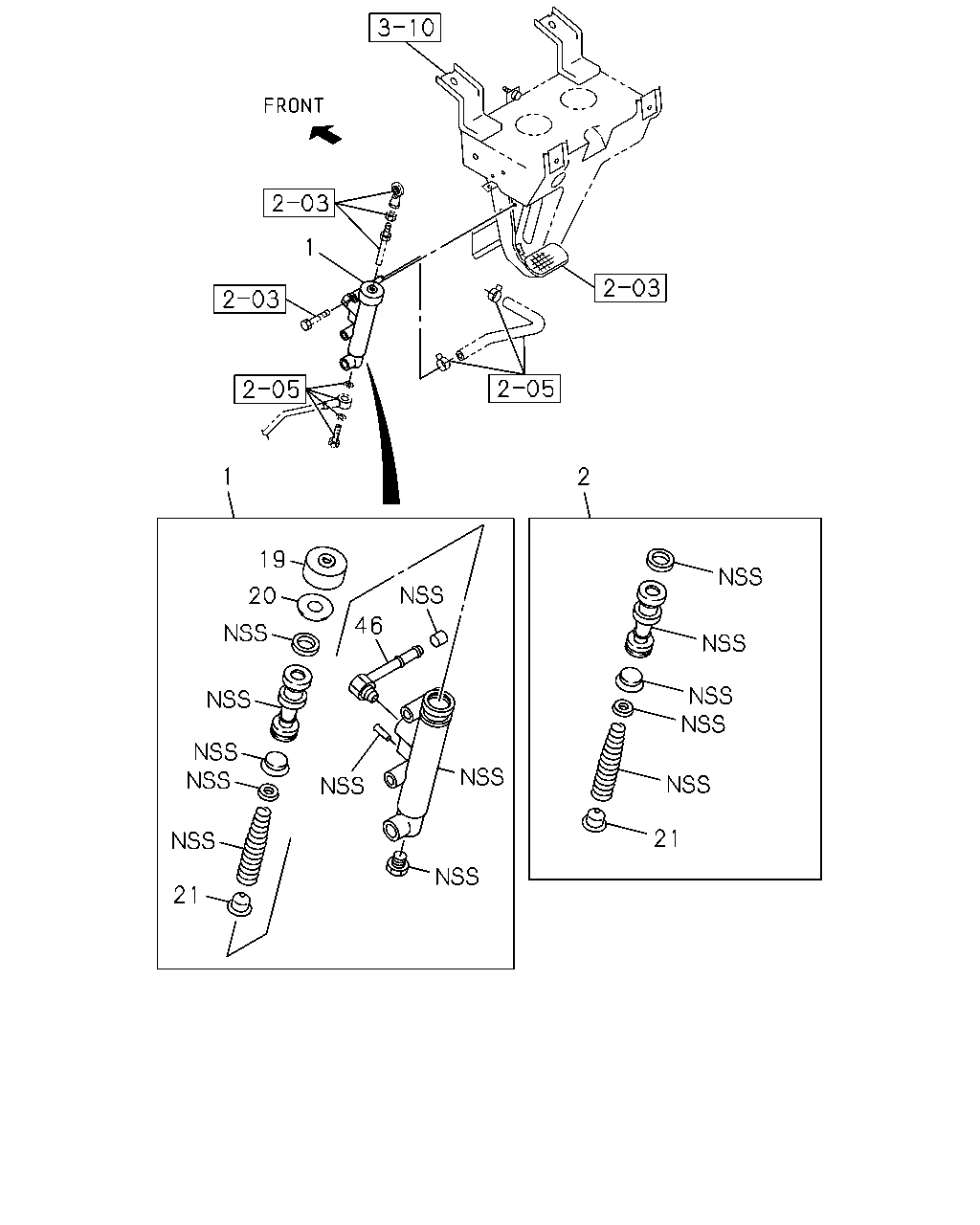

çizim 152046
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER ASM; CLUTCH MASTER
EXC. AIR ASSIST CLUTCH<PK1> 		1-47500-255-0 01 1 0601- ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-255-0 01 1 0601- ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 9510-0512 ● ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
AIR ASSIST CLUTCH<PK1> 		1-47500-232-2 01 1 0601- ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0601- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-85576-418-0 01 1 0601- ●
2 REPAIR KIT; CLU M/CYL 1-85576-418-0 01 1 0601- ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 9510-0512 ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL
AIR ASSIST CLUTCH<PK1> 		1-85576-114-0 01 1 0601- ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0601- ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9510- ● ● ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9510- ● ● ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9510-0512 ● ● ● ● ●
21 VALVE; CHECK
AIR ASSIST CLUTCH<PK1> 		1-47565-004-0 01 1 0601- ●
21 VALVE; CHECK 1-47565-004-0 01 1 0601- ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9510- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
