◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#3618) — 227 parça

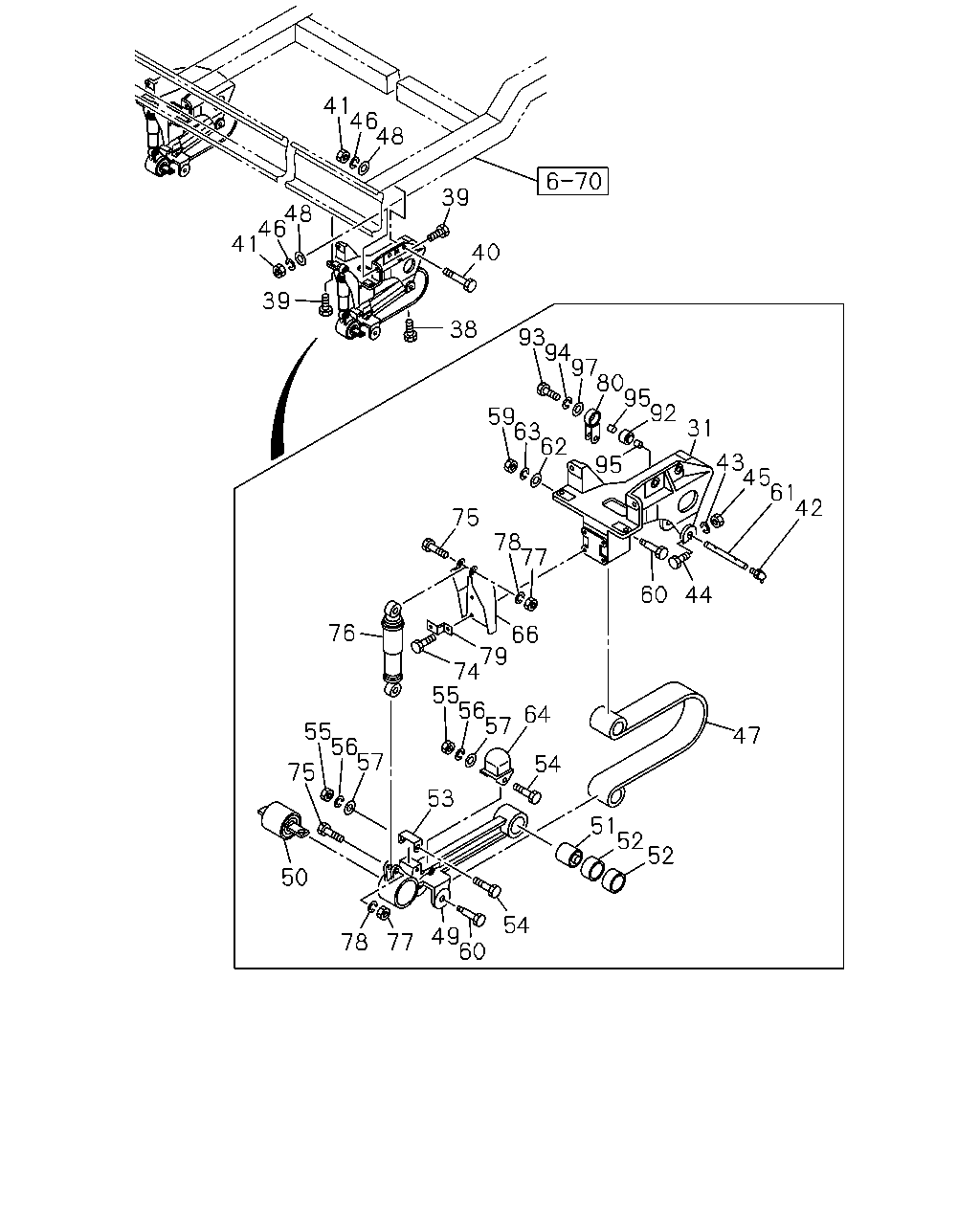

çizim 6264
41 46 48 39 48 46 41 40 39 38 93 94 97 80 95 92 31 59 63 62 43 45 61 42 95 75 78 77 60 44 76 66 79 74 55 56 57 64 55 56 57 47 54 75 53 51 52 52 50 54 49 60 78 77
BalonParca AdiParca NoAdetTipApplied Date
31 BRACKET; CAB 1-53453-033-4 01 1 9002-
31 BRACKET; CAB 1-53453-032-4 01 1 9002-
38 BOLT; CAB TO BRKT,RR
M10X35 W/LK WASHER 		9-01911-035-0 02 1 9002-9002
38 BOLT; CAB TO BRKT,RR
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9003-
39 BOLT; CAB TO BRKT
M10X30 		1-09980-546-0 08 1 9002-
40 BOLT; CAB TO BRKT
M10X100 		1-09980-547-0 04 1 9002-
41 NUT
M10 		9-09110-410-0 08 1 9002-
42 NIPPLE; GREASE
PT1/8 ELBOW 		9-09031-210-0 02 1 9002-
43 WASHER; LK
ID=8.2 		9-09150-508-0 02 1 9002-
44 BOLT; PIN LOCK
M8X50 		9-01050-850-0 02 1 9002-9005
44 BOLT; PIN LOCK
M8X50 		0-10810-850-0 02 1 9006-
45 NUT
M8 		9-09110-408-0 02 1 9002-
46 WASHER; LK
ID=10.2 		9-09150-510-0 04 1 9002-
47 SPRING; LEAF,"U"
TAIWAN EQUIPMENT(WW5) 		1-53459-387-4 02 1 9002-9106
47 SPRING; LEAF,"U"
TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) 		1-53459-387-4 02 1 9107-9209
47 SPRING; LEAF,"U"
CHINA EQUIPMENT(YT2) 		1-53459-387-4 02 1 9210-9306
47 SPRING; LEAF,"U"
EXC. TAIWAN EQUIPMENT(WW5) 		1-53459-387-4 02 1 9307-9404
47 SPRING; LEAF,"U" 1-53459-387-4 02 1 9405-
47 SPRING; LEAF,"U"
TAIWAN EQUIPMENT(WW5) 		1-53459-640-0 02 1 9210-9404
47 SPRING; LEAF,"U"
EXC. TAIWAN EQUIPMENT(WW5) 		1-53459-395-4 02 1 9002-9106
47 SPRING; LEAF,"U"
EXC. TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) 		1-53459-395-4 02 1 9107-9306
48 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 9002-
49 ARM; LINK 1-53459-297-2 02 1 9002-
50 BUSHING; RUBBER 1-53459-308-2 02 1 9002-9004
50 BUSHING; RUBBER 1-53459-974-0 02 1 9005-9108
50 BUSHING; RUBBER 1-53458-293-1 02 1 9109-
51 BUSHING; RUBBER 1-53459-315-2 02 1 9002-
52 BUSHING; RUBBER 1-09330-068-0 04 1 9002-
53 RUBBER; STOPPER 1-53459-314-0 02 1 9002-
54 BOLT; RUBBER
M8X70 		9-01055-870-0 04 1 9002-9005
54 BOLT; RUBBER
M8X70 		0-10805-870-0 04 1 9006-
55 NUT; RUBBER
M8 		9-09110-408-0 04 1 9002-
56 WASHER; LK
ID=8.2 		9-09150-508-0 04 1 9002-
57 WASHER; PL
ID=8.4 		9-09160-508-0 08 1 9002-
59 NUT
M10 		9-09110-410-0 04 1 9002-
60 PIN; "U" LEAF SPRING 1-53459-307-3 04 1 9002-
61 PIN; BRKT TO LINK ARM 1-53459-540-0 02 1 9002-
62 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 04 1 9002-
63 WASHER; LK
ID=10.2 		9-09150-510-0 04 1 9002-
64 RUBBER; CUSHION 1-53366-089-0 02 1 9002-9010
64 RUBBER; CUSHION 1-53366-122-0 02 1 9011-9404
64 RUBBER; CUSHION 1-53366-110-0 02 1 9405-
66 BRACKET; S/ABS 1-53459-305-2 02 1 9002-
74 BOLT; BRKT FIX
M8X22 		9-01910-822-0 08 1 9002-9005
74 BOLT; BRKT FIX
M8X22 W/LK WASHER 		0-50040-822-0 08 1 9006-
75 BOLT; S/ABS
M12X60 		9-91056-260-0 04 1 9002-9005
75 BOLT; S/ABS
M12X60 		0-10806-260-0 04 1 9006-
76 ABSORBER ASM; SHOCK 1-51630-151-0 02 1 9002-9404
76 ABSORBER ASM; SHOCK 1-51630-449-1 02 1 9405-
77 NUT
M12 		9-99110-412-0 04 1 9002-
78 WASHER; LK
ID=12.2 		9-09150-512-0 04 1 9002-
79 BRACKET; FLEX SHAFT
EXC. TAIWAN EQUIPMENT(WW5) 		1-83129-033-1 02 1 9002-9106
79 BRACKET; FLEX SHAFT
EXC. TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) 		1-83129-033-1 02 1 9107-9209
79 BRACKET; FLEX SHAFT
EXC. CHINA EQUIPMENT(YT2) 		1-83129-033-1 02 1 9210-9306
79 BRACKET; FLEX SHAFT
TAIWAN EQUIPMENT(WW5) 		1-83129-033-1 02 1 9307-9404
79 BRACKET; FLEX SHAFT 1-83129-033-1 02 1 9405-
80 LINK ASM; STABILIZER
W/BUSHING 		1-53459-608-0 02 1 9002-
92 BUSHING; RUBBER 1-53459-417-2 02 1 9002-
93 BOLT; PIN 1-09000-354-0 02 1 9002-
94 WASHER; DISH 1-09500-007-0 02 1 9002-9105
94 WASHER; DISH 1-09500-028-0 02 1 9106-
95 BUSHING; RUBBER 1-09330-069-0 04 1 9002-
97 WASHER; PL
ID=17 		9-09160-516-0 02 1 9002-

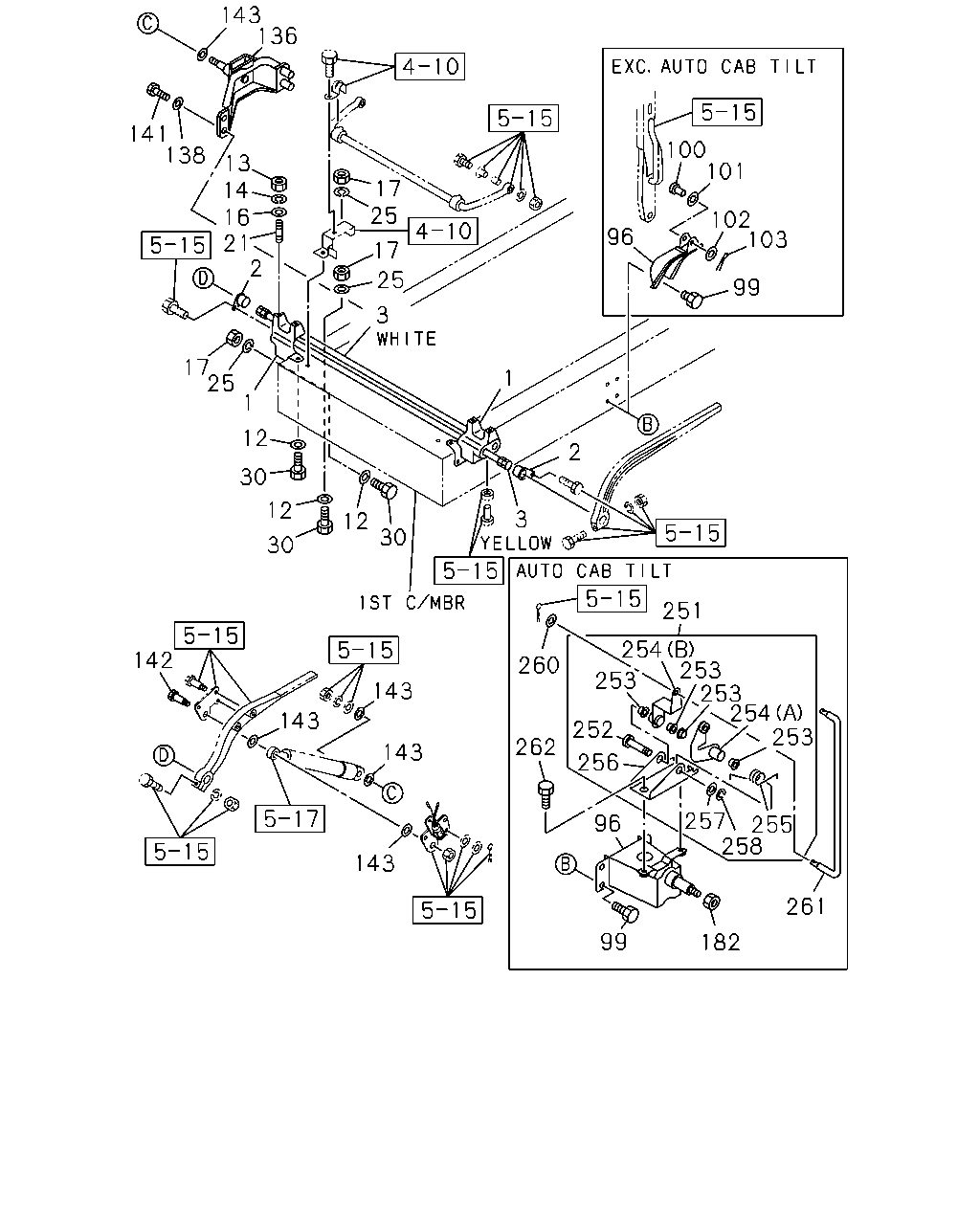

çizim 6265
143 136 141 138 100 101 13 14 16 21 2 17 25 102 103 96 17 25 99 3 17 25 1 1 12 2 30 12 3 12 30 30 251 254 253 253 253 254 253 142 260 143 143 252 262 143 256 96 257 255 258 143 261 99 182
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-037-3 02 1 9002-
2 BUSHING; TORSION BAR 1-53459-837-0 02 1 9002-
3 TORSION BAR
YELLOW 		1-09585-089-1 01 1 9002-
3 TORSION BAR
WHITE 		1-09585-090-1 01 1 9002-
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 10 1 9002-
13 NUT; BUSHING TO STUD
M12 		9-99110-512-0 04 1 9002-
14 WASHER; LK,STUD
ID=12.2 		9-09150-612-0 04 1 9002-
16 WASHER; PL,STUD
ID=12.5 		1-09503-171-0 04 1 9002-
17 NUT; BRKT,CAB TILT
M14 		9-99110-514-0 10 1 9002-
21 STUD; BRKT,CAB TILT 9-94321-235-0 04 1 9002-
25 WASHER; LK,BRKT,CAB TILT
ID=14.2 		9-09150-614-0 10 1 9002-
30 BOLT; CAB FRT FOOT
M14X75 		1-09000-292-0 02 1 9002-
30 BOLT; CAB FRT FOOT
M14X50 		9-91066-450-0 06 1 9002-
30 BOLT; CAB FRT FOOT
M14X55 		9-91066-455-0 02 1 9002-
96 BRACKET; CAB STAY
AUTO CAB TILT<WV2> 		1-53459-893-1 01 1 9307-
96 BRACKET; CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-53459-622-0 01 1 9002-
99 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9307-
99 BOLT; BRKT
EXC. AUTO CAB TILT<WV2> M12X35 		9-01911-235-0 04 1 9002-9005
99 BOLT; BRKT
EXC. AUTO CAB TILT<WV2> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9006-
100 PIN; JOINT
EXC. AUTO CAB TILT<WV2> 		9-08234-455-0 01 1 9002-
101 WASHER; WAVE
EXC. AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9002-
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9002-
103 PIN; SPLIT,CAB STAY
EXC. AUTO CAB TILT<WV2> OD=3.7 L=25 		9-08114-025-0 01 1 9002-
136 BRACKET; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-329-1 01 1 9307-
138 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=12.2 		9-09150-612-0 04 1 9307-
141 BOLT; BRKT
AUTO CAB TILT<WV2> M12X45 		9-91066-245-0 02 1 9307-
141 BOLT; BRKT
AUTO CAB TILT<WV2> M12X70 		9-91066-270-0 02 1 9307-
142 PIN; OIL CYL,UPR
AUTO CAB TILT<WV2> 		1-53459-352-0 01 1 9307-
143 SPACER; OIL CYL,LWR
AUTO CAB TILT<WV2> 		1-53459-463-0 04 1 9307-
182 NUT; BRKT
AUTO CAB TILT<WV2> M10 FLANGE 		0-91150-110-0 01 1 9307-
251 LEVER ASM; RELAY
AUTO CAB TILT<WV2> 		1-53459-894-2 01 1 9307-
252 PIN; LEVER
AUTO CAB TILT<WV2> 		9-08214-064-0 01 1 9307-
253 BUSHING; RELAY LEVER
AUTO CAB TILT<WV2> 		5-33619-001-1 04 1 9307-
254 LEVER; RELAY
AUTO CAB TILT<WV2> (B) 		1-53459-895-0 01 1 9307-
254 LEVER; RELAY
AUTO CAB TILT<WV2> (A) 		1-53459-970-0 01 1 9307-
255 SPRING; RETURN,LEVER
AUTO CAB TILT<WV2> 		1-53458-446-0 01 1 9307-
256 BRACKET; RELAY LEVER
AUTO CAB TILT<WV2> 		1-53459-896-2 01 1 9307-
257 WASHER; PL,LEVER
AUTO CAB TILT<WV2> ID=10.5 OD=18 		9-09160-510-0 01 1 9307-
258 RING; SNAP,LEVER
AUTO CAB TILT<WV2> ID=8 		9-09185-408-0 01 1 9307-
260 WASHER; PL,LINK ROD
AUTO CAB TILT<WV2> ID=6.4 		9-09160-506-0 02 1 9307-
261 ROD; LINK
AUTO CAB TILT<WV2> 		1-09765-255-0 01 1 9307-
262 BOLT; RELAY LEVER
AUTO CAB TILT<WV2> M8X16 FLANGE 		0-28080-816-0 02 1 9307-

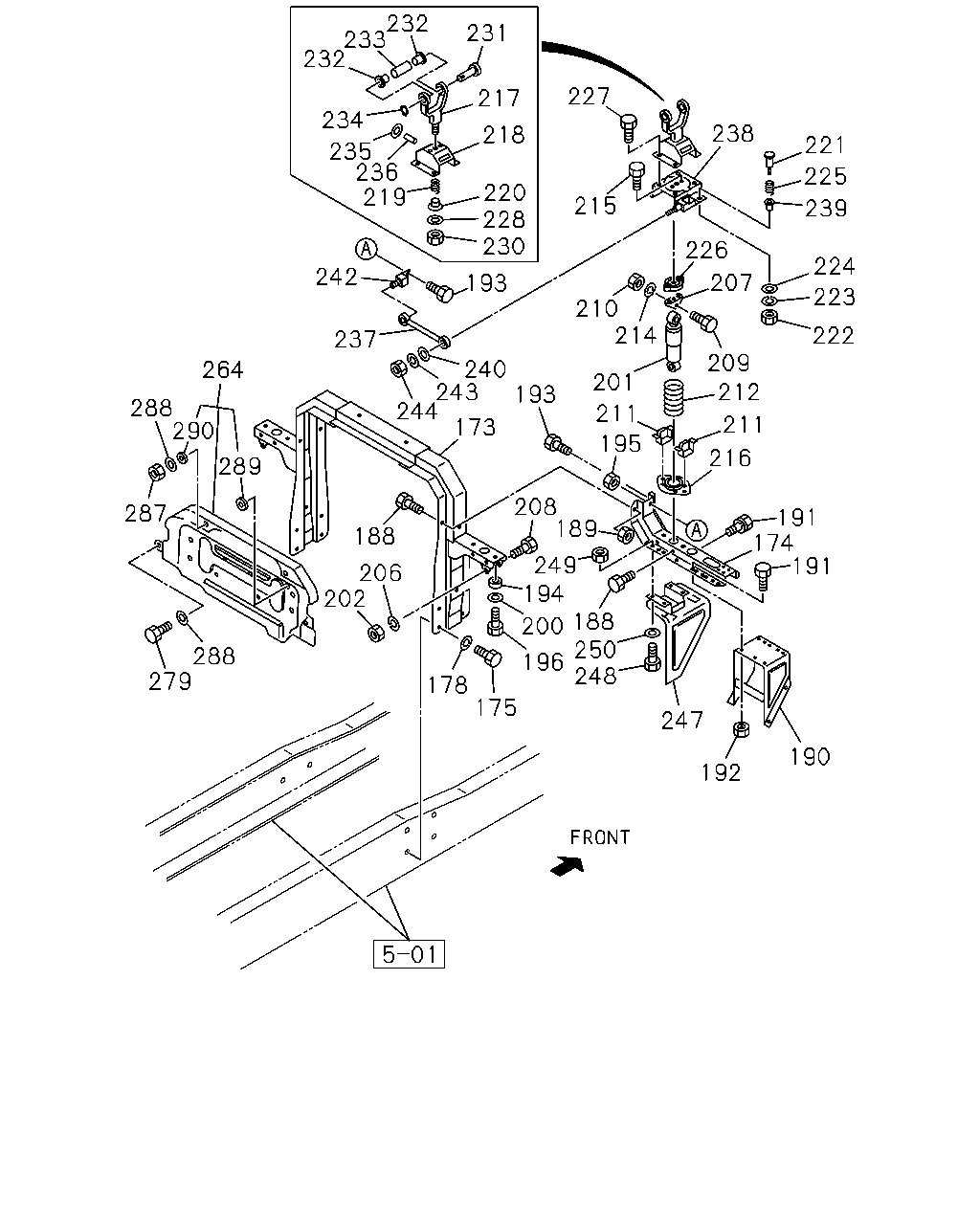

çizim 6266
232 233 232 231 227 217 234 238 218 221 235 236 219 225 220 228 230 215 239 226 224 242 207 193 223 210 214 222 237 209 212 240 243 244 264 201 193 288 290 211 211 173 195 216 289 208 189 287 191 174 191 188 249 194 206 202 188 250 248 200 288 279 196 178 175 247 190 192
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR 1-53450-485-3 01 1 9002-9306
173 MEMBER; CAB MTG RR
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-53450-485-3 01 1 9307-9402
173 MEMBER; CAB MTG RR 1-53450-485-3 01 1 9403-
173 MEMBER; CAB MTG RR
ANTI NOISE EQUIPMENT<SV9> 		1-53450-507-5 01 1 9307-9402
173 MEMBER; CAB MTG RR
ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ> 		1-53450-507-5 01 1 9501-9501
174 OUTRIGGER 1-53456-153-6 02 1 9002-9210
174 OUTRIGGER 1-53456-242-1 02 1 9211-
175 BOLT; MEMBER TO FRAME
M14X35 		9-92061-435-0 08 1 9002-
178 WASHER; LK,MEMBER
ID=14.2 		9-09150-614-0 08 1 9002-
188 BOLT; OUTRIGGER
M10X25 		9-01911-025-0 08 1 9002-9002
188 BOLT; OUTRIGGER
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9003-
188 BOLT; OUTRIGGER
M12X30 W/LK WASHER 		9-01911-230-0 02 1 9002-9005
188 BOLT; OUTRIGGER
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9006-
189 NUT; OUTRIGGER
M12 		9-99110-412-0 02 1 9002-9304
189 NUT; OUTRIGGER
M12 		9-99110-512-0 02 1 9305-
190 BRACKET; MUD GUARD 1-79930-477-3 02 1 9002-
191 BOLT; BRKT FIX
M8X20 W/LK WASHER 		9-01910-820-0 02 1 9002-9005
191 BOLT; BRKT FIX
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9006-9302
191 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9304
191 BOLT; BRKT FIX
M10X25 		9-01911-025-0 04 1 9002-9002
191 BOLT; BRKT FIX
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9003-
192 NUT; BRKT FIX
M10 		9-09110-410-0 04 1 9002-9304
192 NUT; BRKT FIX
M10 		9-09110-510-0 03 1 9305-
193 BOLT; BRKT
M10X30 W/LK WASHER 		9-01911-030-0 02 1 9002-9002
193 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 02 1 9003-
193 BOLT; BRKT
M12X30 W/LK WASHER 		9-01911-230-0 02 1 9002-9005
193 BOLT; BRKT
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9006-
194 SEAT; RUBBER 1-53459-320-0 04 1 9002-
195 NUT; BRKT FIX
M10 		9-09110-510-0 02 1 9002-
196 BOLT; CAB SUSP MTG 1-09009-090-0 04 1 9002-
200 WASHER; PL,BRKT FIX
ID=10.5 OD=22 		9-09160-610-0 04 1 9002-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-152-0 02 1 9002-9404
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-450-1 02 1 9405-
202 NUT; S/ABS
M12 		9-99110-412-0 02 1 9002-9304
202 NUT; S/ABS
M12 		9-99110-512-0 02 1 9305-
206 WASHER; LK,S/ABS
ID=12.2 		9-09150-512-0 02 1 9002-
207 BRACKET; S/ABS 1-51681-299-0 02 1 9002-
208 BOLT; S/ABS
M12X55 		9-91056-255-0 02 1 9002-9005
208 BOLT; S/ABS
M12X55 		0-10806-255-0 02 1 9006-
209 BOLT; S/ABS
M12X55 		9-91056-255-0 02 1 9002-9005
209 BOLT; S/ABS
M12X55 		0-10806-255-0 02 1 9006-
210 NUT; S/ABS
M12 		9-99110-412-0 02 1 9002-9304
210 NUT; S/ABS
M12 		9-99110-512-0 02 1 9305-
211 RUBBER; CUSHION,S/ABS 1-53366-050-1 04 1 9002-
212 SPRING; COIL
TAIWAN EQUIPMENT(WW5) 		1-09580-416-0 02 1 9210-9404
212 SPRING; COIL
EXC. TAIWAN EQUIPMENT(WW5) 		1-09580-351-0 02 1 9307-9404
212 SPRING; COIL 1-09580-351-0 02 1 9405-
212 SPRING; COIL
TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) 		1-09580-351-0 02 1 9002-9209
212 SPRING; COIL
CHINA EQUIPMENT(YT2) 		1-09580-351-0 02 1 9210-9306
212 SPRING; COIL
EXC. TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) 		1-09580-353-0 02 1 9002-9306
214 WASHER; LK,S/ABS
ID=12.2 		9-09150-512-0 02 1 9002-
215 BOLT; BRKT TO HOLDER
M10X25 		9-01911-025-0 04 1 9002-9002
215 BOLT; BRKT TO HOLDER
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9003-
216 HOLDER; COIL SPR,CAB BACK 1-53459-319-0 02 1 9002-
217 JAW; CAB HOOK 1-53459-373-1 02 1 9002-
218 HOLDER 1-53459-838-0 02 1 9002-9106
218 HOLDER 1-53458-290-0 02 1 9107-
219 SPRING; COIL,CAB HOOK 1-09580-350-1 02 1 9002-
220 GUIDE; SPR 1-53459-374-0 02 1 9002-
221 PLATE
AUTO CAB TILT<WV2> 		1-53459-546-1 01 1 9307-
222 NUT; PLATE FIX
AUTO CAB TILT<WV2> M10 		9-09110-510-0 01 1 9307-
223 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 01 1 9307-
224 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=22 		9-09160-610-0 01 1 9307-
225 SPRING
AUTO CAB TILT<WV2> 		1-09580-400-0 01 1 9307-
226 RUBBER; BUFFER 1-53459-539-0 02 1 9002-
227 BOLT; BUFFER RUBBER ROD
M8X25 W/LK&PL WASHER 		9-01970-825-0 08 1 9002-9005
227 BOLT; BUFFER RUBBER ROD
M8X25 W/LK&PL WASHER 		0-50140-825-0 08 1 9006-
228 WASHER; PL 1-09503-152-0 02 1 9002-
230 NUT
M14 		9-99110-514-0 02 1 9002-
231 PIN; CAB HOOK 1-53459-375-0 02 1 9002-
232 BUSHING; COLLAR 5-33659-053-0 04 1 9002-
233 COLLAR; CAB HOOK 1-53459-376-0 02 1 9002-
234 RING; SNAP 1-09588-032-0 02 1 9002-
235 ROLLER; GUIDE 1-53459-377-0 02 1 9002-
236 PIN; SPR,ROLLER 1-09748-018-0 02 1 9002-
237 ROD ASM; LATERAL 1-53459-337-5 02 1 9002-9012
237 ROD ASM; LATERAL 1-53459-730-1 02 1 9101-9207
237 ROD ASM; LATERAL 1-53458-288-0 02 1 9208-
238 BRACKET; BUFFER,RH 1-53459-330-4 01 1 9002-9108
238 BRACKET; BUFFER,RH 1-53458-292-0 01 1 9109-
238 BRACKET; BUFFER,RH 1-53459-329-4 01 1 9002-9108
238 BRACKET; BUFFER,RH
EXC. AUTO CAB TILT<WV2> 		1-53458-291-0 01 1 9109-9306
238 BRACKET; BUFFER,RH
AUTO CAB TILT<WV2> 		1-53458-328-0 01 1 9307-
238 BRACKET; BUFFER,RH
EXC. AUTO CAB TILT<WV2> 		1-53458-291-0 01 1 9307-
239 BUSHING; BRKT,BUFFER
AUTO CAB TILT<WV2> 		1-09330-055-0 01 1 9307-
240 WASHER; PL,BRKT
ID=12.5 		9-09160-512-0 04 1 9002-
240 WASHER; PL,BRKT
AUTO CAB TILT<WV2> ID=10.5 OD=32 		9-09164-810-0 01 1 9307-
242 BRACKET; LATERAL ROD 1-53454-224-2 01 1 9002-
242 BRACKET; LATERAL ROD 1-53454-223-2 01 1 9002-
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 04 1 9002-
244 NUT; LATERAL ROD
M12 		9-99110-412-0 04 1 9002-9304
244 NUT; LATERAL ROD
M12 		9-99110-512-0 04 1 9305-
247 PROTECTOR ASM; HEAT 1-79930-378-6 01 1 9002-9306
247 PROTECTOR ASM; HEAT
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-79930-378-6 01 1 9307-
247 PROTECTOR ASM; HEAT
10PD1 STD ENG(40L) 		1-79930-379-6 01 1 9002-9306
247 PROTECTOR ASM; HEAT
10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> 		1-79930-379-6 01 1 9307-
248 BOLT; HEAT PROTECTOR
M10X25 		9-01911-025-0 04 1 9002-9002
248 BOLT; HEAT PROTECTOR
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9003-9009
248 BOLT; HEAT PROTECTOR
10PD1 STD ENG(40L) M10X25 		9-01911-025-0 02 1 9002-9002
248 BOLT; HEAT PROTECTOR
10PD1 STD ENG(40L) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9003-9009
248 BOLT; HEAT PROTECTOR
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9010-9306
248 BOLT; HEAT PROTECTOR
10PD1 STD ENG(40L) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9010-9306
248 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307-
248 BOLT; HEAT PROTECTOR
10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307-
249 NUT; PROTECTOR
EXC. ANTI NOISE EQUIPMENT<SV9> M10 		9-09110-510-0 02 1 9002-
249 NUT; PROTECTOR
10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M10 		9-09110-510-0 02 1 9002-
250 WASHER; LK
ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9306
250 WASHER; LK
10PD1 STD ENG(40L) ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9306
250 WASHER; LK
EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18 		9-09160-510-0 02 1 9307-
250 WASHER; LK
10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18 		9-09160-510-0 02 1 9307-
264 PANEL; BACK
ANTI NOISE EQUIPMENT<SV9> 		1-53192-810-0 01 1 9307-9312
264 PANEL; BACK
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		1-53192-810-0 01 1 9401-9409
279 BOLT
ANTI NOISE EQUIPMENT<SV9> 		0-28280-822-0 02 1 9307-9312
279 BOLT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		0-28280-822-0 02 1 9401-9409
287 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		5-09440-005-0 02 1 9307-9312
287 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		5-09440-005-0 02 1 9401-9409
288 WASHER; PL
ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26 		9-09164-808-0 04 1 9307-9312
288 WASHER; PL
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> ID=8.4 OD=26 		9-09164-808-0 04 1 9401-9409
289 GROMMET
ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8 		9-09576-198-0 01 1 9307-9312
289 GROMMET
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> OD=40 T=4.8 		9-09576-198-0 01 1 9401-9409
290 RUBBER; MTG
ANTI NOISE EQUIPMENT<SV9> 		1-53459-702-1 04 1 9307-9312
290 RUBBER; MTG
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		1-53459-702-1 04 1 9401-9409
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
