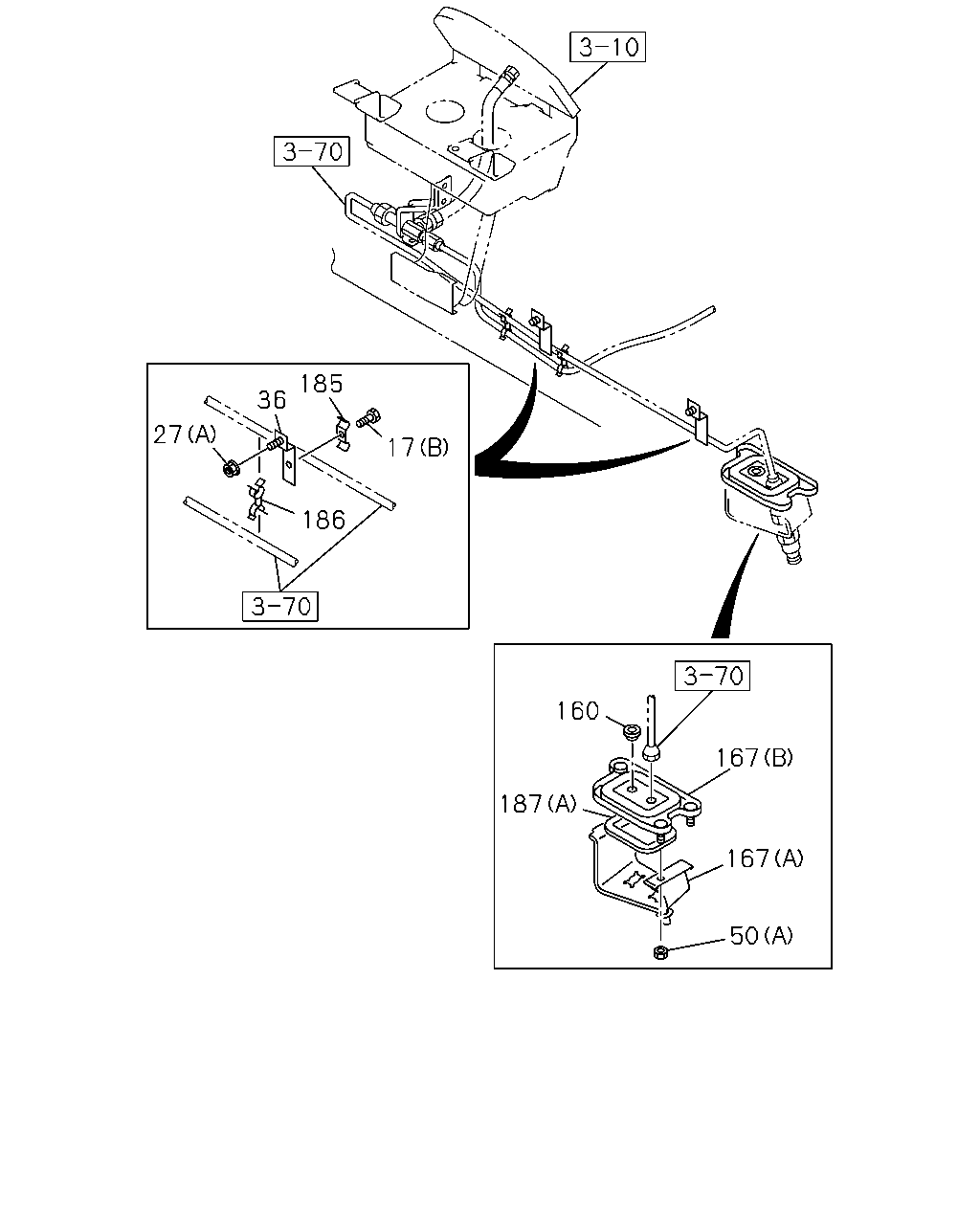

2-05B — CLUTCH PIPING
(#36179) — 19 parça
185
36
27
17
186
160
167
187
167
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9510-0010
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0011-
27
NUT; BRKT
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
9510-0010
27
NUT; BRKT
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0011-
36
BRACKET; CLIP
1-79738-186-1
02
1
9510-0010
36
BRACKET; CLIP
1-79738-186-1
02
1
0011-
50
NUT; UNION
(A) M8 FLANGE
8-94279-517-0
03
1
9510-9611
50
NUT; UNION
(A) M8 CUTTING NUT W/FLANGE
1-09985-340-0
03
1
9612-
160
GROMMET; OIL PIPE
OD=31.6
8-94198-177-0
01
1
9608-
167
BRACKET; UNION
(A)
1-79738-193-6
01
1
0005-0601
167
BRACKET; UNION
(A)
1-79738-193-6
01
1
0602-
167
BRACKET; UNION
(B)
1-79738-204-2
01
1
9510-9911
167
BRACKET; UNION
(B)
1-79738-845-1
01
1
9912-
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
9510-0010
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
0011-
186
HOLDER; CLIP
ID=4.75 & 6
8-94165-403-0
02
1
9510-9706
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
9707-0010
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
0011-
187
SEAL; BRKT
(A)
1-79738-190-0
01
1
9510-
