Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#36178) — 339 parça

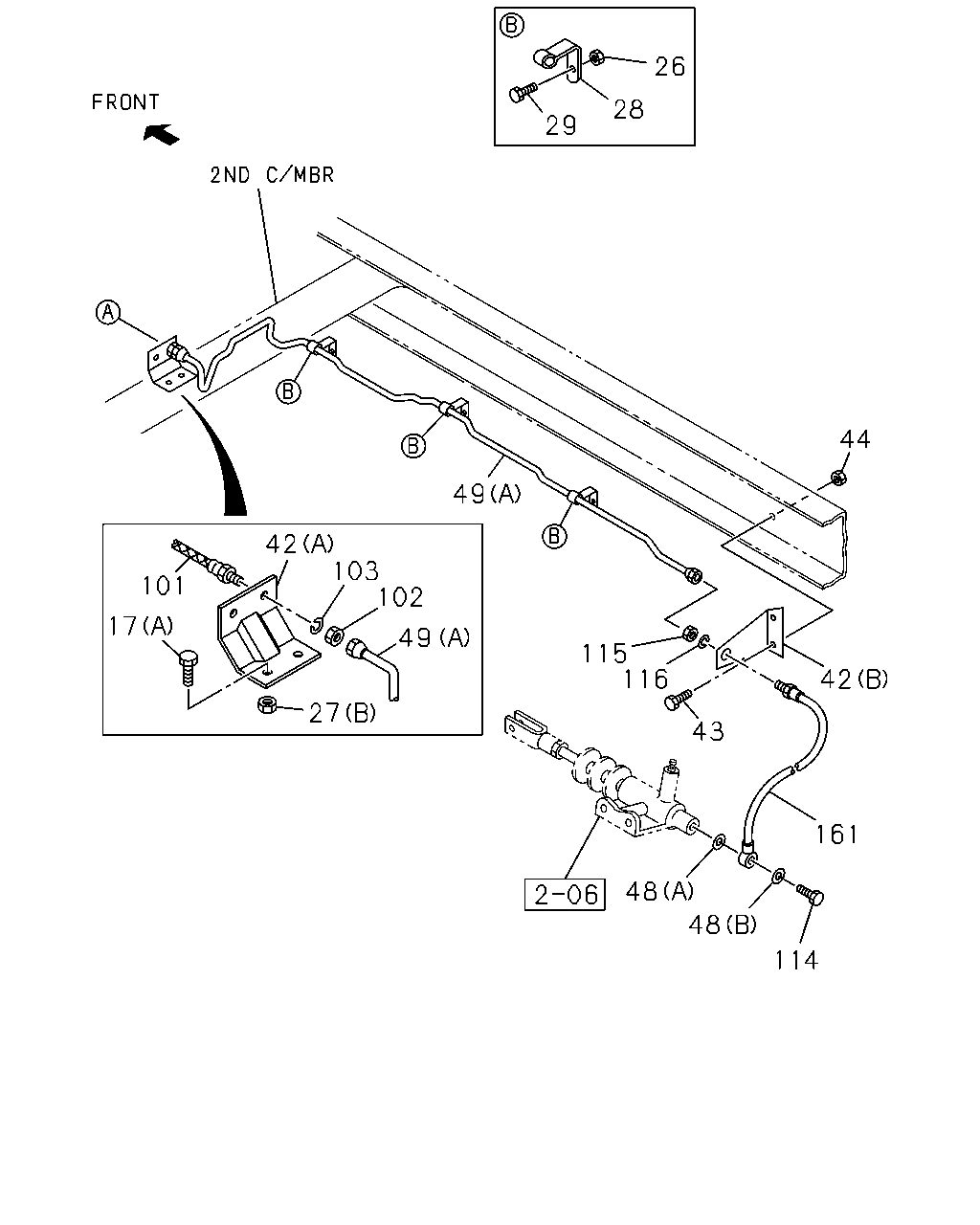

26 28 29 44 49 42 103 102 101 17 49 115 116 42 27 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0512	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	05	1	0602-0602	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	05	1	0602-0602	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	10	1	0603-0611	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	05	1	0612-	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	05	1	0612-	●	●		●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	03	1	9510-9606	●	●	●	●	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	9607-0211	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0212-0602	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
26	NUT; CLIP,OIL PIPE MIDDLE CHASSIS & STD CAB(FT**MF) M8 FLANGE	0-91150-108-0	01	1	9905-0004		●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0004	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	04	1	9511-9606	●	●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	9607-0211	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0212-0602	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0212-0602	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0010	●	●	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0010	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-0010	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-	●	●	●	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	05	1	0602-	●	●		●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	9510-0211	●	●	●	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0212-	●	●	●	●	●
28	CLIP; OIL PIPE MIDDLE CHASSIS & STD CAB(FT**MF) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-0004		●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9905-0004	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0005-	●	●	●	●	●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	9511-0211	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0212-	●	●	●	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0212-	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	05	1	0602-	●	●		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9510		●	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X25 FLANGE	0-28080-825-0	02	1	9511-9606	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	9905-0211	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0212-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X25 FLANGE	0-28080-825-0	04	1	9511-9606	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	9607-0211	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0212-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0212-0512	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	9510-	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47476-047-0	01	1	9511-9702	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9703-0211	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0212-0601	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0602-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9510-	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9511-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> CAB UP +50MM<W60> (A) L=3005 SERVICED BY L=3300	1-47426-398-0	01	1	0603-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER DOUBLE CAB(FT*W) (A) L=2391 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802		●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER DOUBLE CAB(FT*W) (A) L=2391 SERVICED BY L=2400	1-47426-395-0	01	1	9803-0004		●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER DOUBLE CAB(FT*W) (A) L=2391 SERVICED BY L=2400	1-47426-395-0	01	1	0005-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9607			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MIDDLE CHASSIS & STD CAB(FT**MF) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9607		●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9607	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9608-9802			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MIDDLE CHASSIS & STD CAB(FT**MF) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9608-9802					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9803-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MIDDLE CHASSIS & STD CAB(FT**MF) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9803-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2981 SERVICED BY L=3000	1-47426-397-0	01	1	9511-9802	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2981 SERVICED BY L=3000	1-47426-397-0	01	1	9803-9804	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2973 SERVICED BY L=3000	1-47426-397-0	01	1	9805-0211	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (A) L=2973 SERVICED BY L=3000	1-47426-397-0	01	1	0212-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (B) L=216	1-47493-418-1	01	1	9511-9609	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) L=216	1-47493-418-1	01	1	9610-9802	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9803-0505	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0506-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0703	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0512	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0603	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●	●	●	●
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	9510-	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0512	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0603	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●	●	●	●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> L=400	1-09364-597-0	01	1	9510-	●	●	●	●	●

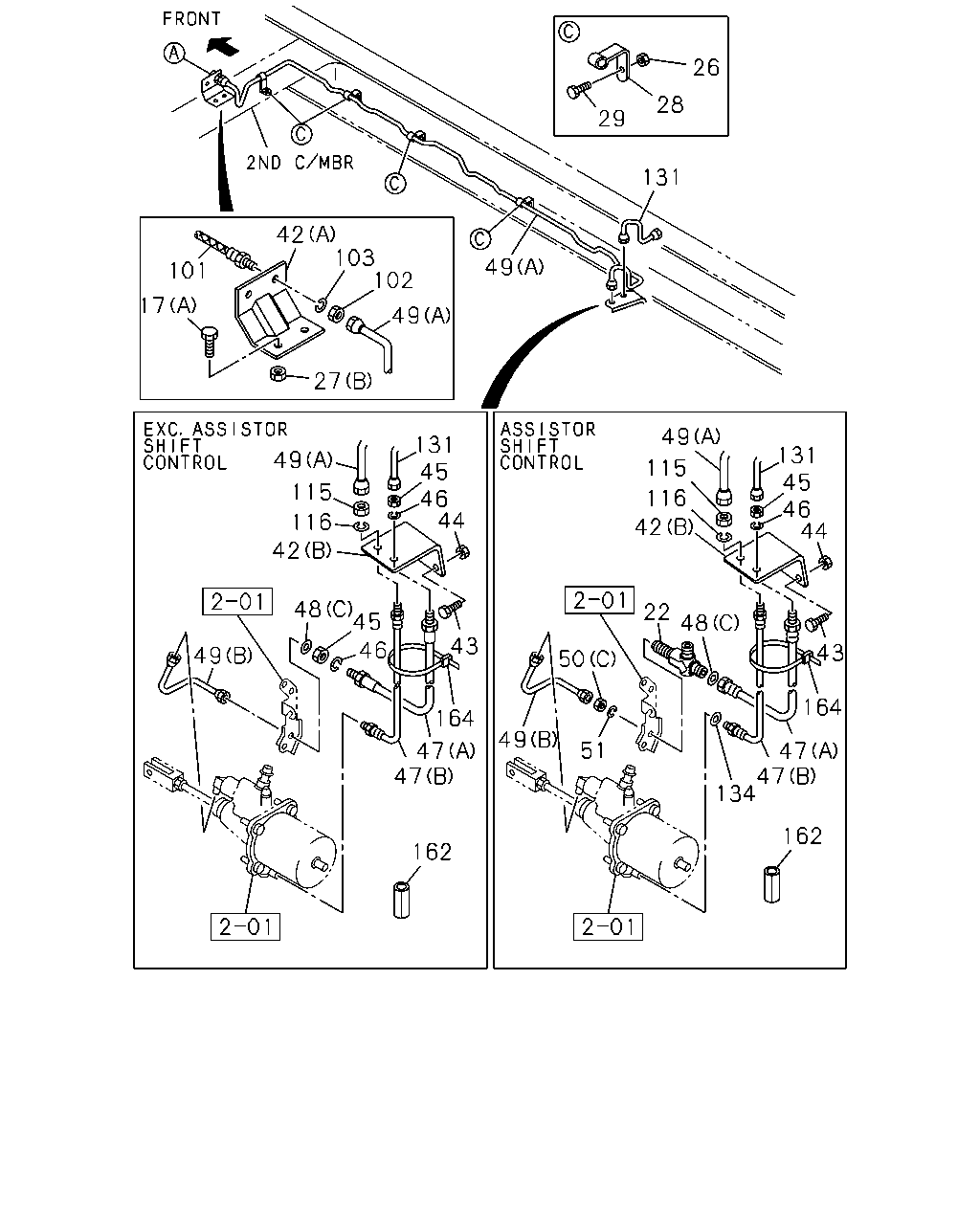

26 28 29 131 42 103 102 49 101 17 49 27 49 131 45 46 44 131 45 46 44 49 115 115 116 116 42 42 48 45 22 48 43 46 43 49 50 164 164 49 51 47 47 47 47 134 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0512	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-	●	●	●	●	●
22	UNION; CLU PIPE 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M12 & M20X2 3WAY	1-09656-395-3	01	1	9511-9609	●	●
22	UNION; CLU PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ASSISTOR SHIFT CONTROL<WX8> M12 & M20X2 3WAY	1-09656-395-3	01	1	9610-9802	●	●
22	UNION; CLU PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	9803-0505	●	●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	0506-0607	●	●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0608-	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	05	1	0602-0602	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	05	1	0602-0602	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	10	1	0603-0611	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	05	1	0612-	●	●		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	05	1	0612-	●	●		●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	03	1	9510-9606	●	●	●	●	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	9607-0211	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0212-0602	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
26	NUT; CLIP,OIL PIPE MIDDLE CHASSIS & STD CAB(FT**MF) M8 FLANGE	0-91150-108-0	01	1	9905-0004		●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0004	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	04	1	9511-9606	●	●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	9607-0211	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0212-0602	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0212-0602	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0010	●	●	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0010	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-0010	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-	●	●	●	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	05	1	0602-	●	●		●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	9510-0211	●	●	●	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0212-	●	●	●	●	●
28	CLIP; OIL PIPE MIDDLE CHASSIS & STD CAB(FT**MF) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-0004		●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9905-0004	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0005-	●	●	●	●	●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	9511-0211	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0212-	●	●	●	●	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0212-	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	05	1	0602-	●	●		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9510		●	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X25 FLANGE	0-28080-825-0	02	1	9511-9606	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	9905-0211	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0212-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X25 FLANGE	0-28080-825-0	04	1	9511-9606	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	9607-0211	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0212-0512	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0212-0512	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	9510-	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47476-047-0	01	1	9511-9702	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9703-0211	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0212-0601	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0602-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9511-0211	●	●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0212-0601	●	●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0602-	●	●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	9511-0211	●	●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0212-0601	●	●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	02	1	0212-0601	●	●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0602-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9511-0211	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0212-0601	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0602-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	9511-0211	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	0212-0601	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	02	1	0212-0601	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	0602-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	02	1	0604-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-634-1	01	1	0602-	●	●		●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B) L=500	1-09364-329-0	01	1	0602-	●	●		●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=370	1-09364-646-0	01	1	9511-9602	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=415	1-09364-490-0	01	1	9603-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (B) L=415	1-09364-490-0	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (A) L=420	0-07120-420-0	01	1	9511-9802	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (A) L=420	1-09363-633-0	01	1	9803-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (A) L=420	1-09363-633-0	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	0-07030-520-0	01	1	9511-9602	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=490	0-07030-490-0	01	1	9603-9802	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=500	1-09363-720-0	01	1	9803-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=500	1-09363-720-0	01	1	0212-	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9510-	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9511-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> CAB UP +50MM<W60> (A) L=3005 SERVICED BY L=3300	1-47426-398-0	01	1	0603-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER DOUBLE CAB(FT*W) (A) L=2391 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802		●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER DOUBLE CAB(FT*W) (A) L=2391 SERVICED BY L=2400	1-47426-395-0	01	1	9803-0004		●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER DOUBLE CAB(FT*W) (A) L=2391 SERVICED BY L=2400	1-47426-395-0	01	1	0005-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9607			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MIDDLE CHASSIS & STD CAB(FT**MF) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9607		●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9607	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9608-9802			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MIDDLE CHASSIS & STD CAB(FT**MF) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9608-9802					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9803-			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MIDDLE CHASSIS & STD CAB(FT**MF) (A) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	9803-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2981 SERVICED BY L=3000	1-47426-397-0	01	1	9511-9802	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2981 SERVICED BY L=3000	1-47426-397-0	01	1	9803-9804	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2973 SERVICED BY L=3000	1-47426-397-0	01	1	9805-0211	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (A) L=2973 SERVICED BY L=3000	1-47426-397-0	01	1	0212-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (B) L=216	1-47493-418-1	01	1	9511-9609	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) L=216	1-47493-418-1	01	1	9610-9802	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9803-0505	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0506-	●	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-	●	●	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9510-0512	●	●	●	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
50	NUT; UNION 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9511-9609	●	●
50	NUT; UNION 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9610-0505	●	●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0506-	●	●
51	WASHER; LK 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9511-9609	●	●
51	WASHER; LK 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9610-0505	●	●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0506-0603	●	●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0703	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0512	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0603	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0512	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0603	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49114-903-0	01	1	9511-9802	●	●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49119-384-0	01	1	9803-9804	●	●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49119-462-0	01	1	9805-0211	●	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1>	1-49119-462-0	01	1	0212-	●	●
134	GASKET AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9511-9912	●	●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=17 OD=21 L=40	1-09337-012-0	01	1	9803-	●	●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9803-	●	●
162	COVER; RUBBER,FLEX HOSE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR ASSIST CLUTCH<PK1> ID=17 OD=21 L=40	1-09337-012-0	01	1	9705-9802	●	●
162	COVER; RUBBER,FLEX HOSE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR ASSIST CLUTCH<PK1> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9705-9802	●	●
164	CLIP; BAND,FLEX HOSE AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-1	01	1	9803-	●	●
164	CLIP; BAND,FLEX HOSE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-0	01	1	9705-9802	●	●

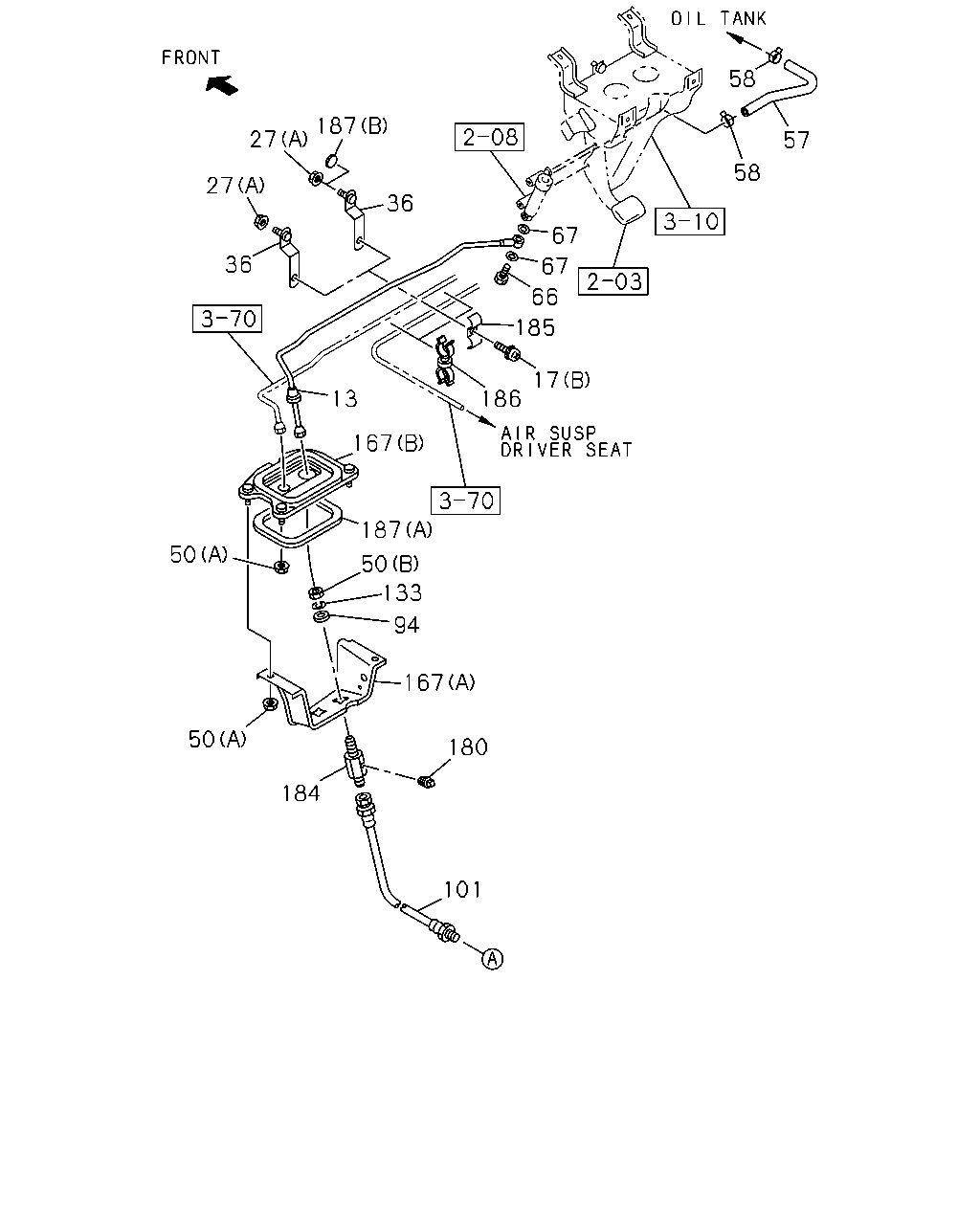

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9510-	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0512	●	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●	●	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-0010	●	●	●	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-	●	●	●	●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0010	●	●	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0010	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●	●	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-0010	●	●	●	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-	●	●	●	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	9510-0010	●	●	●	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9510-0010	●	●	●	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0011-	●	●	●	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-	●	●	●	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9510-0010	●	●	●	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0011-	●	●	●	●	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-	●	●	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9510-0512	●	●	●	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●	●	●	●
50	NUT; UNION 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9511-9609	●	●
50	NUT; UNION 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	9610-0505	●	●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0506-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9510-	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9510-	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9510-0805	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-1312	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9510-0605	●	●	●	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0703	●	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9510-0603	●	●	●	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●	●	●	●
167	BRACKET; UNION 6HK1 TCC ENG(81L) (A)	1-79738-847-2	01	1	0603-		●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9510-0004	●	●	●	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0601	●	●	●	●	●
167	BRACKET; UNION 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A)	1-79738-193-6	01	1	0602-	●	●	●	●	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9510-9911	●	●	●	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	9912-	●	●	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9510-0804	●	●	●	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	9510-0804	●	●	●	●	●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-	●	●	●	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	9510-0010	●	●	●	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9510-0010	●	●	●	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0011-	●	●	●	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-	●	●	●	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9510-0010	●	●	●	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-	●	●	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9510-9706	●	●	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-0010	●	●	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-	●	●	●	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9510-	●	●	●	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9510-0010	●	●	●	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
