1-41 — FUEL PIPING; CHASSIS (#36171) — 204 parça

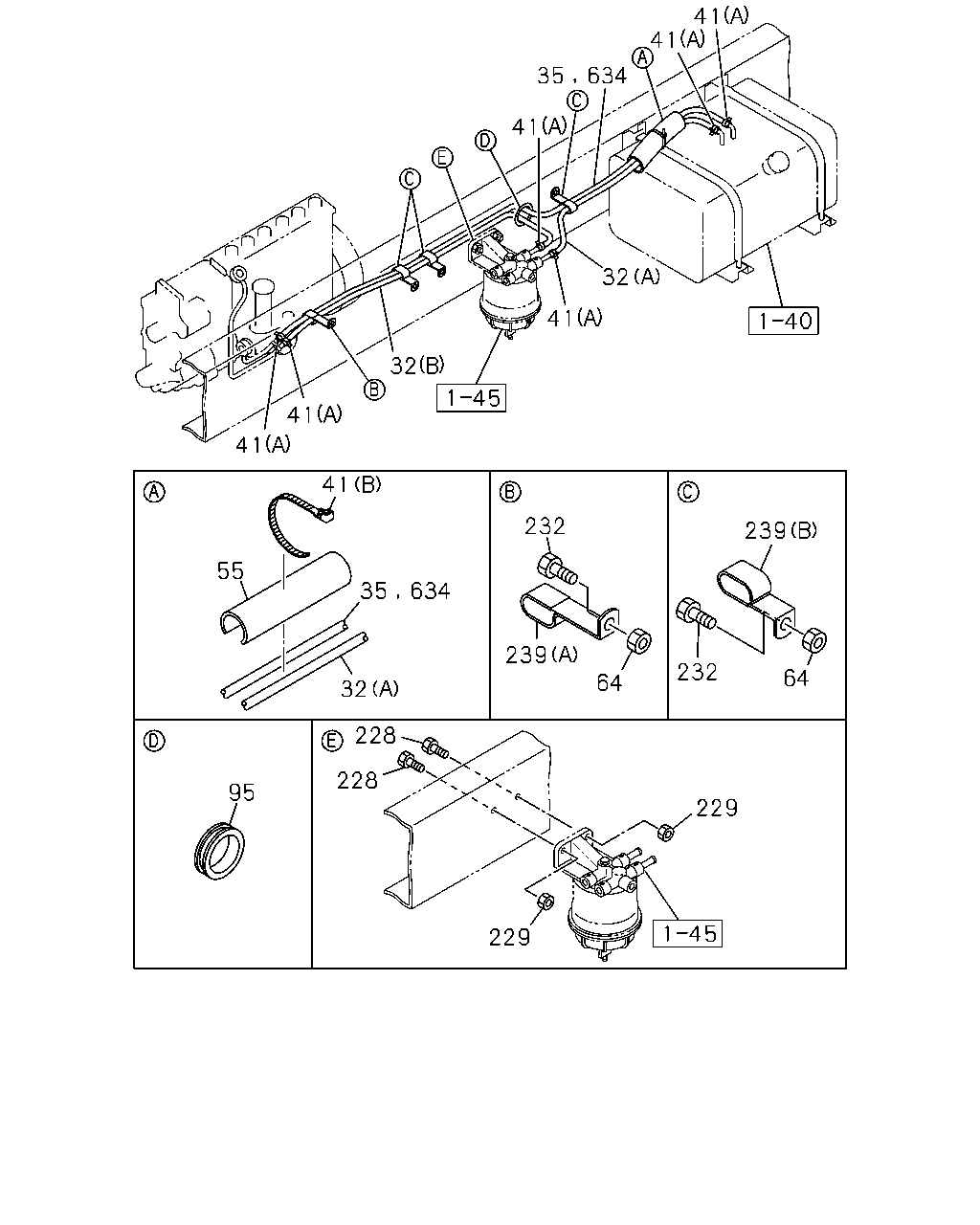

çizim 152011
41 35 41 32 41 634 41 41 41 32 41 232 239 55 35 634 239 64 232 64 95 229 229 228 32 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (A) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
32 PIPE; DELIVERY,FUEL TANK
DOUBLE CAB(FT**W*) (B) L=2200 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) L=2350 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
32 PIPE; DELIVERY,FUEL TANK
DOUBLE CAB(FT**W*) (A) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) (B) L=2300 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0009 ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0010-0211 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0212-0401 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ● ●
35 PIPE; FUEL TANK,RETURN
AUSTRALIA EQUIPMENT(RR3) L=2950 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
35 PIPE; FUEL TANK,RETURN
EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0601 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0602- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0601 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0602- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=250 		9-09912-735-1 01 1 9607-9802 ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=1300 		1-09360-677-1 01 1 9803-0004 ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 9510-9606 ● ●
55 COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) L=1300 		1-09360-677-1 01 1 9607-0004 ● ● ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 0005-0601 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0602- ● ● ● ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 07 1 9510-9606 ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 07 1 9607-0004 ●
64 NUT; CLIP
DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
64 NUT; CLIP
DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-108-0 06 1 0603- ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9606 ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-0004 ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8 		9-09110-408-0 01 1 9603-9606 ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8 FLANGE 		0-91150-108-0 01 1 9607-9802 ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 03 1 9510-9606 ● ● ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ● ●
64 NUT; CLIP
STD CAB(FT**M*) M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ●
64 NUT; CLIP
STD CAB(FT**M*) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9510-0004 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0005-0009 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0010- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0010- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-0004 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601-0601 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0602- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 06 1 9510-9606 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9804 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 07 1 9805-0004 ●
232 BOLT; CLIP,PIPE
DOUBLE CAB(FT**W*) M8X30 FLANGE 		0-28680-830-0 06 1 0005-0512 ●
232 BOLT; CLIP,PIPE
DOUBLE CAB(FT**W*) M8X30 FLANGE 		0-28650-830-0 06 1 0601- ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 05 1 9510-9606 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 05 1 9607-9804 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9805-0004 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8X25 FLANGE 		0-28080-825-0 01 1 9603-9606 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8X30 FLANGE 		0-28680-830-0 01 1 9607-9802 ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ● ● ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ● ● ●
232 BOLT; CLIP,PIPE
STD CAB(FT**M*) M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0601 ● ● ●
232 BOLT; CLIP,PIPE
STD CAB(FT**M*) M8X30 FLANGE 		0-28650-830-0 03 1 0601-0601 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 0602- ● ● ● ●
232 BOLT; CLIP,PIPE
STD CAB(FT**M*) M8X30 FLANGE 		0-28650-830-0 03 1 0602- ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 03 1 9510-9804 ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 9805-0004 ●
239 CLIP; FUEL PIPE
DOUBLE CAB(FT**W*) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 0005- ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 9510-9804 ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 9805-0004 ●
239 CLIP; FUEL PIPE
DOUBLE CAB(FT**W*) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0005- ●
239 CLIP; FUEL PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 9510-9804 ●
239 CLIP; FUEL PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9805-0004 ●
239 CLIP; FUEL PIPE
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9603-9802 ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0601 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0602- ● ● ● ● ●
239 CLIP; FUEL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 9510-0004 ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0005-0601 ● ● ●
239 CLIP; FUEL PIPE
STD CAB(FT**M*) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0005-0601 ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0602- ● ● ● ●
239 CLIP; FUEL PIPE
STD CAB(FT**M*) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0602- ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ●
634 HOSE; RUBBER RETURN
STD CAB(FT**M*) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
DOUBLE CAB(FT**W*) L=2800 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●

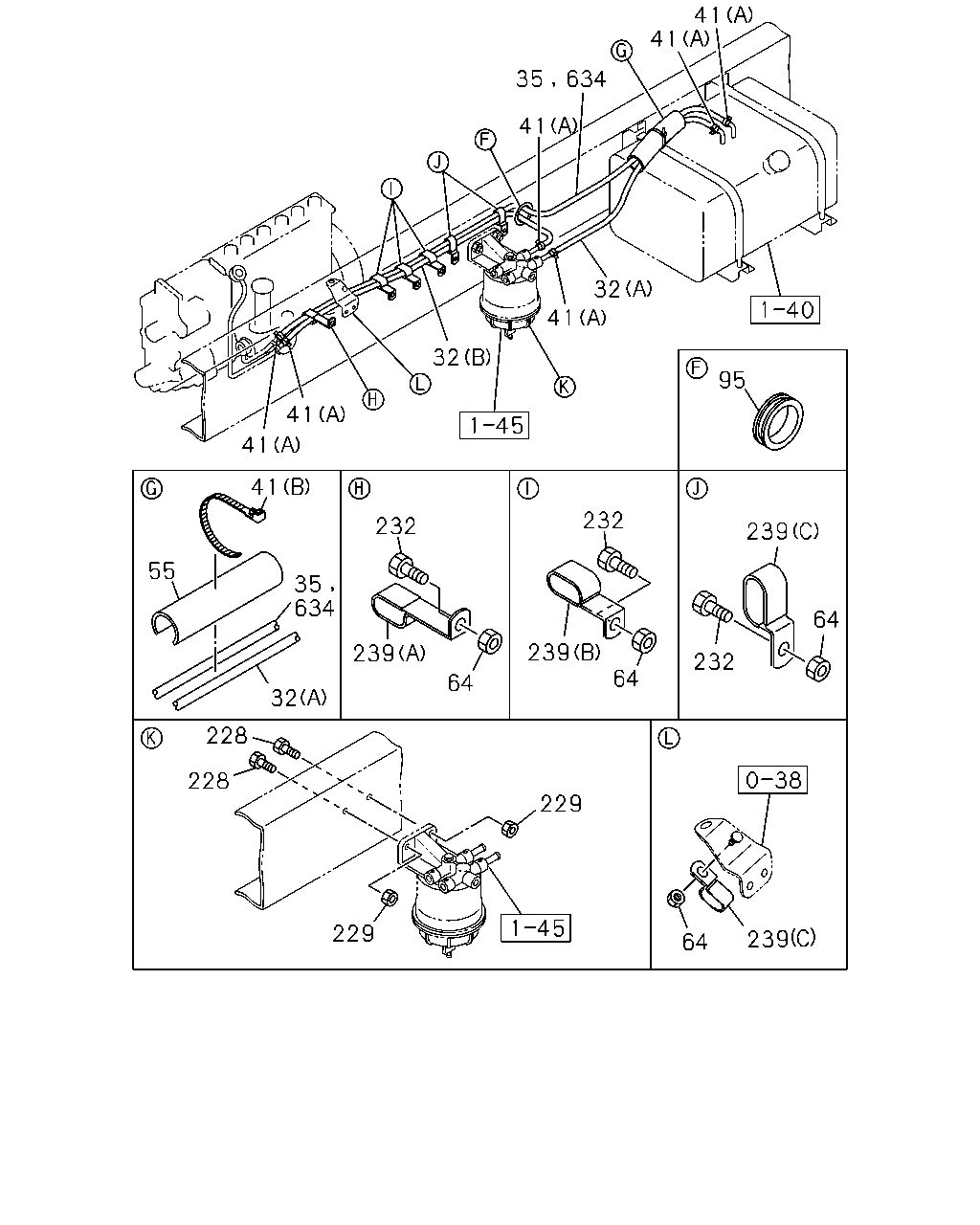

çizim 152019
41 32 41 41 35 634 41 41 41 32 95 41 55 232 232 239 35 634 239 64 64 232 64 239 32 228 228 229 239 64 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 PIPE; DELIVERY,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) (A) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
32 PIPE; DELIVERY,FUEL TANK
DOUBLE CAB(FT**W*) (B) L=2200 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) L=2350 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
32 PIPE; DELIVERY,FUEL TANK
DOUBLE CAB(FT**W*) (A) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) (B) L=2300 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (A) L=760 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0601 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FT**M*) (B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0602- ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0009 ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0010-0211 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0212-0401 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0402- ● ●
35 PIPE; FUEL TANK,RETURN
AUSTRALIA EQUIPMENT(RR3) L=2950 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ●
35 PIPE; FUEL TANK,RETURN
EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0601 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0602- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9510-0004 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0601 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0602- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=250 		9-09912-735-1 01 1 9607-9802 ●
55 COVER; PIPE,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) L=1300 		1-09360-677-1 01 1 9803-0004 ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 9510-9606 ● ●
55 COVER; PIPE,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) L=1300 		1-09360-677-1 01 1 9607-0004 ● ● ●
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 0005-0601 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0602- ● ● ● ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 07 1 9510-9606 ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 07 1 9607-0004 ●
64 NUT; CLIP
DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
64 NUT; CLIP
DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-108-0 06 1 0603- ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9606 ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-0004 ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8 		9-09110-408-0 01 1 9603-9606 ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8 FLANGE 		0-91150-108-0 01 1 9607-9802 ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 03 1 9510-9606 ● ● ●
64 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ● ●
64 NUT; CLIP
STD CAB(FT**M*) M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ●
64 NUT; CLIP
STD CAB(FT**M*) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9510-0004 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0005-0009 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0010- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0010- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-0004 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601-0601 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0602- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 06 1 9510-9606 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9804 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 07 1 9805-0004 ●
232 BOLT; CLIP,PIPE
DOUBLE CAB(FT**W*) M8X30 FLANGE 		0-28680-830-0 06 1 0005-0512 ●
232 BOLT; CLIP,PIPE
DOUBLE CAB(FT**W*) M8X30 FLANGE 		0-28650-830-0 06 1 0601- ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 05 1 9510-9606 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 05 1 9607-9804 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9805-0004 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8X25 FLANGE 		0-28080-825-0 01 1 9603-9606 ●
232 BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) M8X30 FLANGE 		0-28680-830-0 01 1 9607-9802 ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ● ● ●
232 BOLT; CLIP,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ● ● ●
232 BOLT; CLIP,PIPE
STD CAB(FT**M*) M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0601 ● ● ●
232 BOLT; CLIP,PIPE
STD CAB(FT**M*) M8X30 FLANGE 		0-28650-830-0 03 1 0601-0601 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 0602- ● ● ● ●
232 BOLT; CLIP,PIPE
STD CAB(FT**M*) M8X30 FLANGE 		0-28650-830-0 03 1 0602- ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 03 1 9510-9804 ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 9805-0004 ●
239 CLIP; FUEL PIPE
DOUBLE CAB(FT**W*) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 0005- ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 9510-9804 ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 9805-0004 ●
239 CLIP; FUEL PIPE
DOUBLE CAB(FT**W*) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0005- ●
239 CLIP; FUEL PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 9510-9804 ●
239 CLIP; FUEL PIPE
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9805-0004 ●
239 CLIP; FUEL PIPE
WHEEL BASE 5500MM(55W) THAILAND EQUIPMENT(PM9) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9603-9802 ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0601 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0602- ● ● ● ● ●
239 CLIP; FUEL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 9510-0004 ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0005-0601 ● ● ●
239 CLIP; FUEL PIPE
STD CAB(FT**M*) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0005-0601 ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0602- ● ● ● ●
239 CLIP; FUEL PIPE
STD CAB(FT**M*) (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0602- ●
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ●
634 HOSE; RUBBER RETURN
STD CAB(FT**M*) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
DOUBLE CAB(FT**W*) L=2800 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
