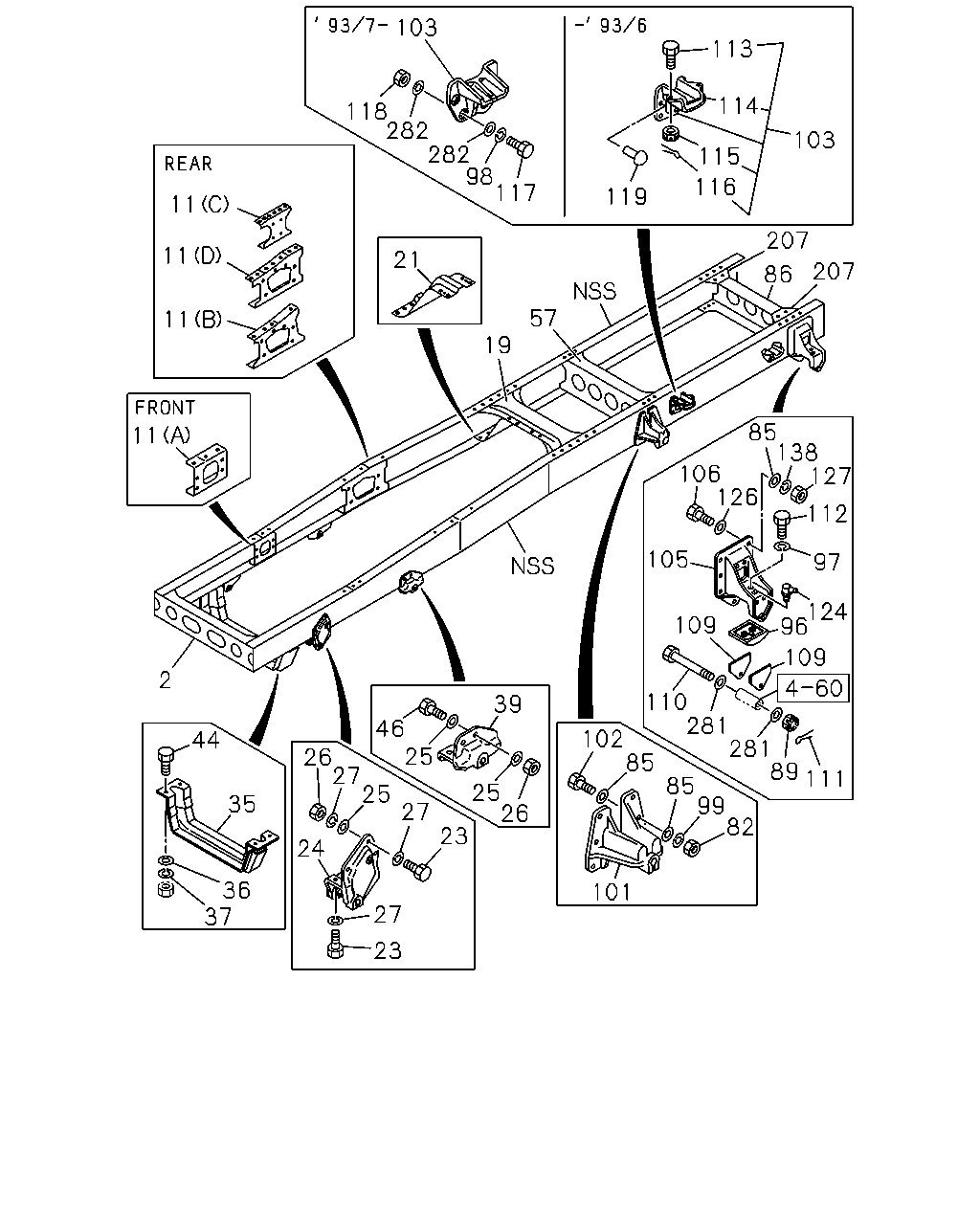

2 |
MEMBER; CROSS,1ST
|
1-53181-350-0 |
01 |
1 |
9002-9302 |
| |
2 |
MEMBER; CROSS,1ST
|
1-53181-517-2 |
01 |
1 |
9303-9404 |
| |
2 |
MEMBER; CROSS,1ST
10PD1 STD ENG(40L)
FRONT STABILIZER SHAFT<F59>
EXC. REAR SHOCK ABSORBER(GL6)
|
1-53181-517-2 |
01 |
1 |
9405- |
| |
2 |
MEMBER; CROSS,1ST
6RB1 STD ENG(07L),6RB1TC-N ENG(29L),12PD1 C
ENG(43L)
|
1-53181-694-0 |
01 |
1 |
9405- |
| |
2 |
MEMBER; CROSS,1ST
10PD1 STD ENG(40L)
EXC. FRONT STABILIZER SHAFT<F59>
|
1-53181-694-0 |
01 |
1 |
9405- |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(A) FRONT
|
1-53219-282-0 |
01 |
1 |
9002-9306 |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(A) FRONT
|
1-53219-456-0 |
01 |
1 |
9307- |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(B) REAR
|
1-53219-365-0 |
01 |
1 |
9002-9310 |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(B) REAR
|
1-53219-446-0 |
01 |
1 |
9311- |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(A) FRONT
|
1-53219-281-0 |
01 |
1 |
9002-9306 |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(A) FRONT
|
1-53219-455-0 |
01 |
1 |
9307- |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(B) REAR
|
1-53219-364-0 |
01 |
1 |
9002-9310 |
| |
11 |
BRACKET; ENG MTG
10PD1 STD ENG(40L)
(B) REAR
|
1-53219-445-0 |
01 |
1 |
9311- |
| |
11 |
BRACKET; ENG MTG
12PD1 C ENG(43L)
(A) FRONT
|
1-53219-458-0 |
01 |
1 |
9307- |
| |
11 |
BRACKET; ENG MTG
12PD1 C ENG(43L)
(D) REAR
|
1-53219-529-0 |
01 |
1 |
9307- |
| |
11 |
BRACKET; ENG MTG
12PD1 C ENG(43L)
(A) FRONT
|
1-53219-457-0 |
01 |
1 |
9307- |
| |
11 |
BRACKET; ENG MTG
12PD1 C ENG(43L)
(D) REAR
|
1-53219-528-0 |
01 |
1 |
9307- |
| |
11 |
BRACKET; ENG MTG
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
(C) REAR
|
1-53219-152-3 |
01 |
1 |
9002- |
| |
11 |
BRACKET; ENG MTG
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
(A) FRONT
|
1-53219-162-2 |
01 |
1 |
9002-9306 |
| |
11 |
BRACKET; ENG MTG
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
(A) FRONT
|
1-53219-462-0 |
01 |
1 |
9307- |
| |
11 |
BRACKET; ENG MTG
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
(C) REAR
|
1-53219-153-4 |
01 |
1 |
9002- |
| |
11 |
BRACKET; ENG MTG
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
(A) FRONT
|
1-53219-163-3 |
01 |
1 |
9002-9306 |
| |
11 |
BRACKET; ENG MTG
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
(A) FRONT
|
1-53219-461-0 |
01 |
1 |
9307- |
| |
19 |
MEMBER; CROSS,2ND
|
1-53174-155-0 |
01 |
1 |
9002-9404 |
| |
19 |
MEMBER; CROSS,2ND
|
1-53174-231-1 |
01 |
1 |
9405- |
| |
21 |
GUSSET; 2ND CROSS
|
1-53164-184-0 |
02 |
1 |
9002-9306 |
| |
21 |
GUSSET; 2ND CROSS
|
1-53164-199-2 |
02 |
1 |
9307-9404 |
| |
21 |
GUSSET; 2ND CROSS
|
1-53164-212-0 |
02 |
1 |
9405- |
| |
23 |
BOLT; BRKT,SPR
M14X45
|
9-92061-445-0 |
06 |
1 |
9002-9104 |
| |
23 |
BOLT; BRKT,SPR
10PD1 STD ENG(40L)
M14X45
|
9-92061-445-0 |
06 |
1 |
9002-9104 |
| |
23 |
BOLT; BRKT,SPR
M14X45
|
9-92061-445-0 |
06 |
1 |
9105-9306 |
| |
23 |
BOLT; BRKT,SPR
M14X45
|
9-92061-445-0 |
08 |
1 |
9307- |
| |
23 |
BOLT; BRKT,SPR
M16X50
|
9-92061-650-0 |
04 |
1 |
9002- |
| |
23 |
BOLT; BRKT,SPR
10PD1 STD ENG(40L)
M14X55
|
9-91066-455-0 |
02 |
1 |
9002-9104 |
| |
23 |
BOLT; BRKT,SPR
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14X50
|
9-91066-450-0 |
04 |
1 |
9002-9104 |
| |
23 |
BOLT; BRKT,SPR
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14X45
|
9-92061-445-0 |
04 |
1 |
9002-9104 |
| |
24 |
BRACKET; FRT SPR,FRT
|
1-53351-123-5 |
01 |
1 |
9002-9306 |
| |
24 |
BRACKET; FRT SPR,FRT
|
1-53351-122-5 |
01 |
1 |
9002-9306 |
| |
24 |
BRACKET; FRT SPR,FRT
|
1-53351-201-0 |
01 |
1 |
9307-9407 |
| |
24 |
BRACKET; FRT SPR,FRT
|
1-53351-220-0 |
01 |
1 |
9408- |
| |
24 |
BRACKET; FRT SPR,FRT
|
1-53351-202-0 |
01 |
1 |
9307-9407 |
| |
24 |
BRACKET; FRT SPR,FRT
|
1-53351-219-0 |
01 |
1 |
9408- |
| |
25 |
WASHER; PL,BRKT
10PD1 STD ENG(40L)
ID=16.2
|
1-09503-223-0 |
04 |
1 |
9002-9306 |
| |
25 |
WASHER; PL,BRKT
10PD1 STD ENG(40L)
ID=16.2
|
1-09503-223-0 |
06 |
1 |
9307- |
| |
25 |
WASHER; PL,BRKT
10PD1 STD ENG(40L)
ID=15
|
9-09651-069-0 |
16 |
1 |
9002-9104 |
| |
25 |
WASHER; PL,BRKT
10PD1 STD ENG(40L)
ID=15
|
9-09651-069-0 |
06 |
1 |
9002-9104 |
| |
25 |
WASHER; PL,BRKT
10PD1 STD ENG(40L)
ID=15
|
9-09651-069-0 |
16 |
1 |
9105-9306 |
| |
25 |
WASHER; PL,BRKT
10PD1 STD ENG(40L)
ID=15
|
9-09651-069-0 |
26 |
1 |
9307- |
| |
25 |
WASHER; PL,BRKT
12PD1 C ENG(43L)
ID=16.2
|
1-09503-223-0 |
04 |
1 |
9307- |
| |
25 |
WASHER; PL,BRKT
12PD1 C ENG(43L)
ID=15
|
9-09651-069-0 |
18 |
1 |
9307- |
| |
25 |
WASHER; PL,BRKT
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
ID=16.2
|
1-09503-223-0 |
08 |
1 |
9002- |
| |
25 |
WASHER; PL,BRKT
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
ID=15
|
9-09651-069-0 |
08 |
1 |
9002-9104 |
| |
25 |
WASHER; PL,BRKT
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
ID=15
|
9-09651-069-0 |
12 |
1 |
9002-9104 |
| |
25 |
WASHER; PL,BRKT
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
ID=15
|
9-09651-069-0 |
20 |
1 |
9105-9306 |
| |
25 |
WASHER; PL,BRKT
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
ID=15
|
9-09651-069-0 |
24 |
1 |
9307- |
| |
26 |
NUT; BRKT,SPR
M14
|
9-99110-514-0 |
06 |
1 |
9002-9104 |
| |
26 |
NUT; BRKT,SPR
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14
|
9-99110-514-0 |
06 |
1 |
9105-9306 |
| |
26 |
NUT; BRKT,SPR
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14
|
9-99110-514-0 |
08 |
1 |
9307- |
| |
26 |
NUT; BRKT,SPR
10PD1 STD ENG(40L)
M14
|
9-99110-514-0 |
08 |
1 |
9002-9306 |
| |
26 |
NUT; BRKT,SPR
10PD1 STD ENG(40L),12PD1 C ENG(43L)
M14
|
9-99110-514-0 |
14 |
1 |
9307- |
| |
26 |
NUT; BRKT,SPR
10PD1 STD ENG(40L)
M16
|
9-99110-516-0 |
02 |
1 |
9002- |
| |
26 |
NUT; BRKT,SPR
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M16
|
9-99110-516-0 |
04 |
1 |
9002- |
| |
27 |
WASHER; LK,BRKT,FRT SPR
ID=14.2
|
9-09150-614-0 |
08 |
1 |
9002-9104 |
| |
27 |
WASHER; LK,BRKT,FRT SPR
ID=14.2
|
9-09150-614-0 |
06 |
1 |
9002-9104 |
| |
27 |
WASHER; LK,BRKT,FRT SPR
ID=14.2
|
9-09150-614-0 |
14 |
1 |
9105-9306 |
| |
27 |
WASHER; LK,BRKT,FRT SPR
ID=14.2
|
9-09150-614-0 |
16 |
1 |
9307- |
| |
27 |
WASHER; LK,BRKT,FRT SPR
ID=16.2
|
9-09150-616-0 |
04 |
1 |
9002- |
| |
35 |
MEMBER; UNDER
10PD1 STD ENG(40L)
|
1-53174-173-1 |
01 |
1 |
9002-9306 |
| |
35 |
MEMBER; UNDER
6RB1 STD ENG(07L)
|
1-53174-174-1 |
01 |
1 |
9002-9306 |
| |
35 |
MEMBER; UNDER
10PD1 STD ENG(40L),12PD1 C ENG(43L)
|
1-53174-194-1 |
01 |
1 |
9307- |
| |
35 |
MEMBER; UNDER
6RB1TC-N ENG(29L)
|
1-53174-164-2 |
01 |
1 |
9012-9306 |
| |
35 |
MEMBER; UNDER
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
|
1-53174-188-2 |
01 |
1 |
9307- |
| |
36 |
WASHER; PL,UNDER MBR
ID=17
|
9-09164-516-0 |
04 |
1 |
9002- |
| |
37 |
WASHER; LK,UNDER MBR
ID=16.2
|
9-09150-816-0 |
04 |
1 |
9002- |
| |
39 |
BRACKET; FRT SPR,RR
|
1-53352-072-5 |
01 |
1 |
9002-9407 |
| |
39 |
BRACKET; FRT SPR,RR
|
1-53352-153-0 |
01 |
1 |
9408- |
| |
39 |
BRACKET; FRT SPR,RR
|
1-53352-071-5 |
01 |
1 |
9002-9407 |
| |
39 |
BRACKET; FRT SPR,RR
|
1-53352-152-0 |
01 |
1 |
9408- |
| |
44 |
BOLT; UNDER MBR
M16X50
|
9-92061-650-0 |
04 |
1 |
9002- |
| |
46 |
BOLT; BRKT FIX
10PD1 STD ENG(40L)
M14X55
|
9-91066-455-0 |
02 |
1 |
9105-9306 |
| |
46 |
BOLT; BRKT FIX
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14X50
|
9-92061-450-0 |
04 |
1 |
9307- |
| |
46 |
BOLT; BRKT FIX
10PD1 STD ENG(40L),12PD1 C ENG(43L)
M14X45
|
9-92061-445-0 |
06 |
1 |
9105- |
| |
46 |
BOLT; BRKT FIX
12PD1 C ENG(43L)
M14X50
|
9-92061-450-0 |
02 |
1 |
9307- |
| |
46 |
BOLT; BRKT FIX
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14X50
|
9-91066-450-0 |
04 |
1 |
9105-9306 |
| |
46 |
BOLT; BRKT FIX
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14X50
|
9-91066-450-0 |
02 |
1 |
9307- |
| |
46 |
BOLT; BRKT FIX
6RB1 STD ENG(07L),6RB1TC-N ENG(29L)
M14X45
|
9-92061-445-0 |
04 |
1 |
9105- |
| |
57 |
MEMBER; CROSS,RR SUSP FRT
|
1-53181-319-8 |
01 |
1 |
9002- |
| |
82 |
NUT; BRKT
M14
|
9-99110-514-0 |
12 |
1 |
9002- |
| |
85 |
WASHER; PL,BRKT
ID=15
|
9-09651-069-0 |
24 |
1 |
9002- |
| |
86 |
MEMBER; CROSS,RR SUSP RR
|
1-53181-319-8 |
01 |
1 |
9002- |
| |
89 |
NUT; LEAF SPR STOPPER
M14
|
9-99116-414-0 |
02 |
1 |
9002- |
| |
96 |
PAD; RR SPR
|
1-53359-047-0 |
02 |
1 |
9002- |
| |
97 |
WASHER; LK,PAD
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9002- |
| |
98 |
WASHER; LK,STOPPER
ID=14.2
|
9-09150-614-0 |
16 |
1 |
9307- |
| |
99 |
WASHER; LK,BRKT
ID=14.2
|
9-09150-614-0 |
12 |
1 |
9002- |
| |
101 |
BRACKET; RR SPR,FRT
|
1-53353-078-1 |
02 |
1 |
9002-9112 |
| |
101 |
BRACKET; RR SPR,FRT
|
1-53353-081-2 |
02 |
1 |
9201- |
| |
102 |
BOLT; BRKT,RR SPR
M14X45
|
9-92061-445-0 |
12 |
1 |
9002- |
| |
103 |
STOPPER; SUB SPR
|
9-53356-020-2 |
04 |
1 |
9002-9110 |
| |
103 |
STOPPER; SUB SPR
|
1-53356-053-1 |
04 |
1 |
9111-9306 |
| |
103 |
STOPPER; SUB SPR
|
1-53356-057-0 |
04 |
1 |
9307- |
| |
105 |
BRACKET; RR SPR,RR
|
1-53354-064-1 |
02 |
1 |
9002-9112 |
| |
105 |
BRACKET; RR SPR,RR
|
1-53354-066-2 |
02 |
1 |
9201- |
| |
106 |
BOLT; BRKT
M14X45
|
9-92061-445-0 |
12 |
1 |
9002- |
| |
109 |
SHIM; RR SPR
T=4.5
|
1-53359-061-1 |
02 |
1 |
9002- |
| |
109 |
SHIM; RR SPR
T=3.2
|
1-53359-062-1 |
02 |
1 |
9002- |
| |
110 |
BOLT; LEAF SPR STOPPER
|
1-09000-007-0 |
02 |
1 |
9002- |
| |
111 |
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
|
9-08113-028-0 |
02 |
1 |
9002- |
| |
112 |
BOLT; PAD
M14X35
|
9-92051-435-0 |
04 |
1 |
9002-9005 |
| |
112 |
BOLT; PAD
M14X35
|
0-20801-435-0 |
04 |
1 |
9006- |
| |
113 |
BOLT; SPR STOPPER
|
9-01156-034-0 |
08 |
1 |
9002-9005 |
| |
113 |
BOLT; SPR STOPPER
M10X34 W/PIN HOLE
|
1-09042-042-0 |
08 |
1 |
9006-9104 |
| |
114 |
PAD; SUB SPR
|
9-53359-032-0 |
04 |
1 |
9002-9104 |
| |
115 |
NUT; SPR STOPPER
|
9-09116-410-0 |
08 |
1 |
9002-9104 |
| |
116 |
PIN; SPLIT,SPR STOPPER
OD=1.8 L=15
|
9-08112-015-0 |
08 |
1 |
9002-9104 |
| |
117 |
BOLT; STOPPER
M14X50
|
9-92061-450-0 |
16 |
1 |
9307- |
| |
118 |
NUT; STOPPER
M14
|
9-99110-514-0 |
16 |
1 |
9307- |
| |
119 |
RIVET; STOPPER
D13X48
|
1-09730-112-0 |
16 |
1 |
9002-9212 |
| |
119 |
RIVET; STOPPER
L=48
|
1-09730-092-0 |
16 |
1 |
9301-9306 |
| |
124 |
NIPPLE; GREASE
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
9002- |
| |
126 |
WASHER; PL,BRKT
ID=15
|
9-09651-069-0 |
24 |
1 |
9002- |
| |
127 |
NUT; BRKT
M14
|
9-99110-514-0 |
12 |
1 |
9002- |
| |
138 |
WASHER; LK,BRKT
ID=14.2
|
9-09150-614-0 |
12 |
1 |
9002- |
| |
207 |
SPACER; 4TH C/MBR
|
1-53168-171-1 |
02 |
1 |
9002- |
| |
281 |
WASHER; LEAF SPR STOPPER
ID=15 OD=30
|
9-09160-614-0 |
04 |
1 |
9002- |
| |
282 |
WASHER; PL,STOPPER
ID=15
|
9-09651-069-0 |
32 |
1 |
9307- |
