Isuzu WW
▶
TRUCKS
▶
NLR
▶
51264 - NLR CNG-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#36162) — 38 parça
◀
[852A] COMPONENT (15 parça)
[852A] PIPING (23 parça)
▶
202
50
43
148
147
50
66
67
67
67
66
67
67
66
147
67
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
HIGH PRESSURE
8-98088-340-0
01
1
0909-
50
09.222 GASKET; FLEX HOSE,A/C
ID=7.5
1-83539-316-0
02
1
0909-
66
09.225 HOSE; FLEX,A/C
(C) HIGH PRESSURE
8-98001-204-1
01
1
0909-
66
09.225 HOSE; FLEX,A/C
(A) HIGH PRESSURE
8-98047-897-1
01
1
0909-
66
09.225 HOSE; FLEX,A/C
(B) LOW PRESSURE
8-98047-899-1
01
1
0909-1009
66
09.225 HOSE; FLEX,A/C
(B)
8-98159-614-1
01
1
1010-
67
09.260 GASKET; FLEX HOSE
09.225 (D) ID=7.4
8-97095-906-0
02
1
0909-
67
09.260 GASKET; FLEX HOSE
(A) ID=11.7
8-97095-907-0
02
1
0909-
67
09.260 GASKET; FLEX HOSE
09.225 (B) ID=14.5
8-97095-908-0
01
1
0909-
67
09.260 GASKET; FLEX HOSE
(C) ID=17.6
8-98036-895-0
01
1
0909-
147
09.242 CAP; FLEX HOSE
(A) CAP MARK L
1-83539-331-0
01
1
0909-
147
09.242 CAP; FLEX HOSE
(B) CAP MARK H
8-97095-911-0
01
1
0909-
148
09.262 VALVE; FLEX HOSE
(A)
8-97095-909-0
01
1
0909-
148
09.262 VALVE; FLEX HOSE
(B)
8-98031-629-0
01
1
0909-
202
09.275 SWITCH; PRESSURE
1-83564-392-1
01
1
0909-

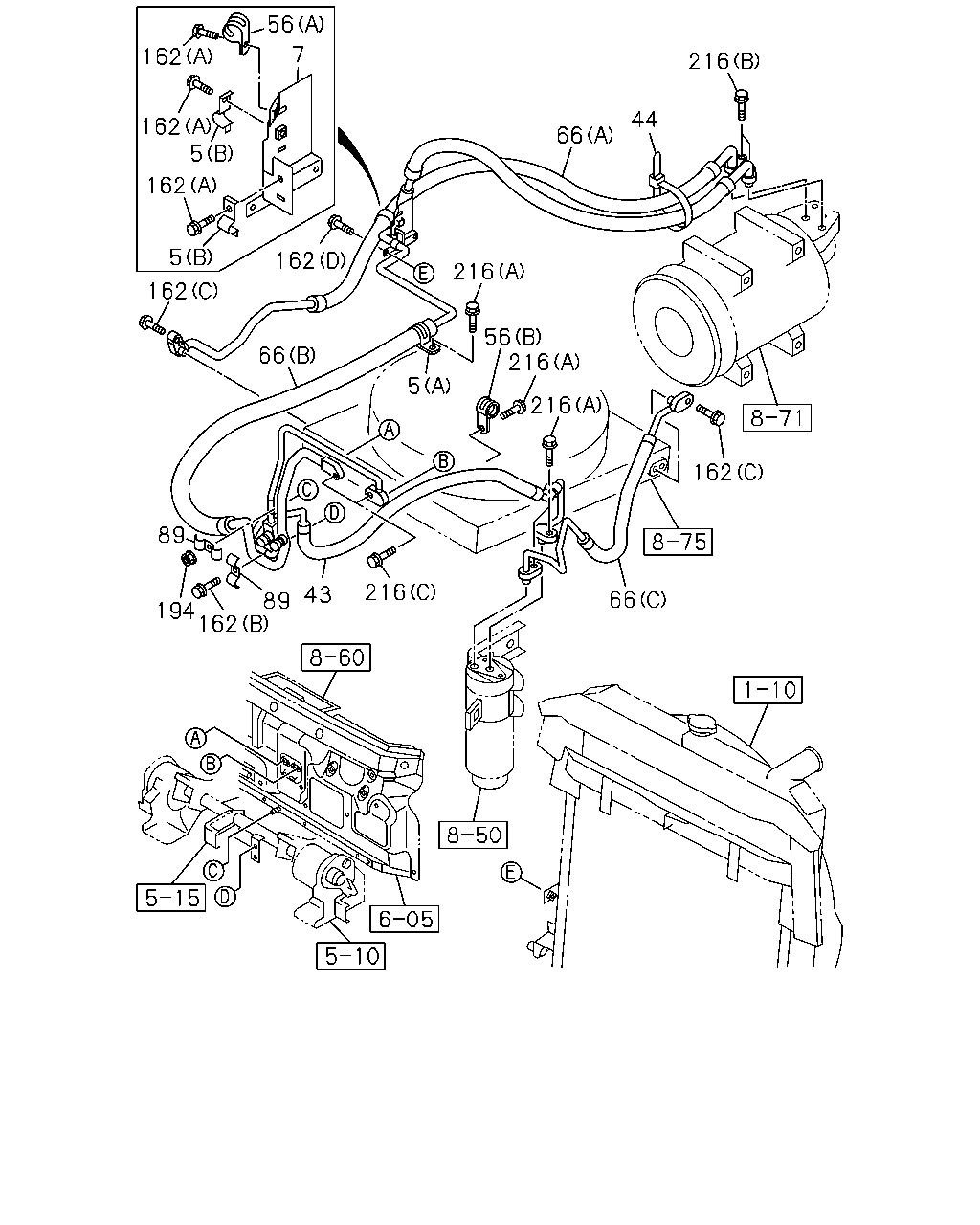

56
7
162
216
44
162
5
66
162
5
162
216
162
56
216
66
5
216
162
89
216
43
66
89
194
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
09.242 CLIP; FLEX HOSE,A/C
(A)
8-98038-798-0
01
1
0909-
5
09.242 CLIP; FLEX HOSE,A/C
(B)
8-98059-179-0
02
1
0909-
7
09.242 BRACKET; FLEX HOSE,A/C
8-98059-182-0
01
1
0909-
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
HIGH PRESSURE
8-98088-340-0
01
1
0909-
44
09.242 CLIP; FLEX HOSE
02.559 L=250
5-09707-030-1
01
1
0909-
44
09.242 CLIP; FLEX HOSE
03.162 L=140
5-09707-031-1
01
1
0909-
56
09.242 CLIP; PIPE,A/C
04.866 (A) ID=24.5 H=23 L=25
1-09700-862-0
01
1
0909-
56
09.242 CLIP; PIPE,A/C
(B)
8-98032-641-0
01
1
0909-
66
09.225 HOSE; FLEX,A/C
(C) HIGH PRESSURE
8-98001-204-1
01
1
0909-
66
09.225 HOSE; FLEX,A/C
(A) HIGH PRESSURE
8-98047-897-1
01
1
0909-
66
09.225 HOSE; FLEX,A/C
(B) LOW PRESSURE
8-98047-899-1
01
1
0909-1009
66
09.225 HOSE; FLEX,A/C
(B)
8-98159-614-1
01
1
1010-
89
09.242 BRACKET; A/C PIPE
8-98029-613-0
02
1
0909-1009
89
09.242 BRACKET; A/C PIPE
8-98151-264-0
02
1
1010-
162
09.173 BOLT; FLEX HOSE
03.671 (D) M6X10 FLANGE
0-28050-610-0
02
1
0909-
162
09.173 BOLT; FLEX HOSE
02.343 (A) M6X16 FLANGE
0-28650-616-0
03
1
0909-
162
09.173 BOLT; FLEX HOSE
03.162 (B) M6X20 FLANGE
0-28650-620-0
01
1
0909-
162
09.173 BOLT; FLEX HOSE
00.685 (C) M6X25 FLANGE
0-28650-625-0
02
1
0909-
194
09.242 NUT; HOSE
01.062 M6 FLANGE
0-91180-106-0
02
1
0909-
216
09.173 BOLT; HOSE FIX
03.680 (C) M6X30 FLANGE
0-28650-630-0
02
1
0909-
216
09.173 BOLT; HOSE FIX
06.216 (B) M8X25 FLANGE
0-28650-825-0
02
1
0909-
216
09.173 BOLT; HOSE FIX
00.685 (A) M6X25 FLANGE
0-28650-625-0
02
1
0909-
216
09.173 BOLT; HOSE FIX
00.685 (A) M6X25 FLANGE
0-28650-625-0
02
1
0909-
