Isuzu WW
▶
TRUCKS
▶
NLR
▶
51264 - NLR CNG-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶

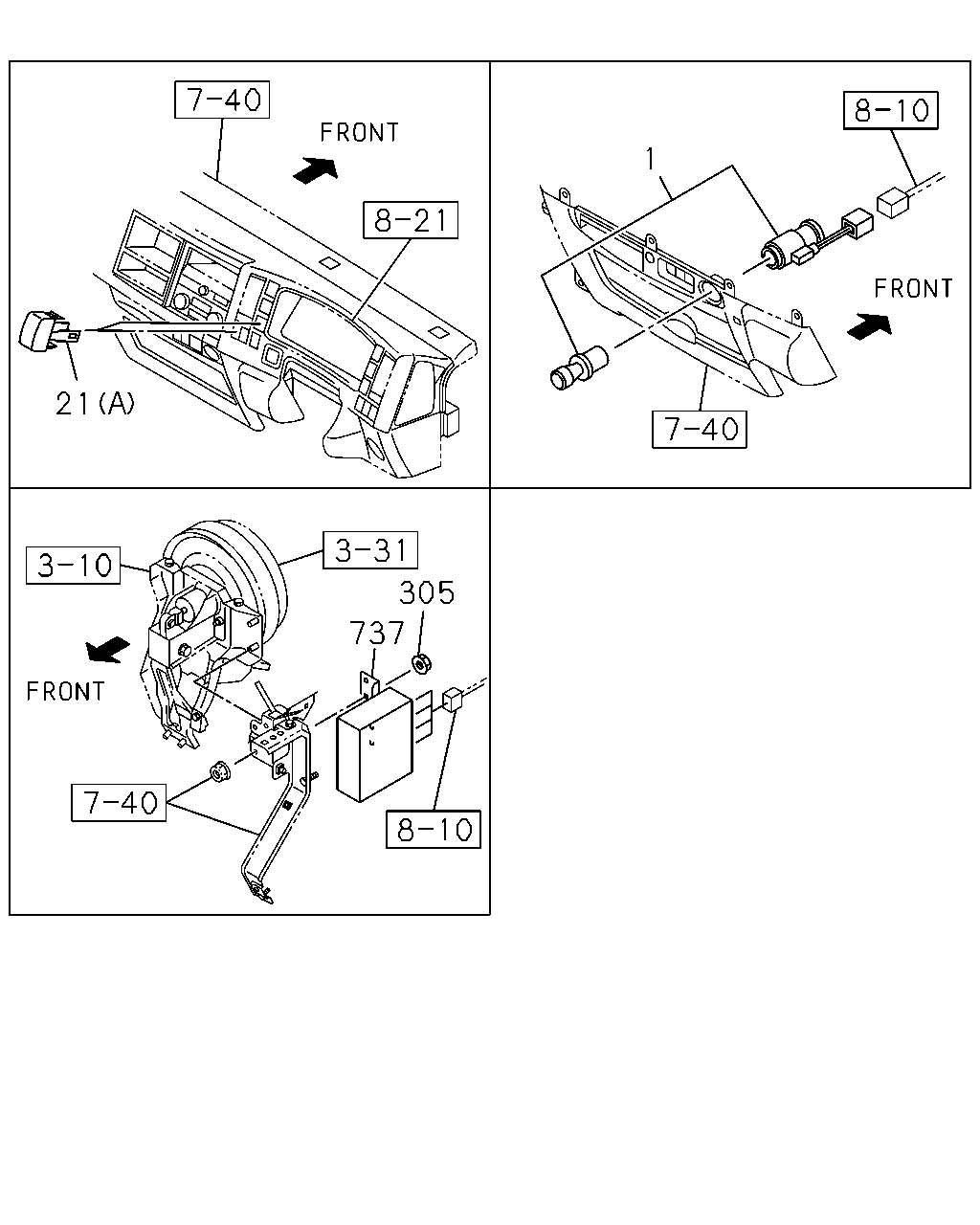

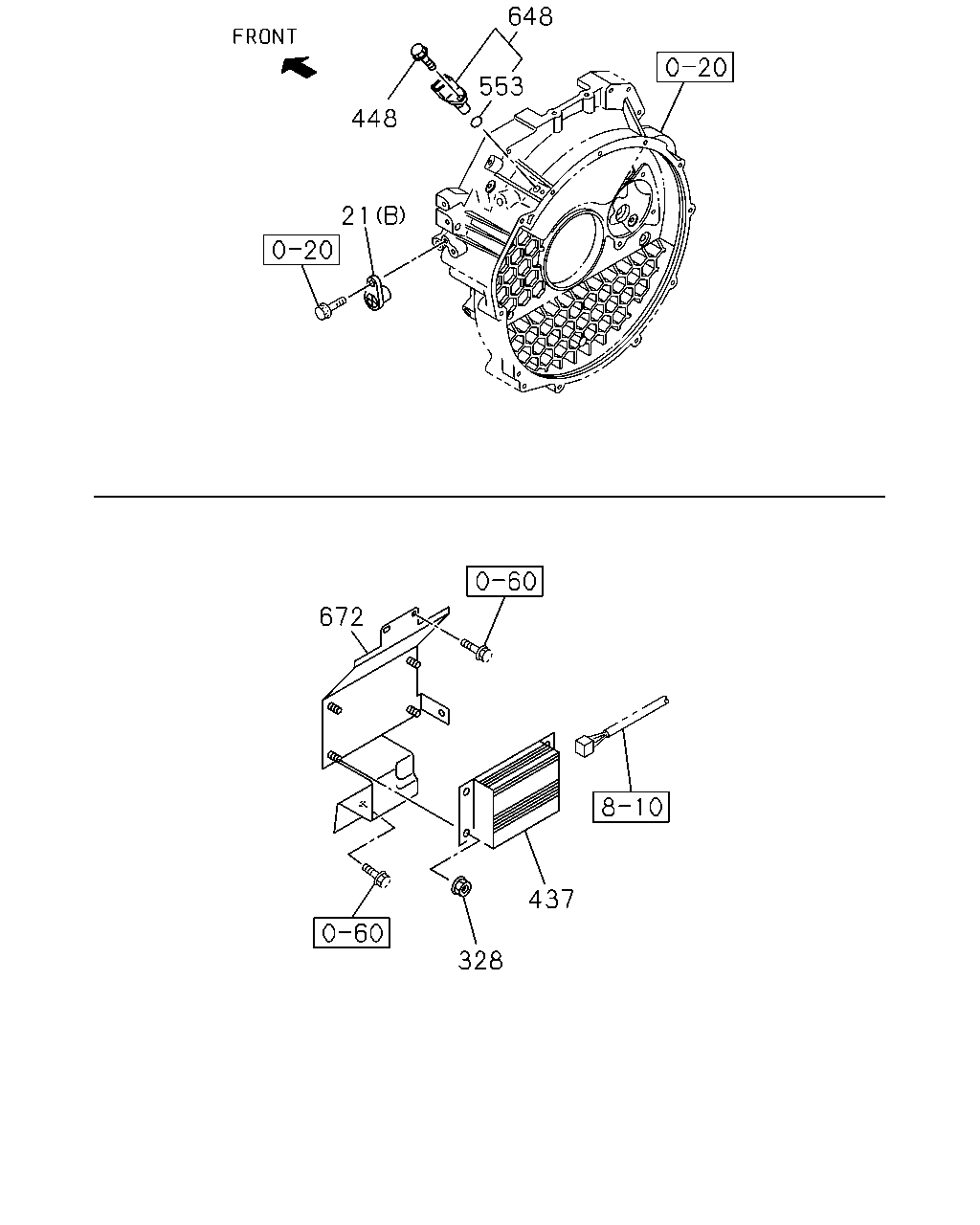

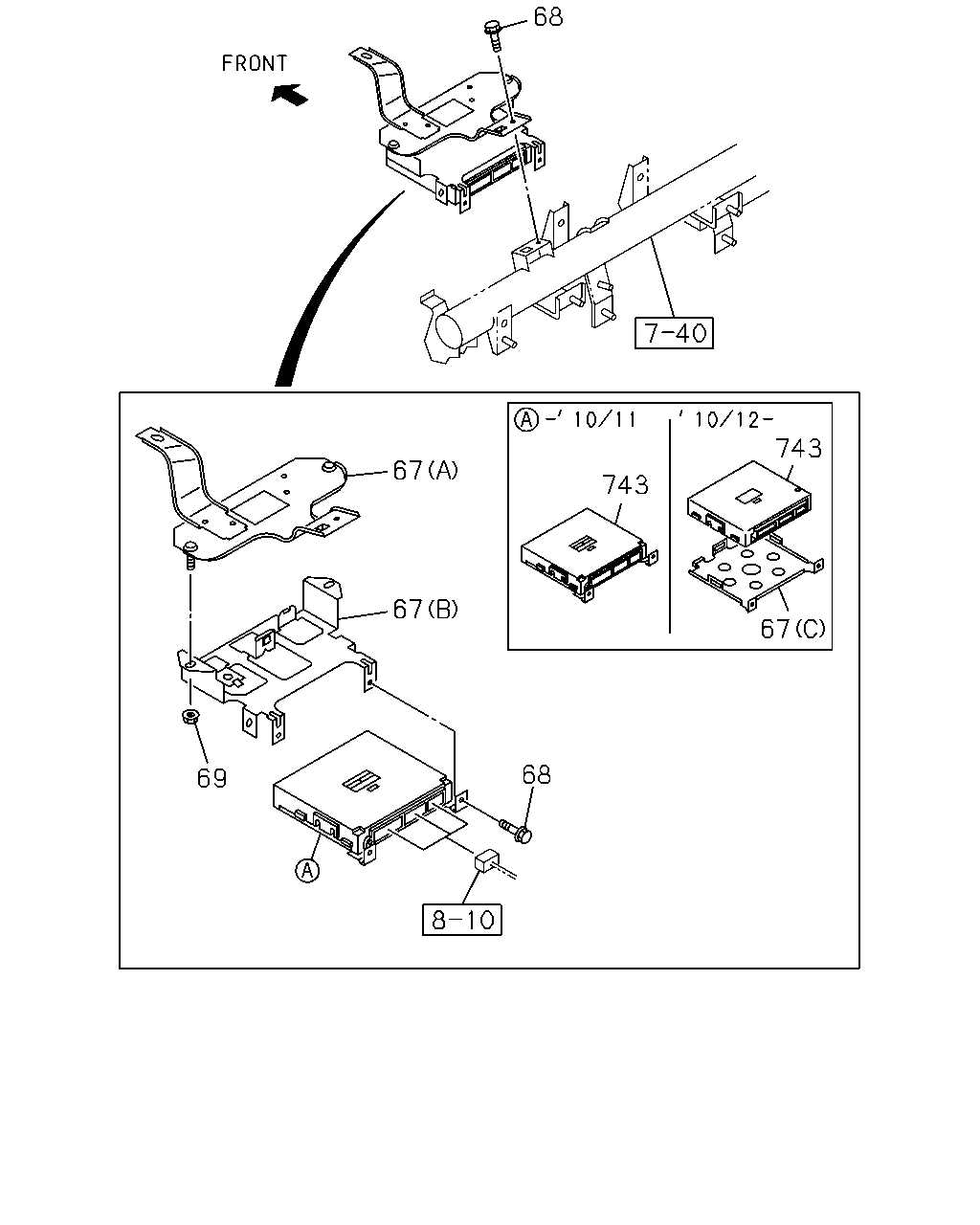

8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#36156) — 27 parça
◀
[826A] NO.1 (10 parça)
[826A] NO.2 (9 parça)
[826A] NO.3 (8 parça)
▶
68
743
67
743
67
67
68
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
03.887 BRACKET; CONT UNIT
(C)
8-98111-836-1
01
1
1101-
67
03.887 BRACKET; CONT UNIT
(A)
8-98022-170-1
01
1
0909-
67
03.887 BRACKET; CONT UNIT
(B)
8-98022-172-5
01
1
0909-1403
67
03.887 BRACKET; CONT UNIT
(B)
8-98268-445-0
01
1
1404-
68
02.500 BOLT; BRKT
00.206 M6X12 FLANGE
0-28450-612-0
01
1
0909-
68
02.500 BOLT; BRKT
00.206 M6X12 FLANGE
0-28450-612-0
02
1
0909-
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
0909-
743
02.510 CONTROL UNIT; BCM
8-98118-052-2
01
1
0909-1007
743
02.510 CONTROL UNIT; BCM
8-98176-217-0
01
1
1008-1012
743
02.510 CONTROL UNIT; BCM
8-98182-025-3
01
1
1101-
1
21
305
737
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
0909-
21
09.744 COVER; HOLE
09.748 (B)
8-97101-974-0
01
1
0909-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
02
1
0909-
305
08.915 NUT; CONT UNIT
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
0909-
737
04.115 CONTROL UNIT; TRANSMISSION
8-98138-252-0
01
1
0909-1007
737
04.115 CONTROL UNIT; TRANSMISSION
8-98164-558-0
01
1
1008-1206
737
04.115 CONTROL UNIT; TRANSMISSION
8-98214-157-0
01
1
1207-1211
737
04.115 CONTROL UNIT; TRANSMISSION
8-98230-081-0
01
1
1212-1404
737
04.115 CONTROL UNIT; TRANSMISSION
8-98255-278-0
01
1
1405-
648
553
448
21
672
437
328
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
09.744 COVER; HOLE
09.748 (B)
8-97101-974-0
01
1
0909-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
02
1
0909-
328
09.709 NUT
01.062 M6 FLANGE
0-91180-106-0
04
1
0909-
437
10.485 CONVERTER; DC
8-97254-654-0
01
1
0909-
448
02.500 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
02
1
0909-
553
02.500 GASKET
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
0909-
648
03.682 SENSOR; CRANK ANGLE
8-97606-943-0
01
1
0909-
672
02.510 BRACKET; CONV
8-98058-178-2
01
1
0909-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
