Isuzu WW
▶
TRUCKS
▶
NLR
▶
51264 - NLR CNG-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#36152) — 70 parça
◀
[810A] -'12/4 RELAY;CAB HARNESS (2 parça)
[810A] CAB HARNESS (24 parça)
[810A] OTHER HARNESS(NO.2) (9 parça)
[810A] OTHER HARNESS(NO.3) (5 parça)
[810A] FRAME HARNESS;FRONT (16 parça)
[810A] '12/5- RELAY;CAB HARNESS (2 parça)
[810A] OTHER HARNESS(NO.1) (10 parça)
[810A] OTHER HARNESS(NO.4) (2 parça)
▶

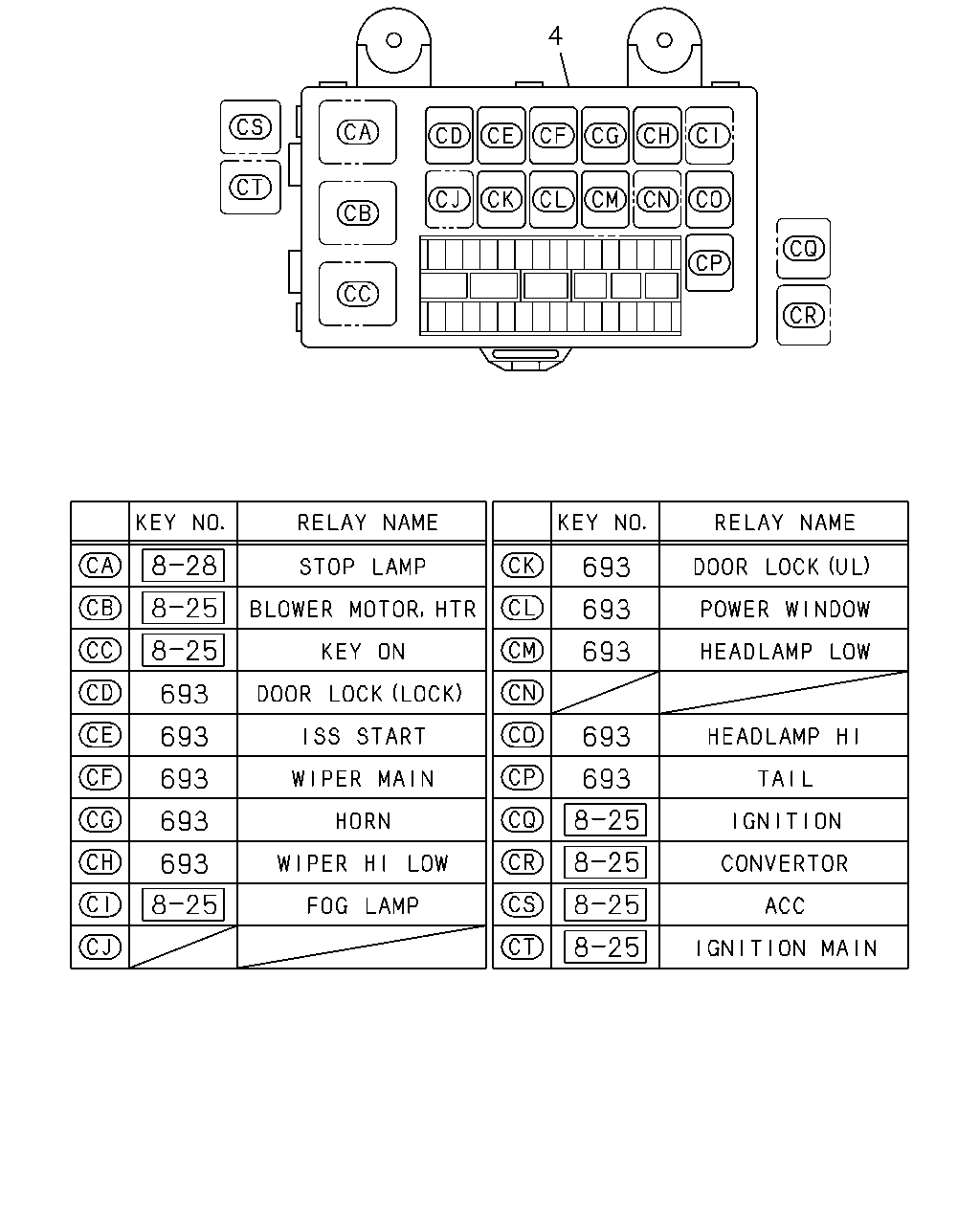

4
693
693
693
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98077-928-0
01
1
0909-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0909-

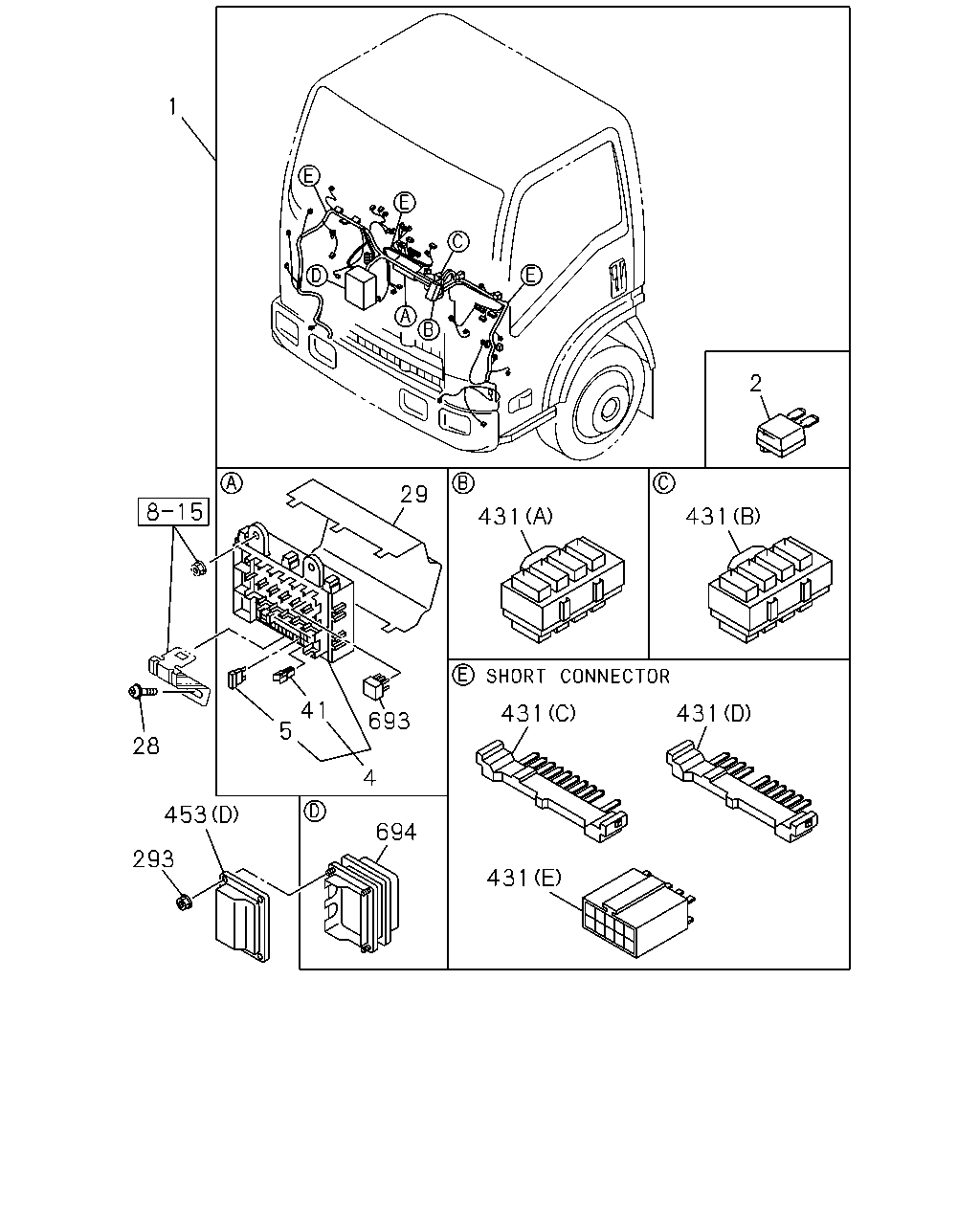

1
2
29
431
431
41
5
431
431
693
28
4
453
694
293
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
8-98147-475-1
01
1
0909-1204
1
02.480 HARNESS; CAB
8-98210-948-0
01
1
1205-
2
02.483 DIODE; CABLE HARNESS
BLACK 2P-1.5A
8-94422-639-1
AR
1
0909-
4
02.483 BOX ASM; FUSE,HARNESS
8-98077-928-0
01
1
0909-
5
02.485 FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
0909-
5
02.485 FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
0909-
5
02.485 FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
0909-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
0909-1101
28
02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
01
1
1102-1212
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1301-
29
02.483 COVER; FUSE BOX
8-98056-968-0
01
1
0909-
41
08.821 PULLER; FUSE
8-98054-260-0
01
1
0909-
293
02.559 NUT
01.062 M6 FLANGE
0-91180-106-0
04
1
0909-
431
02.530 CONNECTOR; JOINT
(C) 10P GREEN
1-82698-579-0
01
1
0909-1204
431
02.530 CONNECTOR; JOINT
(D) 10P BLUE
1-82699-598-0
01
1
0909-1204
431
02.530 CONNECTOR; JOINT
(E) 10P
8-97077-943-0
02
1
0909-1204
431
02.530 CONNECTOR; JOINT
(A)
8-98046-205-0
01
1
0909-
431
02.530 CONNECTOR; JOINT
(B)
8-98046-206-0
01
1
0909-
453
02.483 PROTECTOR; HARNESS
(A)
8-94417-716-0
04
1
0909-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-850-1
01
1
0909-
453
02.483 PROTECTOR; HARNESS
(C)
8-98031-851-2
01
1
0909-
453
02.483 PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
0909-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0909-
694
02.483 BOX ASM; CONNECTOR
8-98057-772-0
01
1
0909-

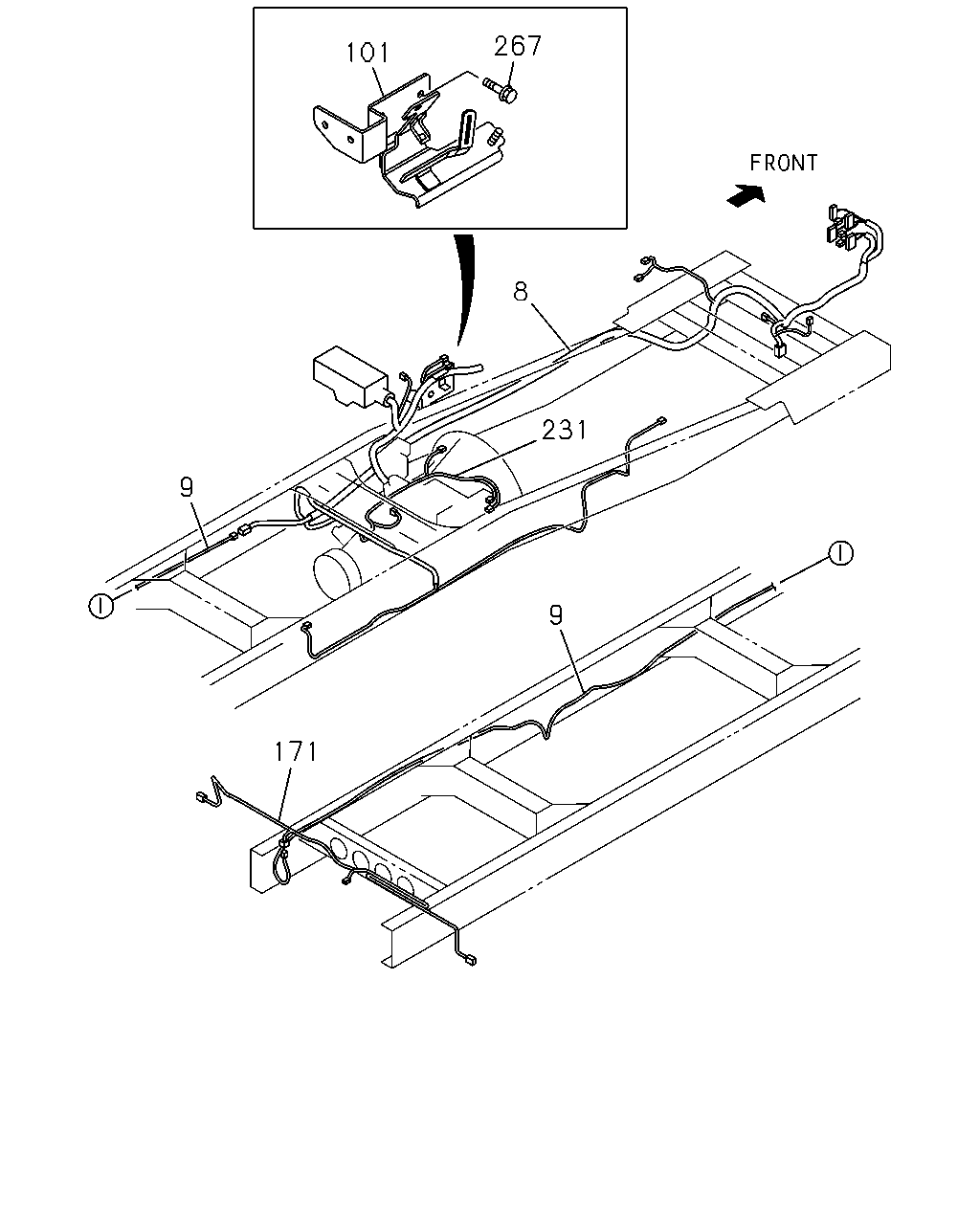

267
101
8
231
9
9
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98147-265-4
01
1
0909-1409
8
02.480 HARNESS; FRAME,FRT
8-98293-802-0
01
1
1410-
9
02.480 HARNESS; FRAME,RR
8-98048-424-1
01
1
0909-
101
02.483 BRACKET; HARNESS CONNECTOR
8-98148-099-0
01
1
0909-1002
101
02.483 BRACKET; HARNESS CONNECTOR
8-98167-693-0
01
1
1003-
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98070-319-1
01
1
0909-1006
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98156-027-0
01
1
1007-
231
02.480 HARNESS; TRANS
8-98029-598-1
01
1
0909-
267
02.483 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0909-

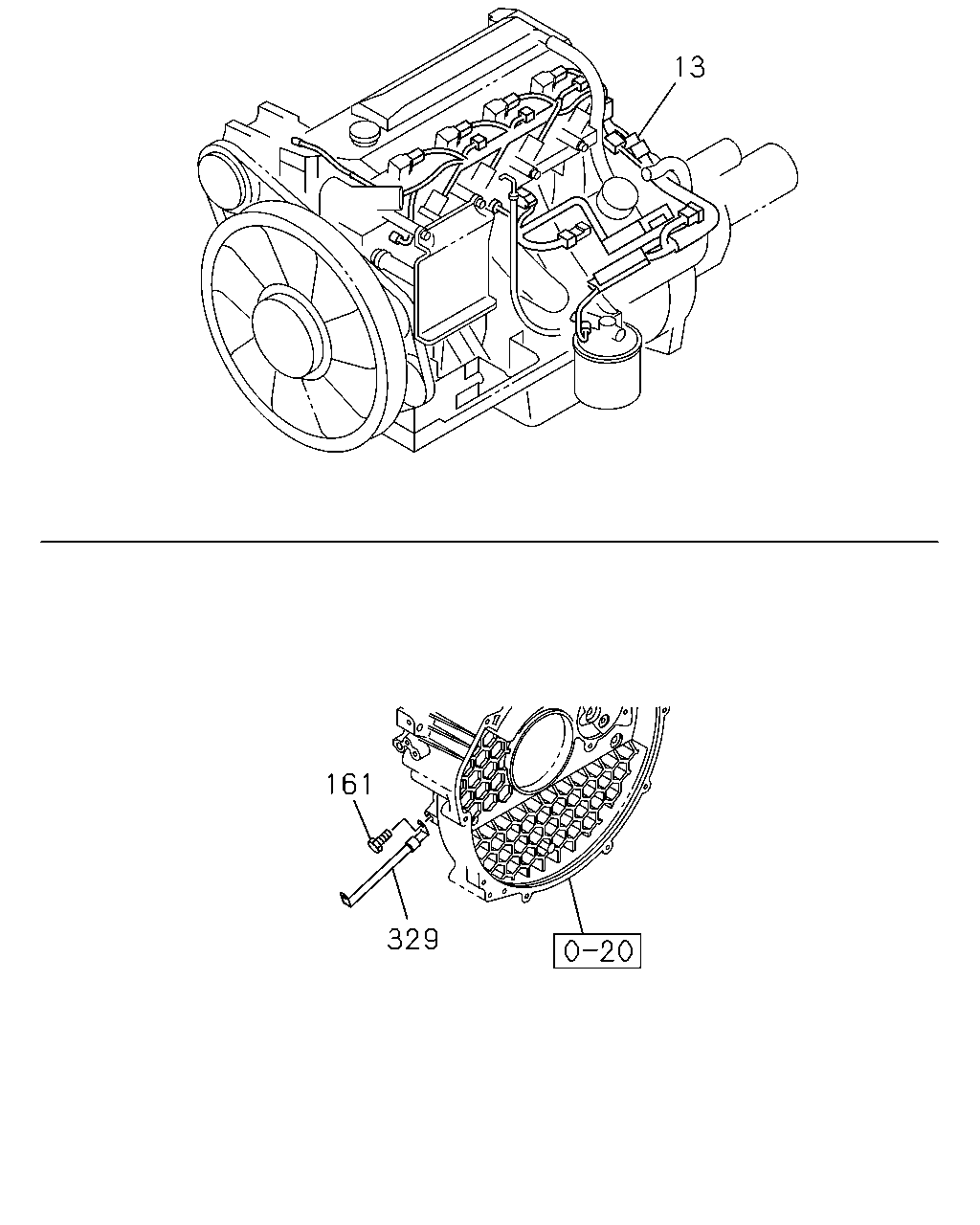

13
161
329
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
8-98062-198-3
01
1
0909-1006
13
02.525 HARNESS; ENG
8-98167-190-0
01
1
1007-1502
13
02.525 HARNESS; ENG
8-98299-593-0
01
1
1503-
161
02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE
0-28050-816-0
01
1
0909-
329
02.480 CABLE; ENG TO FRAME
8-98081-378-1
01
1
0909-

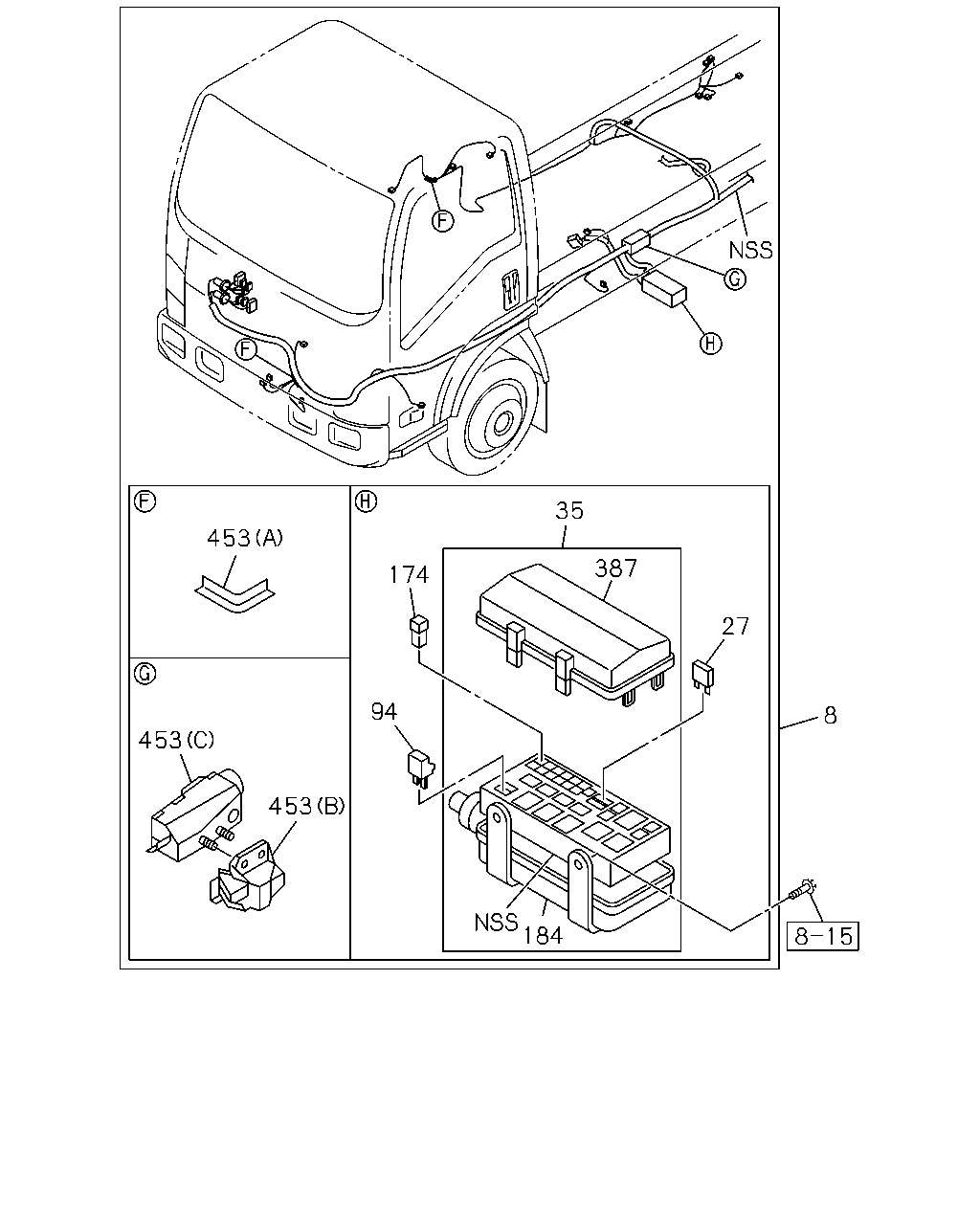

35
453
387
174
27
94
8
453
453
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98147-265-4
01
1
0909-1409
8
02.480 HARNESS; FRAME,FRT
8-98293-802-0
01
1
1410-
27
08.965 FUSE UNIT
02.485 15A BLUE
8-98054-258-0
AR
1
0909-
27
08.965 FUSE UNIT
02.485 10A RED
8-98054-257-0
AR
1
0909-
35
02.530 BOX; RELAY & FUSE
8-98030-763-0
01
1
0909-
94
02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
0909-
174
08.965 FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
0909-
174
08.965 FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
0909-
174
08.965 FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
0909-
174
08.965 FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
0909-
184
02.559 COVER; RELAY & FUSE BOX
8-98030-766-0
01
1
0909-
387
02.483 COVER; RELAY BOX
8-98081-367-0
01
1
0909-
453
02.483 PROTECTOR; HARNESS
(A)
8-94417-716-0
04
1
0909-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-850-1
01
1
0909-
453
02.483 PROTECTOR; HARNESS
(C)
8-98031-851-2
01
1
0909-
453
02.483 PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
0909-

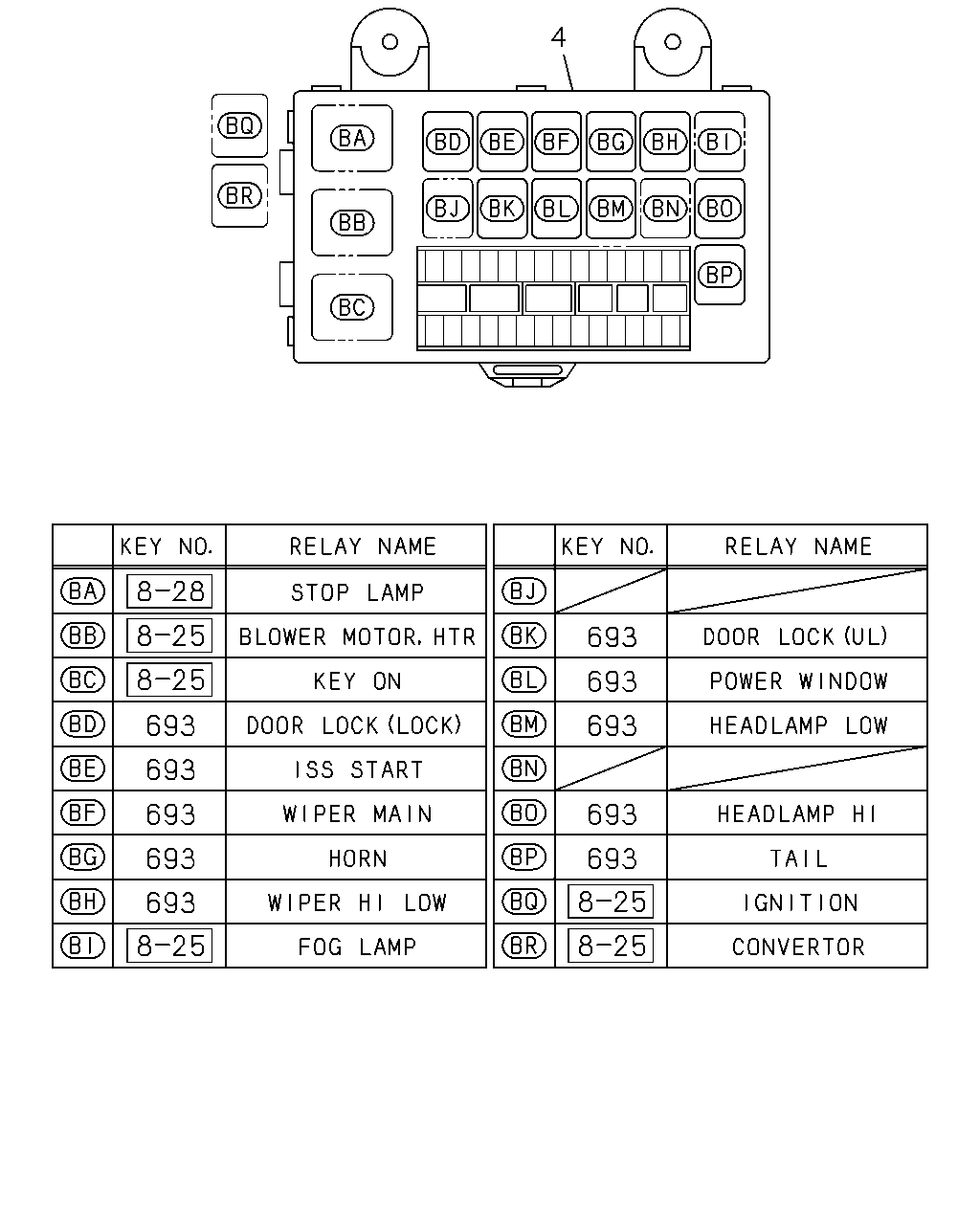

4
693
693
693
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98077-928-0
01
1
0909-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0909-

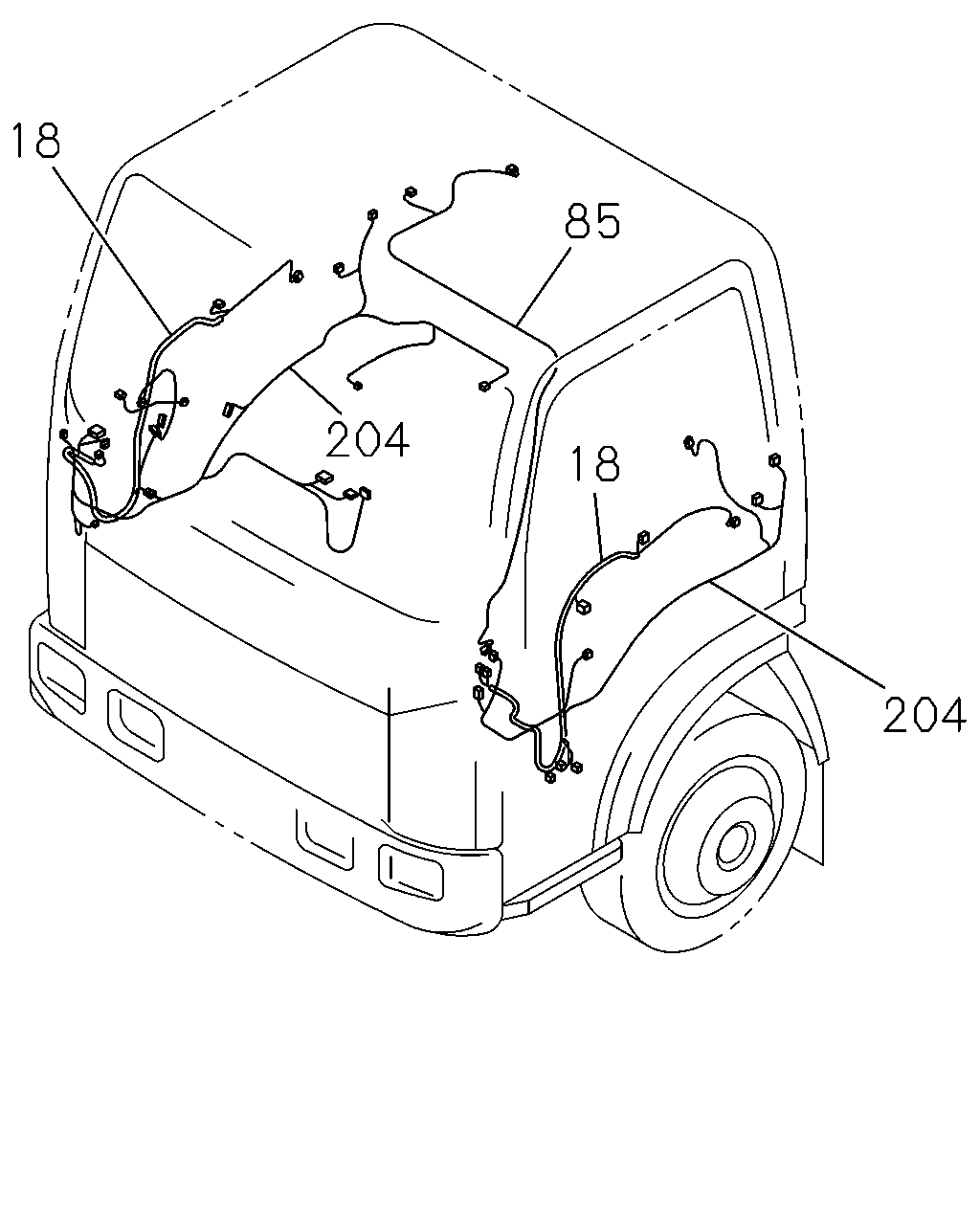

8
85
204
18
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98147-265-4
01
1
0909-1409
8
02.480 HARNESS; FRAME,FRT
8-98293-802-0
01
1
1410-
18
02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
8-98071-084-3
01
1
0909-
18
02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>
8-98071-078-2
01
1
0909-
18
02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>
8-98071-086-3
01
1
0909-
18
02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
8-98071-076-2
01
1
0909-
85
06.495 HARNESS; ROOM LAMP
FLUORESCENT LAMP<6UC>
8-98049-964-3
01
1
0909-
85
06.495 HARNESS; ROOM LAMP
EXC. FLUORESCENT LAMP<6UC>
8-98049-963-3
01
1
0909-
204
02.559 HARNESS; CABLE,FLOOR
8-98060-255-6
01
1
0909-
204
02.559 HARNESS; CABLE,FLOOR
8-98070-807-3
01
1
0909-

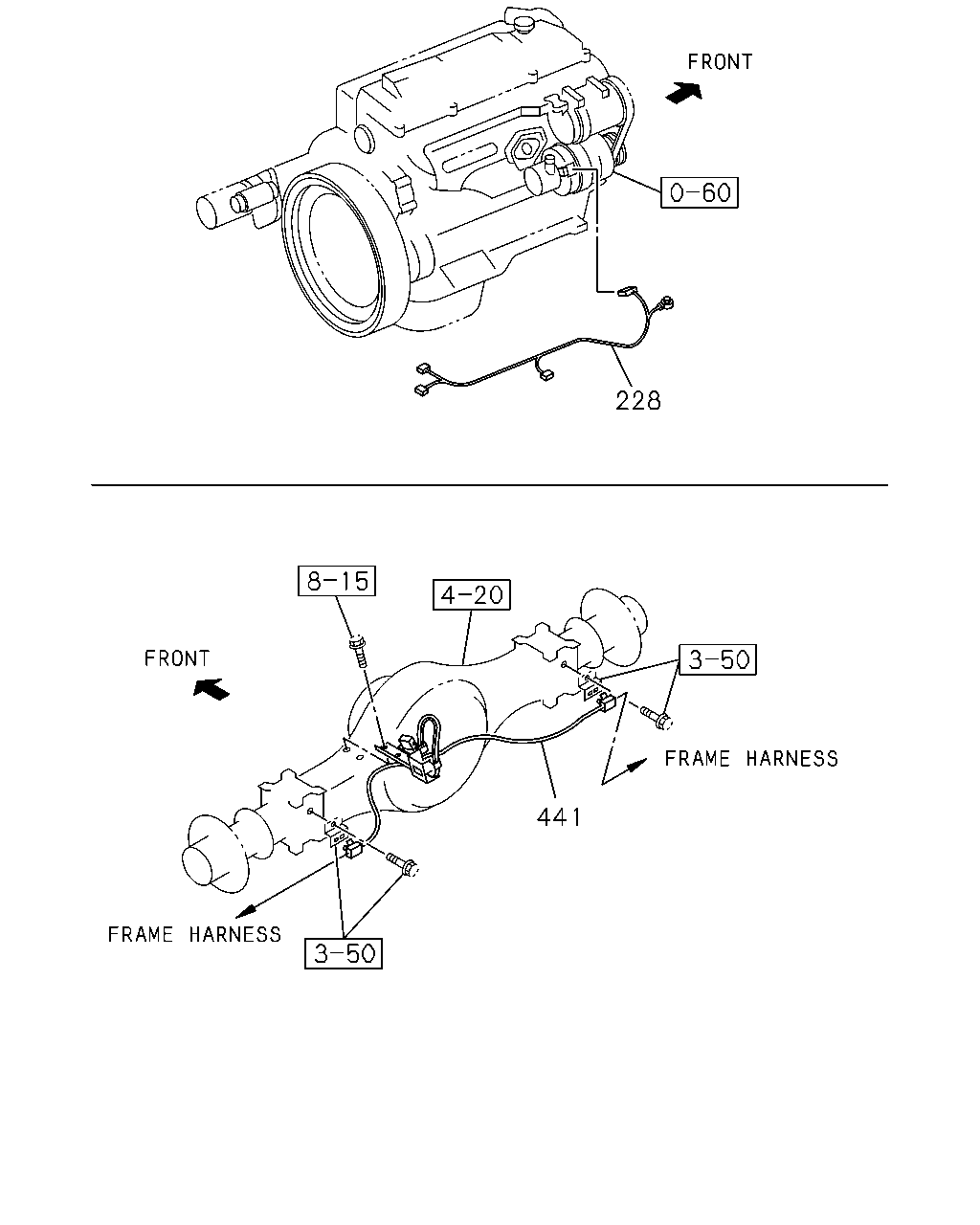

228
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
228
02.559 HARNESS; GEN
8-98113-871-1
01
1
0909-
441
02.480 HARNESS; CABLE,SPEED SENSOR
8-97308-220-4
01
1
0909-
