4-65 — REAR LEAF SPRING (#3615) — 87 parça

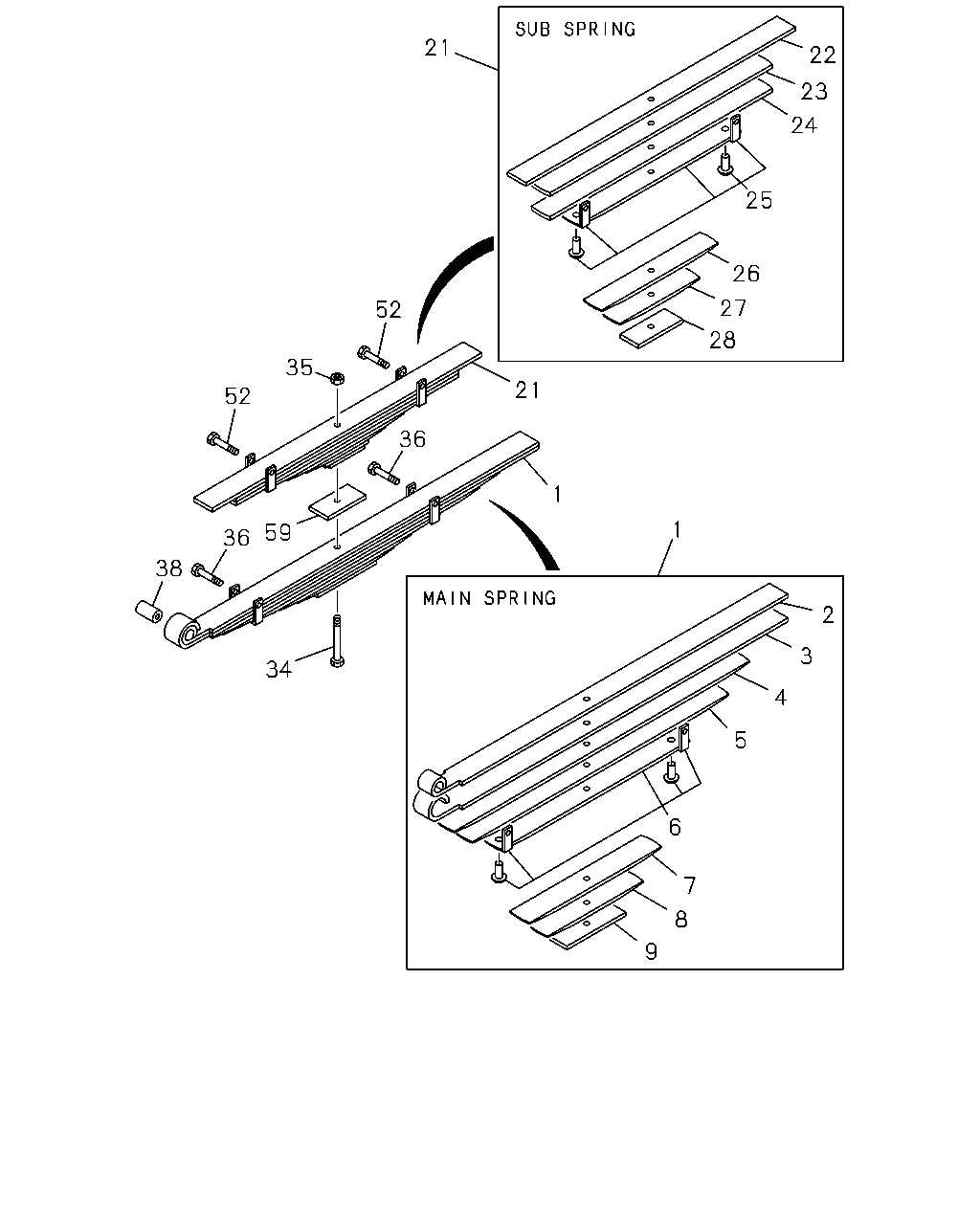

çizim 36702
21 22 23 24 25 26 27 52 28 35 21 52 36 1 1 59 36 38 2 3 34 4 5 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51310-507-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51310-858-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51311-507-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51311-858-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51312-507-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51312-858-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51313-507-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51313-858-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51314-507-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51314-858-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51315-507-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51315-858-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51316-507-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51316-858-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51317-507-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51317-858-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51318-507-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51318-858-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51340-362-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51340-383-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51341-362-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51341-383-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51342-362-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51342-383-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51343-362-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51343-383-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51344-362-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51344-383-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51345-362-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51345-383-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51346-362-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51346-383-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51347-383-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: A = 1-51300-257-0 		1-51356-138-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-260-0 		1-51356-146-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
ASM PART: B = 1-51300-260-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
ASM PART: A = 1-51300-257-0 		9-99110-116-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51300-257-0 		1-09000-296-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: B = 1-51300-260-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-257-0, B = 1-51300-260-0 		1-51351-010-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-257-0 		1-09000-296-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: B = 1-51300-260-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-257-0 		1-51359-018-0 01 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: B = 1-51300-260-0 		1-51377-118-0 01 1 -

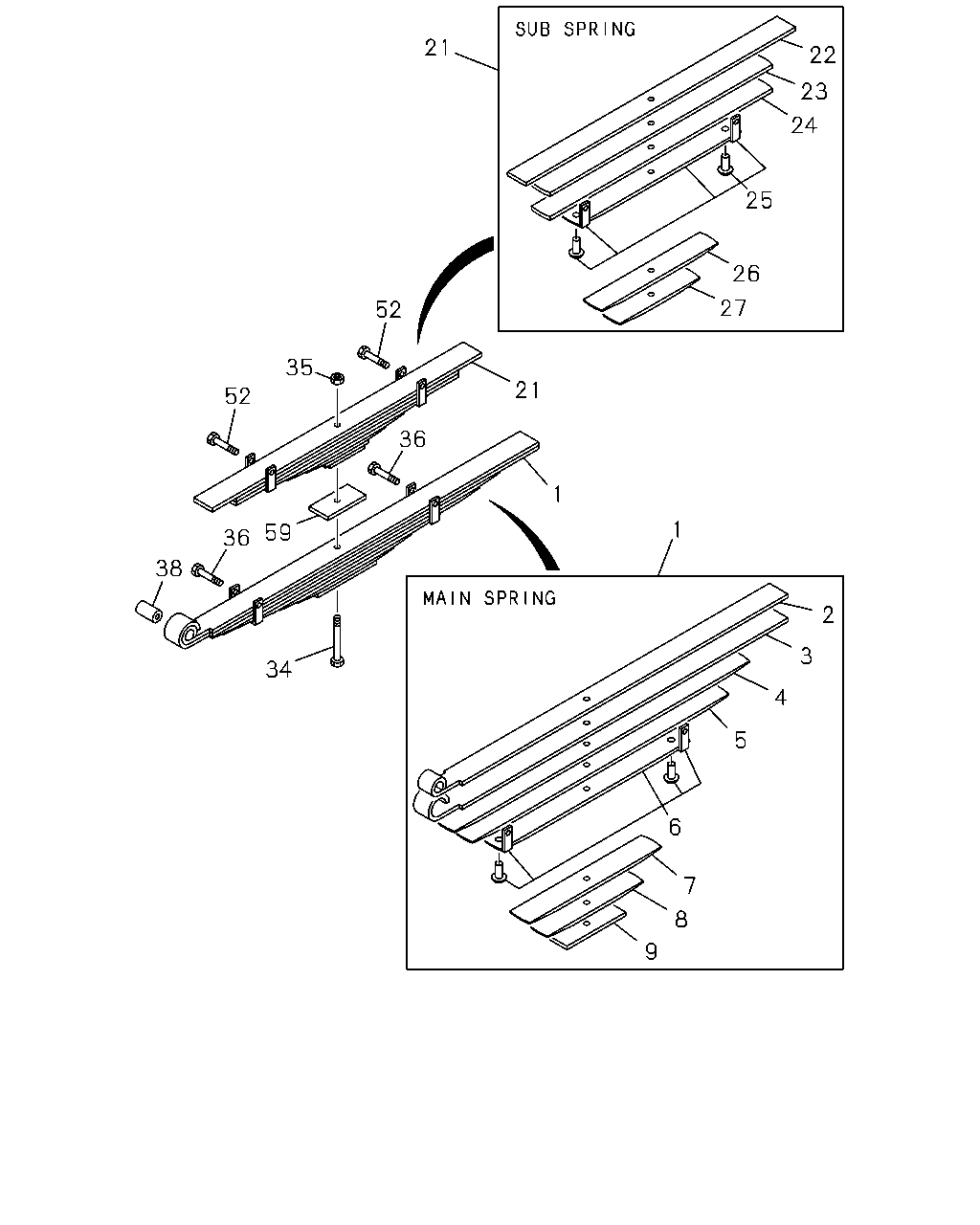

çizim 36889
21 22 23 24 25 26 27 52 35 21 52 36 1 1 59 36 38 2 3 34 4 5 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51310-507-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51310-858-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51311-507-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51311-858-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51312-507-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51312-858-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51313-507-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51313-858-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51314-507-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51314-858-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51315-507-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51315-858-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51316-507-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51316-858-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51317-507-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51317-858-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: A = 1-51300-257-0 		1-51318-507-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-260-0 		1-51318-858-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51340-362-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51340-383-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51341-362-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51341-383-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51342-362-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51342-383-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51343-362-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51343-383-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51344-362-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51344-383-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51345-362-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51345-383-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: A = 1-51300-257-0 		1-51346-362-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: B = 1-51300-260-0 		1-51346-383-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: A = 1-51300-257-0 		1-51356-138-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-260-0 		1-51356-146-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
ASM PART: B = 1-51300-260-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
ASM PART: A = 1-51300-257-0 		9-99110-116-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51300-257-0 		1-09000-296-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: B = 1-51300-260-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-257-0, B = 1-51300-260-0 		1-51351-010-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-257-0 		1-09000-296-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: B = 1-51300-260-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-257-0 		1-51359-018-0 01 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: B = 1-51300-260-0 		1-51377-118-0 01 1 -
