Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

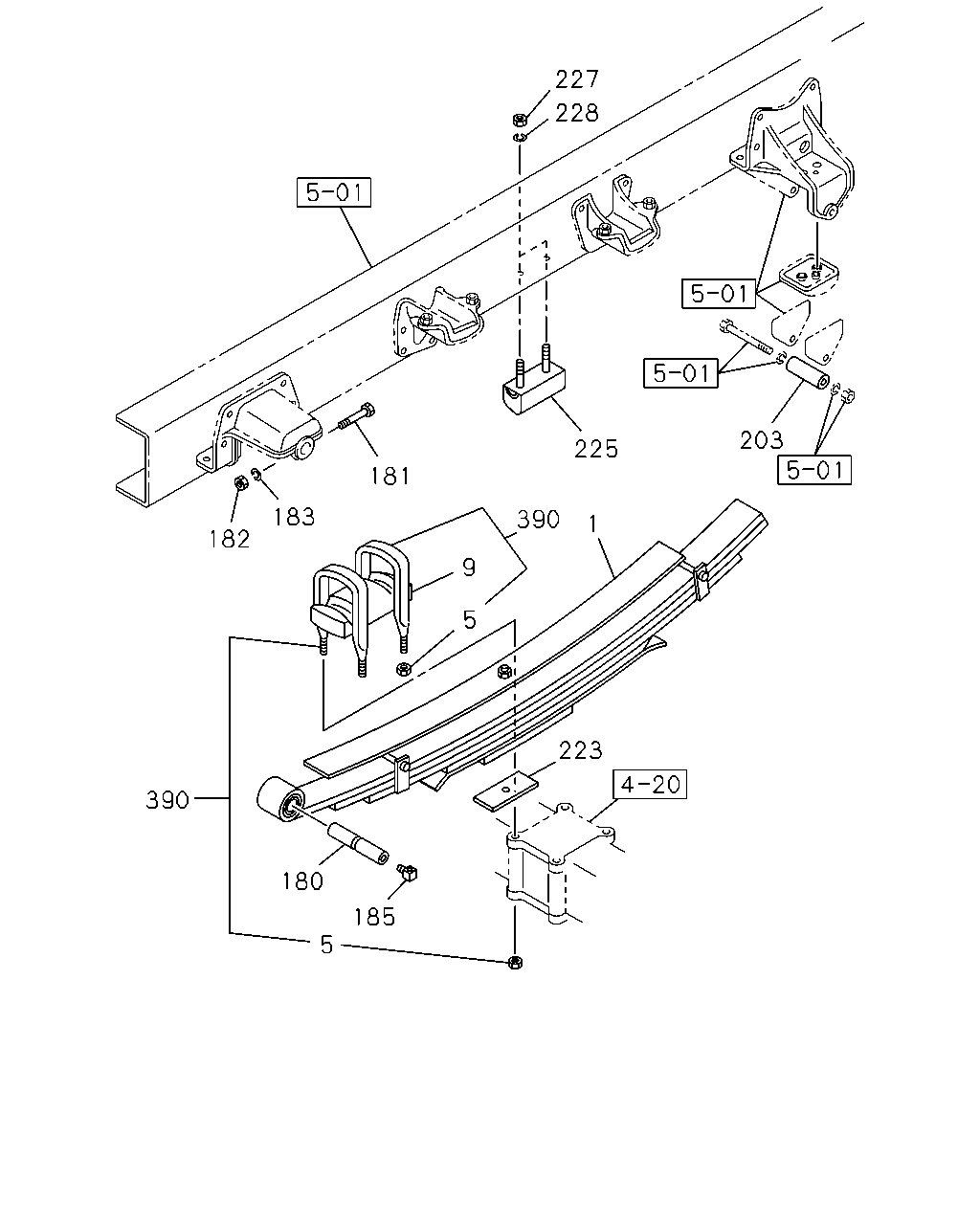

4-60 — REAR SUSPENSION
(#3613) — 23 parça
227
228
203
225
181
183
390
1
182
9
5
223
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
1-51300-260-0
02
1
9002-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
1-51300-257-0
02
1
9002-
5
NUT; U-BOLT,RR SPR
M24
9-99112-824-0
08
1
9002-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
9002-
180
PIN; RR SPR
1-51361-020-0
02
1
9002-
181
BOLT; SPR & SHACKLE
M14X80
9-91056-480-0
02
1
9002-9005
181
BOLT; SPR & SHACKLE
M14X80
0-10806-480-0
02
1
9006-
182
NUT; PIN,RR SPR
M14
9-99110-414-0
02
1
9002-
183
WASHER; LK,PIN,RR SPR
ID=14.2
9-09150-514-0
02
1
9002-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
9-09031-010-0
02
1
9002-
203
COLLAR; LEAF SPR STOPPER
1-53359-058-0
02
1
9002-9201
203
COLLAR; LEAF SPR STOPPER
1-53359-004-0
02
1
9202-
223
SPACER; U BOLT,RR SPR
L TYPE ENG<90L>
1-51377-122-1
02
1
9002-
223
SPACER; U BOLT,RR SPR
V TYPE ENG<91L>
1-51377-204-0
02
1
9002-9402
223
SPACER; U BOLT,RR SPR
V TYPE ENG<91L>
1-51377-296-0
02
1
9403-
225
RUBBER; CUSHION,RR SPR
1-53366-028-1
02
1
9002-
227
NUT; CUSHION RUBBER
M12
9-99110-412-0
04
1
9002-9304
227
NUT; CUSHION RUBBER
M12
9-99110-512-0
04
1
9305-
228
WASHER; LK,CUSHION RUBBER
ID=12.2
9-09150-512-0
04
1
9002-
390
U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470
1-87870-017-3
04
1
9002-9306
390
U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470
1-87870-017-3
04
1
9307-
390
U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430
1-87870-095-2
04
1
9002-9306
390
U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430
1-87870-095-2
04
1
9307-
