Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#36123) — 61 parça
◀
[501A] RIVET,BOLT,NUT (20 parça)
[501A] FRAME ASM (1 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (13 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (15 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (12 parça)
▶
376
376
376
376
376
376
376
376
376
376
376
376
40
60
176
176
118
62
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
BOLT; BRKT TO FRAME
M8X20 FLANGE THA
0-28050-820-0
02
1
0901-
60
BOLT; MBR
M10X30
0-20851-030-0
04
1
0901-
62
NUT; MBR
M10 FLANGE THA
0-91180-210-0
04
1
0901-
67
NUT; C/MBR
M10 FLANGE THA
0-91180-210-0
04
1
0901-
118
NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
02
1
0901-
176
BOLT; C/MBR,ENG MTG
(A) M10X30 FLANGE THA
0-28061-030-0
06
1
0901-0906
176
BOLT; C/MBR,ENG MTG
(B) M10X35 FLANGE
0-28061-035-0
02
1
0901-0906
176
BOLT; C/MBR,ENG MTG
(B) M10X35 FLANGE
0-28061-035-0
08
1
0907-
376
RIVET; FRAME
(A) D8X22 TAPER END
9-06750-822-0
AR
1
0901-
376
RIVET; FRAME
(B) D10X22 TAPER END
9-06751-022-0
AR
1
0901-
376
RIVET; FRAME
(C) D10X24 TAPER END
9-06751-024-0
AR
1
0901-
376
RIVET; FRAME
(D) D10X26 TAPER END
9-06751-026-0
AR
1
0901-
376
RIVET; FRAME
(E) D10X30 TAPER END
9-06751-030-0
AR
1
0901-
376
RIVET; FRAME
(F) D10X32 TAPER END
9-06751-032-0
AR
1
0901-
376
RIVET; FRAME
(G) M10X34 TAPER END
9-06751-034-0
AR
1
0901-
376
RIVET; FRAME
(H) D10X36 TAPER END
9-06751-036-0
AR
1
0901-
376
RIVET; FRAME
(I) D12X30 TAPER END
9-06751-230-0
AR
1
0901-
376
RIVET; FRAME
(J) D12X32 TAPER END
9-06751-232-0
AR
1
0901-
376
RIVET; FRAME
(K) D12X34 TAPER END
9-06751-234-0
AR
1
0901-
376
RIVET; FRAME
(L) D12X36 TAPER END
9-06751-236-0
AR
1
0901-

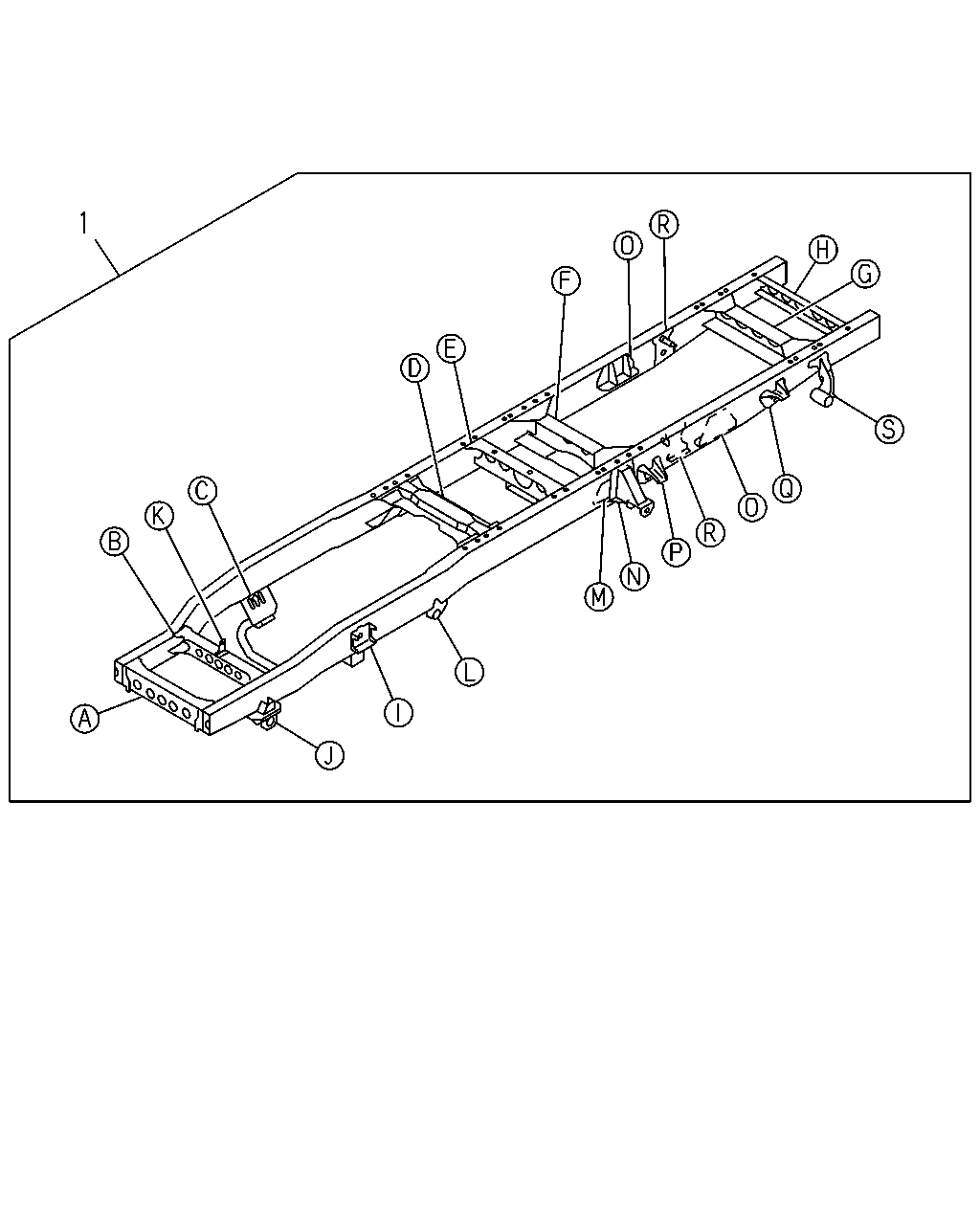

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME ASM
KD FRAME<R32> THA
8-97924-824-4
01
1
0901-
198
198
139
51
130
165
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; FRT SPR,FRT
8-98029-126-0
01
1
0901-
24
BRACKET; FRT SPR,FRT
8-98029-127-0
01
1
0901-
51
BRACKET; ENG SUPPORT,OUTER
8-98092-751-0
01
1
0901-
51
BRACKET; ENG SUPPORT,OUTER
8-98092-753-0
01
1
0901-
130
MEMBER; CROSS,END
THA
8-97924-353-0
01
1
1107-
130
MEMBER; CROSS,END
THA
8-97924-353-0
01
1
0901-1106
139
MEMBER; CROSS,6TH
THA
8-97924-348-0
01
1
1107-
139
MEMBER; CROSS,6TH
THA
8-97924-348-0
01
1
0901-1106
165
BRACKET; RAD STAY
8-98000-886-0
01
1
0901-
198
GUSSET; 6TH C/MBR
RH UPPER & LH LOWER THA
8-97924-489-0
02
1
1107-
198
GUSSET; 6TH C/MBR
RH LOWER & LH UPPER THA
8-97924-490-0
02
1
1107-
198
GUSSET; 6TH C/MBR
RH LOWER & LH UPPER THA
8-97924-490-0
02
1
0901-1106
198
GUSSET; 6TH C/MBR
RH UPPER & LH LOWER THA
8-97924-489-0
02
1
0901-1106

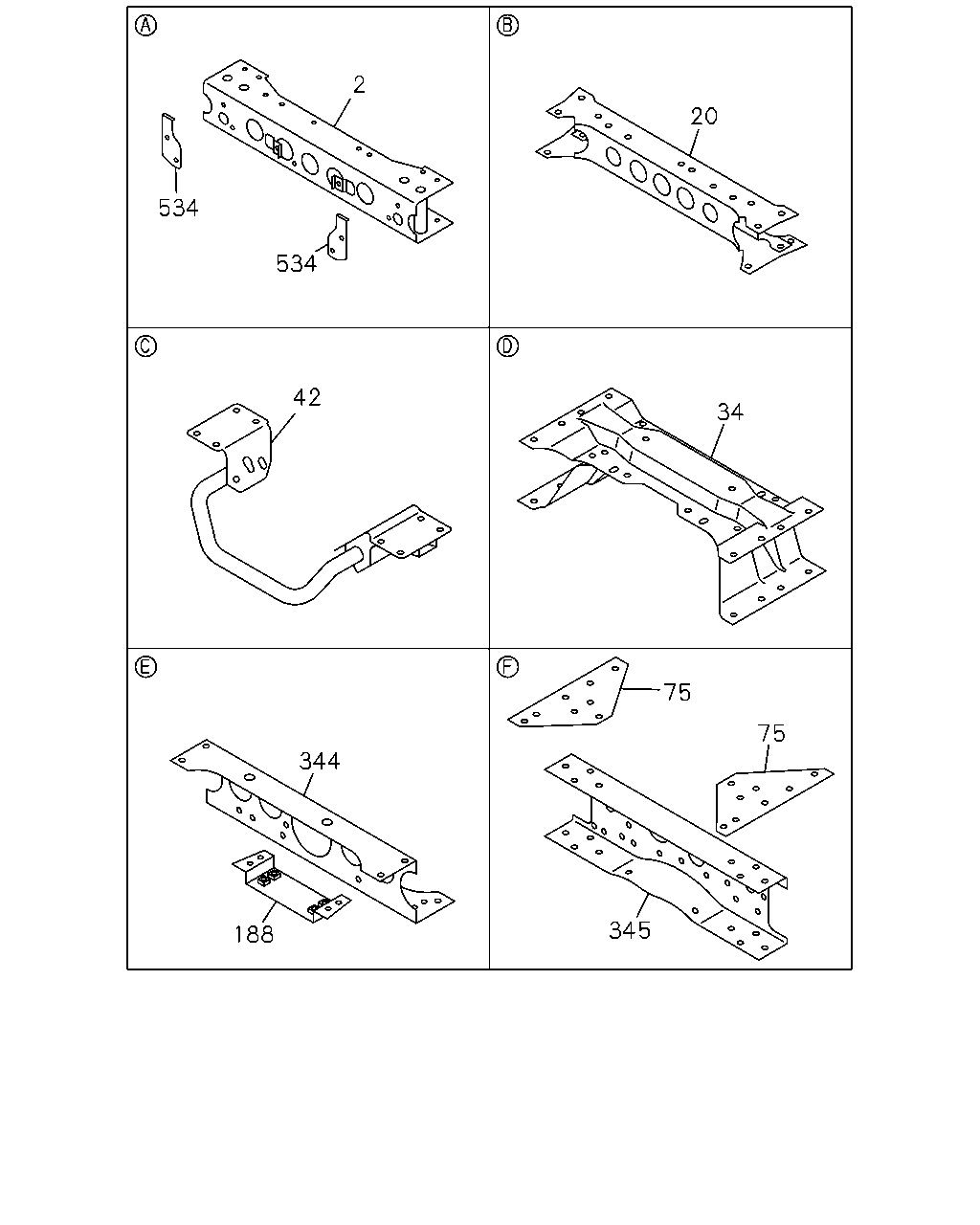

2
20
534
534
42
34
75
75
344
345
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
THA
8-97924-339-2
01
1
0901-
20
MEMBER; CROSS,2ND
THA
8-97924-340-0
01
1
1107-
20
MEMBER; CROSS,2ND
THA
8-97924-340-0
01
1
0901-1106
34
MEMBER; CROSS,3RD
THA
8-97924-342-0
01
1
1107-
34
MEMBER; CROSS,3RD
THA
8-97924-342-0
01
1
0901-1106
42
MEMBER; CROSS,ENG MTG
8-98092-533-0
01
1
0901-
75
GUSSET; 5TH C/MBR
THA
8-97924-345-0
04
1
1107-
75
GUSSET; 5TH C/MBR
THA
8-97924-345-0
04
1
0901-1106
188
BRACKET; SUPPORT,CTR BRG
THA
8-97083-157-1
01
1
0901-
344
MEMBER; CROSS,4TH
THA
8-97924-343-0
01
1
1107-
344
MEMBER; CROSS,4TH
THA
8-97924-343-0
01
1
0901-1106
345
MEMBER; CROSS,5TH
THA
8-97924-344-0
01
1
1107-
345
MEMBER; CROSS,5TH
THA
8-97924-344-0
01
1
0901-1106
534
BRACKET; BACK BAR
8-98061-413-0
01
1
0901-
534
BRACKET; BACK BAR
8-98061-414-0
01
1
0901-
101
173
39
103
217
103
147
147
105
140
140
215
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
BRACKET; FRT SPR,RR
8-94258-091-0
02
1
0901-
101
BRACKET; RR SPR,FRT
8-97042-245-1
02
1
0901-
103
STOPPER; SUB SPR
(B)
8-97223-748-0
02
1
0901-
103
STOPPER; SUB SPR
(A)
8-97223-750-0
02
1
0901-
105
BRACKET; RR SPR,RR
8-98032-488-0
01
1
0901-
105
BRACKET; RR SPR,RR
8-98032-489-0
01
1
0901-
140
BRACKET; S/ABS,RR
(B)
8-98006-176-0
01
1
0901-
140
BRACKET; S/ABS,RR
(A)
8-98006-180-0
01
1
0901-
147
RUBBER; SUB SPRING
8-97254-387-0
04
1
0901-
173
STIFFENER; RR SPRING
THA
8-98012-947-3
02
1
0901-
215
BUSHING; BRKT,RR SPRING
THA
8-97184-699-1
04
1
0901-
217
BRACKET; HELPER RUBBER,RR SPRING
8-98006-210-0
02
1
0901-
