Isuzu WW
▶
TRUCKS
▶
FVR
▶
11106 - FVR/GVR-RHD EURO2/4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30B - GEAR SHIFTER AND QUADRANT BOX
▶
2-30B — GEAR SHIFTER AND QUADRANT BOX
(#36122) — 281 parça
Tümü
A - FULLER FS8209HD DD M/T
B - FULLER FSO5206B OD M/T
◀

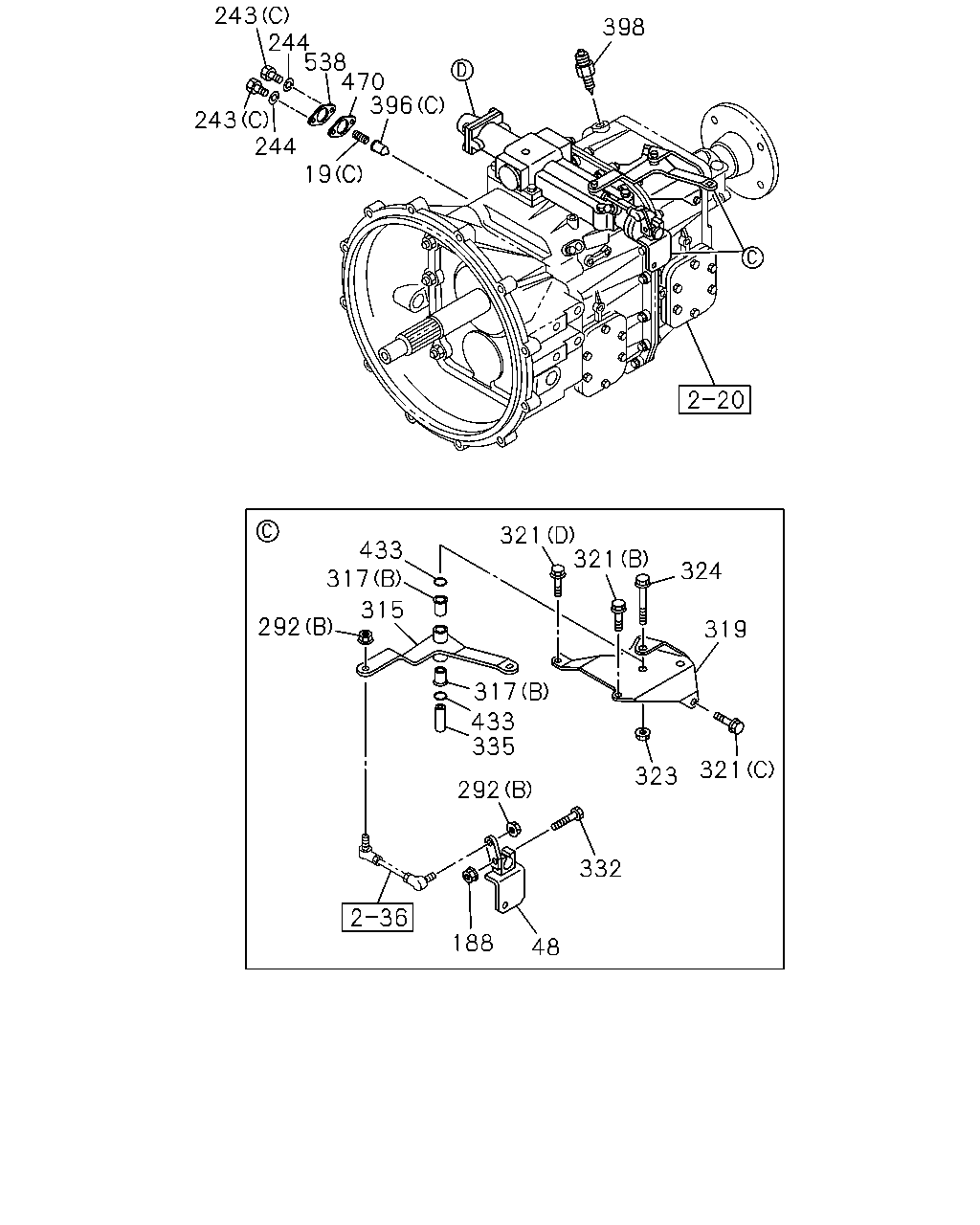

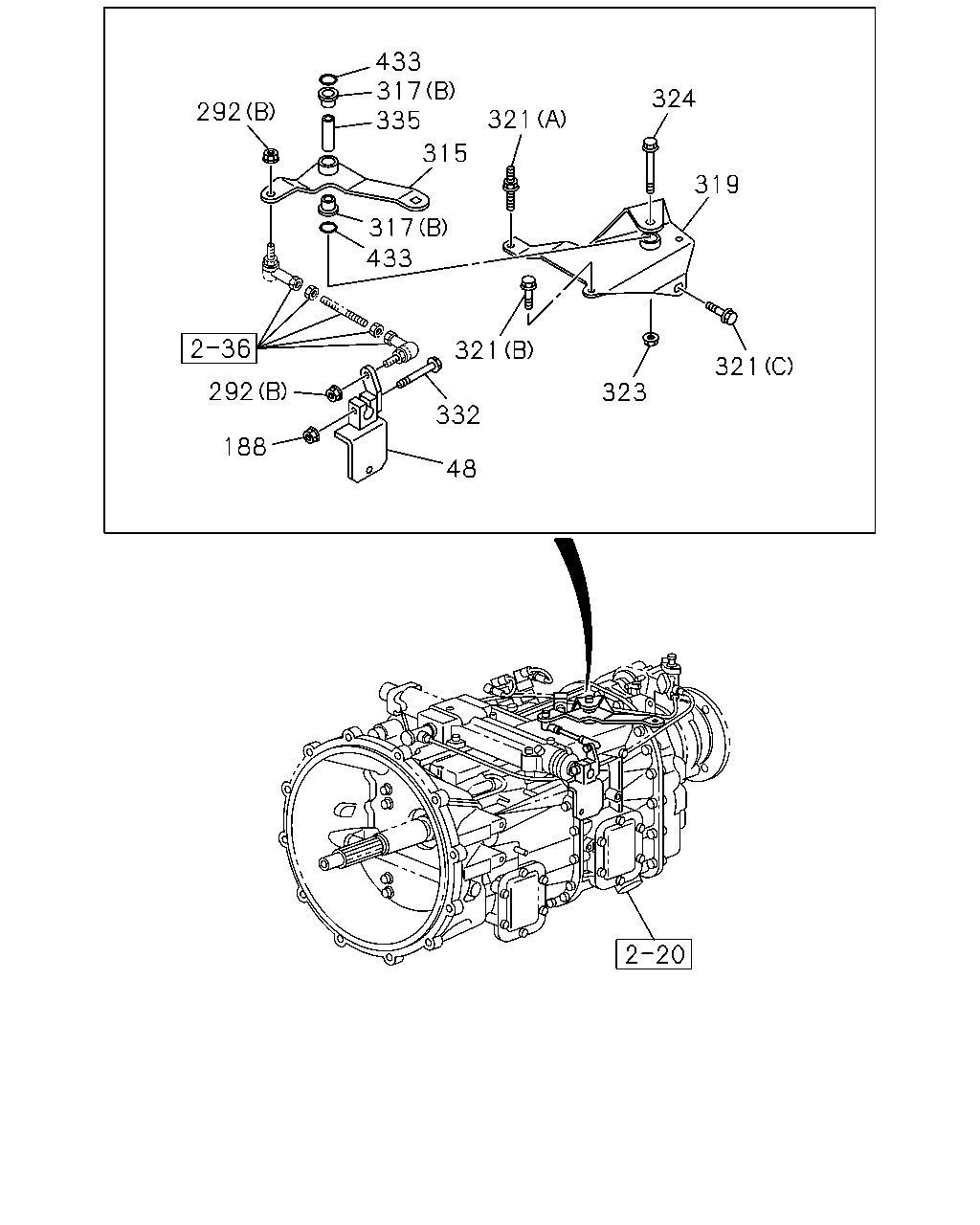

[230B] FS8209HD DD NO.4 (32 parça)

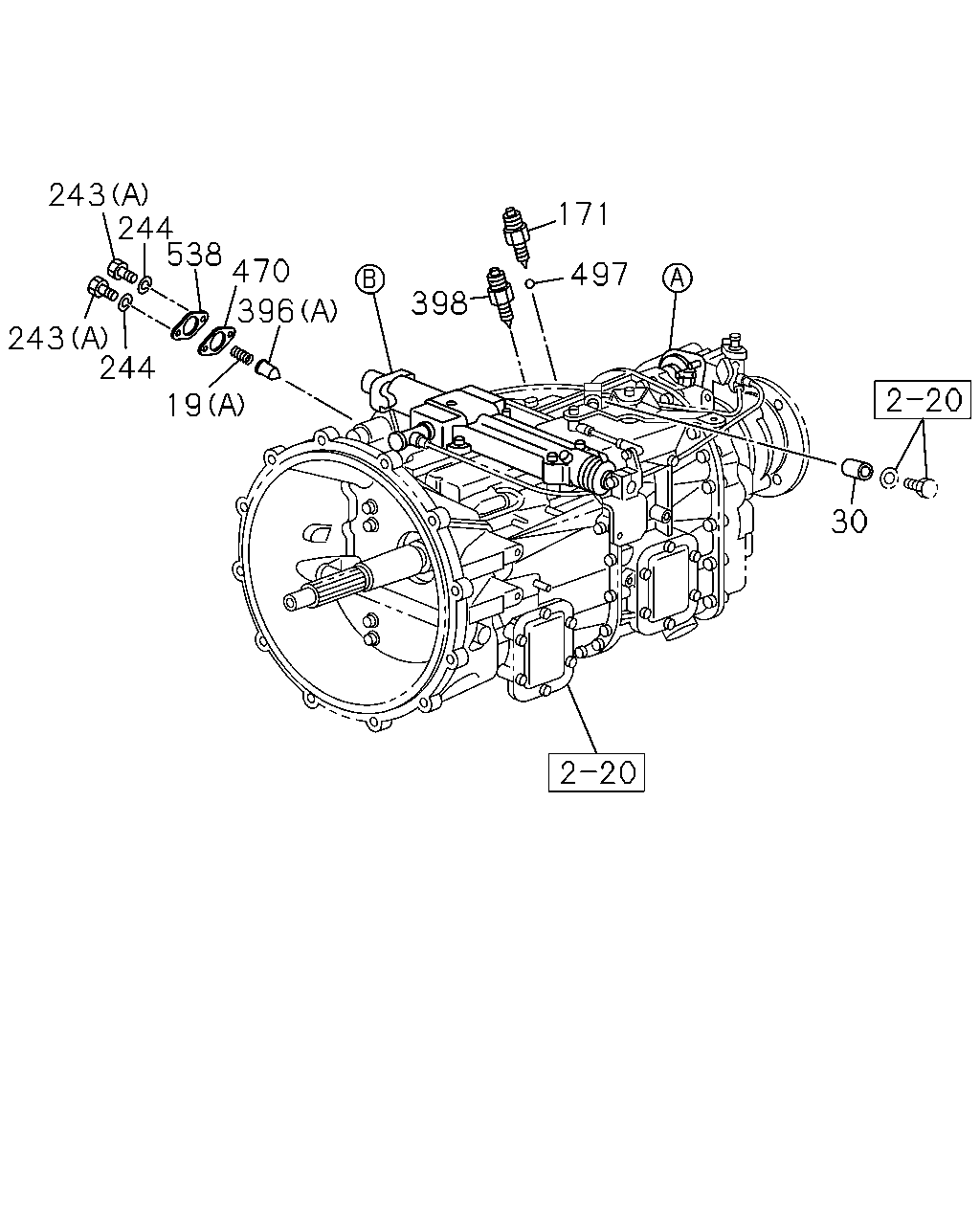

[230B] FS8209HD DD NO.2 (25 parça)

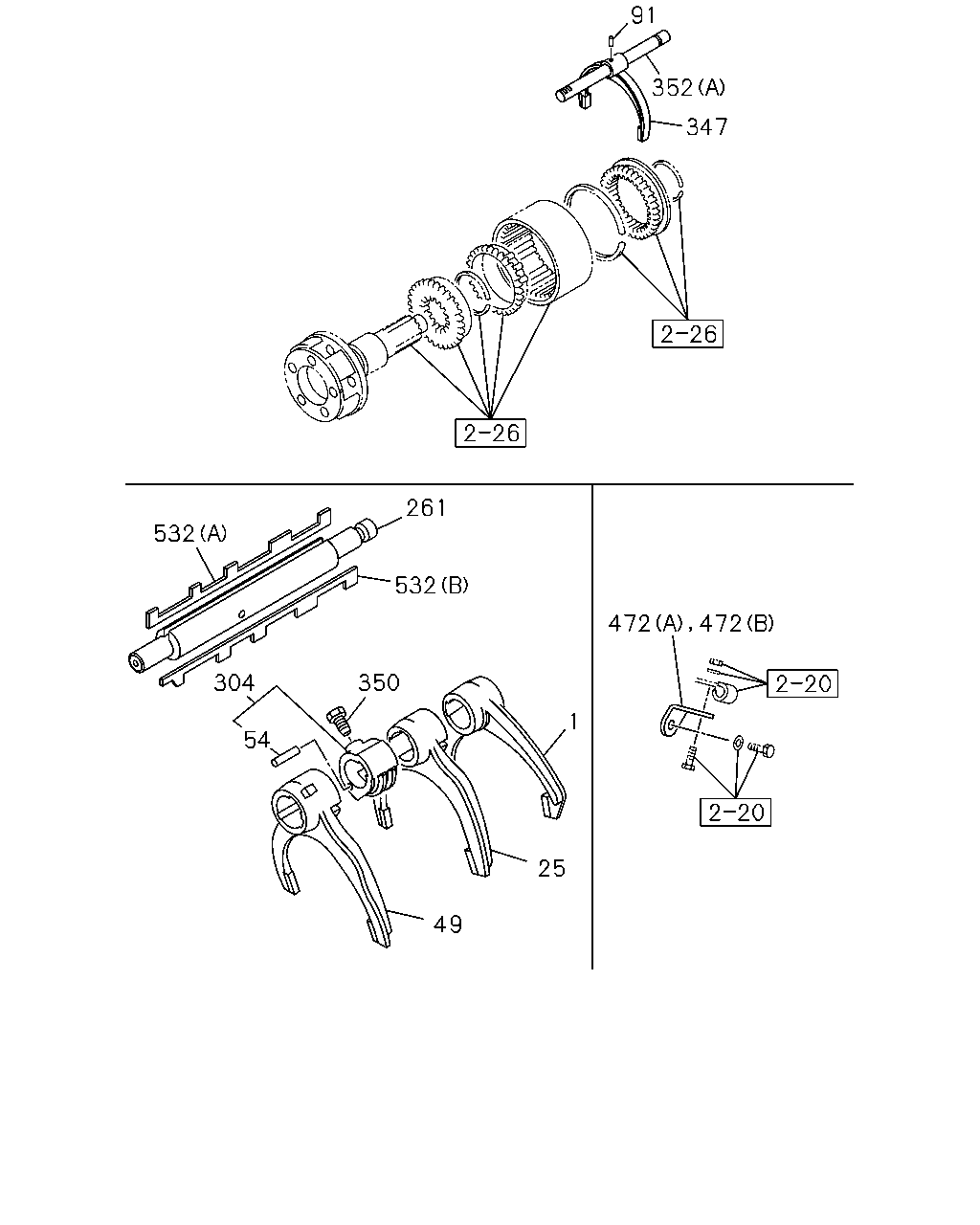

[230B] FS8209HD DD NO.1 (20 parça)

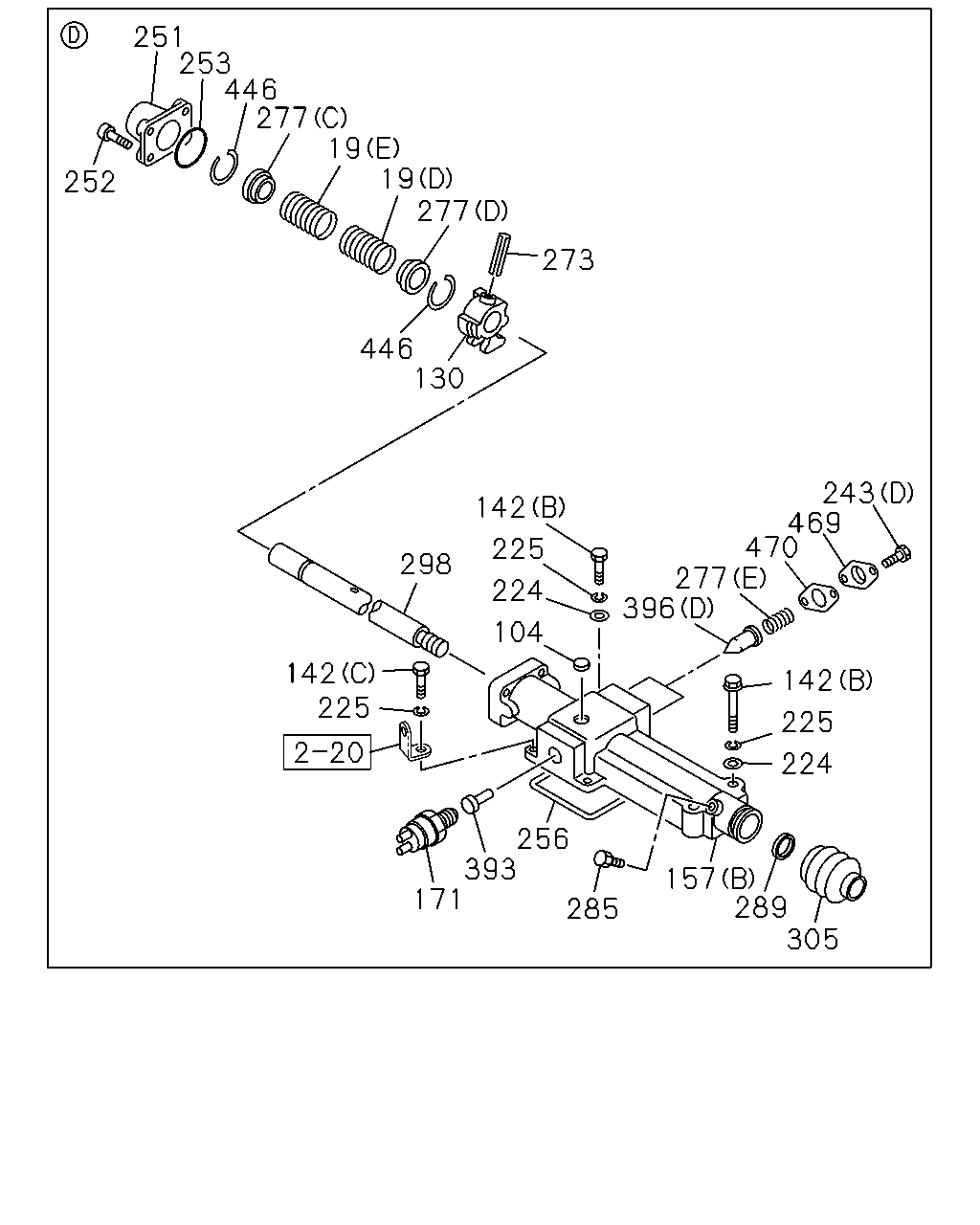

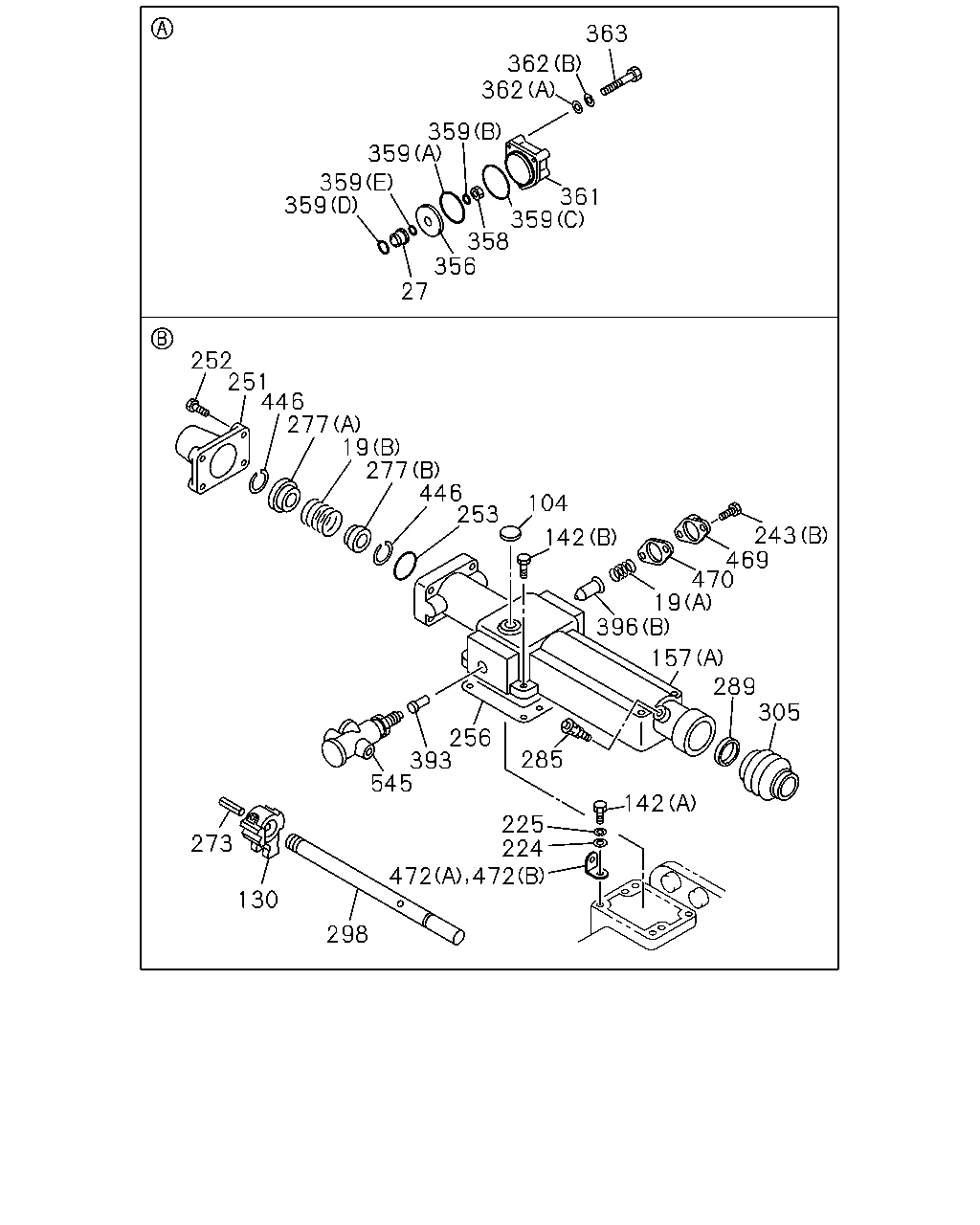

[230B] FS8209HD DD NO.3 (74 parça)
[230B] FSO5206B OD NO.1 (16 parça)
[230B] FSO5206B OD NO.2 (53 parça)
[230B] FSO5206B OD NO.3 (61 parça)
▶
433
317
335
324
292
321
315
319
317
433
321
321
292
323
332
188
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
LEVER; 4TH,SHIFT
8-98031-634-0
01
1
0710-0711
●
48
LEVER; 4TH,SHIFT
8-98031-634-0
01
1
0712-
●
●
188
NUT; SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0710-0711
●
188
NUT; SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0712-
●
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0710-0711
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0712-0805
●
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0806-
●
●
315
LEVER; SELECT
8-98032-139-0
01
1
0710-0711
●
315
LEVER; SELECT
8-98032-139-0
01
1
0712-
●
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0710-0711
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0712-0805
●
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0806-0906
●
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0907-
●
●
319
BRACKET; SELECT LEVER
1-33657-816-0
01
1
0710-0711
●
319
BRACKET; SELECT LEVER
1-33657-816-0
01
1
0712-
●
●
321
BOLT; BRKT,RELAY LEVER
(D) M10X30 FLANGE
0-28151-030-0
01
1
0712-
●
321
BOLT; BRKT,RELAY LEVER
(A) M10X35 L=65
8-97178-725-0
01
1
0710-
●
321
BOLT; BRKT,RELAY LEVER
(B) M10X60 FLANGE
0-28151-060-0
01
1
0710-0711
●
321
BOLT; BRKT,RELAY LEVER
(B) M10X60 FLANGE
0-28151-060-0
01
1
0712-
●
●
321
BOLT; BRKT,RELAY LEVER
(C) M10X25 FLANGE
0-28751-025-0
01
1
0710-0711
●
321
BOLT; BRKT,RELAY LEVER
(C) M10X25 FLANGE
0-28751-025-0
01
1
0712-
●
●
323
NUT; LK,SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0710-0711
●
323
NUT; LK,SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0712-
●
●
324
BOLT; SHAFT
M10X60 FLANGE
0-28051-060-0
01
1
0710-0711
●
324
BOLT; SHAFT
M10X60 FLANGE
0-28051-060-0
01
1
0712-
●
●
332
BOLT; 4TH,SHIFT LEVER
0-29261-060-0
01
1
0710-0711
●
332
BOLT; 4TH,SHIFT LEVER
0-29261-060-0
01
1
0712-
●
●
335
COLLAR; DIST,RELAY LEVER ASM
1-33659-203-0
01
1
0710-0711
●
335
COLLAR; DIST,RELAY LEVER ASM
1-33659-203-0
01
1
0712-
●
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0710-0711
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0712-0805
●
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0806-
●
●
243
244
538
470
171
497
396
398
243
244
19
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
SPRING; COIL COMP
(C)
1-33539-085-0
01
1
0712-
●
19
SPRING; COIL COMP
(D)
1-33549-392-0
01
1
0712-
●
19
SPRING; COIL COMP
(E)
1-33549-393-0
01
1
0712-
●
19
SPRING; COIL COMP
(A)
1-33539-052-0
02
1
0710-
●
19
SPRING; COIL COMP
(B)
1-33549-226-0
01
1
0710-
●
30
PIN; INTER LK
1-33119-309-0
01
1
0710-
●
171
SWITCH; NEUTRAL
1-82440-123-0
01
1
0712-
●
171
SWITCH; NEUTRAL
1-82440-120-0
01
1
0710-
●
243
BOLT; COVER
(D)
1-33119-575-0
02
1
0712-
●
243
BOLT; COVER
(C)
1-33549-551-0
02
1
0712-
●
243
BOLT; COVER
(A)
1-33549-480-0
02
1
0710-
●
243
BOLT; COVER
(B)
1-33549-482-0
02
1
0710-
●
244
WASHER; LK,COVER
1-33119-564-0
02
1
0712-
●
244
WASHER; LK,COVER
1-33119-530-0
02
1
0710-
●
396
PLUNGER; SHIFT ROD
(C)
1-33539-084-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(D)
1-33549-390-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(A)
1-33539-051-0
01
1
0710-
●
396
PLUNGER; SHIFT ROD
(B)
1-33549-229-0
01
1
0710-
●
398
SWITCH; REV LAMP
1-82440-128-0
01
1
0712-
●
398
SWITCH; REV LAMP
1-82440-121-0
01
1
0710-
●
470
GASKET; SPRING COVER
1-33119-489-0
02
1
0712-
●
470
GASKET; SPRING COVER
1-33119-321-0
02
1
0710-
●
497
BALL; SWITCH
1-33119-308-0
01
1
0710-
●
538
COVER; DETENT
1-33119-574-0
01
1
0712-
●
538
COVER; DETENT
1-33119-529-0
01
1
0710-
●
91
352
347
261
532
532
472
350
304
1
54
25
49
472
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; SHIFT,1ST & REV
1-33511-629-0
01
1
0710-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-630-0
01
1
0710-
●
49
ARM; SHIFT,4TH & 5TH
1-33511-537-0
01
1
0710-
●
54
PIN; SPR,SHIFT BLOCK
1-33519-101-0
01
1
0710-0711
●
54
PIN; SPR,SHIFT BLOCK
1-33519-101-0
01
1
0712-
●
●
91
PIN; SPR,SHIFT ARM
1-33519-100-0
01
1
0710-
●
261
ROD; GEAR CONT
1-33531-480-0
01
1
0712-
●
261
ROD; GEAR CONT
1-33531-436-0
01
1
0710-
●
304
BLOCK; SHIFT SHAFT
1-33511-534-0
01
1
0710-0711
●
304
BLOCK; SHIFT SHAFT
1-33511-534-0
01
1
0712-
●
●
347
ARM; SHIFT,RANGE CHANGE
1-33511-533-0
01
1
0710-
●
350
SCREW; SHIFT ARM
1-33519-163-0
01
1
0712-
●
350
SCREW; SHIFT ARM
1-33519-102-0
01
1
0710-
●
352
ROD; SHIFT,RANGE CHANGE
(C)
1-33539-082-0
01
1
0712-
●
352
ROD; SHIFT,RANGE CHANGE
(B)
1-33539-083-0
01
1
0712-
●
352
ROD; SHIFT,RANGE CHANGE
(A)
1-33531-435-0
01
1
0710-
●
472
EYE; LIFTING
(A)
1-33119-528-0
01
1
0710-
●
472
EYE; LIFTING
(B)
1-87060-783-0
01
1
0710-
●
532
PLATE; SHIFT FORK
(A)
1-33539-054-0
01
1
0710-
●
532
PLATE; SHIFT FORK
(B)
1-33539-055-0
01
1
0710-
●
363
362
362
359
359
359
359
361
359
358
356
27
252
251
446
277
19
277
446
253
104
243
469
470
19
396
142
157
289
305
256
393
545
285
142
225
224
273
472
130
298
472
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
SPRING; COIL COMP
(C)
1-33539-085-0
01
1
0712-
●
19
SPRING; COIL COMP
(D)
1-33549-392-0
01
1
0712-
●
19
SPRING; COIL COMP
(E)
1-33549-393-0
01
1
0712-
●
19
SPRING; COIL COMP
(A)
1-33539-052-0
02
1
0710-
●
19
SPRING; COIL COMP
(B)
1-33549-226-0
01
1
0710-
●
27
BUSHING; SHIFT ROD
1-33569-042-0
01
1
0710-
●
104
PLUG; PLATE
1-33549-550-0
01
1
0712-
●
104
PLUG; PLATE
1-33549-481-0
01
1
0710-
●
130
LEVER; SHIFT,INTERNAL
1-33521-186-0
01
1
0712-
●
130
LEVER; SHIFT,INTERNAL
1-33521-181-0
01
1
0710-
●
142
BOLT; QUAD BOX
(C)
1-33119-569-0
04
1
0712-
●
142
BOLT; QUAD BOX
(B)
1-33119-585-0
02
1
0712-
●
142
BOLT; QUAD BOX
(A) M10X35
1-33549-524-0
04
1
0710-
●
142
BOLT; QUAD BOX
(B) M10X55
1-33119-422-0
02
1
0710-
●
157
BOX; QUAD,TRANS
(B)
1-33541-537-0
01
1
0712-
●
157
BOX; QUAD,TRANS
(A)
1-33541-535-0
01
1
0710-
●
224
WASHER; PL,QUAD BOX
1-33119-567-0
07
1
0712-1104
●
224
WASHER; PL,QUAD BOX
1-33119-567-0
05
1
1105-
●
224
WASHER; PL,QUAD BOX
1-33119-524-0
03
1
0710-
●
225
WASHER; LK,QUAD BOX
1-33119-568-0
06
1
0712-
●
225
WASHER; LK,QUAD BOX
1-34159-121-0
04
1
0710-
●
243
BOLT; COVER
(D)
1-33119-575-0
02
1
0712-
●
243
BOLT; COVER
(C)
1-33549-551-0
02
1
0712-
●
243
BOLT; COVER
(A)
1-33549-480-0
02
1
0710-
●
243
BOLT; COVER
(B)
1-33549-482-0
02
1
0710-
●
251
COVER; SIDE
1-33545-013-0
01
1
0712-
●
251
COVER; SIDE
1-33545-012-0
01
1
0710-
●
252
BOLT; SIDE COVER
1-33549-552-0
04
1
0712-
●
252
BOLT; SIDE COVER
1-33549-483-0
04
1
0710-
●
253
GASKET; SIDE COVER
1-33544-055-0
01
1
0710-0711
●
253
GASKET; SIDE COVER
1-33544-055-0
01
1
0712-
●
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33549-391-0
01
1
0712-
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33549-377-0
01
1
0710-
●
273
PIN; SPR,STOPPER
1-33529-095-0
01
1
0710-0711
●
273
PIN; SPR,STOPPER
1-33529-095-0
01
1
0712-
●
●
277
PLATE; SPRING SEAT
(C)
1-33549-388-0
01
1
0712-
●
277
PLATE; SPRING SEAT
(D)
1-33549-389-0
01
1
0712-
●
277
PLATE; SPRING SEAT
(E)
1-33549-395-0
01
1
0712-
●
277
PLATE; SPRING SEAT
(A)
1-33549-224-0
01
1
0710-
●
277
PLATE; SPRING SEAT
(B)
1-33549-372-0
01
1
0710-
●
285
BREATHER; AIR,QUAD BOX
1-33549-354-0
01
1
0710-0711
●
285
BREATHER; AIR,QUAD BOX
1-33549-354-0
01
1
0712-
●
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
1-33542-061-0
01
1
0710-0711
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
1-33542-061-0
01
1
0712-
●
●
298
SHAFT; SHIFT LEVER
1-33522-209-0
01
1
0712-
●
298
SHAFT; SHIFT LEVER
1-33522-181-0
01
1
0710-
●
305
BOOT; LEVER SHAFT
1-33549-233-0
01
1
0710-0711
●
305
BOOT; LEVER SHAFT
1-33549-233-0
01
1
0712-
●
●
356
PISTON; AIR CYL
1-33551-015-0
01
1
0710-
●
358
NUT; SHIFT ROD
1-33539-091-0
01
1
0710-
●
359
GASKET; AIR CYL
(D)
1-33552-006-0
01
1
0710-
●
359
GASKET; AIR CYL
(B)
1-33552-007-0
01
1
0710-
●
359
GASKET; AIR CYL
(C)
1-33563-008-0
01
1
0710-
●
359
GASKET; AIR CYL
(A)
1-33569-043-0
01
1
0710-
●
359
GASKET; AIR CYL
(E)
1-33569-044-0
01
1
0710-
●
361
CYLINDER; AIR,SHIFT
1-33569-045-0
01
1
0710-
●
362
WASHER; AIR CYL
(A)
1-33119-524-0
03
1
0710-
●
362
WASHER; AIR CYL
(B)
1-34159-121-0
03
1
0710-
●
363
BOLT; AIR CYL
1-33119-538-0
03
1
0710-
●
393
PIN; SW
1-33549-394-0
01
1
0710-0711
●
393
PIN; SW
1-33549-394-0
01
1
0712-
●
●
396
PLUNGER; SHIFT ROD
(C)
1-33539-084-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(D)
1-33549-390-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(A)
1-33539-051-0
01
1
0710-
●
396
PLUNGER; SHIFT ROD
(B)
1-33549-229-0
01
1
0710-
●
446
RING; SNAP,SPR SEAT
1-33549-223-0
02
1
0710-0711
●
446
RING; SNAP,SPR SEAT
1-33549-223-0
02
1
0712-
●
●
469
COVER; SPRING,QUAD BOX
1-33119-574-0
01
1
0712-
●
469
COVER; SPRING,QUAD BOX
1-33119-529-0
01
1
0710-
●
470
GASKET; SPRING COVER
1-33119-489-0
02
1
0712-
●
470
GASKET; SPRING COVER
1-33119-321-0
02
1
0710-
●
472
EYE; LIFTING
(A)
1-33119-528-0
01
1
0710-
●
472
EYE; LIFTING
(B)
1-87060-783-0
01
1
0710-
●
545
VALVE; POPPET
1-33549-383-0
01
1
0710-
●

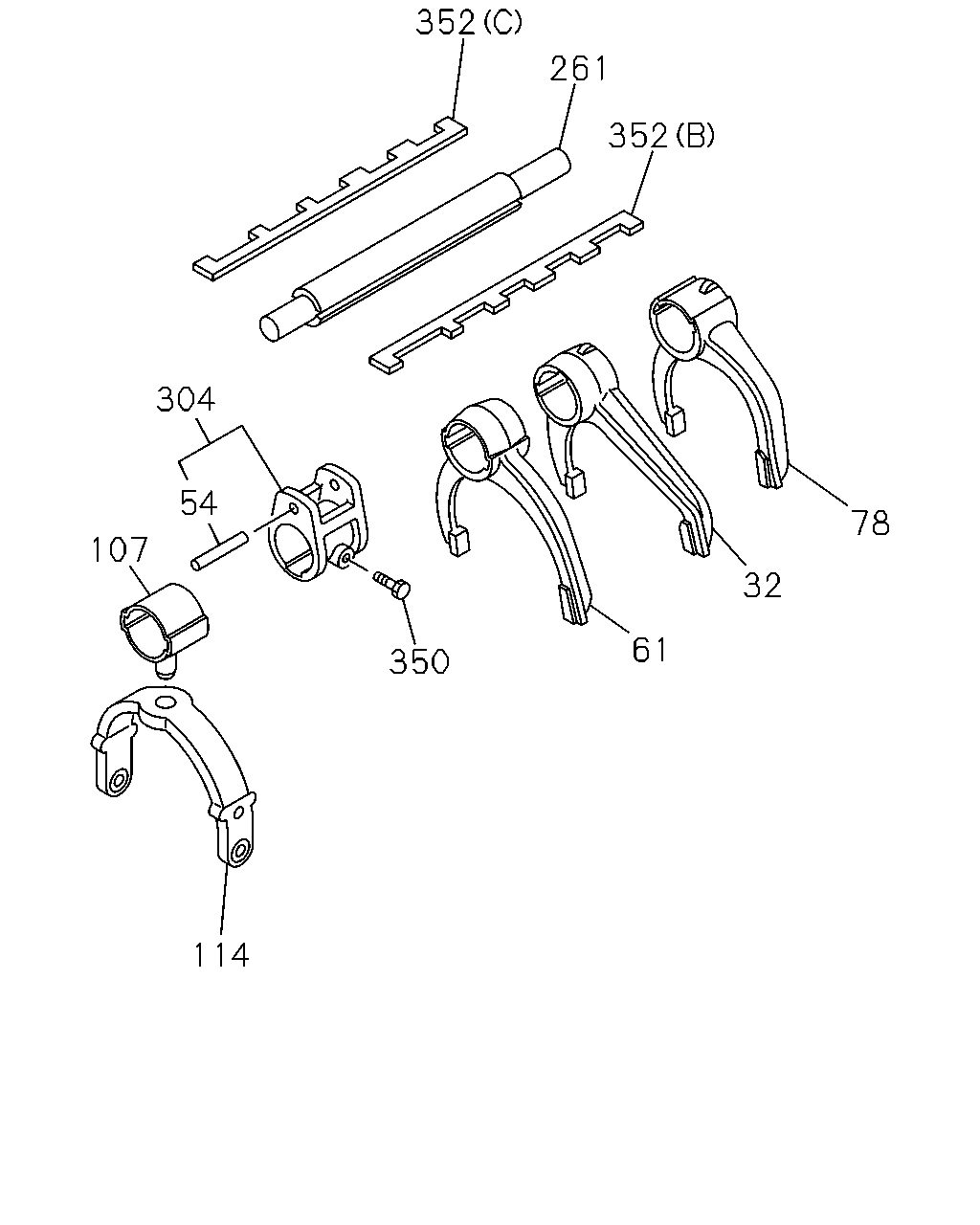

352
261
352
304
54
78
107
32
61
350
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
ARM; SHIFT,1ST & 2ND
1-33511-634-0
01
1
0712-
●
54
PIN; SPR,SHIFT BLOCK
1-33519-101-0
01
1
0710-0711
●
54
PIN; SPR,SHIFT BLOCK
1-33519-101-0
01
1
0712-
●
●
61
ARM; SHIFT,3RD & 4TH
1-33511-635-0
01
1
0712-
●
78
ARM; SHIFT,REV
1-33511-633-0
01
1
0712-
●
107
BLOCK; SHIFT,OD TO TOP
1-33511-636-0
01
1
0712-
●
114
ARM; SHIFT,OD TO TOP
1-33511-637-0
01
1
0712-
●
261
ROD; GEAR CONT
1-33531-480-0
01
1
0712-
●
261
ROD; GEAR CONT
1-33531-436-0
01
1
0710-
●
304
BLOCK; SHIFT SHAFT
1-33511-534-0
01
1
0710-0711
●
304
BLOCK; SHIFT SHAFT
1-33511-534-0
01
1
0712-
●
●
350
SCREW; SHIFT ARM
1-33519-163-0
01
1
0712-
●
350
SCREW; SHIFT ARM
1-33519-102-0
01
1
0710-
●
352
ROD; SHIFT,RANGE CHANGE
(C)
1-33539-082-0
01
1
0712-
●
352
ROD; SHIFT,RANGE CHANGE
(B)
1-33539-083-0
01
1
0712-
●
352
ROD; SHIFT,RANGE CHANGE
(A)
1-33531-435-0
01
1
0710-
●
243
244
538
470
396
398
244
19
321
321
433
317
324
315
292
319
317
433
335
321
323
292
332
188
48
243
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
SPRING; COIL COMP
(C)
1-33539-085-0
01
1
0712-
●
19
SPRING; COIL COMP
(D)
1-33549-392-0
01
1
0712-
●
19
SPRING; COIL COMP
(E)
1-33549-393-0
01
1
0712-
●
19
SPRING; COIL COMP
(A)
1-33539-052-0
02
1
0710-
●
19
SPRING; COIL COMP
(B)
1-33549-226-0
01
1
0710-
●
48
LEVER; 4TH,SHIFT
8-98031-634-0
01
1
0710-0711
●
48
LEVER; 4TH,SHIFT
8-98031-634-0
01
1
0712-
●
●
188
NUT; SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0710-0711
●
188
NUT; SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0712-
●
●
243
BOLT; COVER
(D)
1-33119-575-0
02
1
0712-
●
243
BOLT; COVER
(C)
1-33549-551-0
02
1
0712-
●
243
BOLT; COVER
(A)
1-33549-480-0
02
1
0710-
●
243
BOLT; COVER
(B)
1-33549-482-0
02
1
0710-
●
244
WASHER; LK,COVER
1-33119-564-0
02
1
0712-
●
244
WASHER; LK,COVER
1-33119-530-0
02
1
0710-
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0710-0711
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0712-0805
●
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
0806-
●
●
315
LEVER; SELECT
8-98032-139-0
01
1
0710-0711
●
315
LEVER; SELECT
8-98032-139-0
01
1
0712-
●
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0710-0711
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0712-0805
●
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0806-0906
●
●
317
BUSHING; LEVER
(B)
1-09330-119-0
02
1
0907-
●
●
319
BRACKET; SELECT LEVER
1-33657-816-0
01
1
0710-0711
●
319
BRACKET; SELECT LEVER
1-33657-816-0
01
1
0712-
●
●
321
BOLT; BRKT,RELAY LEVER
(D) M10X30 FLANGE
0-28151-030-0
01
1
0712-
●
321
BOLT; BRKT,RELAY LEVER
(A) M10X35 L=65
8-97178-725-0
01
1
0710-
●
321
BOLT; BRKT,RELAY LEVER
(B) M10X60 FLANGE
0-28151-060-0
01
1
0710-0711
●
321
BOLT; BRKT,RELAY LEVER
(B) M10X60 FLANGE
0-28151-060-0
01
1
0712-
●
●
321
BOLT; BRKT,RELAY LEVER
(C) M10X25 FLANGE
0-28751-025-0
01
1
0710-0711
●
321
BOLT; BRKT,RELAY LEVER
(C) M10X25 FLANGE
0-28751-025-0
01
1
0712-
●
●
323
NUT; LK,SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0710-0711
●
323
NUT; LK,SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
0712-
●
●
324
BOLT; SHAFT
M10X60 FLANGE
0-28051-060-0
01
1
0710-0711
●
324
BOLT; SHAFT
M10X60 FLANGE
0-28051-060-0
01
1
0712-
●
●
332
BOLT; 4TH,SHIFT LEVER
0-29261-060-0
01
1
0710-0711
●
332
BOLT; 4TH,SHIFT LEVER
0-29261-060-0
01
1
0712-
●
●
335
COLLAR; DIST,RELAY LEVER ASM
1-33659-203-0
01
1
0710-0711
●
335
COLLAR; DIST,RELAY LEVER ASM
1-33659-203-0
01
1
0712-
●
●
396
PLUNGER; SHIFT ROD
(C)
1-33539-084-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(D)
1-33549-390-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(A)
1-33539-051-0
01
1
0710-
●
396
PLUNGER; SHIFT ROD
(B)
1-33549-229-0
01
1
0710-
●
398
SWITCH; REV LAMP
1-82440-128-0
01
1
0712-
●
398
SWITCH; REV LAMP
1-82440-121-0
01
1
0710-
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0710-0711
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0712-0805
●
●
433
GASKET; BUSHING
1-09623-594-0
02
1
0806-
●
●
470
GASKET; SPRING COVER
1-33119-489-0
02
1
0712-
●
470
GASKET; SPRING COVER
1-33119-321-0
02
1
0710-
●
538
COVER; DETENT
1-33119-574-0
01
1
0712-
●
538
COVER; DETENT
1-33119-529-0
01
1
0710-
●
251
253
446
277
19
19
277
252
273
446
130
243
469
470
277
396
142
225
298
224
104
142
225
142
225
224
256
393
171
157
289
305
285
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
SPRING; COIL COMP
(C)
1-33539-085-0
01
1
0712-
●
19
SPRING; COIL COMP
(D)
1-33549-392-0
01
1
0712-
●
19
SPRING; COIL COMP
(E)
1-33549-393-0
01
1
0712-
●
19
SPRING; COIL COMP
(A)
1-33539-052-0
02
1
0710-
●
19
SPRING; COIL COMP
(B)
1-33549-226-0
01
1
0710-
●
104
PLUG; PLATE
1-33549-550-0
01
1
0712-
●
104
PLUG; PLATE
1-33549-481-0
01
1
0710-
●
130
LEVER; SHIFT,INTERNAL
1-33521-186-0
01
1
0712-
●
130
LEVER; SHIFT,INTERNAL
1-33521-181-0
01
1
0710-
●
142
BOLT; QUAD BOX
(C)
1-33119-569-0
04
1
0712-
●
142
BOLT; QUAD BOX
(B)
1-33119-585-0
02
1
0712-
●
142
BOLT; QUAD BOX
(A) M10X35
1-33549-524-0
04
1
0710-
●
142
BOLT; QUAD BOX
(B) M10X55
1-33119-422-0
02
1
0710-
●
157
BOX; QUAD,TRANS
(B)
1-33541-537-0
01
1
0712-
●
157
BOX; QUAD,TRANS
(A)
1-33541-535-0
01
1
0710-
●
171
SWITCH; NEUTRAL
1-82440-123-0
01
1
0712-
●
171
SWITCH; NEUTRAL
1-82440-120-0
01
1
0710-
●
224
WASHER; PL,QUAD BOX
1-33119-567-0
07
1
0712-1104
●
224
WASHER; PL,QUAD BOX
1-33119-567-0
05
1
1105-
●
224
WASHER; PL,QUAD BOX
1-33119-524-0
03
1
0710-
●
225
WASHER; LK,QUAD BOX
1-33119-568-0
06
1
0712-
●
225
WASHER; LK,QUAD BOX
1-34159-121-0
04
1
0710-
●
243
BOLT; COVER
(D)
1-33119-575-0
02
1
0712-
●
243
BOLT; COVER
(C)
1-33549-551-0
02
1
0712-
●
243
BOLT; COVER
(A)
1-33549-480-0
02
1
0710-
●
243
BOLT; COVER
(B)
1-33549-482-0
02
1
0710-
●
251
COVER; SIDE
1-33545-013-0
01
1
0712-
●
251
COVER; SIDE
1-33545-012-0
01
1
0710-
●
252
BOLT; SIDE COVER
1-33549-552-0
04
1
0712-
●
252
BOLT; SIDE COVER
1-33549-483-0
04
1
0710-
●
253
GASKET; SIDE COVER
1-33544-055-0
01
1
0710-0711
●
253
GASKET; SIDE COVER
1-33544-055-0
01
1
0712-
●
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33549-391-0
01
1
0712-
●
256
GASKET; QUAD BOX TO TRANS CASE
1-33549-377-0
01
1
0710-
●
273
PIN; SPR,STOPPER
1-33529-095-0
01
1
0710-0711
●
273
PIN; SPR,STOPPER
1-33529-095-0
01
1
0712-
●
●
277
PLATE; SPRING SEAT
(C)
1-33549-388-0
01
1
0712-
●
277
PLATE; SPRING SEAT
(D)
1-33549-389-0
01
1
0712-
●
277
PLATE; SPRING SEAT
(E)
1-33549-395-0
01
1
0712-
●
277
PLATE; SPRING SEAT
(A)
1-33549-224-0
01
1
0710-
●
277
PLATE; SPRING SEAT
(B)
1-33549-372-0
01
1
0710-
●
285
BREATHER; AIR,QUAD BOX
1-33549-354-0
01
1
0710-0711
●
285
BREATHER; AIR,QUAD BOX
1-33549-354-0
01
1
0712-
●
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
1-33542-061-0
01
1
0710-0711
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
1-33542-061-0
01
1
0712-
●
●
298
SHAFT; SHIFT LEVER
1-33522-209-0
01
1
0712-
●
298
SHAFT; SHIFT LEVER
1-33522-181-0
01
1
0710-
●
305
BOOT; LEVER SHAFT
1-33549-233-0
01
1
0710-0711
●
305
BOOT; LEVER SHAFT
1-33549-233-0
01
1
0712-
●
●
393
PIN; SW
1-33549-394-0
01
1
0710-0711
●
393
PIN; SW
1-33549-394-0
01
1
0712-
●
●
396
PLUNGER; SHIFT ROD
(C)
1-33539-084-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(D)
1-33549-390-0
01
1
0712-
●
396
PLUNGER; SHIFT ROD
(A)
1-33539-051-0
01
1
0710-
●
396
PLUNGER; SHIFT ROD
(B)
1-33549-229-0
01
1
0710-
●
446
RING; SNAP,SPR SEAT
1-33549-223-0
02
1
0710-0711
●
446
RING; SNAP,SPR SEAT
1-33549-223-0
02
1
0712-
●
●
469
COVER; SPRING,QUAD BOX
1-33119-574-0
01
1
0712-
●
469
COVER; SPRING,QUAD BOX
1-33119-529-0
01
1
0710-
●
470
GASKET; SPRING COVER
1-33119-489-0
02
1
0712-
●
470
GASKET; SPRING COVER
1-33119-321-0
02
1
0710-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
