2-26B — MANUAL TRANSMISSION GEAR (#36119) — 302 parça

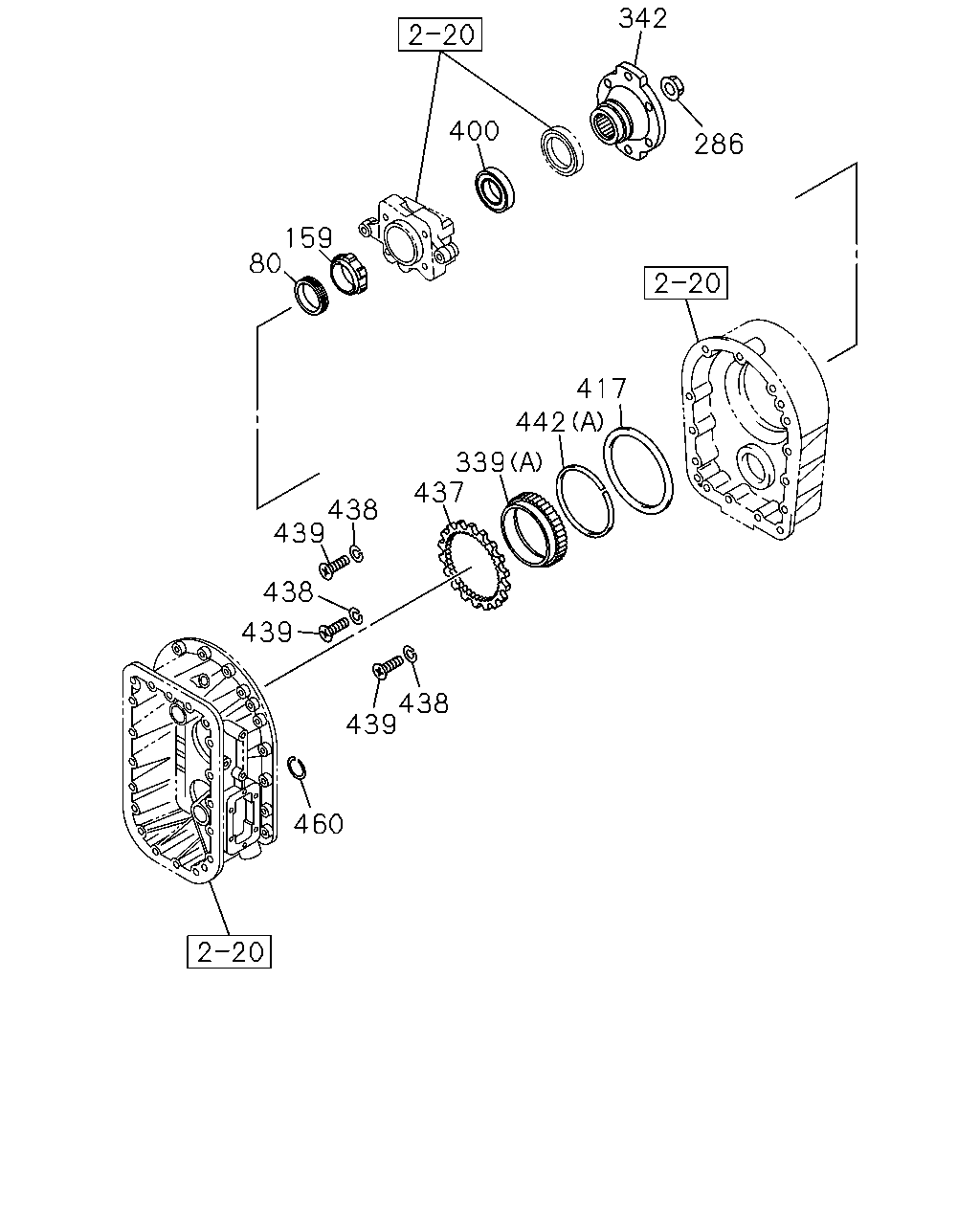

çizim 179569
342 400 286 159 80 417 442 339 437 438 439 438 439 438 439 460
BalonParca AdiParca NoAdetTipApplied Date A B
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0712- ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0710- ●
159 SPACER; SPD DRIVE GEAR 1-33159-068-0 01 1 0710- ●
286 NUT; LK,MAINSHAFT 1-33239-356-0 01 1 0710- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0710- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0710- ●
342 FLANGE; OUTPUT 1-37243-430-0 01 1 0710- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0710- ●
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 0710- ●
437 PLATE; LOCK 1-33269-054-0 01 1 0710- ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0710- ●
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 0710- ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0710- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0710- ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0710-0711 ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0712- ● ●

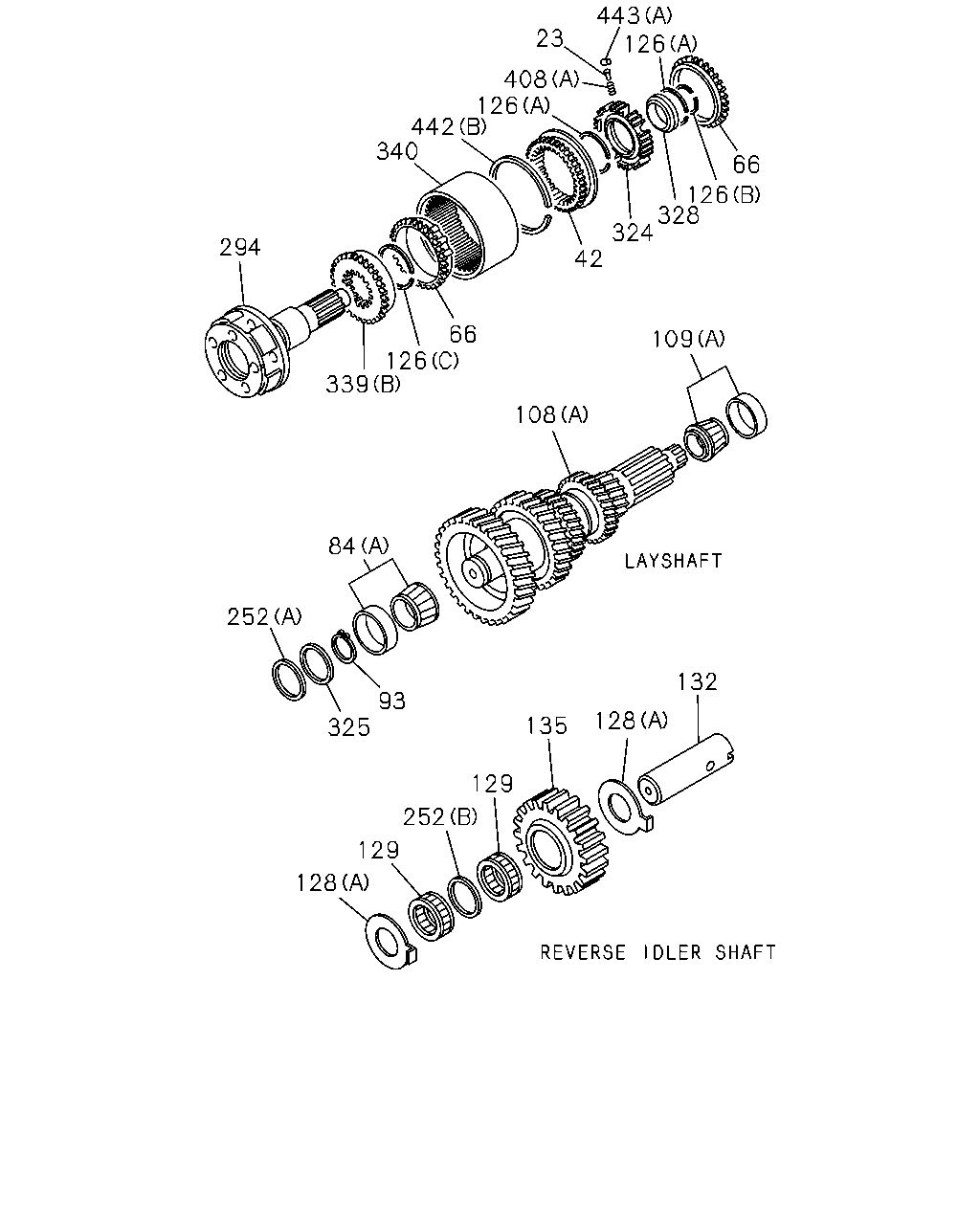

çizim 179620
443 126 23 408 126 442 340 66 126 328 324 42 294 66 126 339 109 108 84 252 132 93 325 128 135 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date A B
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0712- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0710- ●
42 SLEEVE 1-33262-196-0 01 1 0710- ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0710- ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-33319-221-0 01 1 0712- ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-33319-145-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0712- ● ●
108 SHAFT; COUNTER
(B) 		1-33311-334-0 01 1 0712- ●
108 SHAFT; COUNTER
(A) 		1-33311-348-0 01 1 0710- ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-33319-221-0 01 1 0712- ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-33319-145-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0710- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0710- ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0710- ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-33359-016-0 02 1 0712- ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-33359-004-0 02 1 0710- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0710-0711 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0712- ● ●
132 SHAFT; REV 1-33351-044-0 01 1 0712- ●
132 SHAFT; REV 1-33351-037-0 01 1 0710- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0712- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0710- ●
252 SPACER
(C) 		1-33319-223-0 01 1 0712- ●
252 SPACER
(D) 		1-33359-017-0 01 1 0712- ●
252 SPACER
(A) 		1-33319-151-0 01 1 0710- ●
252 SPACER
(B) 		1-33359-006-0 01 1 0710- ●
294 SHAFT; OUTPUT 1-33231-293-0 01 1 0710- ●
324 HUB; CLU 1-33261-234-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0712- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0712- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0712- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0712- ● ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0710- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0710- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0710- ●
340 GEAR; RING 1-33339-052-0 01 1 0710- ●
408 SPRING
(B) 		1-33264-043-0 03 1 0712- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0712- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0710- ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0710- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0710- ●
443 ROLLER; SYNCHRONIZER
(C) 		1-33269-063-0 06 1 0712- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0710- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0710- ●

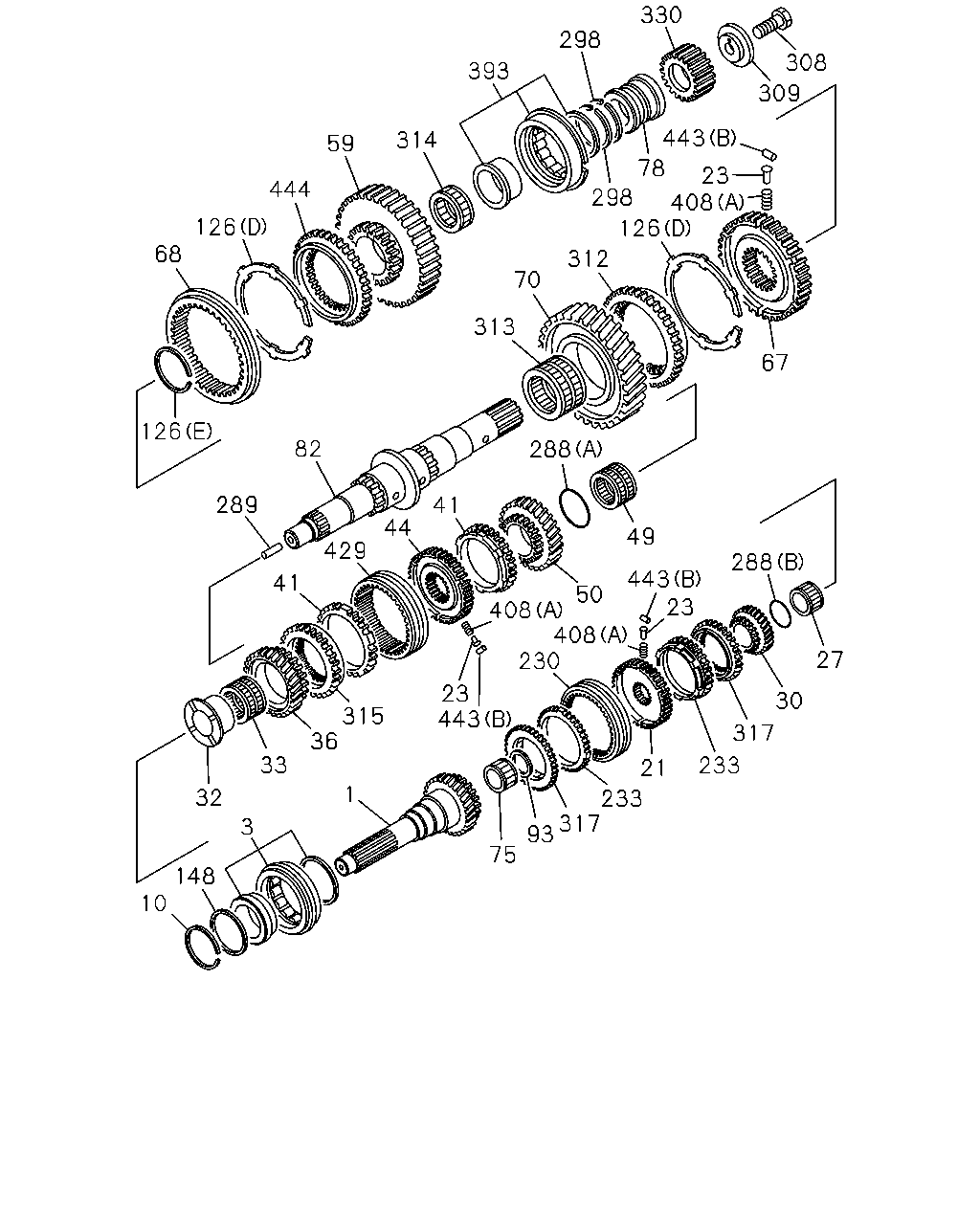

çizim 179624
330 298 308 393 309 443 314 59 78 23 408 126 444 298 126 68 312 70 313 67 126 82 288 289 41 44 49 429 288 443 23 41 50 408 408 230 27 23 443 30 315 36 317 33 233 21 1 32 233 317 93 3 75 148 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0712- ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0710- ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0710- ●
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 0710- ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0710- ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0712- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0710- ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0710- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0712- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0710- ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0710- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0712- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0710- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0712- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0710- ●
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0710- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0712- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0710- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0712- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0710- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0712- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0710- ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0712- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0710- ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0712- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0710- ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0710- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0712- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0710- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0710-0711 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0712- ● ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0710- ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0712- ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0712- ● ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0710- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0710- ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0710- ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0710- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0710- ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0710- ●
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0710- ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0710- ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0710- ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0710- ●
298 GASKET; MAINSHAFT 1-33239-245-0 02 1 0710- ●
308 BOLT; MAINSHAFT 1-33239-355-0 01 1 0710- ●
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 0710- ●
312 CLUTCH; DOG,1ST GEAR 1-33265-562-0 01 1 0710- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0710-0711 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0712- ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0710-0711 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0712- ● ●
315 CLUTCH; DOG,2ND GEAR 1-33265-561-0 02 1 0710- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-561-0 02 1 0710- ●
330 GEAR; SUN 1-34311-004-0 01 1 0710- ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0712- ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0710- ●
408 SPRING
(B) 		1-33264-043-0 03 1 0712- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0712- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0710- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0712- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0710- ●
443 ROLLER; SYNCHRONIZER
(C) 		1-33269-063-0 06 1 0712- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0710- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0710- ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0710- ●

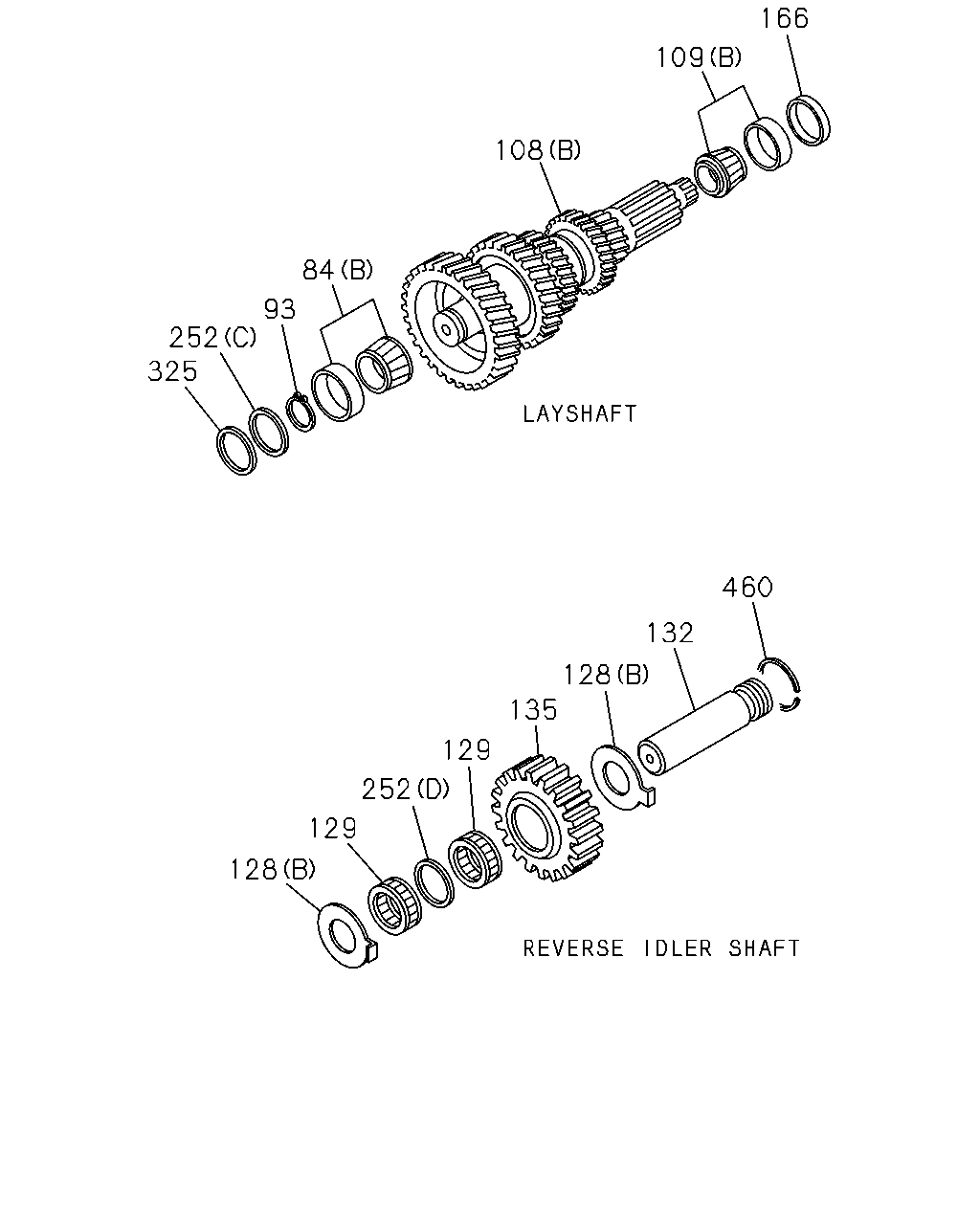

çizim 179854
166 109 108 84 93 252 325 460 132 128 135 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-33319-221-0 01 1 0712- ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-33319-145-0 01 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0712- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0710- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0712- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0710-0711 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0712- ● ●
108 SHAFT; COUNTER
(B) 		1-33311-334-0 01 1 0712- ●
108 SHAFT; COUNTER
(A) 		1-33311-348-0 01 1 0710- ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-33319-221-0 01 1 0712- ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-33319-145-0 01 1 0710- ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-33359-016-0 02 1 0712- ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-33359-004-0 02 1 0710- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0710-0711 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0712- ● ●
132 SHAFT; REV 1-33351-044-0 01 1 0712- ●
132 SHAFT; REV 1-33351-037-0 01 1 0710- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0712- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0710- ●
166 PIECE; DIST 1-33319-222-0 01 1 0712- ●
252 SPACER
(C) 		1-33319-223-0 01 1 0712- ●
252 SPACER
(D) 		1-33359-017-0 01 1 0712- ●
252 SPACER
(A) 		1-33319-151-0 01 1 0710- ●
252 SPACER
(B) 		1-33359-006-0 01 1 0710- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0712- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0712- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0712- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0710-0711 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0712- ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0710-0711 ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0712- ● ●

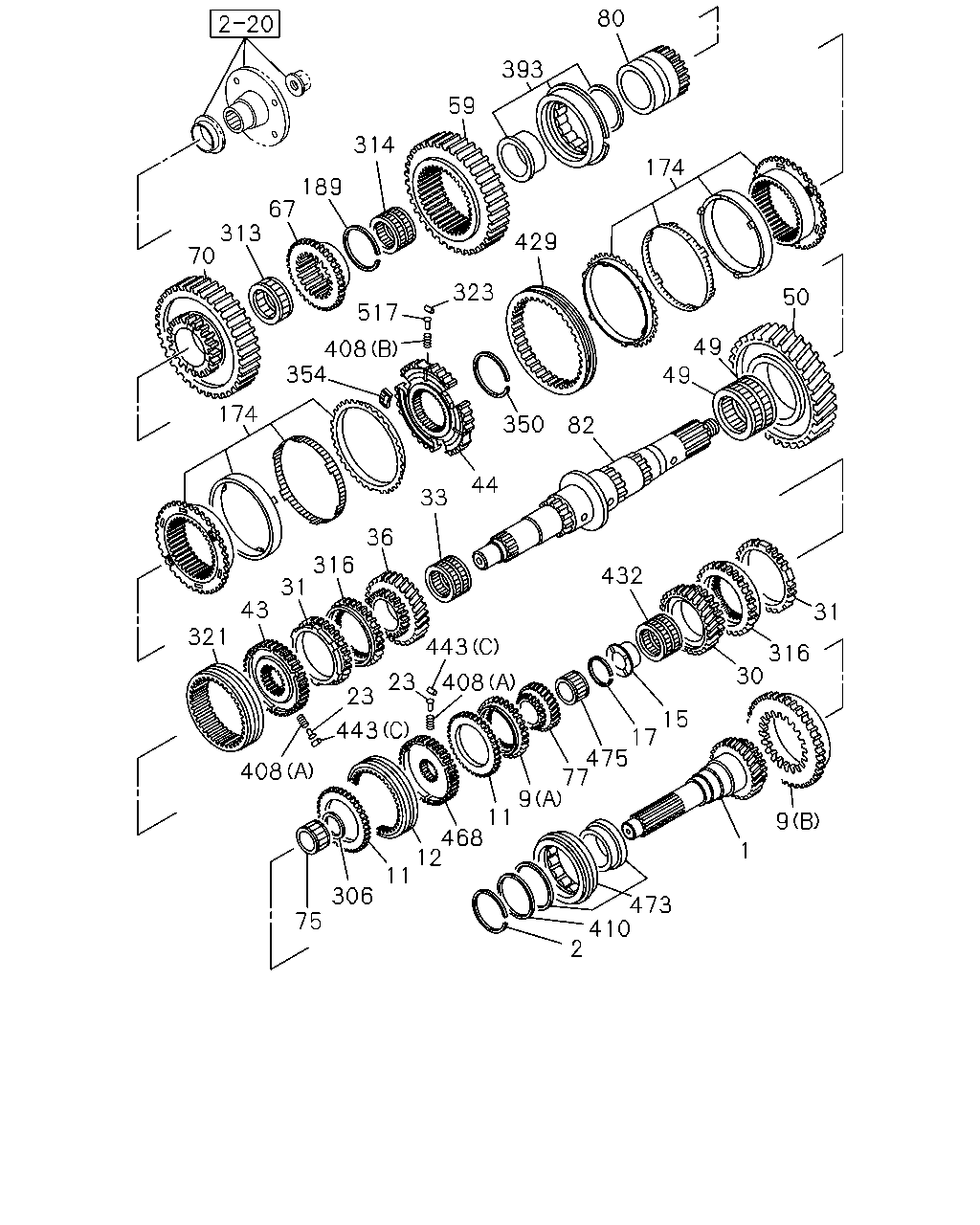

çizim 179877
80 393 59 314 174 189 67 313 70 429 323 50 517 49 408 354 49 174 350 82 44 33 36 316 31 432 43 31 321 443 316 30 23 408 23 15 17 475 77 443 408 9 11 468 12 9 1 11 306 473 410 2 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0712- ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0710- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-268-0 01 1 0712- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33265-601-0 01 1 0712- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-604-0 01 1 0712- ●
11 RING; BLOCK,5TH & 6TH 1-33265-602-0 02 1 0712- ●
12 SLEEVE; 5TH & 6TH 1-33262-234-0 01 1 0712- ●
15 COLLAR; 4TH GEAR 1-33259-123-0 01 1 0712- ●
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 0712- ●
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 0712- ●
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 0712- ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0712- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0710- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0712- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0710- ●
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 02 1 0712- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0712- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0710- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0712- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0710- ●
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-288-0 01 1 0712- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0712- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0710- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0712- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0710- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0712- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0710- ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0712- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0710- ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0712- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0710- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0712- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0710- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0710-0711 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0712- ● ●
77 GEAR; 6TH,MAINSHAFT 1-33253-719-0 01 1 0712- ●
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0712- ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0710- ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0712- ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0710- ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33265-639-0 02 1 0712- ●
189 RING; SNAP,REV,GEAR
T=2.10 		1-33269-066-0 01 1 0712- ●
189 RING; SNAP,REV,GEAR
T=2.05 		1-33269-067-0 01 1 0712- ●
189 RING; SNAP,REV,GEAR
T=2.00 		1-33269-068-0 01 1 0712- ●
306 RING; SNAP,MAINSHAFT
T=2.12 		1-33239-238-0 01 1 0712- ●
306 RING; SNAP,MAINSHAFT
T=2.07 		1-33239-239-0 01 1 0712- ●
306 RING; SNAP,MAINSHAFT
T=2.02 		1-33239-240-0 01 1 0712- ●
306 RING; SNAP,MAINSHAFT
SET 		1-33239-314-0 01 1 0712- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0710-0711 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0712- ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0710-0711 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0712- ● ●
316 CLUTCH; DOG,3RD GEAR 1-33265-598-0 02 1 0712- ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-233-0 01 1 0712- ●
323 INSERT 1-33269-103-0 03 1 0712- ●
350 RING; RET,2ND GEAR 1-33269-095-0 01 1 0712- ●
354 RETAINER; SYN 1-33269-102-0 03 1 0712- ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0712- ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0710- ●
408 SPRING
(B) 		1-33264-043-0 03 1 0712- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0712- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0710- ●
410 SPACER; TOP GEAR SHAFT
T=3.10 		1-33219-298-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.15 		1-33219-299-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.20 		1-33219-300-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.25 		1-33219-301-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.30 		1-33219-302-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.35 		1-33219-303-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.40 		1-33219-304-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.45 		1-33219-305-0 01 1 0712- ●
410 SPACER; TOP GEAR SHAFT
T=3.50 		1-33219-306-0 01 1 0712- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0712- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0710- ●
432 BEARING; NEEDLE,4TH 1-33259-069-0 01 1 0712- ●
443 ROLLER; SYNCHRONIZER
(C) 		1-33269-063-0 06 1 0712- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0710- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0710- ●
468 HUB; CLU,5TH & 6TH 1-33261-289-0 01 1 0712- ●
473 BEARING; INPUT SHAFT 1-33219-186-0 01 1 0712- ●
475 BEARING; 6TH 1-33259-071-0 01 1 0712- ●
517 BALL; SYNCHRO,INDEX 1-33269-104-0 03 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
