Isuzu WW
▶
TRUCKS
▶
FVR
▶
11106 - FVR/GVR-RHD EURO2/4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25B - SPEEDOMETER DRIVEN GEAR
▶
2-25B — SPEEDOMETER DRIVEN GEAR
(#36115) — 66 parça
Tümü

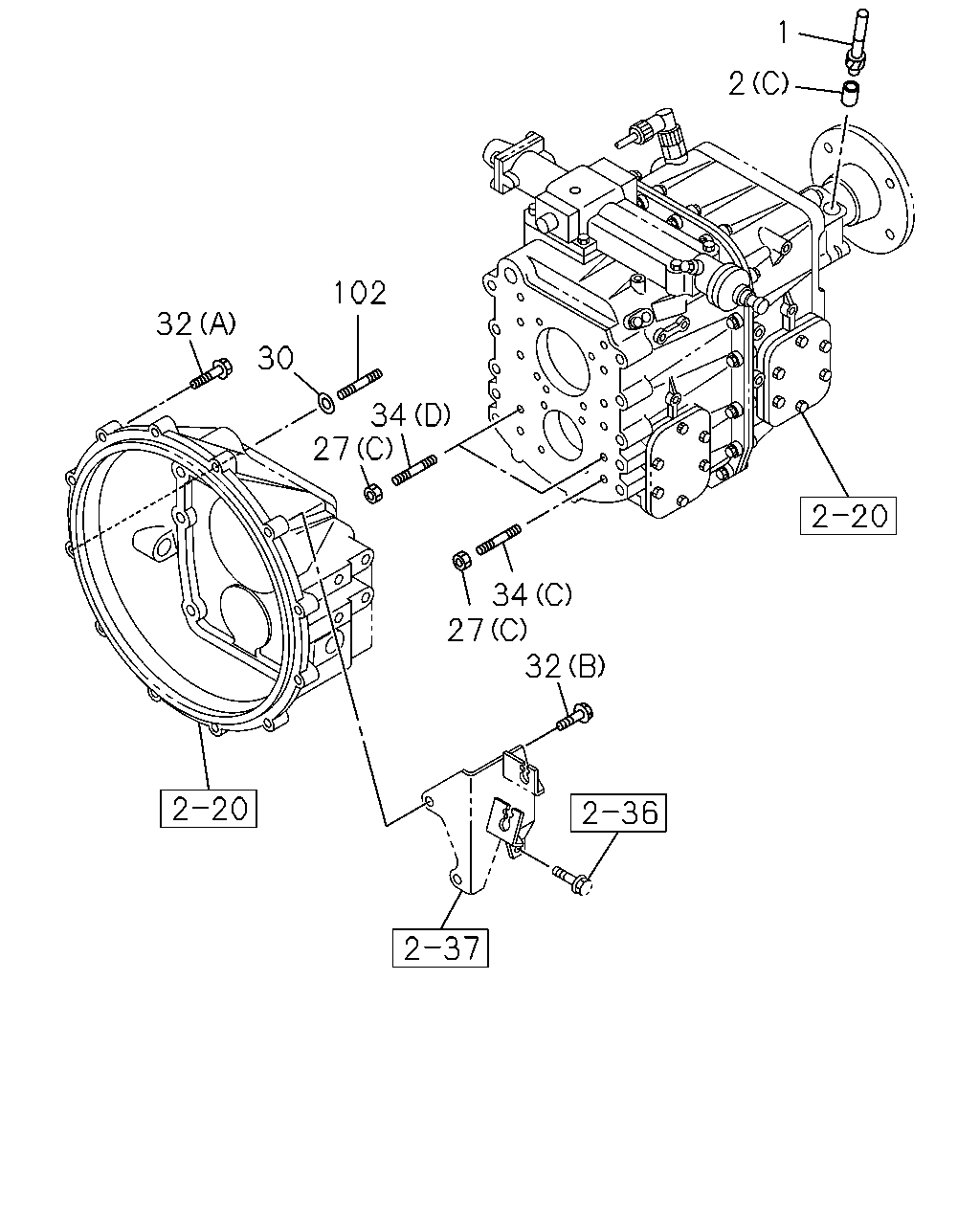

A - FULLER FSO5206B OD M/T

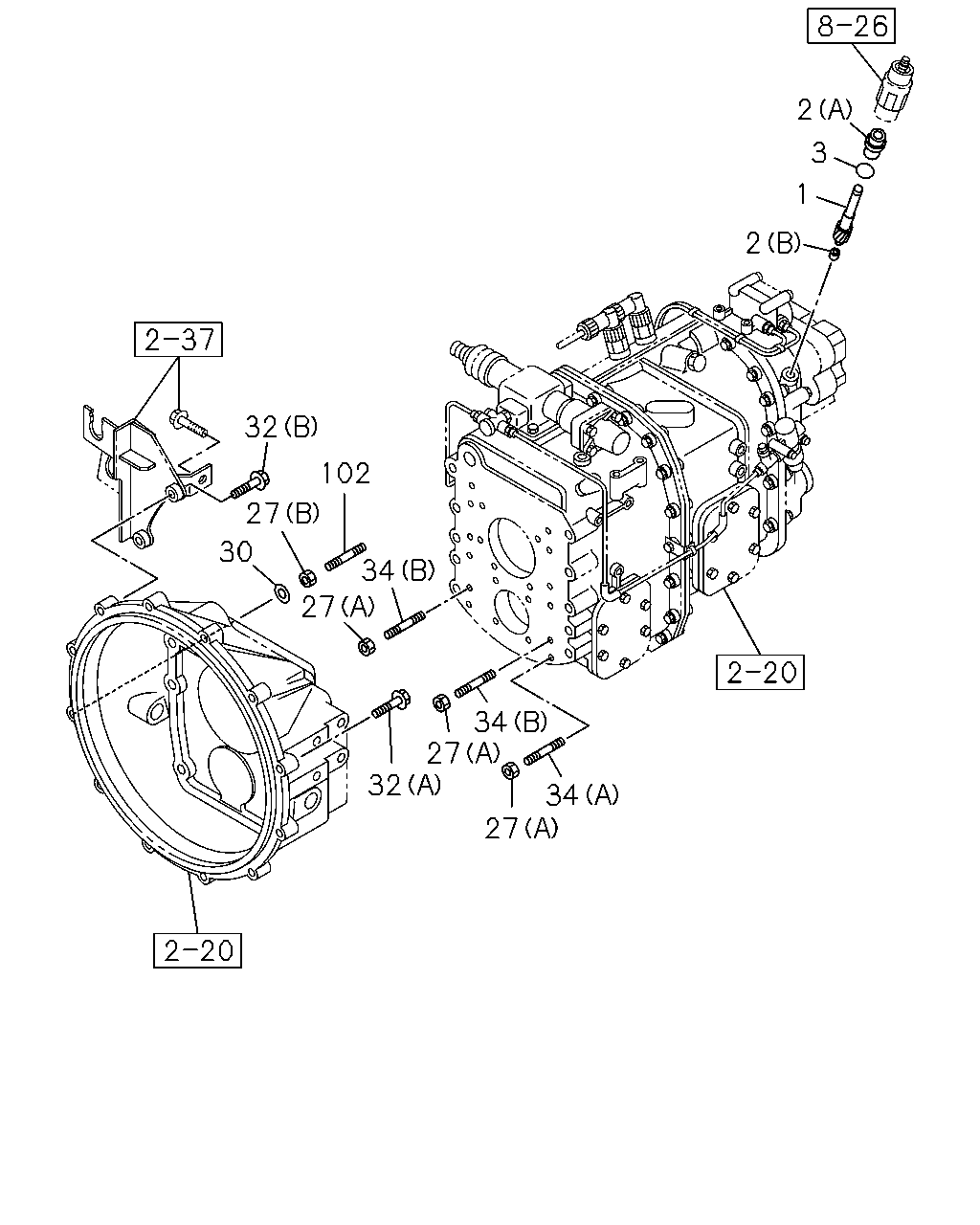

B - FULLER FS8209HD DD M/T
◀
[225B] FS8209HD DD (34 parça)
[225B] FSO5206B OD (32 parça)
▶
2
3
1
2
32
102
27
30
34
27
34
27
32
34
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
1-33372-193-0
01
1
0712-
●
1
GEAR; DRIVEN,SPD
Z=14
1-33372-181-0
01
1
0710-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
(C)
1-33379-020-0
01
1
0712-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
(A)
1-33379-009-0
01
1
0710-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
(B)
1-87060-757-0
01
1
0710-
●
3
GASKET; BUSHING
1-33379-014-0
01
1
0710-0711
●
3
GASKET; BUSHING
1-33379-014-0
01
1
0712-
●
●
27
NUT; CLU HSG TO TRANS
(C)
1-33119-582-0
12
1
0712-
●
27
NUT; CLU HSG TO TRANS
(A)
1-33119-537-0
12
1
0710-
●
27
NUT; CLU HSG TO TRANS
(B) M10 FLANGE
0-91180-110-0
01
1
0710-0711
●
27
NUT; CLU HSG TO TRANS
(B) M10 FLANGE
0-91180-110-0
01
1
0712-0802
●
●
30
WASHER; PL,TRANS
ID=10.5
0-91610-710-0
01
1
0710-0711
●
30
WASHER; PL,TRANS
ID=10.5
0-91610-710-0
01
1
0712-0802
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (A) M10X53 FLANGE
8-98131-009-0
02
1
0809-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X53 FLANGE
8-98131-009-0
02
1
1210-1211
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X53 FLANGE
8-98234-152-0
02
1
1212-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
0809-0809
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
0809-0906
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
0907-1001
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
1002-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
0-28151-045-0
02
1
1210-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
03
1
0710-0711
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
03
1
0712-0802
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
04
1
0803-0808
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
04
1
0809-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EXC. EURO2 SPECIFICATION<NT2> (A) M10X45 FLANGE
0-28151-045-0
04
1
0809-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X35 FLANGE
0-28751-035-0
08
1
0710-0711
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X35 FLANGE
0-28751-035-0
08
1
0712-
●
●
34
STUD; CLU HSG
(D)
1-33119-580-0
02
1
0712-
●
34
STUD; CLU HSG
(C)
1-33119-581-0
10
1
0712-
●
34
STUD; CLU HSG
(A)
1-33119-535-0
10
1
0710-
●
34
STUD; CLU HSG
(B)
1-33119-536-0
02
1
0710-
●
102
STUD; TRANS
M10X50 L=65
0-44011-050-0
01
1
0710-0711
●
102
STUD; TRANS
M10X50 L=65
0-44011-050-0
01
1
0712-0802
●
●
1
2
102
32
30
34
27
34
27
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
1-33372-193-0
01
1
0712-
●
1
GEAR; DRIVEN,SPD
Z=14
1-33372-181-0
01
1
0710-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
(C)
1-33379-020-0
01
1
0712-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
(A)
1-33379-009-0
01
1
0710-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
(B)
1-87060-757-0
01
1
0710-
●
27
NUT; CLU HSG TO TRANS
(C)
1-33119-582-0
12
1
0712-
●
27
NUT; CLU HSG TO TRANS
(A)
1-33119-537-0
12
1
0710-
●
27
NUT; CLU HSG TO TRANS
(B) M10 FLANGE
0-91180-110-0
01
1
0710-0711
●
27
NUT; CLU HSG TO TRANS
(B) M10 FLANGE
0-91180-110-0
01
1
0712-0802
●
●
30
WASHER; PL,TRANS
ID=10.5
0-91610-710-0
01
1
0710-0711
●
30
WASHER; PL,TRANS
ID=10.5
0-91610-710-0
01
1
0712-0802
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (A) M10X53 FLANGE
8-98131-009-0
02
1
0809-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X53 FLANGE
8-98131-009-0
02
1
1210-1211
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X53 FLANGE
8-98234-152-0
02
1
1212-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
0809-0809
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
0809-0906
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
0907-1001
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE
0-28151-045-0
02
1
1002-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE
0-28151-045-0
02
1
1210-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
03
1
0710-0711
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
03
1
0712-0802
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
04
1
0803-0808
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X45 FLANGE
0-28151-045-0
04
1
0809-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EXC. EURO2 SPECIFICATION<NT2> (A) M10X45 FLANGE
0-28151-045-0
04
1
0809-1209
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X35 FLANGE
0-28751-035-0
08
1
0710-0711
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X35 FLANGE
0-28751-035-0
08
1
0712-
●
●
34
STUD; CLU HSG
(D)
1-33119-580-0
02
1
0712-
●
34
STUD; CLU HSG
(C)
1-33119-581-0
10
1
0712-
●
34
STUD; CLU HSG
(A)
1-33119-535-0
10
1
0710-
●
34
STUD; CLU HSG
(B)
1-33119-536-0
02
1
0710-
●
102
STUD; TRANS
M10X50 L=65
0-44011-050-0
01
1
0710-0711
●
102
STUD; TRANS
M10X50 L=65
0-44011-050-0
01
1
0712-0802
●
●
