2-20B — MANUAL TRANSMISSION ASM AND CASE (#36112) — 229 parça

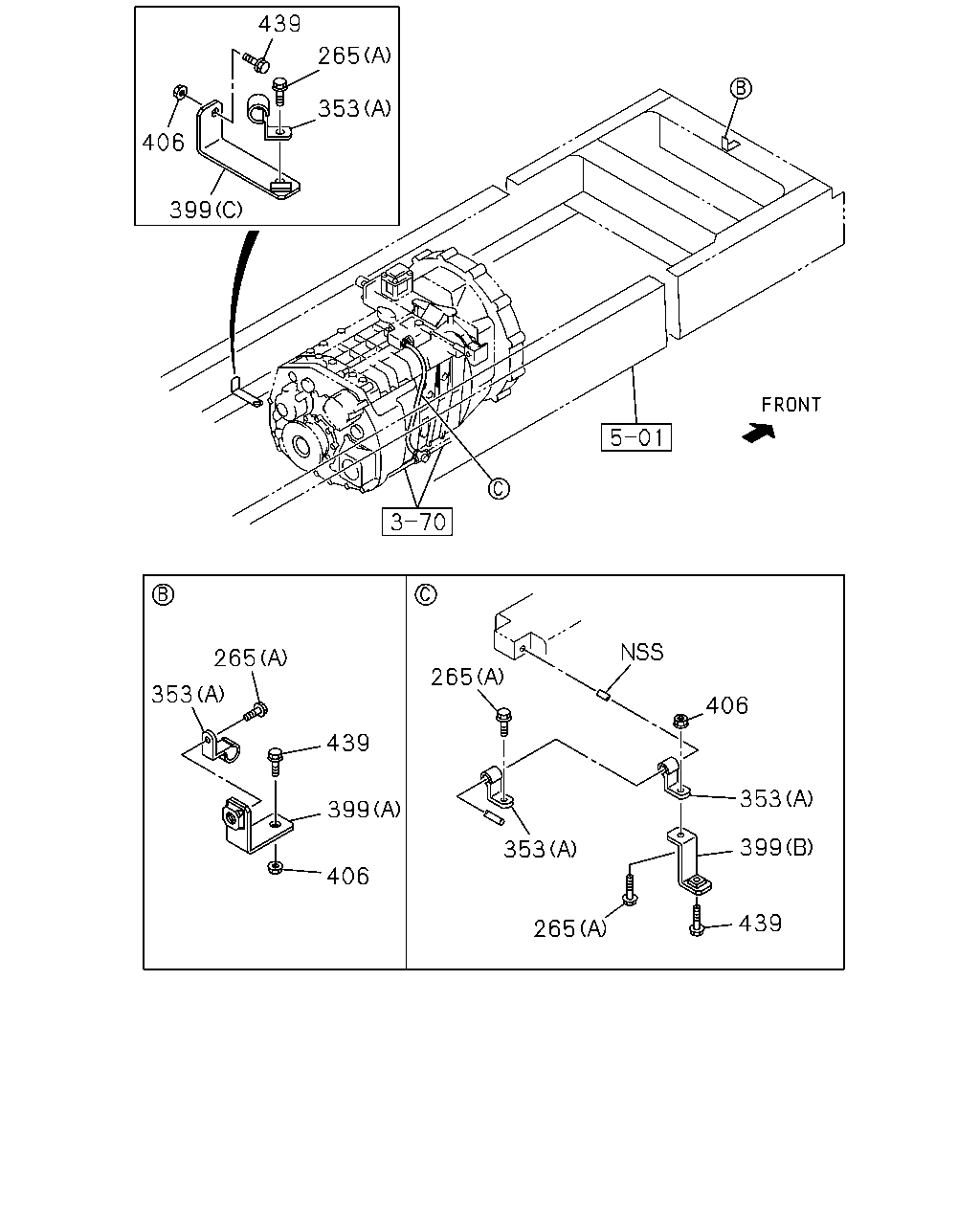

439 265 353 406 399 265 265 353 406 439 353 399 399 353 406 439 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
265	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	03	1	0710-0802	●
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-	●
353	CLIP; NYLON TUBE (B) L=140	5-09707-031-1	01	1	0803-	●
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	0710-	●
399	BRACKET; CLIP (B)	8-98099-079-0	01	1	0710-1110	●
399	BRACKET; CLIP (C)	8-98205-634-0	01	1	1111-	●
399	BRACKET; CLIP (A)	8-98091-847-0	01	1	0710-0710	●
399	BRACKET; CLIP (A)	8-98085-674-0	01	1	0711-	●
406	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0710	●
439	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0710-0802	●
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0803-0807	●
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0808-	●
439	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●
439	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-	●

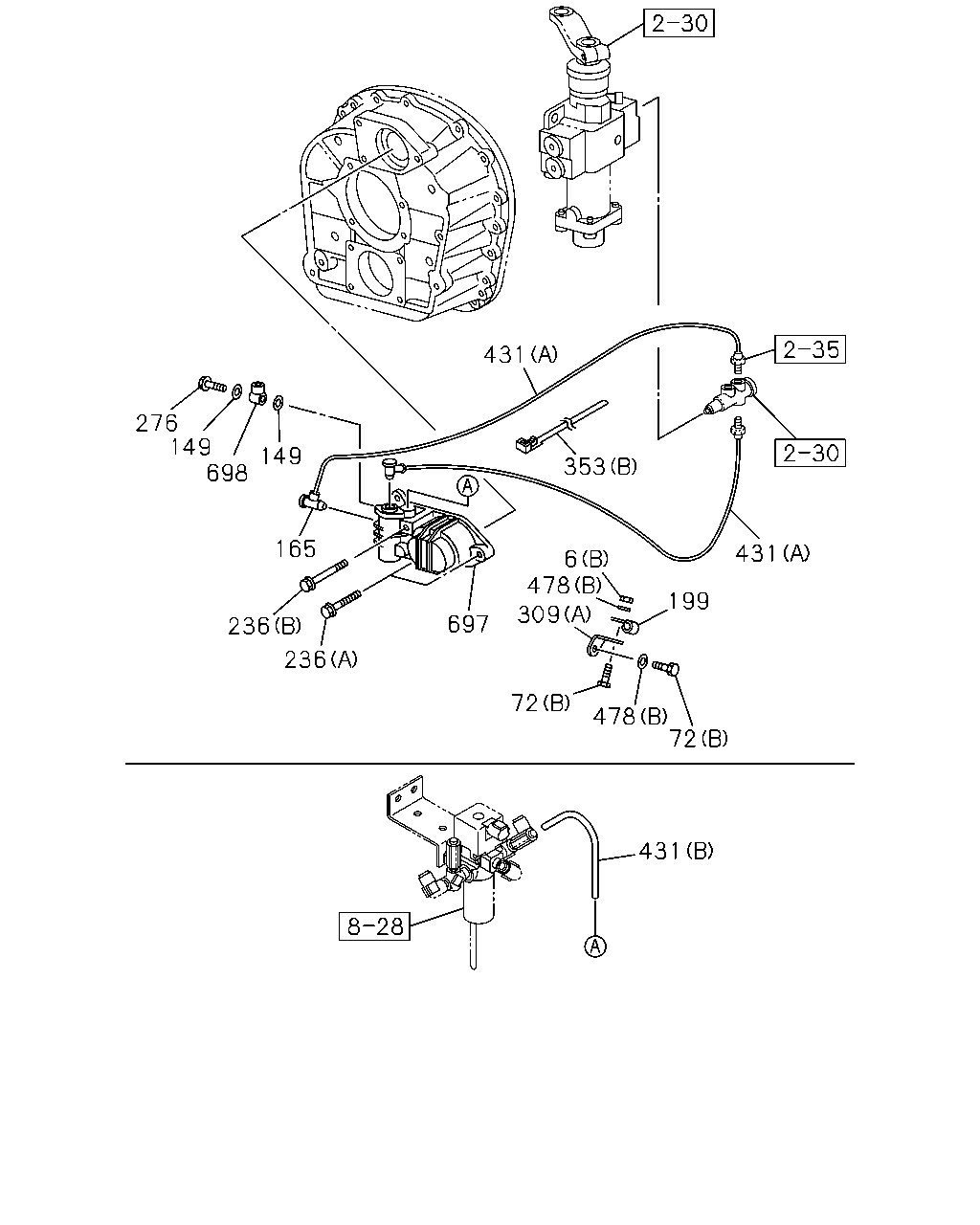

431 276 149 698 149 353 165 431 6 478 199 309 697 236 236 72 478 72 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; CASE,TRANS (C)	1-33119-571-0	15	1	0712-		●
6	NUT; CASE,TRANS (B)	1-33119-423-0	01	1	0710-	●
6	NUT; CASE,TRANS (A)	1-33119-531-0	14	1	0710-	●
72	BOLT; SIDE COVER (C)	1-33119-589-0	12	1	0712-		●
72	BOLT; SIDE COVER (B)	1-33149-019-0	02	1	0710-	●
72	BOLT; SIDE COVER (A)	1-33149-024-0	12	1	0710-	●
149	WASHER; LK	1-33119-564-0	02	1	0712-		●
149	WASHER; LK	1-33119-553-0	02	1	0710-	●
165	ADAPTER; STRAIGHT	1-33119-548-0	01	1	0710-	●
199	CLIP; NYLON TUBE	1-33119-475-0	01	1	0710-	●
236	BOLT; VALVE BRKT (A)	1-33119-549-0	02	1	0710-	●
236	BOLT; VALVE BRKT (B)	1-33119-550-0	01	1	0710-	●
276	BOLT; ADAPTER	1-33119-551-0	01	1	0710-	●
309	EYE; LIFTING (B)	1-33119-566-0	01	1	0712-		●
309	EYE; LIFTING (C)	1-33119-584-0	01	1	0712-		●
309	EYE; LIFTING (A)	1-33119-526-0	01	1	0710-	●
353	CLIP; NYLON TUBE (B) L=140	5-09707-031-1	01	1	0803-	●
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	0710-	●
431	TUBE; NYLON (B) L=380 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0803-	●
431	TUBE; NYLON (A)	1-33119-474-0	02	1	0710-	●
478	WASHER; LK,OIL PUMP (B)	1-34159-096-0	02	1	0710-	●
478	WASHER; LK,OIL PUMP (A)	1-34159-121-0	08	1	0710-	●
697	VALVE; AIR	1-33119-547-0	01	1	0710-	●
698	FITTING	1-33119-552-0	01	1	0710-	●

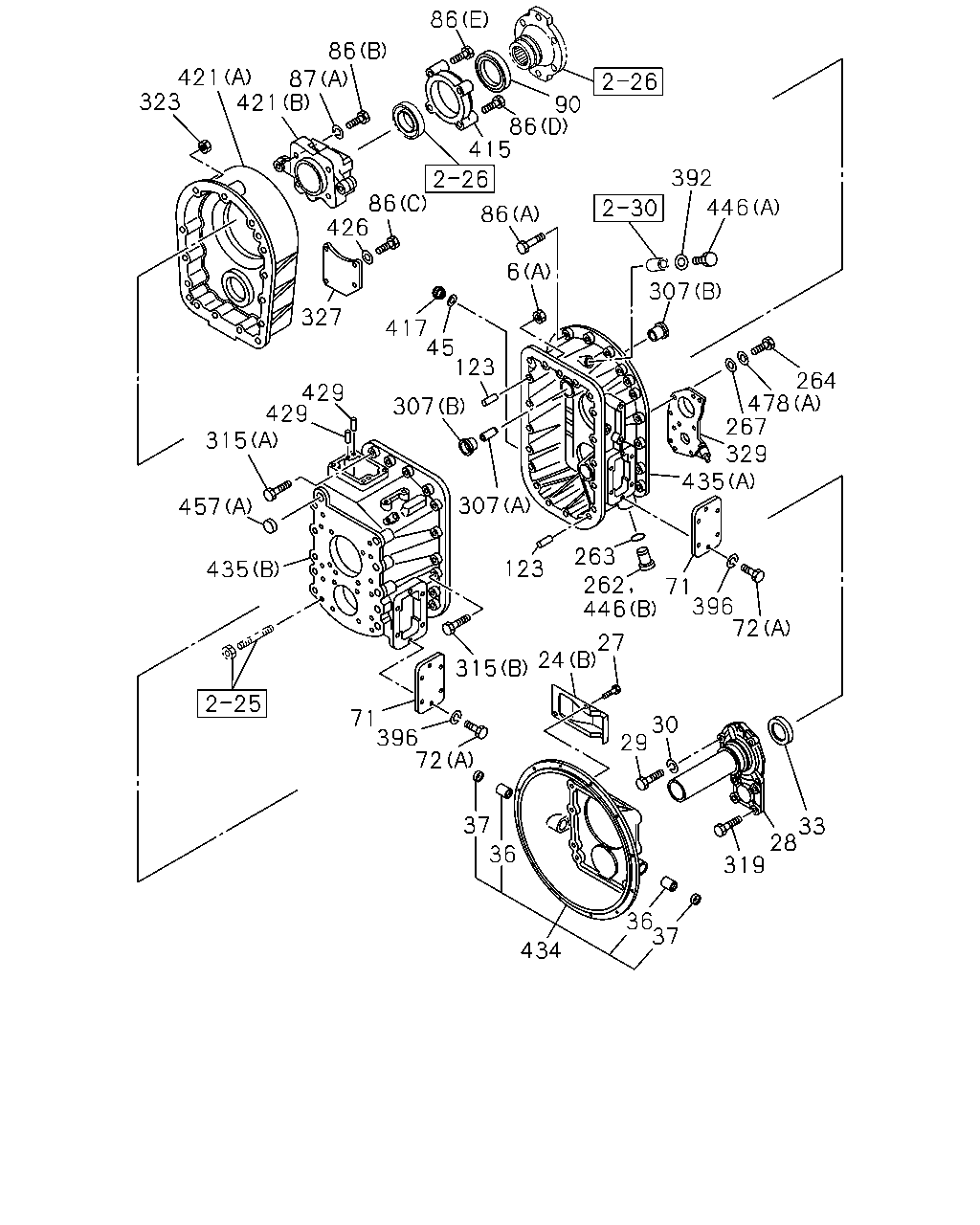

86 86 87 421 421 323 426 86 86 6 415 86 90 392 307 446 264 478 267 329 435 71 396 72 446 262 263 123 307 315 396 72 71 37 36 434 36 37 319 28 33 30 29 24 27 123 45 417 307 429 429 435 457 315 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; CASE,TRANS (C)	1-33119-571-0	15	1	0712-		●
6	NUT; CASE,TRANS (B)	1-33119-423-0	01	1	0710-	●
6	NUT; CASE,TRANS (A)	1-33119-531-0	14	1	0710-	●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0710-0711	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0712-0805	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0806-0906	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0907-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0712-0805	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
28	COVER; FRT,TRANS CASE	1-33111-345-0	01	1	0712-		●
28	COVER; FRT,TRANS CASE	1-33121-144-0	01	1	0710-	●
29	BOLT; FRT COVER	1-33129-017-0	05	1	0712-		●
29	BOLT; FRT COVER	1-33129-016-0	05	1	0710-	●
30	WASHER; LK,FRT COVER	1-33119-568-0	05	1	0712-		●
30	WASHER; LK,FRT COVER	1-34159-121-0	05	1	0710-	●
33	SEAL; OIL,FRT COVER,T/M	1-33219-194-0	01	1	0710-0711	●
33	SEAL; OIL,FRT COVER,T/M	1-33219-194-0	01	1	0712-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0710-0711	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0712-0805	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0806-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0710-0711	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0712-0805	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-	●	●
45	GASKET; FILLER PLUG	1-33119-459-0	01	1	0710-0711	●
45	GASKET; FILLER PLUG	1-33119-459-0	01	1	0712-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-073-0	02	1	0710-0711	●
71	COVER; SIDE,TRANS CASE	1-33141-073-0	02	1	0712-	●	●
72	BOLT; SIDE COVER (C)	1-33119-589-0	12	1	0712-		●
72	BOLT; SIDE COVER (B)	1-33149-019-0	02	1	0710-	●
72	BOLT; SIDE COVER (A)	1-33149-024-0	12	1	0710-	●
86	BOLT; RR COVER (I)	1-33119-569-0	02	1	0712-		●
86	BOLT; RR COVER (F)	1-33119-583-0	04	1	0712-		●
86	BOLT; RR COVER (H)	1-33139-221-0	01	1	0712-		●
86	BOLT; RR COVER (G)	1-33139-222-0	01	1	0712-		●
86	BOLT; RR COVER (A) M10X58	1-33119-532-0	17	1	0710-	●
86	BOLT; RR COVER (B)	1-33159-067-0	01	1	0710-	●
86	BOLT; RR COVER (C)	1-33159-071-0	04	1	0710-	●
86	BOLT; RR COVER (D)	1-33159-072-0	03	1	0710-	●
86	BOLT; RR COVER (E)	1-33159-073-0	01	1	0710-	●
87	WASHER; LK,RR COVER (C)	1-33119-568-0	04	1	0712-		●
87	WASHER; LK,RR COVER (B)	1-33159-079-0	04	1	0712-		●
87	WASHER; LK,RR COVER (A)	1-34159-121-0	04	1	0710-	●
90	SEAL; OIL,RR COVER	1-33139-121-0	01	1	0712-		●
90	SEAL; OIL,RR COVER	1-33159-046-0	01	1	0710-	●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	0712-		●
123	DOWEL; TRANS CASE	1-33119-305-0	04	1	0710-	●
262	STRAINER; OIL PUMP	1-33119-540-0	01	1	0710-	●
263	GASKET; STRAINER	1-33119-428-0	01	1	0710-	●
264	BOLT; OIL PUMP	1-34159-120-0	08	1	0710-	●
267	WASHER; PL	1-33119-524-0	08	1	0710-	●
307	BUSHING; SHIFT FORK SHAFT (C)	1-33119-562-0	02	1	0712-		●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	0710-	●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-525-0	02	1	0710-	●
315	BOLT; CASE (C) M10X40	1-33119-572-0	03	1	0712-		●
315	BOLT; CASE (D) M10X58	1-33119-573-0	15	1	0712-		●
315	BOLT; CASE (A) M10X58	1-33119-532-0	14	1	0710-	●
315	BOLT; CASE (B) M10X40	1-33119-533-0	04	1	0710-	●
319	BOLT; COVER	1-33119-579-0	04	1	0712-		●
319	BOLT; COVER	1-33159-071-0	04	1	0710-	●
323	NUT; RR COVER	1-33119-531-0	17	1	0710-	●
327	COVER; RR,COUNTER	1-33131-267-0	01	1	0712-		●
327	COVER; RR,COUNTER	1-33139-213-0	01	1	0710-	●
329	PUMP ASM; OIL	1-34150-122-0	01	1	0710-	●
392	WASHER; PL,CASE	1-33119-454-0	01	1	0710-	●
396	WASHER; LK,SIDE COVER	1-34159-121-0	12	1	0710-	●
415	COVER; BRG	1-33153-002-0	01	1	0710-	●
417	PLUG; OIL FILLER,TRANS	1-33119-576-0	01	1	0712-		●
417	PLUG; OIL FILLER,TRANS	1-33119-527-0	01	1	0710-	●
421	COVER; RR,TRANS (C)	1-33131-251-0	01	1	0712-		●
421	COVER; RR,TRANS (D)	1-33131-253-0	01	1	0712-		●
421	COVER; RR,TRANS (A)	1-33131-264-0	01	1	0710-	●
421	COVER; RR,TRANS (B)	1-33159-069-0	01	1	0710-	●
426	WASHER; PL,RR COVER	1-33119-567-0	04	1	0712-		●
426	WASHER; PL,RR COVER	1-33119-524-0	04	1	0710-	●
429	PIN; STRAIGHT	1-33119-311-0	02	1	0710-0711	●
429	PIN; STRAIGHT	1-33119-311-0	02	1	0712-	●	●
434	HOUSING; CLU	1-31110-188-0	01	1	0710-0711	●
434	HOUSING; CLU	1-31110-188-2	01	1	0712-	●	●
435	CASE; TRANS (C)	1-33111-377-0	01	1	0712-		●
435	CASE; TRANS (A)	1-33111-320-0	01	1	0710-	●
435	CASE; TRANS (B)	1-33111-363-0	01	1	0710-	●
446	PLUG; CASE,TRANS (A)	1-33119-523-0	01	1	0710-	●
446	PLUG; CASE,TRANS (B)	1-33119-546-0	01	1	0710-	●
457	CUP; SEALING,CASE (B)	1-33119-578-0	02	1	0712-		●
457	CUP; SEALING,CASE (A)	1-33119-534-0	01	1	0710-	●
478	WASHER; LK,OIL PUMP (B)	1-34159-096-0	02	1	0710-	●
478	WASHER; LK,OIL PUMP (A)	1-34159-121-0	08	1	0710-	●

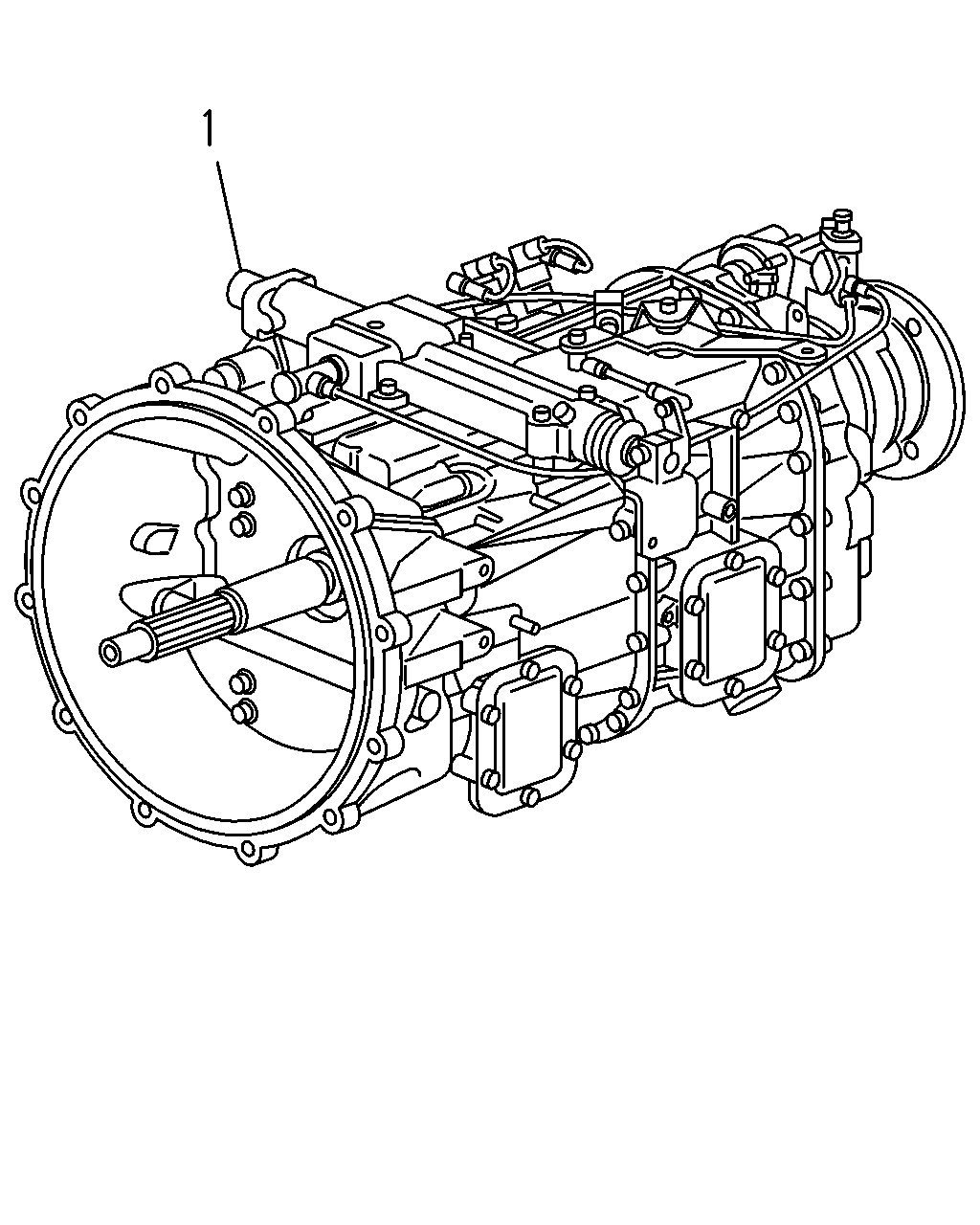

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL	1-33043-644-3	01	1	0712-		●
	1	TRANSMISSION ASM; MANUAL	8-98020-499-2	01	1	0710-	●

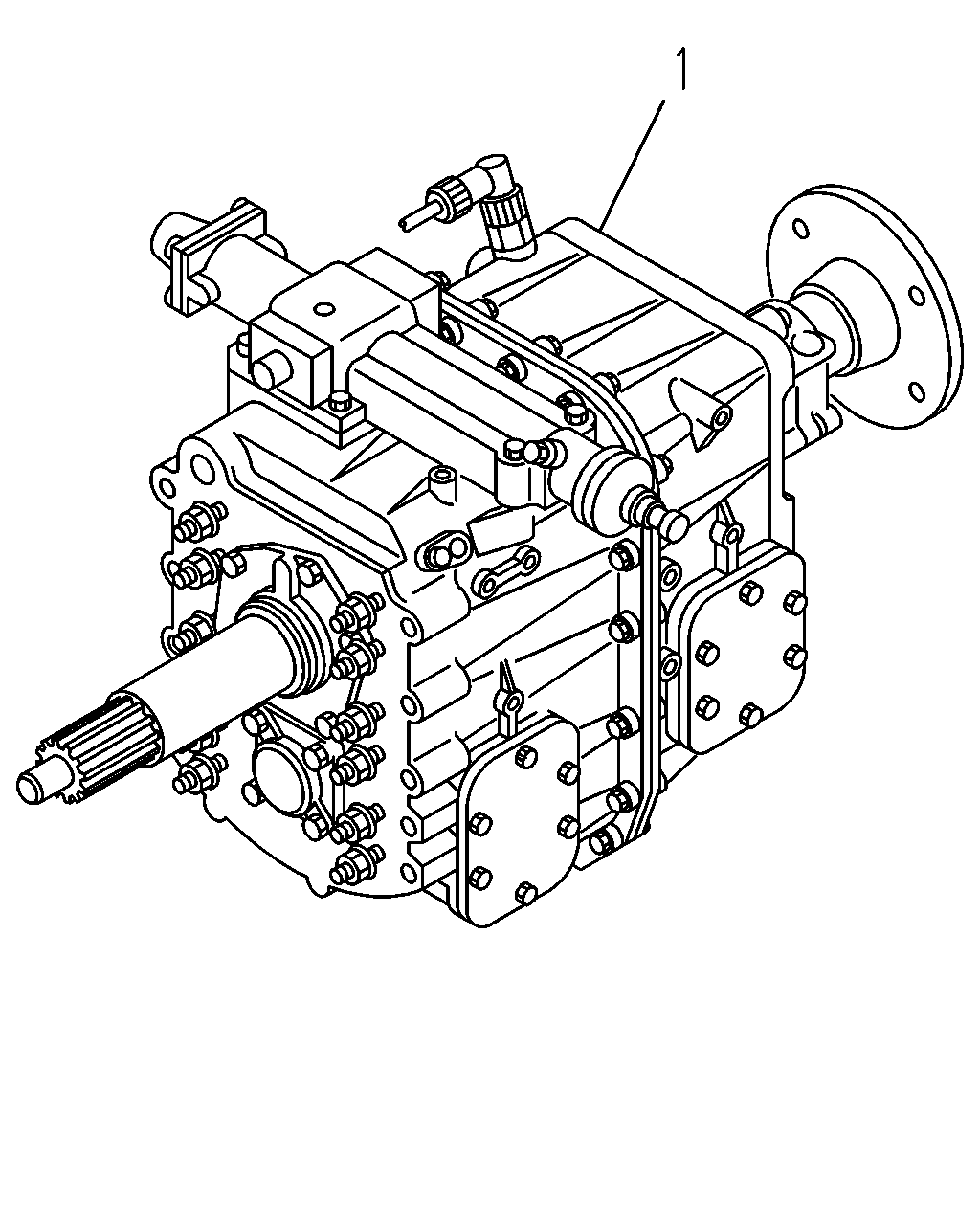

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL	1-33043-644-3	01	1	0712-		●
	1	TRANSMISSION ASM; MANUAL	8-98020-499-2	01	1	0710-	●

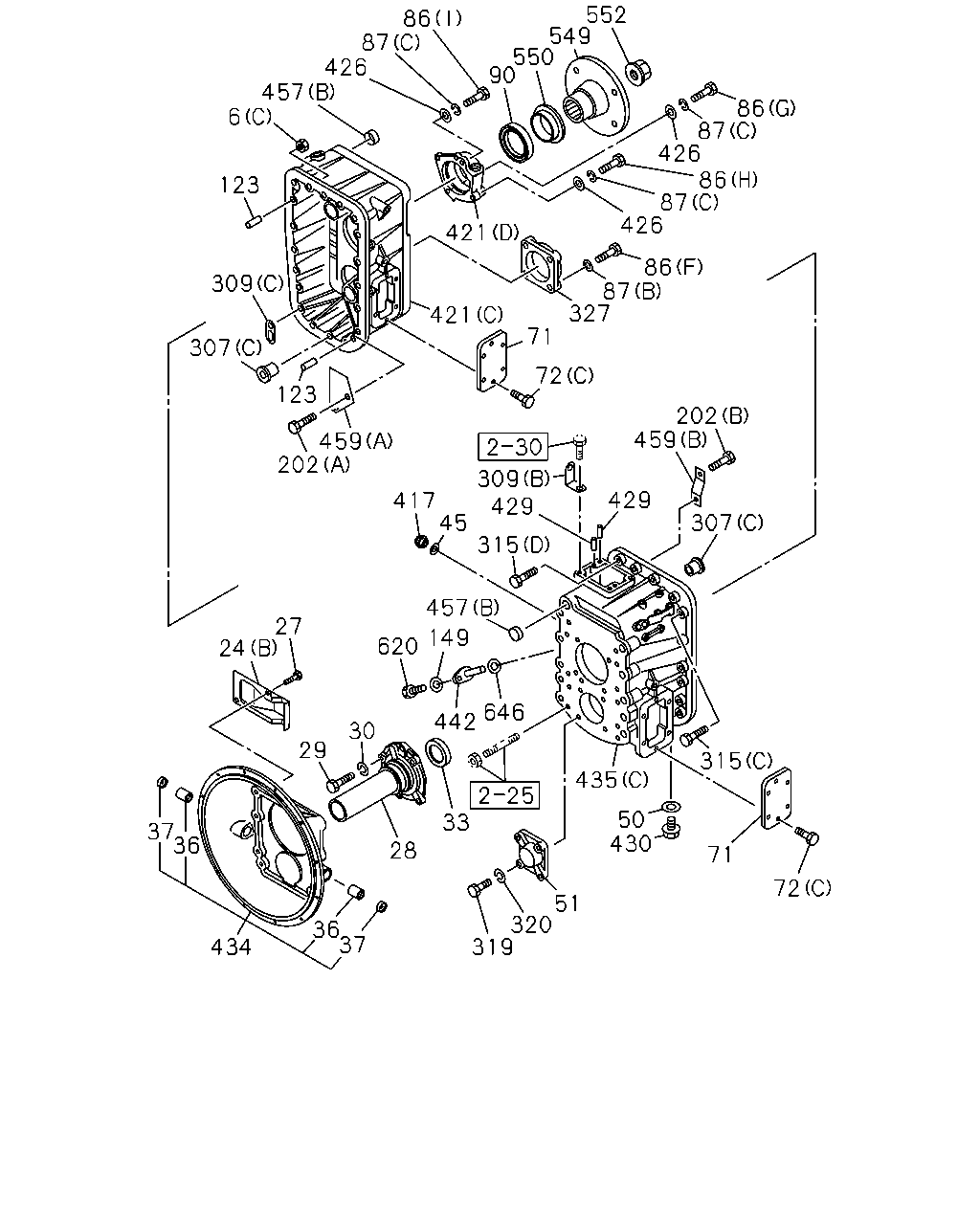

86 87 426 457 6 123 309 307 123 459 202 417 45 429 309 429 459 202 327 71 421 421 90 550 549 552 426 86 87 87 86 87 86 426 72 307 315 71 72 51 430 435 50 320 319 28 442 646 149 457 315 620 29 30 27 24 37 36 434 36 37 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; CASE,TRANS (C)	1-33119-571-0	15	1	0712-		●
6	NUT; CASE,TRANS (B)	1-33119-423-0	01	1	0710-	●
6	NUT; CASE,TRANS (A)	1-33119-531-0	14	1	0710-	●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0710-0711	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0712-0805	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0806-0906	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0907-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0712-0805	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
28	COVER; FRT,TRANS CASE	1-33111-345-0	01	1	0712-		●
28	COVER; FRT,TRANS CASE	1-33121-144-0	01	1	0710-	●
29	BOLT; FRT COVER	1-33129-017-0	05	1	0712-		●
29	BOLT; FRT COVER	1-33129-016-0	05	1	0710-	●
30	WASHER; LK,FRT COVER	1-33119-568-0	05	1	0712-		●
30	WASHER; LK,FRT COVER	1-34159-121-0	05	1	0710-	●
33	SEAL; OIL,FRT COVER,T/M	1-33219-194-0	01	1	0710-0711	●
33	SEAL; OIL,FRT COVER,T/M	1-33219-194-0	01	1	0712-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0710-0711	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0712-0805	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0806-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0710-0711	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0712-0805	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-	●	●
45	GASKET; FILLER PLUG	1-33119-459-0	01	1	0710-0711	●
45	GASKET; FILLER PLUG	1-33119-459-0	01	1	0712-	●	●
50	GASKET; DRAIN PLUG	1-33119-459-0	01	1	0712-		●
51	COVER; SEAL,COUNTER,FRT	1-33131-267-0	01	1	0712-		●
71	COVER; SIDE,TRANS CASE	1-33141-073-0	02	1	0710-0711	●
71	COVER; SIDE,TRANS CASE	1-33141-073-0	02	1	0712-	●	●
72	BOLT; SIDE COVER (C)	1-33119-589-0	12	1	0712-		●
72	BOLT; SIDE COVER (B)	1-33149-019-0	02	1	0710-	●
72	BOLT; SIDE COVER (A)	1-33149-024-0	12	1	0710-	●
86	BOLT; RR COVER (I)	1-33119-569-0	02	1	0712-		●
86	BOLT; RR COVER (F)	1-33119-583-0	04	1	0712-		●
86	BOLT; RR COVER (H)	1-33139-221-0	01	1	0712-		●
86	BOLT; RR COVER (G)	1-33139-222-0	01	1	0712-		●
86	BOLT; RR COVER (A) M10X58	1-33119-532-0	17	1	0710-	●
86	BOLT; RR COVER (B)	1-33159-067-0	01	1	0710-	●
86	BOLT; RR COVER (C)	1-33159-071-0	04	1	0710-	●
86	BOLT; RR COVER (D)	1-33159-072-0	03	1	0710-	●
86	BOLT; RR COVER (E)	1-33159-073-0	01	1	0710-	●
87	WASHER; LK,RR COVER (C)	1-33119-568-0	04	1	0712-		●
87	WASHER; LK,RR COVER (B)	1-33159-079-0	04	1	0712-		●
87	WASHER; LK,RR COVER (A)	1-34159-121-0	04	1	0710-	●
90	SEAL; OIL,RR COVER	1-33139-121-0	01	1	0712-		●
90	SEAL; OIL,RR COVER	1-33159-046-0	01	1	0710-	●
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	0712-		●
123	DOWEL; TRANS CASE	1-33119-305-0	04	1	0710-	●
149	WASHER; LK	1-33119-564-0	02	1	0712-		●
149	WASHER; LK	1-33119-553-0	02	1	0710-	●
202	BOLT; PLATE (A)	1-33119-480-0	02	1	0712-		●
202	BOLT; PLATE (B)	1-33119-485-0	02	1	0712-		●
307	BUSHING; SHIFT FORK SHAFT (C)	1-33119-562-0	02	1	0712-		●
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	0710-	●
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-525-0	02	1	0710-	●
309	EYE; LIFTING (B)	1-33119-566-0	01	1	0712-		●
309	EYE; LIFTING (C)	1-33119-584-0	01	1	0712-		●
309	EYE; LIFTING (A)	1-33119-526-0	01	1	0710-	●
315	BOLT; CASE (C) M10X40	1-33119-572-0	03	1	0712-		●
315	BOLT; CASE (D) M10X58	1-33119-573-0	15	1	0712-		●
315	BOLT; CASE (A) M10X58	1-33119-532-0	14	1	0710-	●
315	BOLT; CASE (B) M10X40	1-33119-533-0	04	1	0710-	●
319	BOLT; COVER	1-33119-579-0	04	1	0712-		●
319	BOLT; COVER	1-33159-071-0	04	1	0710-	●
320	WASHER; COVER	1-33159-079-0	04	1	0712-		●
327	COVER; RR,COUNTER	1-33131-267-0	01	1	0712-		●
327	COVER; RR,COUNTER	1-33139-213-0	01	1	0710-	●
417	PLUG; OIL FILLER,TRANS	1-33119-576-0	01	1	0712-		●
417	PLUG; OIL FILLER,TRANS	1-33119-527-0	01	1	0710-	●
421	COVER; RR,TRANS (C)	1-33131-251-0	01	1	0712-		●
421	COVER; RR,TRANS (D)	1-33131-253-0	01	1	0712-		●
421	COVER; RR,TRANS (A)	1-33131-264-0	01	1	0710-	●
421	COVER; RR,TRANS (B)	1-33159-069-0	01	1	0710-	●
426	WASHER; PL,RR COVER	1-33119-567-0	04	1	0712-		●
426	WASHER; PL,RR COVER	1-33119-524-0	04	1	0710-	●
429	PIN; STRAIGHT	1-33119-311-0	02	1	0710-0711	●
429	PIN; STRAIGHT	1-33119-311-0	02	1	0712-	●	●
430	PLUG; OIL DRAIN	1-33119-577-0	01	1	0712-		●
434	HOUSING; CLU	1-31110-188-0	01	1	0710-0711	●
434	HOUSING; CLU	1-31110-188-2	01	1	0712-	●	●
435	CASE; TRANS (C)	1-33111-377-0	01	1	0712-		●
435	CASE; TRANS (A)	1-33111-320-0	01	1	0710-	●
435	CASE; TRANS (B)	1-33111-363-0	01	1	0710-	●
442	PIN; SHIFT FORK	1-33119-563-0	02	1	0712-		●
457	CUP; SEALING,CASE (B)	1-33119-578-0	02	1	0712-		●
457	CUP; SEALING,CASE (A)	1-33119-534-0	01	1	0710-	●
459	PLATE; OIL (A)	1-33119-479-0	01	1	0712-		●
459	PLATE; OIL (B)	1-33119-484-0	01	1	0712-		●
549	FLANGE; COUPLING	1-37243-433-0	01	1	0712-		●
550	COVER; DUST,FLANGE	1-33139-124-0	01	1	0712-		●
552	NUT; FLANGE	1-33239-371-0	01	1	0712-		●
620	BOLT; CASE	1-33119-565-0	02	1	0712-		●
646	GASKET; PIN	1-33119-483-0	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
