Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#36111) — 241 parça

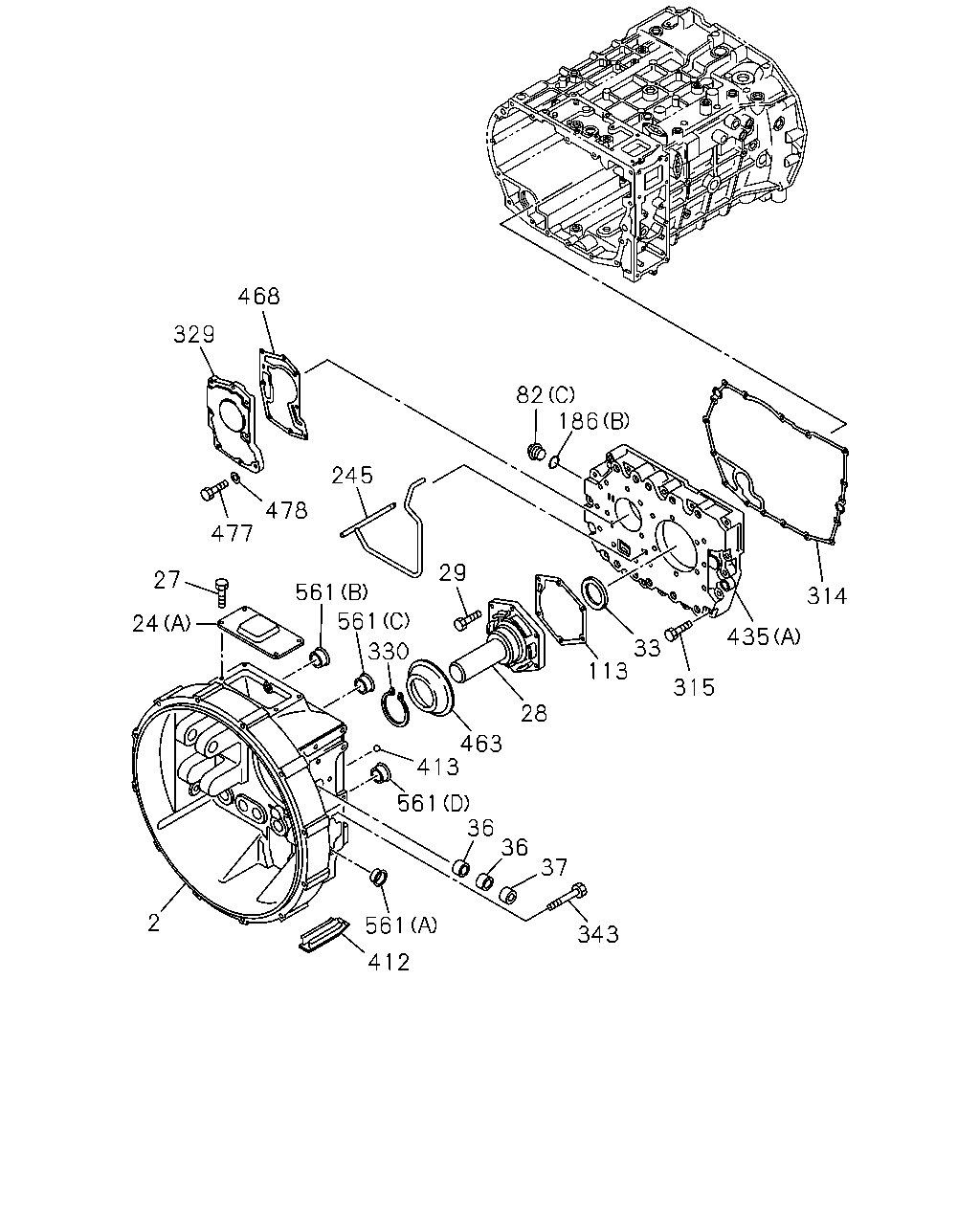

343 412 561 37 36 36 561 463 413 28 113 315 33 435 314 186 82 29 330 561 561 245 478 477 27 24 2 329 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	0710-
24	COVER; CHECK HOLE,DUST (A)	1-31119-024-0	01	1	0710-1305
24	COVER; CHECK HOLE,DUST (A)	1-31119-059-0	01	1	1306-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	0710-1305
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1306-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	0710-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	0710-1305
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	0710-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	0710-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0710-0711
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0712-0805
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	0710-1305
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	0710-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	0710-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0710-1305
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	0710-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
113	GASKET; FRT COVER TO TRANS CASE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	0904-0912
113	GASKET; FRT COVER TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1001-1305
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-
113	GASKET; FRT COVER TO TRANS CASE	1-33122-023-0	01	1	0710-0903
113	GASKET; FRT COVER TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	0904-0912
113	GASKET; FRT COVER TO TRANS CASE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	0904-0912
113	GASKET; FRT COVER TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8> ALSO INCLUDED IN GASKET SET(M/T).	1-33122-023-0	01	1	1001-1305
186	RING; SEAL (A)	1-33119-249-0	01	1	0710-
186	RING; SEAL (B)	1-33119-286-0	02	1	0710-
186	RING; SEAL (C)	1-33119-435-0	02	1	0710-
245	PIPE; OIL	1-33119-517-0	01	1	0710-
314	GASKET; CASE	1-33112-052-0	01	1	0710-
315	BOLT; CASE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	17	1	0710-1305
315	BOLT; CASE PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	17	1	0710-1305
315	BOLT; CASE EXC. ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	17	1	0710-1305
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-
329	PUMP ASM; OIL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-34150-120-0	01	1	0710-1305
329	PUMP ASM; OIL PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-34150-121-0	01	1	0710-1305
329	PUMP ASM; OIL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34150-121-0	01	1	0710-1305
329	PUMP ASM; OIL	1-34150-123-0	01	1	1306-
330	RING; RET	1-33129-005-0	01	1	0710-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	0710-
412	CAP; CLU HSG	1-31119-026-0	01	1	0710-
413	BALL; CLU HSG	1-31119-014-0	04	1	0710-
435	CASE; TRANS PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	0904-0912
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1001-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	0710-1305
435	CASE; TRANS EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1306-
435	CASE; TRANS (A)	1-33111-368-0	01	1	0710-0903
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1001-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	0710-1305
435	CASE; TRANS PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	0710-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (B)	1-33111-371-0	01	1	1306-
435	CASE; TRANS AUSTRALIA EQUIPMENT(B13) (B)	1-33111-371-0	01	1	1306-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	0710-1305
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-
468	GASKET; OIL PUMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34159-122-0	01	1	0904-0912
468	GASKET; OIL PUMP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34159-122-0	01	1	1001-1305
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1306-
468	GASKET; OIL PUMP	1-34159-063-0	01	1	0710-0903
468	GASKET; OIL PUMP ASSISTOR SHIFT CONTROL<WX8>	1-34159-063-0	01	1	0904-0912
468	GASKET; OIL PUMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-34159-063-0	01	1	0904-0912
468	GASKET; OIL PUMP ASSISTOR SHIFT CONTROL<WX8>	1-34159-063-0	01	1	1001-1305
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	0710-1305
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	0710-1305
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-
561	PLUG (A)	1-31119-044-0	02	1	0710-1305
561	PLUG EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> (A)	1-31119-044-0	02	1	1306-
561	PLUG (B)	1-31119-045-0	03	1	0710-1305
561	PLUG EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> (B)	1-31119-045-0	03	1	1306-
561	PLUG (C)	1-31119-046-0	02	1	0710-1305
561	PLUG EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> (C)	1-31119-046-0	02	1	1306-
561	PLUG (D)	1-31119-047-0	01	1	0710-1305
561	PLUG EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> (D)	1-31119-047-0	01	1	1306-

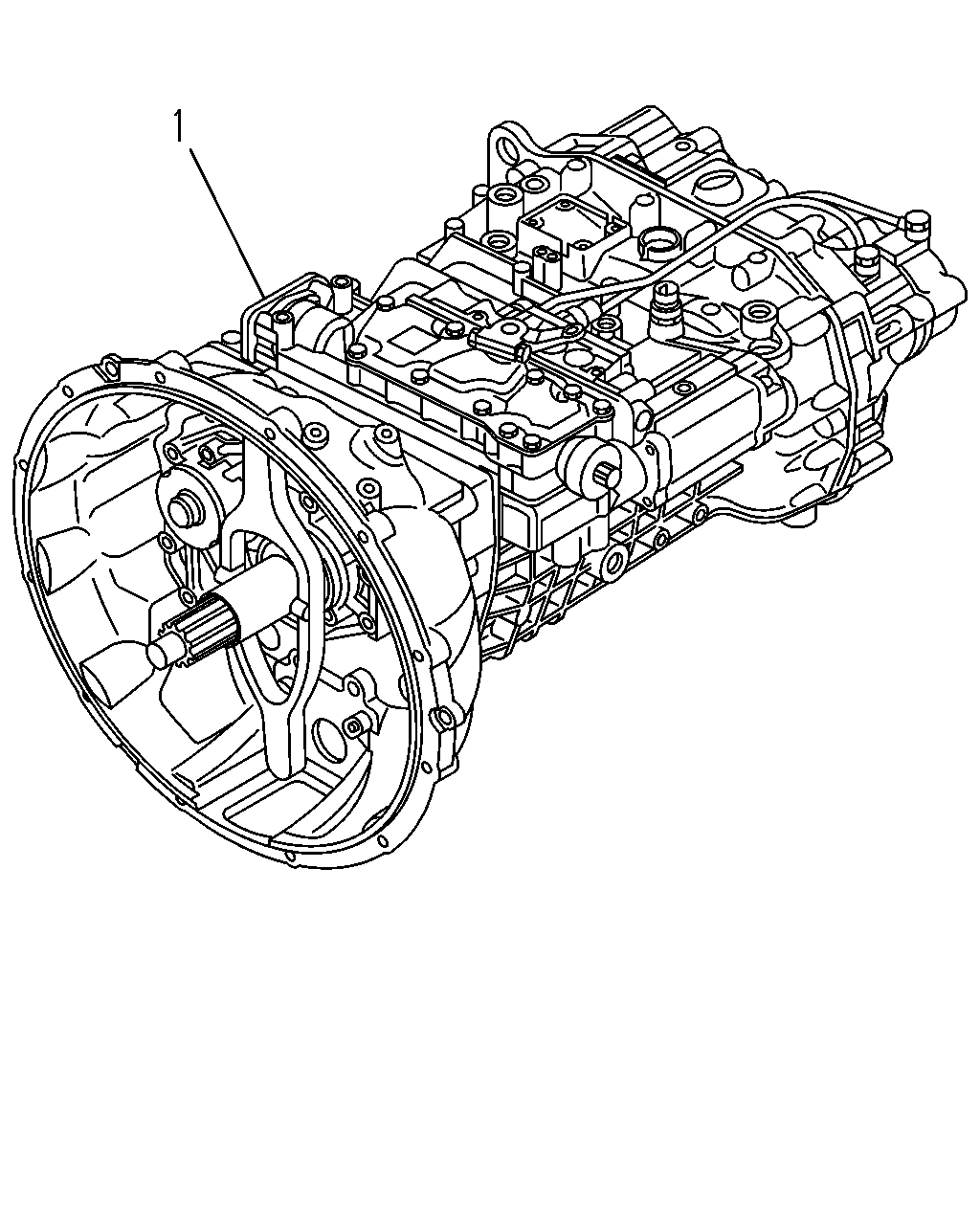

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) AUSTRALIA EQUIPMENT(B13) EXC. COUNTRY NEW ZEALAND(CX6)	8-98235-393-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL AUSTRALIA EQUIPMENT(B13) EXC. PTO ZF TRANS RR(BDM),COUNTRY NEW ZEALAND(CX6)	8-98235-392-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33043-933-0	01	1	0710-1305
1	TRANSMISSION ASM; MANUAL AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM)	1-33043-933-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM),AUSTRALIA EQUIPMENT(B13)	1-33043-933-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33044-084-0	01	1	0710-1305
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6)	1-33044-084-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13)	1-33044-084-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98083-335-1	01	1	0710-1305
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8>	8-98083-335-2	01	1	1306-
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	8-98083-334-1	01	1	0710-1305
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),AUSTRALIA EQUIPMENT(B13), ASSISTOR SHIFT CONTROL<WX8>	8-98083-334-2	01	1	1306-

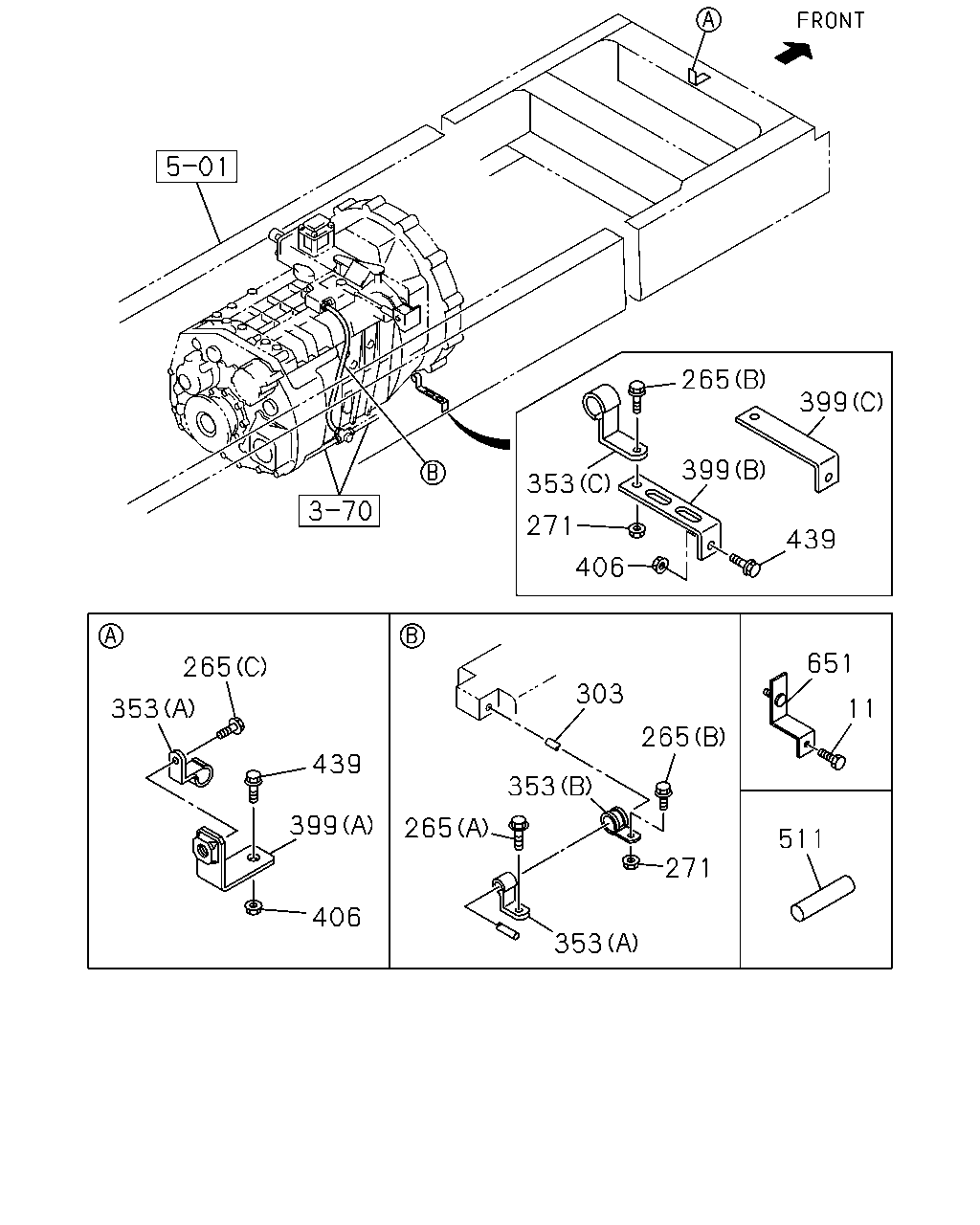

265 399 399 353 271 439 406 651 265 303 353 11 265 439 353 399 265 511 271 406 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8X16 FLANGE	0-28050-816-0	01	1	0712-0806
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28050-820-0	03	1	0710-0802
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-1111
265	BOLT; CLIP FVR(FG****) ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	02	1	1112-
265	BOLT; CLIP FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	02	1	1112-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711
265	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0807
265	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	0808-0810
265	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 FLANGE	0-28650-820-0	01	1	0811-1111
265	BOLT; CLIP FVR AIR SUS(FGD***) (B) M8X20 FLANGE	0-28650-820-0	01	1	1112-
265	BOLT; CLIP FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	1112-
265	BOLT; CLIP FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	1112-
265	BOLT; CLIP FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	1112-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711
271	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0712-0807
271	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	0808-0810
271	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0811-
303	TUBE; NYLON EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0808-1008
303	TUBE; NYLON FVR AIR SUS(FGD***) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1011
303	TUBE; NYLON FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1011
303	TUBE; NYLON FVR AIR SUS(FGD***) EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1012-
303	TUBE; NYLON FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1012-
303	TUBE; NYLON FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1012-
303	TUBE; NYLON FVR LEAF SUS(FGR***) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1012-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0710-0807
303	TUBE; NYLON ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0808-
353	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0903-1011
353	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1012-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	03	1	0710-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	01	1	0710-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	02	1	0710-1111
353	CLIP; NYLON TUBE FVR(FG****) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	02	1	1112-
353	CLIP; NYLON TUBE FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	02	1	1112-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	0710-0711
353	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=18 L=28	1-09701-067-0	01	1	0712-0902
353	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	0903-1011
353	CLIP; NYLON TUBE FVR AIR SUS(FGD***) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1012-1111
353	CLIP; NYLON TUBE FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1012-1111
353	CLIP; NYLON TUBE FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1012-1111
353	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1112-
399	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	01	1	1012-
399	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	01	1	0808-0902
399	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=95	1-82699-085-0	01	1	0903-1011
399	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (C) L=95	1-82699-085-0	01	1	1012-
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (A)	8-98091-847-0	01	1	0710-0710
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-674-0	01	1	0711-
406	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	0808-
406	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	0710-0710
406	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	0711-
439	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	01	1	0808-
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0710-0710
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0711-0802
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0803-
511	TUBE; CORRUGATE EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0808-1008
511	TUBE; CORRUGATE FVR AIR SUS(FGD***) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1009-1011
511	TUBE; CORRUGATE FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1009-1011
511	TUBE; CORRUGATE FVR AIR SUS(FGD***) EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
511	TUBE; CORRUGATE FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
511	TUBE; CORRUGATE FVR LEAF SUS(FGR***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
511	TUBE; CORRUGATE FVR LEAF SUS(FGR***) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
651	BRACKET; T/M HARNESS FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=85 H=40	1-47476-676-0	01	1	0712-0806

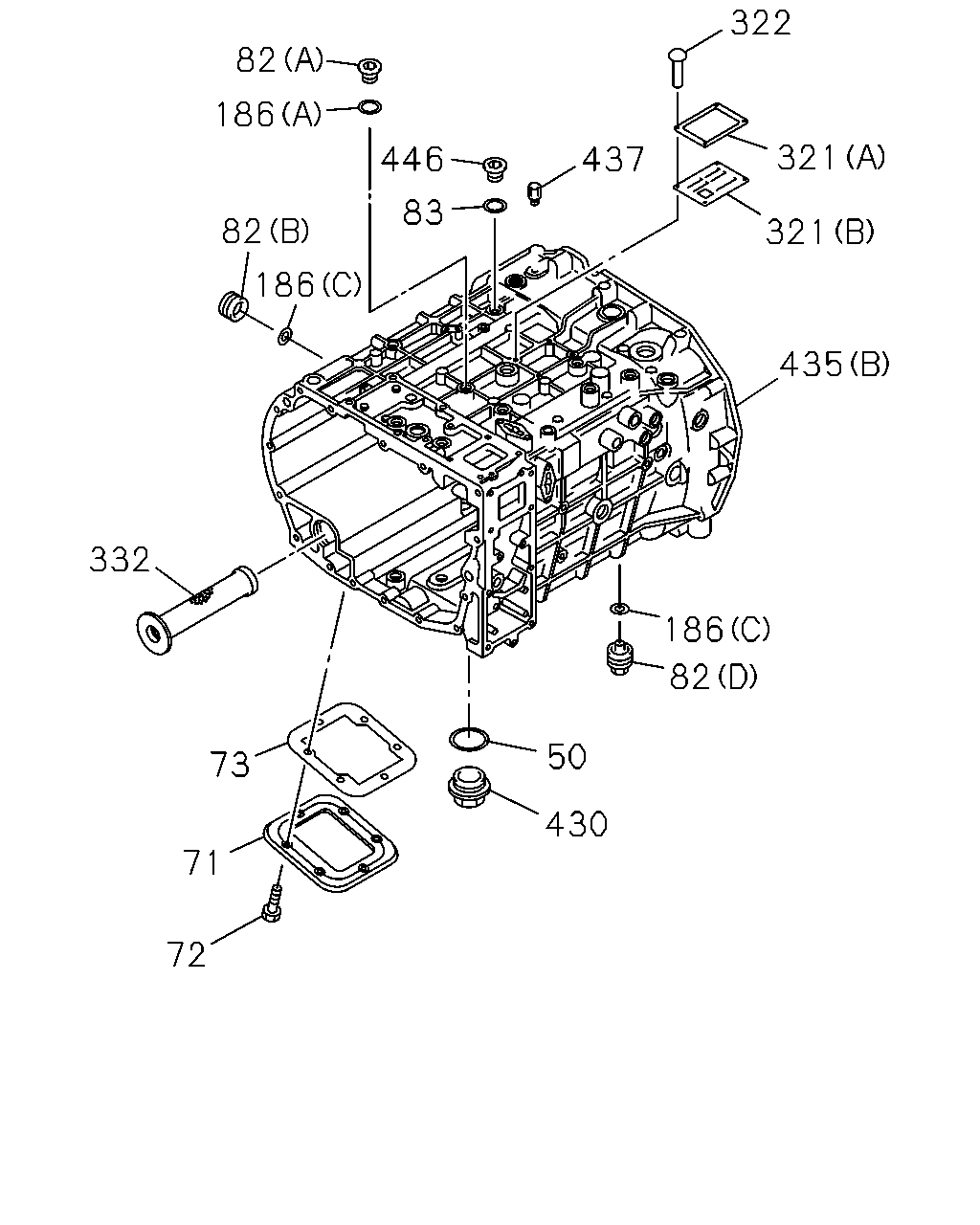

322 82 186 321 446 437 83 82 321 186 435 332 186 82 50 73 430 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	0710-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	0710-1305
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	0710-1305
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1306-
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	0710-
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	0710-1305
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	0710-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	0710-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0710-1305
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	0710-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
83	GASKET; PLUG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	0710-1305
186	RING; SEAL (A)	1-33119-249-0	01	1	0710-
186	RING; SEAL (B)	1-33119-286-0	02	1	0710-
186	RING; SEAL (C)	1-33119-435-0	02	1	0710-
321	PLATE; NAME (A)	1-33119-519-0	01	1	0710-
321	PLATE; NAME (B)	1-33119-520-0	01	1	0710-
322	RIVET; NAME PLATE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-556-0	04	1	0904-0912
322	RIVET; NAME PLATE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-556-0	04	1	1001-1305
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	0710-0903
322	RIVET; NAME PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	0904-0912
322	RIVET; NAME PLATE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	0904-0912
322	RIVET; NAME PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	1001-1305
332	FILTER; OIL	1-33119-437-0	01	1	0710-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	0710-1305
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	0904-0912
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1001-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	0710-1305
435	CASE; TRANS EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1306-
435	CASE; TRANS (A)	1-33111-368-0	01	1	0710-0903
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1001-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	0710-1305
435	CASE; TRANS PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	0710-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) (B)	1-33111-371-0	01	1	1306-
435	CASE; TRANS AUSTRALIA EQUIPMENT(B13) (B)	1-33111-371-0	01	1	1306-
437	BREATHER; TRANS	1-36122-004-0	01	1	0710-1305
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-
446	PLUG; CASE,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-171-0	01	1	0710-1305

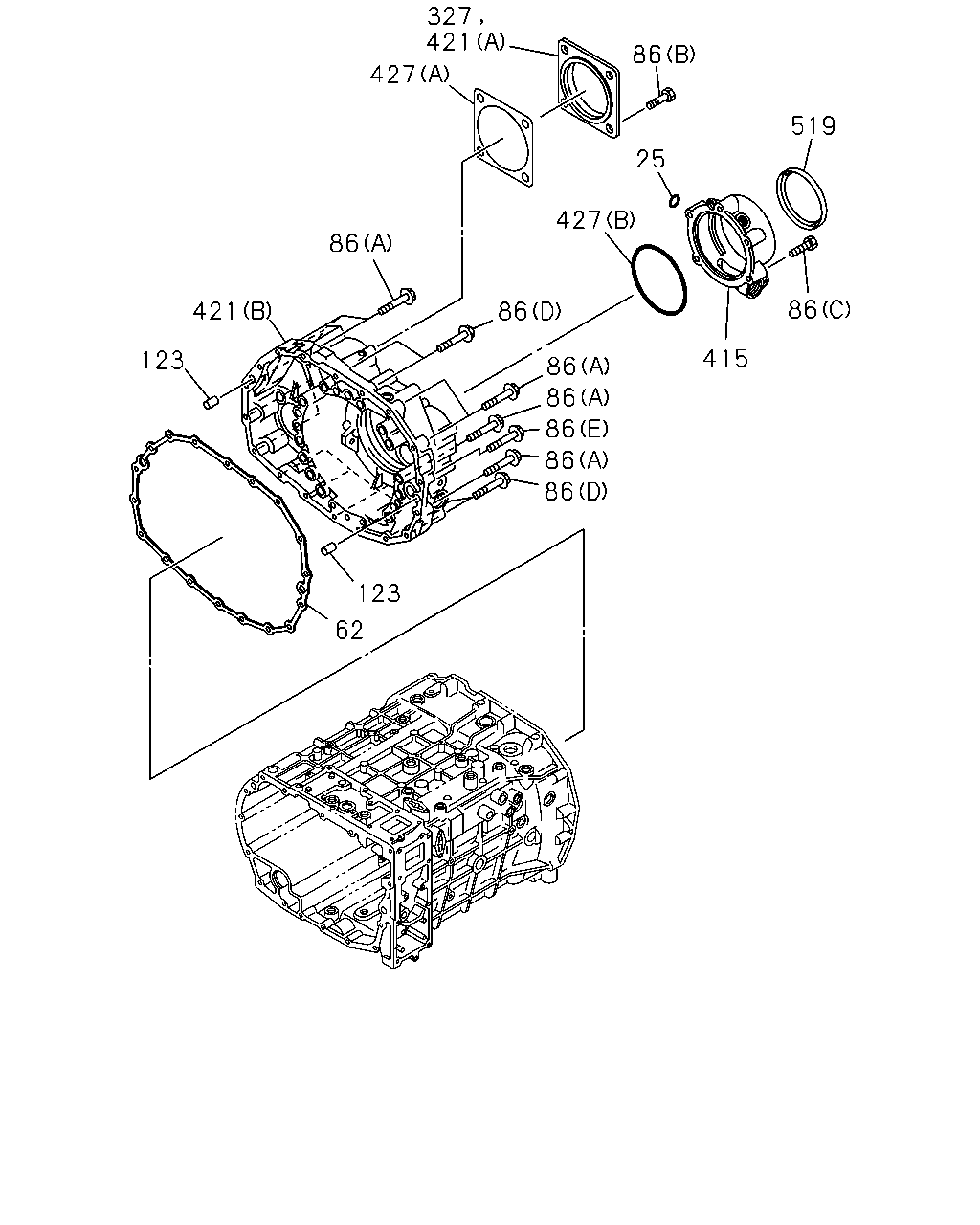

327 421 86 427 519 25 427 86 86 421 86 86 415 123 86 86 86 86 123 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	0710-
62	GASKET; RR COVER	1-33132-087-0	01	1	0710-
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	12	1	0710-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B) M12X25	1-33119-400-0	04	1	0710-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B) M12X25	1-33119-594-0	04	1	1306-
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	0710-1305
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A) M10X70	1-33119-518-0	12	1	0710-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B) M12X28	1-33139-051-0	04	1	0710-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (D) M10X110	1-33139-210-0	05	1	0710-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (E) M10X50	1-33139-211-0	01	1	0710-1305
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	07	1	0710-1305
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (D) M10X110	1-33139-057-0	05	1	0710-1305
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X110	1-33139-057-0	05	1	0710-1305
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (E) M10X50	1-33139-058-0	01	1	0710-1305
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X50	1-33139-058-0	01	1	0710-1305
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	0710-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33131-165-0	01	1	0710-1305
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33131-273-0	01	1	1306-
415	COVER; BRG PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-269-0	01	1	0904-0912
415	COVER; BRG EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-269-0	01	1	1001-1305
415	COVER; BRG	1-33131-269-0	01	1	1306-
415	COVER; BRG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33131-260-0	01	1	0710-1305
415	COVER; BRG PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	0710-0903
415	COVER; BRG EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	0710-0903
415	COVER; BRG PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	0904-0912
415	COVER; BRG EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	0904-0912
415	COVER; BRG PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	1001-1305
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33131-165-0	01	1	0710-1305
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33131-214-0	01	1	0710-1305
421	COVER; RR,TRANS PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33131-261-0	01	1	0710-1305
421	COVER; RR,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33131-261-0	01	1	0710-1305
421	COVER; RR,TRANS (B)	1-33131-275-0	01	1	1306-
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	0710-1305
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	0710-1305
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (A)	1-33132-054-0	01	1	1306-
519	GASKET; SHAFT	1-33139-059-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
