◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10D - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10D — REPAIR KIT; TRANSMISSION OVERHAUL (#36110) — 42 parça

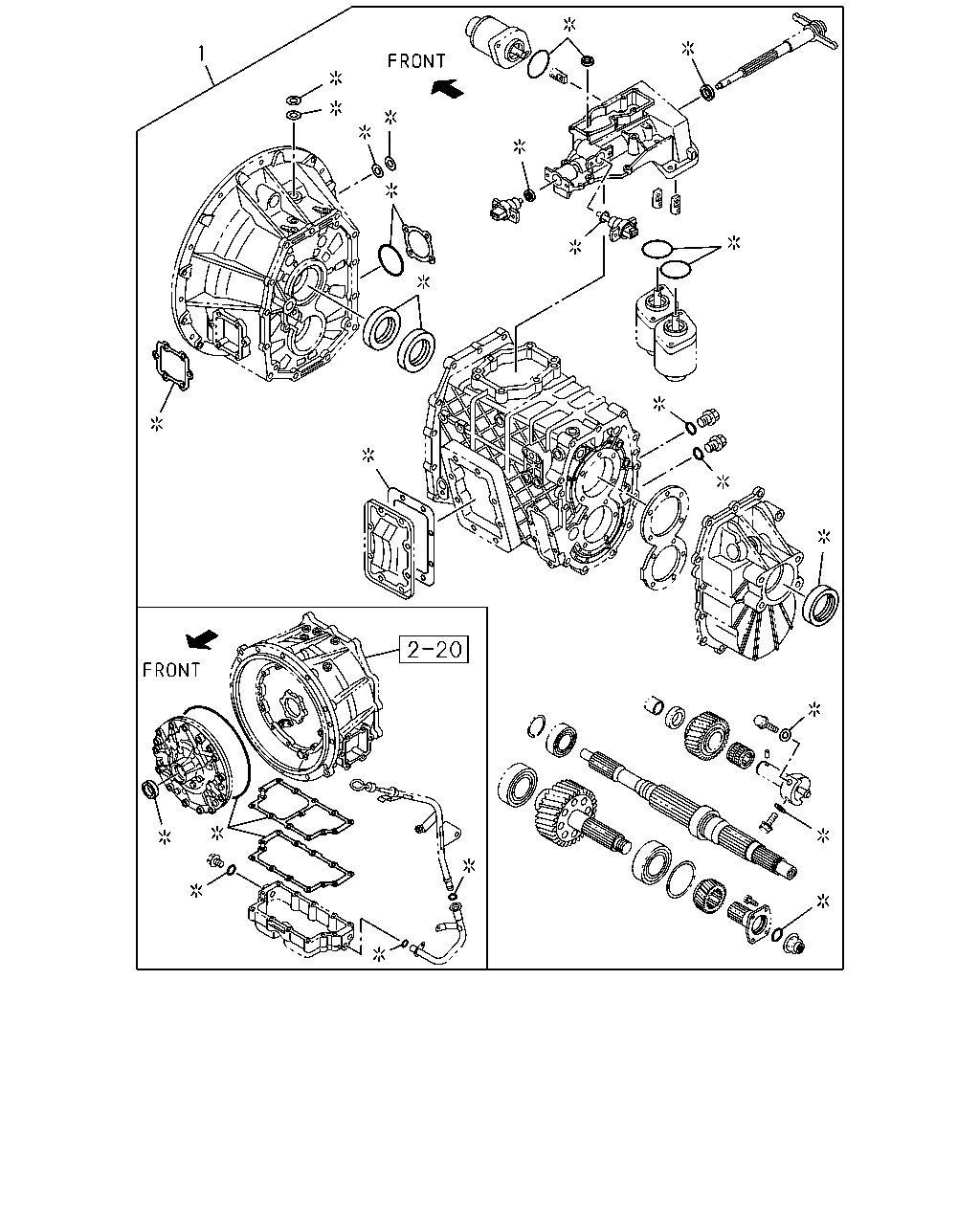

çizim 179840
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-229-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-243-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-237-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-213-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-240-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-215-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-241-0 01 1 1001- ●

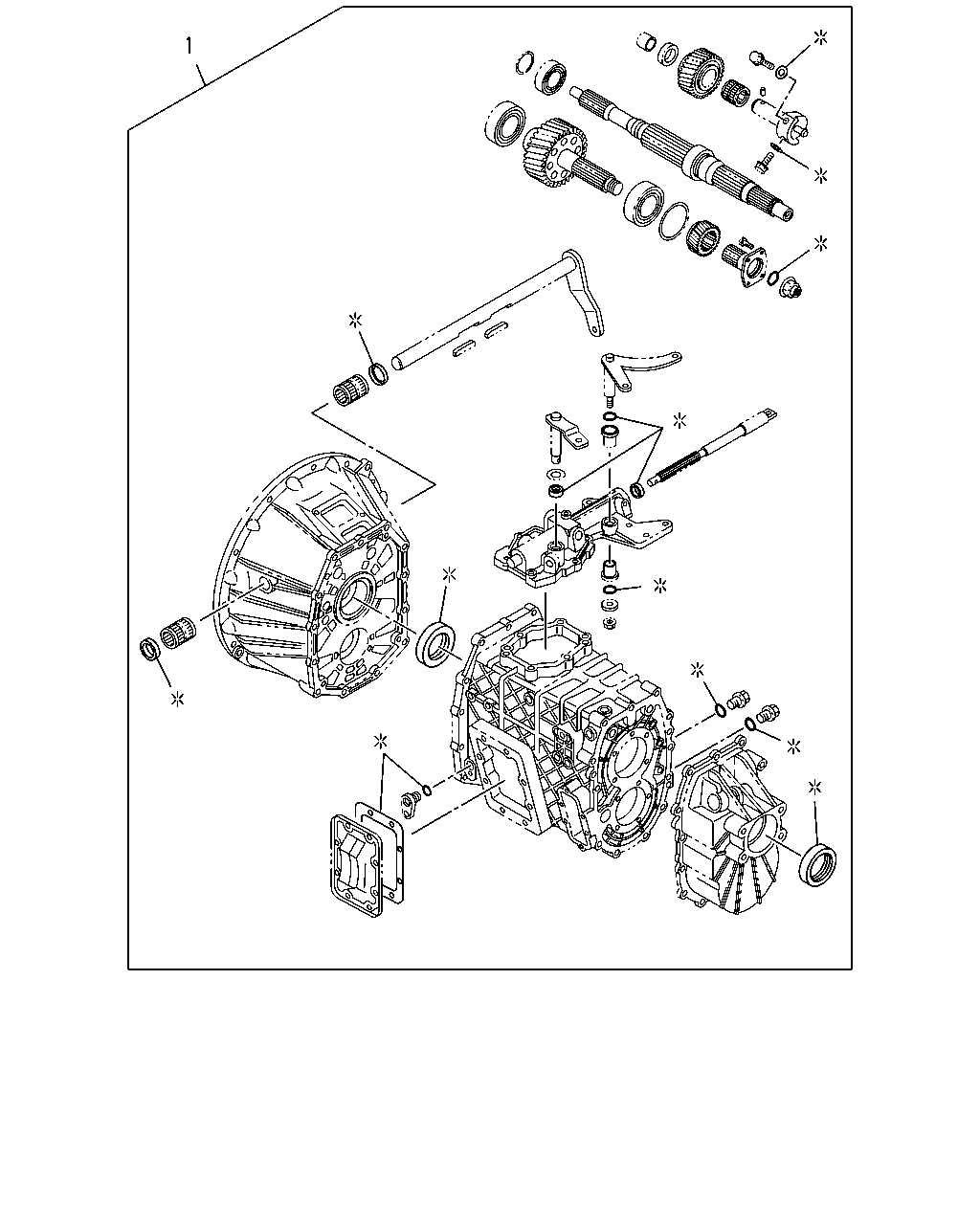

çizim 179841
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-229-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-243-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-237-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-213-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-240-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-215-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-241-0 01 1 1001- ●

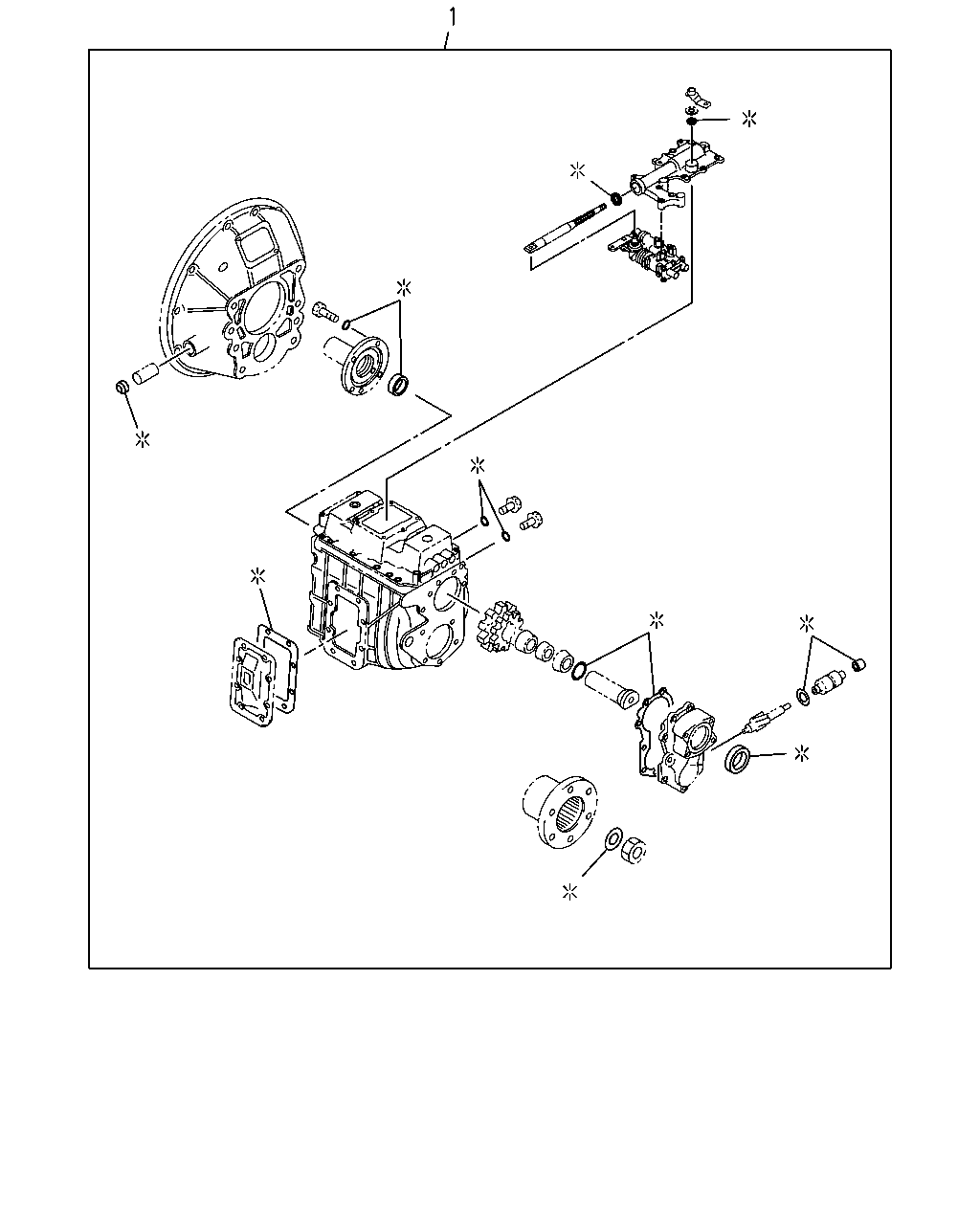

çizim 179936
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-229-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-243-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-237-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-213-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL
15" CLUTCH(RE9) 		5-87832-240-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-215-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 15" CLUTCH(RE9) 		5-87832-241-0 01 1 1001- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
