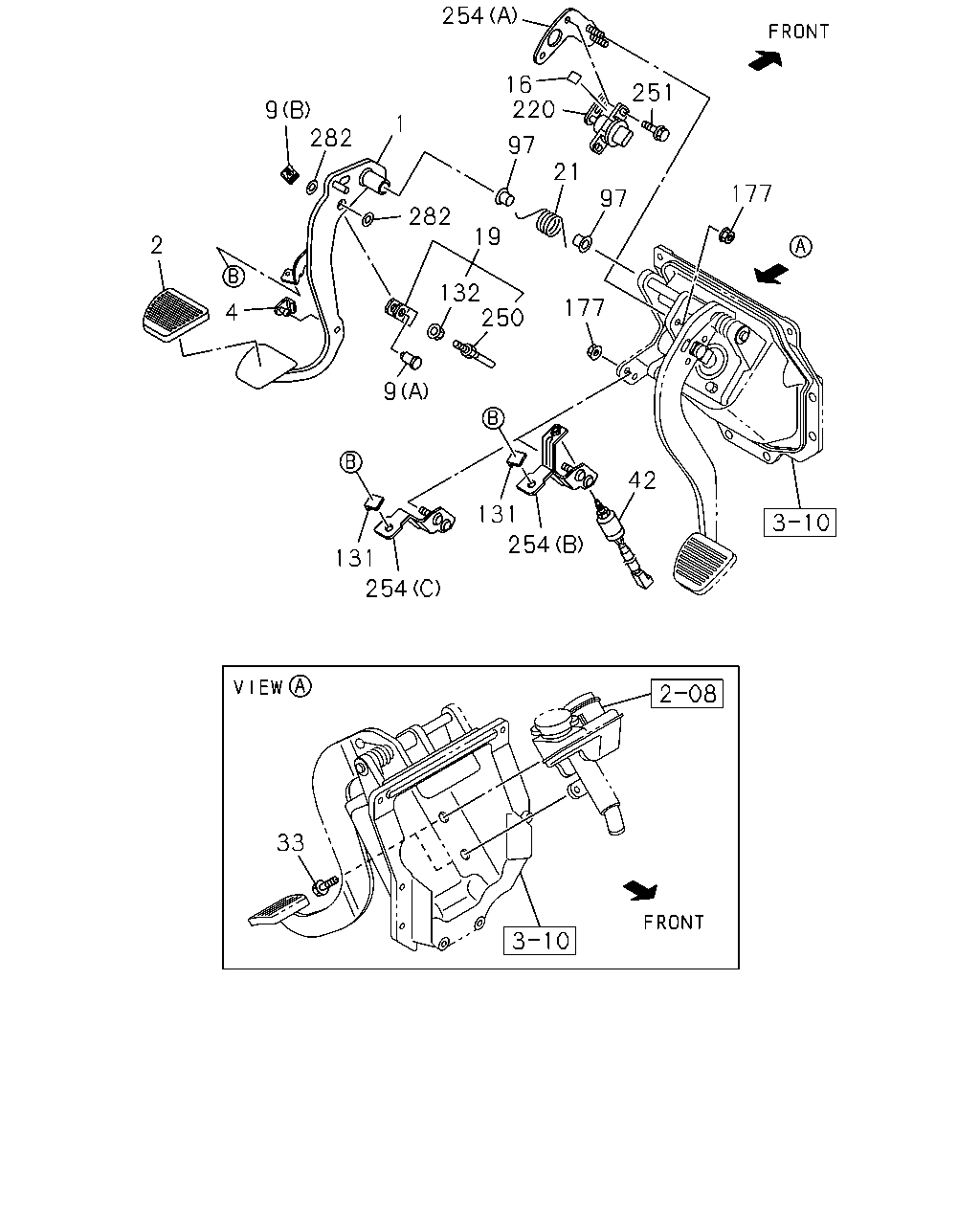

1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
EXC. H.S.A SYSTEM<6EP>
|
8-98057-123-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
EXC. H.S.A SYSTEM<6EP>
|
8-98057-123-0 |
01 |
1 |
0710-0711 |
|
● |
|
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
EXC. H.S.A SYSTEM<6EP>
|
8-98057-123-0 |
01 |
1 |
0712- |
● |
● |
|
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
ASSISTOR SHIFT CONTROL<WX8>
|
8-98057-122-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
|
8-98057-122-0 |
01 |
1 |
0710-0711 |
|
● |
|
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
ASSISTOR SHIFT CONTROL<WX8>
|
8-98057-122-0 |
01 |
1 |
0712- |
● |
● |
|
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-98021-375-1 |
01 |
1 |
0710-0711 |
● |
|
|
| |
1 |
PEDAL; CLU
H.S.A SYSTEM<6EP>
|
8-98021-375-1 |
01 |
1 |
0710-0711 |
|
|
● |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-98021-375-1 |
01 |
1 |
0712-0805 |
● |
● |
|
| |
1 |
PEDAL; CLU
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98021-375-1 |
01 |
1 |
0712-0805 |
|
● |
|
| |
1 |
PEDAL; CLU
H.S.A SYSTEM<6EP>
|
8-98021-375-1 |
01 |
1 |
0712-0805 |
|
|
● |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-98021-375-1 |
01 |
1 |
0806-0906 |
● |
● |
|
| |
1 |
PEDAL; CLU
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98021-375-1 |
01 |
1 |
0806-0906 |
|
● |
|
| |
1 |
PEDAL; CLU
H.S.A SYSTEM<6EP>
|
8-98021-375-1 |
01 |
1 |
0806-0906 |
|
|
● |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-98021-375-1 |
01 |
1 |
0907- |
● |
● |
|
| |
1 |
PEDAL; CLU
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98021-375-1 |
01 |
1 |
0907- |
|
● |
|
| |
1 |
PEDAL; CLU
H.S.A SYSTEM<6EP>
|
8-98021-375-1 |
01 |
1 |
0907- |
|
|
● |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A
SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0710-0711 |
● |
|
|
| |
1 |
PEDAL; CLU
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0710-0711 |
|
|
● |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A
SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0712-0805 |
● |
● |
|
| |
1 |
PEDAL; CLU
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0712-0805 |
|
● |
|
| |
1 |
PEDAL; CLU
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0712-0805 |
|
|
● |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A
SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0806-0906 |
● |
● |
|
| |
1 |
PEDAL; CLU
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0806-0906 |
|
● |
|
| |
1 |
PEDAL; CLU
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0806-0906 |
|
|
● |
| |
1 |
PEDAL; CLU
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A
SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0907- |
● |
● |
|
| |
1 |
PEDAL; CLU
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0907- |
|
● |
|
| |
1 |
PEDAL; CLU
EXC. H.S.A SYSTEM<6EP>
|
8-97613-941-1 |
01 |
1 |
0907- |
|
|
● |
| |
2 |
COVER; CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98056-865-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
2 |
COVER; CLU PEDAL
|
8-98056-865-0 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
2 |
COVER; CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98056-865-0 |
01 |
1 |
0712- |
● |
|
|
| |
2 |
COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98056-865-0 |
01 |
1 |
0712- |
|
● |
|
| |
2 |
COVER; CLU PEDAL
|
8-98056-865-0 |
01 |
1 |
0712- |
|
|
● |
| |
4 |
STOPPER; CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98079-251-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
4 |
STOPPER; CLU PEDAL
|
8-98079-251-0 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
4 |
STOPPER; CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98079-251-0 |
01 |
1 |
0712- |
● |
|
|
| |
4 |
STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98079-251-0 |
01 |
1 |
0712- |
|
● |
|
| |
4 |
STOPPER; CLU PEDAL
|
8-98079-251-0 |
01 |
1 |
0712- |
|
|
● |
| |
9 |
PIN; CLU PEDAL
ZF9S1110 M/T(Y5E)
(A)
|
8-97387-230-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
9 |
PIN; CLU PEDAL
(A)
|
8-97387-230-0 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
9 |
PIN; CLU PEDAL
ZF9S1110 M/T(Y5E)
(A)
|
8-97387-230-0 |
01 |
1 |
0712-1007 |
● |
|
|
| |
9 |
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
|
8-97387-230-0 |
01 |
1 |
0712-1007 |
|
● |
|
| |
9 |
PIN; CLU PEDAL
(A)
|
8-97387-230-0 |
01 |
1 |
0712-1007 |
|
|
● |
| |
9 |
PIN; CLU PEDAL
ZF9S1110 M/T(Y5E)
(A)
|
8-98147-657-0 |
01 |
1 |
1008- |
● |
|
|
| |
9 |
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
|
8-98147-657-0 |
01 |
1 |
1008- |
|
● |
|
| |
9 |
PIN; CLU PEDAL
(A)
|
8-98147-657-0 |
01 |
1 |
1008- |
|
|
● |
| |
9 |
PIN; CLU PEDAL
ZF9S1110 M/T(Y5E)
(B)
|
8-98007-161-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
9 |
PIN; CLU PEDAL
(B)
|
8-98007-161-0 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
9 |
PIN; CLU PEDAL
ZF9S1110 M/T(Y5E)
(B)
|
8-98007-161-0 |
01 |
1 |
0712- |
● |
|
|
| |
9 |
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(B)
|
8-98007-161-0 |
01 |
1 |
0712- |
|
● |
|
| |
9 |
PIN; CLU PEDAL
(B)
|
8-98007-161-0 |
01 |
1 |
0712- |
|
|
● |
| |
16 |
SEAL; CLU PEDAL
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
30X30
|
8-98142-344-0 |
01 |
1 |
1204- |
● |
● |
|
| |
16 |
SEAL; CLU PEDAL
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
30X30
|
8-98142-344-0 |
01 |
1 |
1204- |
|
● |
|
| |
16 |
SEAL; CLU PEDAL
H.S.A SYSTEM<6EP>
30X30
|
8-98142-344-0 |
01 |
1 |
1204- |
|
|
● |
| |
19 |
ROD ASM; PUSH,CLU
ZF9S1110 M/T(Y5E)
|
8-98021-406-1 |
01 |
1 |
0710-0711 |
● |
|
|
| |
19 |
ROD ASM; PUSH,CLU
|
8-98021-406-1 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
19 |
ROD ASM; PUSH,CLU
ZF9S1110 M/T(Y5E)
|
8-98021-406-1 |
01 |
1 |
0712- |
● |
|
|
| |
19 |
ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98021-406-1 |
01 |
1 |
0712- |
|
● |
|
| |
19 |
ROD ASM; PUSH,CLU
|
8-98021-406-1 |
01 |
1 |
0712- |
|
|
● |
| |
21 |
SPRING; RETURN,CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98021-560-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
21 |
SPRING; RETURN,CLU PEDAL
|
8-98021-560-0 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
21 |
SPRING; RETURN,CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98021-560-0 |
01 |
1 |
0712- |
● |
|
|
| |
21 |
SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98021-560-0 |
01 |
1 |
0712- |
|
● |
|
| |
21 |
SPRING; RETURN,CLU PEDAL
|
8-98021-560-0 |
01 |
1 |
0712- |
|
|
● |
| |
33 |
BOLT; CLU M/CYL TO BRKT
ZF9S1110 M/T(Y5E)
M12X20 FLANGE
|
0-28051-220-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
33 |
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
|
0-28051-220-0 |
02 |
1 |
0710-0711 |
|
● |
● |
| |
33 |
BOLT; CLU M/CYL TO BRKT
ZF9S1110 M/T(Y5E)
M12X20 FLANGE
|
0-28051-220-0 |
02 |
1 |
0712- |
● |
|
|
| |
33 |
BOLT; CLU M/CYL TO BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
M12X20 FLANGE
|
0-28051-220-0 |
02 |
1 |
0712- |
|
● |
|
| |
33 |
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
|
0-28051-220-0 |
02 |
1 |
0712- |
|
|
● |
| |
42 |
SWITCH; CLU
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
|
8-97620-841-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
42 |
SWITCH; CLU
|
8-97620-841-0 |
01 |
1 |
0710-0711 |
|
● |
|
| |
42 |
SWITCH; CLU
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
|
8-97620-841-0 |
01 |
1 |
0712- |
● |
● |
|
| |
97 |
BUSHING; CLU PEDAL SHAFT
ZF9S1110 M/T(Y5E)
|
8-94238-596-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
97 |
BUSHING; CLU PEDAL SHAFT
|
8-94238-596-0 |
02 |
1 |
0710-0711 |
|
● |
● |
| |
97 |
BUSHING; CLU PEDAL SHAFT
ZF9S1110 M/T(Y5E)
|
8-94238-596-0 |
02 |
1 |
0712- |
● |
|
|
| |
97 |
BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-94238-596-0 |
02 |
1 |
0712- |
|
● |
|
| |
97 |
BUSHING; CLU PEDAL SHAFT
|
8-94238-596-0 |
02 |
1 |
0712- |
|
|
● |
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
|
8-97302-305-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
131 |
STOPPER; CLU SW
|
8-97302-305-0 |
02 |
1 |
0710-0711 |
|
● |
|
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
|
8-97302-305-0 |
02 |
1 |
0712- |
● |
● |
|
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-97302-305-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
131 |
STOPPER; CLU SW
|
8-97302-305-0 |
01 |
1 |
0710-0711 |
|
|
● |
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-97302-305-0 |
01 |
1 |
0712-0805 |
● |
● |
|
| |
131 |
STOPPER; CLU SW
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97302-305-0 |
01 |
1 |
0712-0805 |
|
● |
|
| |
131 |
STOPPER; CLU SW
|
8-97302-305-0 |
01 |
1 |
0712-0805 |
|
|
● |
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-97302-305-0 |
01 |
1 |
0806-0906 |
● |
● |
|
| |
131 |
STOPPER; CLU SW
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97302-305-0 |
01 |
1 |
0806-0906 |
|
● |
|
| |
131 |
STOPPER; CLU SW
|
8-97302-305-0 |
01 |
1 |
0806-0906 |
|
|
● |
| |
131 |
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
|
8-97302-305-0 |
01 |
1 |
0907- |
● |
● |
|
| |
131 |
STOPPER; CLU SW
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97302-305-0 |
01 |
1 |
0907- |
|
● |
|
| |
131 |
STOPPER; CLU SW
|
8-97302-305-0 |
01 |
1 |
0907- |
|
|
● |
| |
132 |
NUT; LK,PUSH ROD
ZF9S1110 M/T(Y5E)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
132 |
NUT; LK,PUSH ROD
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
132 |
NUT; LK,PUSH ROD
ZF9S1110 M/T(Y5E)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
● |
|
|
| |
132 |
NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
|
● |
|
| |
132 |
NUT; LK,PUSH ROD
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
|
|
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0710-0711 |
● |
|
|
| |
177 |
NUT; BRKT
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0710-0711 |
|
● |
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0712-0805 |
● |
● |
|
| |
177 |
NUT; BRKT
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0712-0805 |
|
● |
|
| |
177 |
NUT; BRKT
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0712-0805 |
|
|
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0806-0906 |
● |
● |
|
| |
177 |
NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0806-0906 |
|
● |
|
| |
177 |
NUT; BRKT
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0806-0906 |
|
|
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907- |
● |
● |
|
| |
177 |
NUT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907- |
|
● |
|
| |
177 |
NUT; BRKT
H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907- |
|
|
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
177 |
NUT; BRKT
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
|
● |
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0805 |
● |
● |
|
| |
177 |
NUT; BRKT
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0805 |
|
● |
|
| |
177 |
NUT; BRKT
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0805 |
|
|
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0806-0906 |
● |
● |
|
| |
177 |
NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0806-0906 |
|
● |
|
| |
177 |
NUT; BRKT
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0806-0906 |
|
|
● |
| |
177 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
● |
● |
|
| |
177 |
NUT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
● |
|
| |
177 |
NUT; BRKT
EXC. H.S.A SYSTEM<6EP>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
|
● |
| |
220 |
SENSOR; CLUTCH
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
|
1-80250-014-0 |
01 |
1 |
0710-0805 |
● |
● |
|
| |
220 |
SENSOR; CLUTCH
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
1-80250-014-0 |
01 |
1 |
0710-0805 |
|
● |
|
| |
220 |
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
|
1-80250-014-0 |
01 |
1 |
0710-0805 |
|
|
● |
| |
220 |
SENSOR; CLUTCH
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
|
1-80250-014-0 |
01 |
1 |
0806-0906 |
● |
● |
|
| |
220 |
SENSOR; CLUTCH
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
1-80250-014-0 |
01 |
1 |
0806-0906 |
|
● |
|
| |
220 |
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
|
1-80250-014-0 |
01 |
1 |
0806-0906 |
|
|
● |
| |
220 |
SENSOR; CLUTCH
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
|
1-80250-014-0 |
01 |
1 |
0907- |
● |
● |
|
| |
220 |
SENSOR; CLUTCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
1-80250-014-0 |
01 |
1 |
0907- |
|
● |
|
| |
220 |
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
|
1-80250-014-0 |
01 |
1 |
0907- |
|
|
● |
| |
250 |
ROD; PUSH,CLU
ZF9S1110 M/T(Y5E)
|
8-97615-589-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
250 |
ROD; PUSH,CLU
|
8-97615-589-0 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
250 |
ROD; PUSH,CLU
ZF9S1110 M/T(Y5E)
|
8-97615-589-0 |
01 |
1 |
0712- |
● |
|
|
| |
250 |
ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-97615-589-0 |
01 |
1 |
0712- |
|
● |
|
| |
250 |
ROD; PUSH,CLU
|
8-97615-589-0 |
01 |
1 |
0712- |
|
|
● |
| |
251 |
BOLT; SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
251 |
BOLT; SENSOR
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0710-0711 |
|
● |
● |
| |
251 |
BOLT; SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0712-0805 |
● |
● |
|
| |
251 |
BOLT; SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M6X16
|
0-52000-616-0 |
02 |
1 |
0712-0805 |
|
● |
|
| |
251 |
BOLT; SENSOR
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0712-0805 |
|
|
● |
| |
251 |
BOLT; SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0806-0906 |
● |
● |
|
| |
251 |
BOLT; SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M6X16
|
0-52000-616-0 |
02 |
1 |
0806-0906 |
|
● |
|
| |
251 |
BOLT; SENSOR
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0806-0906 |
|
|
● |
| |
251 |
BOLT; SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0907- |
● |
● |
|
| |
251 |
BOLT; SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M6X16
|
0-52000-616-0 |
02 |
1 |
0907- |
|
● |
|
| |
251 |
BOLT; SENSOR
H.S.A SYSTEM<6EP>
M6X16
|
0-52000-616-0 |
02 |
1 |
0907- |
|
|
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
(B)
|
8-98057-131-1 |
01 |
1 |
0710-0711 |
● |
|
|
| |
254 |
BRACKET; CLU SENSOR
(B)
|
8-98057-131-1 |
01 |
1 |
0710-0711 |
|
● |
|
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
ASSISTOR SHIFT CONTROL<WX8>
(B)
|
8-98057-131-1 |
01 |
1 |
0712- |
● |
● |
|
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
(C)
|
8-98021-377-1 |
01 |
1 |
0710-0711 |
● |
|
|
| |
254 |
BRACKET; CLU SENSOR
(C)
|
8-98021-377-1 |
01 |
1 |
0710-0711 |
|
|
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
(C)
|
8-98021-377-1 |
01 |
1 |
0712-0805 |
● |
● |
|
| |
254 |
BRACKET; CLU SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(C)
|
8-98021-377-1 |
01 |
1 |
0712-0805 |
|
● |
|
| |
254 |
BRACKET; CLU SENSOR
(C)
|
8-98021-377-1 |
01 |
1 |
0712-0805 |
|
|
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
(C)
|
8-98021-377-1 |
01 |
1 |
0806-0906 |
● |
● |
|
| |
254 |
BRACKET; CLU SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(C)
|
8-98021-377-1 |
01 |
1 |
0806-0906 |
|
● |
|
| |
254 |
BRACKET; CLU SENSOR
(C)
|
8-98021-377-1 |
01 |
1 |
0806-0906 |
|
|
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
EXC. ASSISTOR SHIFT CONTROL<WX8>
(C)
|
8-98021-377-1 |
01 |
1 |
0907- |
● |
● |
|
| |
254 |
BRACKET; CLU SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(C)
|
8-98021-377-1 |
01 |
1 |
0907- |
|
● |
|
| |
254 |
BRACKET; CLU SENSOR
(C)
|
8-98021-377-1 |
01 |
1 |
0907- |
|
|
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0710-0711 |
● |
|
|
| |
254 |
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0710-0711 |
|
● |
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0712-0805 |
● |
● |
|
| |
254 |
BRACKET; CLU SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
|
8-98021-376-1 |
01 |
1 |
0712-0805 |
|
● |
|
| |
254 |
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0712-0805 |
|
|
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0806-0906 |
● |
● |
|
| |
254 |
BRACKET; CLU SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
|
8-98021-376-1 |
01 |
1 |
0806-0906 |
|
● |
|
| |
254 |
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0806-0906 |
|
|
● |
| |
254 |
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E)
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0907- |
● |
● |
|
| |
254 |
BRACKET; CLU SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
FULLER FSO5206B OD M/T(Y4V)
H.S.A SYSTEM<6EP>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
|
8-98021-376-1 |
01 |
1 |
0907- |
|
● |
|
| |
254 |
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP>
(A)
|
8-98021-376-1 |
01 |
1 |
0907- |
|
|
● |
| |
282 |
SPACER; CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98070-329-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
282 |
SPACER; CLU PEDAL
|
8-98070-329-0 |
02 |
1 |
0710-0711 |
|
● |
● |
| |
282 |
SPACER; CLU PEDAL
ZF9S1110 M/T(Y5E)
|
8-98070-329-0 |
02 |
1 |
0712- |
● |
|
|
| |
282 |
SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98070-329-0 |
02 |
1 |
0712- |
|
● |
|
| |
282 |
SPACER; CLU PEDAL
|
8-98070-329-0 |
02 |
1 |
0712- |
|
|
● |
