Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#36101) — 271 parça

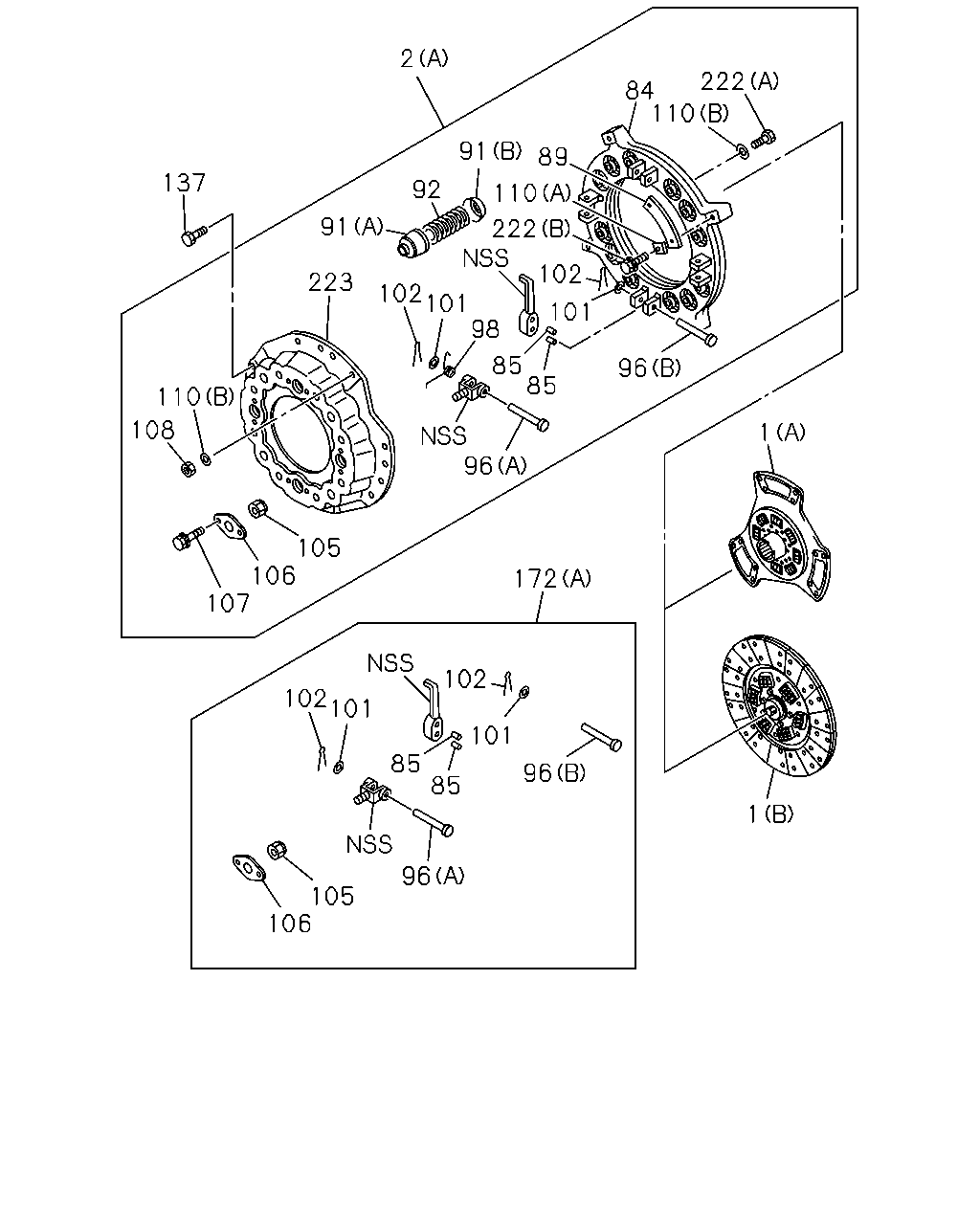

172 101 102 85 98 85 96 102 101 96 105 106 2 91 84 92 91 110 222 89 89 1 222 110 102 101 137 96 85 110 98 108 85 96 102 101 105 106 107 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) 15"	1-31240-977-2	01	1	1203-
1	DISC; CLUTCH 6HK1-TCC ENG(81L) (B) 15"	1-31240-851-2	01	1	0712-0906
1	DISC; CLUTCH 6HK1-TCC ENG(81L) (B) 15"	1-31240-851-2	01	1	0907-
1	DISC; CLUTCH (A) 15"	1-31240-977-1	01	1	0710-0711
1	DISC; CLUTCH 6HK1-TCS ENG(80L) (A) 15"	1-31240-977-1	01	1	0712-1110
1	DISC; CLUTCH 6HK1-TCS ENG(80L) (B) 15"	1-31240-972-0	01	1	1111-1202
1	DISC; CLUTCH 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (B) 15"	1-31240-972-1	01	1	1203-
1	DISC; CLUTCH 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) BEST VALUE PARTS	1-87610-143-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	0712-0805
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	0806-0906
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	0907-1009
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	1010-
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-380-2	01	1	0710-0711
2	PLATE ASM; PRESSURE,CLU 6HK1-TCS ENG(80L) (A)	1-31220-380-2	01	1	0712-
2	PLATE ASM; PRESSURE,CLU (A) BEST VALUE PARTS	1-87610-145-0	01	1	0710-0711
2	PLATE ASM; PRESSURE,CLU 6HK1-TCS ENG(80L) (A) BEST VALUE PARTS	1-87610-145-0	01	1	0712-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	0712-0805
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	0806-0906
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	0907-1009
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	1010-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0710-0711
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0712-0805
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0806-0906
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0907-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0710-0711
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0712-0805
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0806-0906
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-
89	PLATE; STRAP	1-31229-050-0	16	1	0710-0711
89	PLATE; STRAP	1-31229-050-0	16	1	0712-0805
89	PLATE; STRAP	1-31229-050-0	16	1	0806-0906
89	PLATE; STRAP	1-31229-050-0	16	1	0907-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0710-0711
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0712-0805
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0806-0906
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0907-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0710-0711
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0712-0805
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0806-0906
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0907-
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	0712-0805
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	0806-0906
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	0907-1009
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	1010-
92	SPRING; CLU	1-31214-053-0	12	1	0710-0711
92	SPRING; CLU 6HK1-TCS ENG(80L)	1-31214-053-0	12	1	0712-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0710-0711
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0712-0805
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0806-0906
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0710-0711
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0712-0805
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0806-0906
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-
98	SPRING; RETURN	1-31233-003-0	04	1	0710-0711
98	SPRING; RETURN	1-31233-003-0	04	1	0712-0805
98	SPRING; RETURN	1-31233-003-0	04	1	0806-0906
98	SPRING; RETURN	1-31233-003-0	04	1	0907-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0710-0711
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0712-0805
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0806-0906
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0710-0711
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0712-0805
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0806-0906
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0907-
105	NUT; SUPPORT	1-31235-014-0	04	1	0710-0711
105	NUT; SUPPORT	1-31235-014-0	04	1	0712-0805
105	NUT; SUPPORT	1-31235-014-0	04	1	0806-0906
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0710-0711
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0712-0805
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0806-0906
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0907-
107	BOLT; LK PLATE	1-31239-061-0	08	1	0710-0711
107	BOLT; LK PLATE	1-31239-061-0	08	1	0712-0805
107	BOLT; LK PLATE	1-31239-061-0	08	1	0806-0906
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-
108	NUT; STRAP	1-09449-036-0	04	1	0710-0711
108	NUT; STRAP	1-09449-036-0	04	1	0712-0805
108	NUT; STRAP	1-09449-036-0	04	1	0806-0906
108	NUT; STRAP	1-09449-036-0	04	1	0907-
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0710-0711
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0712-0805
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0806-0906
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0907-
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0710-0711
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0712-0805
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0806-0906
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0907-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0710-0711
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0712-0906
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0907-
172	LEVER KIT; RELEASE,CLU 6HK1-TCC ENG(81L) (B)	1-87831-170-1	01	1	0712-0805
172	LEVER KIT; RELEASE,CLU 6HK1-TCC ENG(81L) (B)	1-87831-170-1	01	1	0806-0906
172	LEVER KIT; RELEASE,CLU 6HK1-TCC ENG(81L) (B)	1-87831-170-1	01	1	0907-
172	LEVER KIT; RELEASE,CLU (A)	1-87831-172-1	01	1	0710-0711
172	LEVER KIT; RELEASE,CLU 6HK1-TCS ENG(80L) (A)	1-87831-172-1	01	1	0712-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0710-0711
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0712-0805
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0806-0906
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0907-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0710-0711
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0712-0805
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0806-0906
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-
223	COVER; CLU	1-31211-019-1	01	1	0710-0711
223	COVER; CLU	1-31211-019-1	01	1	0712-0805
223	COVER; CLU	1-31211-019-1	01	1	0806-0906
223	COVER; CLU	1-31211-019-1	01	1	0907-

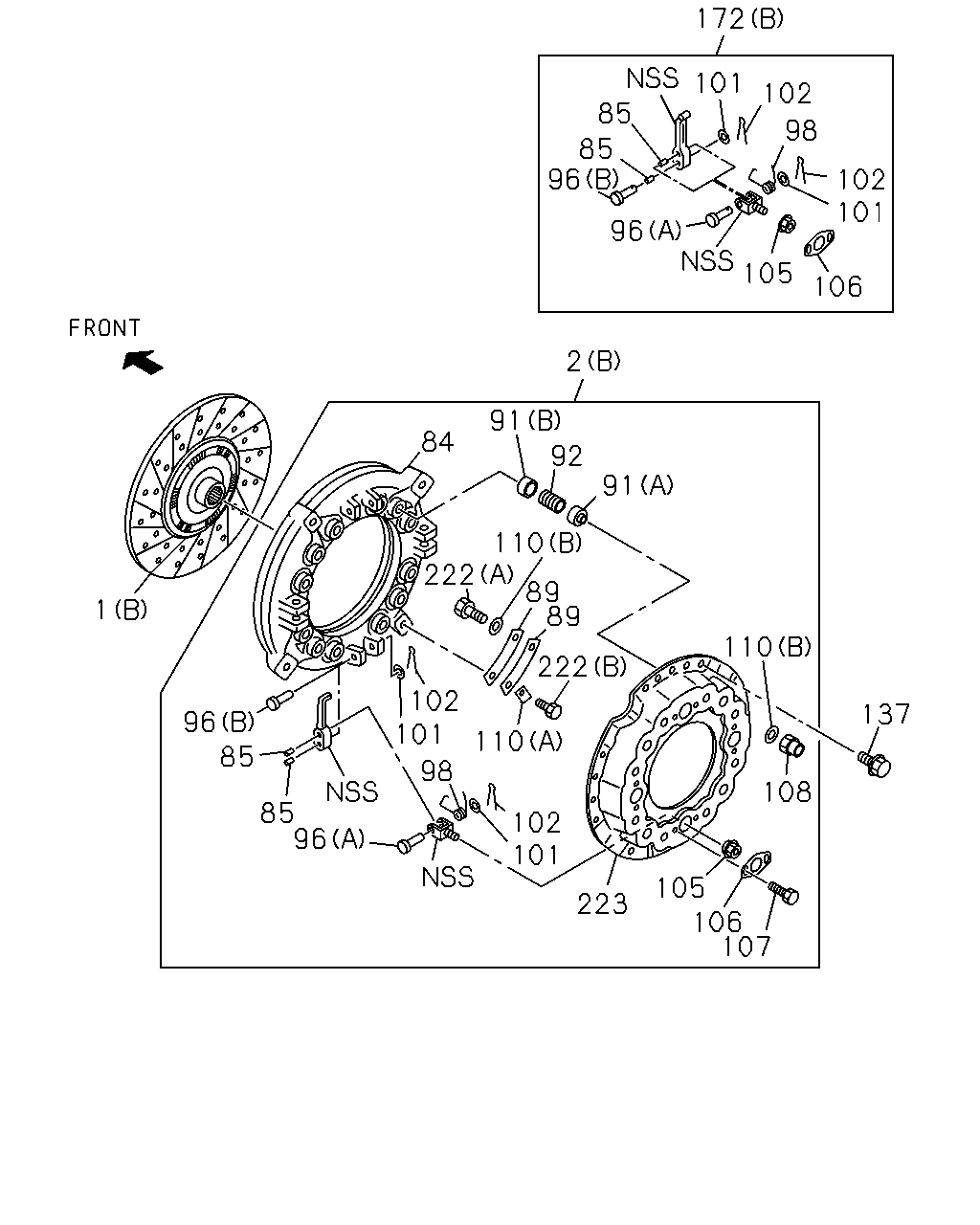

2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 108 1 96 105 106 107 172 102 102 101 101 85 85 96 1 96 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) 15"	1-31240-977-2	01	1	1203-
1	DISC; CLUTCH 6HK1-TCC ENG(81L) (B) 15"	1-31240-851-2	01	1	0712-0906
1	DISC; CLUTCH 6HK1-TCC ENG(81L) (B) 15"	1-31240-851-2	01	1	0907-
1	DISC; CLUTCH (A) 15"	1-31240-977-1	01	1	0710-0711
1	DISC; CLUTCH 6HK1-TCS ENG(80L) (A) 15"	1-31240-977-1	01	1	0712-1110
1	DISC; CLUTCH 6HK1-TCS ENG(80L) (B) 15"	1-31240-972-0	01	1	1111-1202
1	DISC; CLUTCH 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (B) 15"	1-31240-972-1	01	1	1203-
1	DISC; CLUTCH 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) BEST VALUE PARTS	1-87610-143-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	0712-0805
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	0806-0906
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	0907-1009
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B)	1-31220-377-2	01	1	1010-
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-380-2	01	1	0710-0711
2	PLATE ASM; PRESSURE,CLU 6HK1-TCS ENG(80L) (A)	1-31220-380-2	01	1	0712-
2	PLATE ASM; PRESSURE,CLU (A) BEST VALUE PARTS	1-87610-145-0	01	1	0710-0711
2	PLATE ASM; PRESSURE,CLU 6HK1-TCS ENG(80L) (A) BEST VALUE PARTS	1-87610-145-0	01	1	0712-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	0712-0805
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	0806-0906
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	0907-1009
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) (B) BEST VALUE PARTS	1-87610-146-0	01	1	1010-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0710-0711
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0712-0805
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0806-0906
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0907-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0710-0711
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0712-0805
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0806-0906
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-
89	PLATE; STRAP	1-31229-050-0	16	1	0710-0711
89	PLATE; STRAP	1-31229-050-0	16	1	0712-0805
89	PLATE; STRAP	1-31229-050-0	16	1	0806-0906
89	PLATE; STRAP	1-31229-050-0	16	1	0907-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0710-0711
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0712-0805
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0806-0906
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0907-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0710-0711
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0712-0805
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0806-0906
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0907-
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	0712-0805
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	0806-0906
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	0907-1009
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	1010-
92	SPRING; CLU	1-31214-053-0	12	1	0710-0711
92	SPRING; CLU 6HK1-TCS ENG(80L)	1-31214-053-0	12	1	0712-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0710-0711
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0712-0805
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0806-0906
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0710-0711
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0712-0805
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0806-0906
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-
98	SPRING; RETURN	1-31233-003-0	04	1	0710-0711
98	SPRING; RETURN	1-31233-003-0	04	1	0712-0805
98	SPRING; RETURN	1-31233-003-0	04	1	0806-0906
98	SPRING; RETURN	1-31233-003-0	04	1	0907-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0710-0711
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0712-0805
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0806-0906
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0710-0711
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0712-0805
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0806-0906
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0907-
105	NUT; SUPPORT	1-31235-014-0	04	1	0710-0711
105	NUT; SUPPORT	1-31235-014-0	04	1	0712-0805
105	NUT; SUPPORT	1-31235-014-0	04	1	0806-0906
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0710-0711
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0712-0805
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0806-0906
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0907-
107	BOLT; LK PLATE	1-31239-061-0	08	1	0710-0711
107	BOLT; LK PLATE	1-31239-061-0	08	1	0712-0805
107	BOLT; LK PLATE	1-31239-061-0	08	1	0806-0906
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-
108	NUT; STRAP	1-09449-036-0	04	1	0710-0711
108	NUT; STRAP	1-09449-036-0	04	1	0712-0805
108	NUT; STRAP	1-09449-036-0	04	1	0806-0906
108	NUT; STRAP	1-09449-036-0	04	1	0907-
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0710-0711
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0712-0805
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0806-0906
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0907-
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0710-0711
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0712-0805
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0806-0906
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0907-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0710-0711
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0712-0906
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0907-
172	LEVER KIT; RELEASE,CLU 6HK1-TCC ENG(81L) (B)	1-87831-170-1	01	1	0712-0805
172	LEVER KIT; RELEASE,CLU 6HK1-TCC ENG(81L) (B)	1-87831-170-1	01	1	0806-0906
172	LEVER KIT; RELEASE,CLU 6HK1-TCC ENG(81L) (B)	1-87831-170-1	01	1	0907-
172	LEVER KIT; RELEASE,CLU (A)	1-87831-172-1	01	1	0710-0711
172	LEVER KIT; RELEASE,CLU 6HK1-TCS ENG(80L) (A)	1-87831-172-1	01	1	0712-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0710-0711
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0712-0805
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0806-0906
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0907-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0710-0711
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0712-0805
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0806-0906
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-
223	COVER; CLU	1-31211-019-1	01	1	0710-0711
223	COVER; CLU	1-31211-019-1	01	1	0712-0805
223	COVER; CLU	1-31211-019-1	01	1	0806-0906
223	COVER; CLU	1-31211-019-1	01	1	0907-

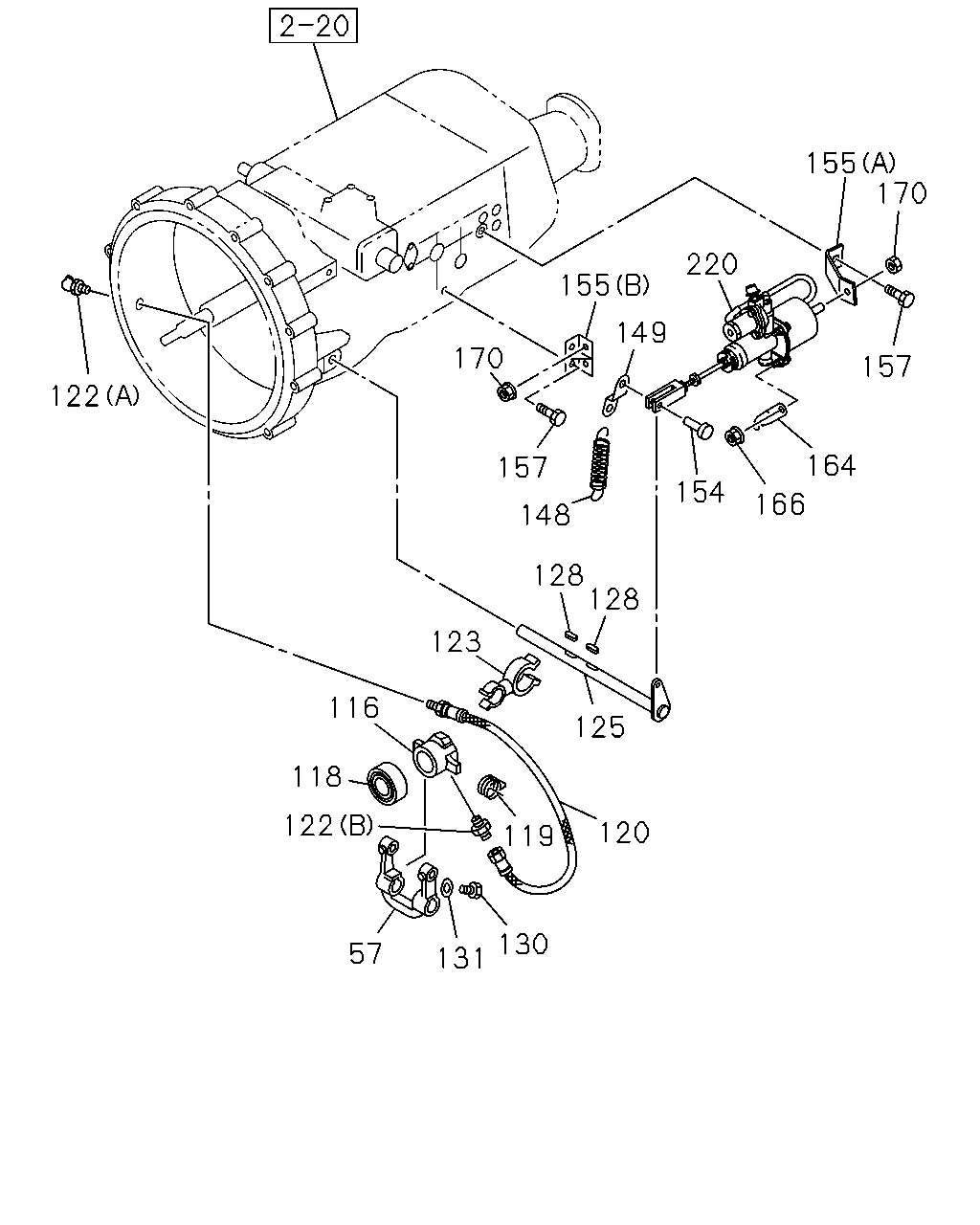

155 170 220 155 149 170 157 122 164 157 154 166 148 128 128 123 116 125 118 122 120 119 130 57 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	0710-0711
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	0712-
116	BLOCK; SHIFT,CLU	1-31321-086-1	01	1	0710-
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0710-0711
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0712-0805
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0710-0711
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0712-0805
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0806-
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0710-0711
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0712-
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0710-0711
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0712-
120	HOSE; FLEX,SHIFT BLOCK,CLU L=360	1-09364-881-0	01	1	0710-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	0-90301-610-0	01	1	0710-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0710-0711
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0712-0805
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0806-
123	CLIP; FLEX HOSE,SHIFT BLOCK	8-97010-484-0	01	1	0710-
125	SHAFT; CLU	1-31342-336-0	01	1	0710-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0710-0711
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0712-0805
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0906
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	0710-0711
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	0712-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0710-0711
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0712-0805
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0906
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0710-0711
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0712-0805
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0906
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	0710-0711
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	0712-
154	PIN; JAW JOINT	1-31424-009-0	01	1	0710-0711
154	PIN; JAW JOINT	1-31424-009-0	01	1	0712-0906
154	PIN; JAW JOINT	1-31424-009-0	01	1	0907-
155	BRACKET; MINIPACK (B)	1-31429-472-1	01	1	0710-
155	BRACKET; MINIPACK (A)	1-31429-473-0	01	1	0710-
157	BOLT; BRKT M10X25 FLANGE	0-28151-025-0	03	1	0710-
164	EYE; SPRING	1-31426-050-0	01	1	0710-
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	01	1	0710-
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0710-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-0	01	1	0710-0805
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	0806-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0710-0711
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
