3-11 — PARKING BRAKE CONTROL (#361) — 52 parça

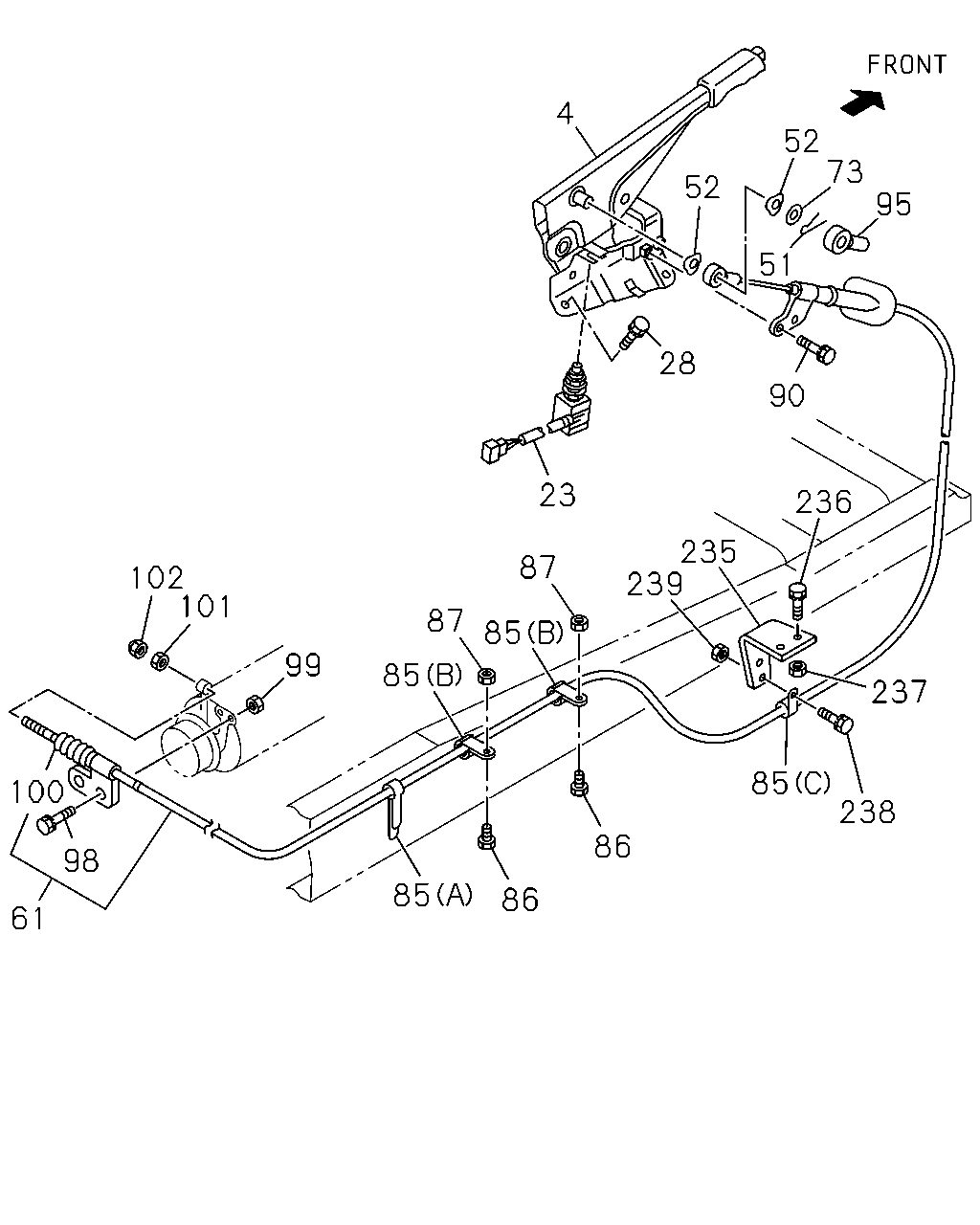

çizim 94500
4 52 73 95 52 51 28 90 23 236 235 239 87 102 101 87 85 99 85 237 85 238 100 86 98 85 86 61
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-716-1 01 1 9202-9305 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46120-061-5 01 1 9306- ● ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CONNECTOR 6PIN 		1-82440-028-0 01 1 9202- ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		9-01960-825-0 03 1 9202-9204 ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 03 1 9205- ● ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=3.7 L=28 		9-08114-028-0 01 1 9202- ● ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9202- ● ●
61 CABLE; PARKING BRK
ENGINE REAR PTO(SV1) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4475 		1-46151-591-3 01 1 9202-9412 ●
61 CABLE; PARKING BRK
MBG5C M/T(X4R) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4475 		1-46151-591-3 01 1 9202-9412 ●
61 CABLE; PARKING BRK
ENGINE REAR PTO(SV1) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4485 		1-79996-147-0 01 1 9501- ●
61 CABLE; PARKING BRK
MBG5C M/T(X4R) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4485 		1-79996-147-0 01 1 9501- ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4425 		1-46151-590-3 01 1 9202-9412 ●
61 CABLE; PARKING BRK
MLD6A M/T(X5N) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4425 		1-46151-590-3 01 1 9202-9412 ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4435 		1-79996-146-0 01 1 9501- ●
61 CABLE; PARKING BRK
MLD6A M/T(X5N) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4435 		1-79996-146-0 01 1 9501- ●
61 CABLE; PARKING BRK
MLD7R M/T(X5L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4525 		1-46151-593-3 01 1 9202-9412 ●
61 CABLE; PARKING BRK
MLD7R M/T(X5L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4535 		1-79996-149-0 01 1 9501- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9202- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9202- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.5 L=20 		1-09701-012-0 01 1 9202- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 02 1 9202- ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
87 NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9202- ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		9-01960-825-0 02 1 9202-9204 ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9205- ● ●
95 CAP; CABLE,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79997-140-2 01 1 9202- ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9202- ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9202- ● ●
100 BELLOWS; CONT WIRE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46159-004-0 01 1 9202- ● ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		9-46259-016-0 01 1 9202- ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9202- ● ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46147-049-1 01 1 9202-9206 ● ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46147-135-1 01 1 9207- ● ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9202- ● ●
238 BOLT; CLIP TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
238 BOLT; CLIP TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
239 NUT; CLIP TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9202- ● ●

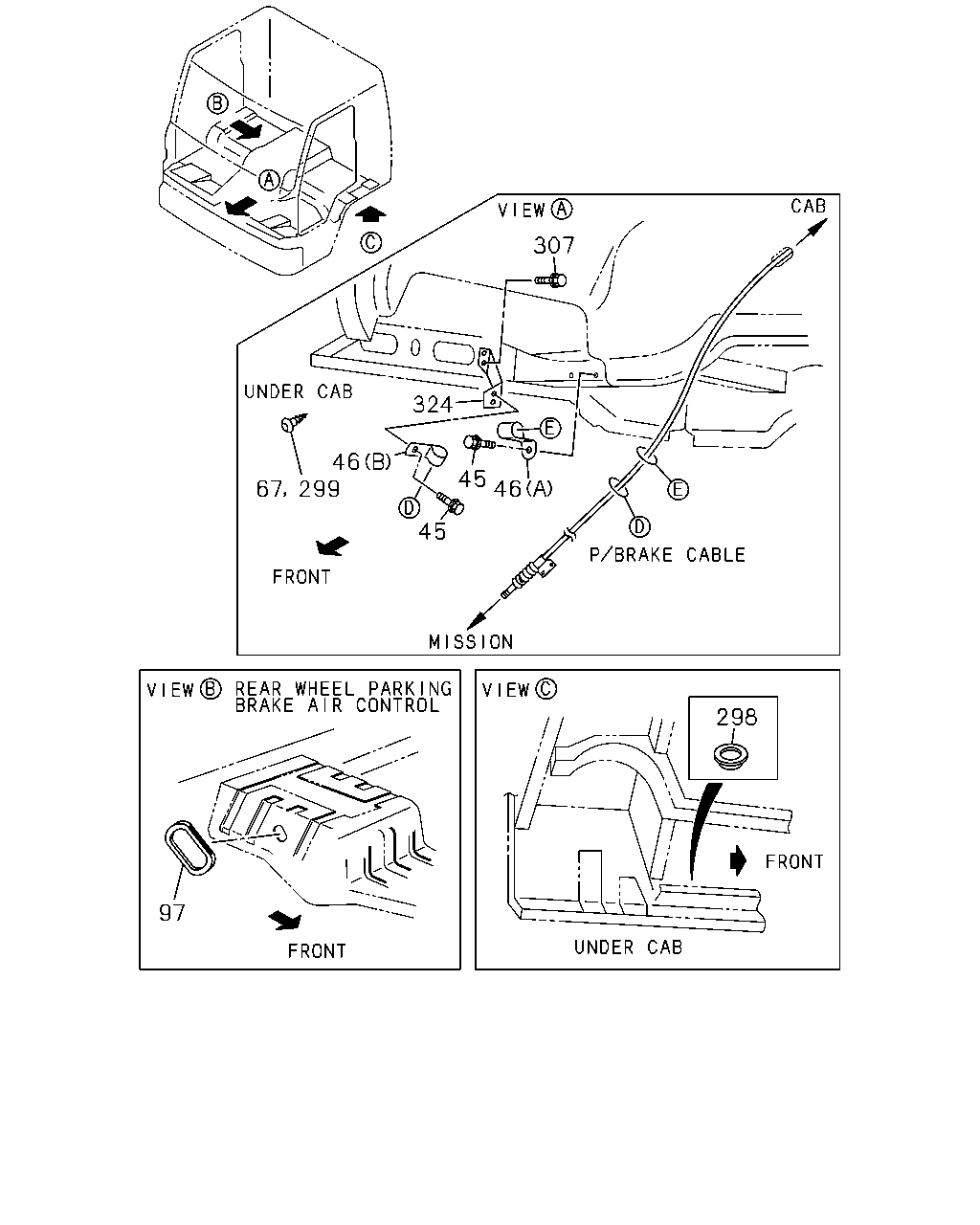

çizim 95592
307 324 46 299 45 46 67 45 298 97
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/LK&PL WASHER 		1-09980-492-0 01 1 9202- ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9202- ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=40 		9-09525-276-0 01 1 9202- ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15.5 		9-09916-962-0 01 1 9202-9302 ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=16 H=24 L=20 		9-09527-015-0 01 1 9303- ● ●
67 PLUG; UNDER FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 02 1 9202- ● ●
67 PLUG; UNDER FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 04 1 9202- ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9202- ● ●
298 GROMMET; RR,AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=32 T=5 		5-09983-018-0 01 1 9202- ● ●
299 PLUG; RR PARTS
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 05 1 9202- ● ●
307 BOLT; BRKT,PARKING BRK CABLE
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9202- ● ●
324 BRACKET 1-79998-367-2 01 1 9202- ● ●
