◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶

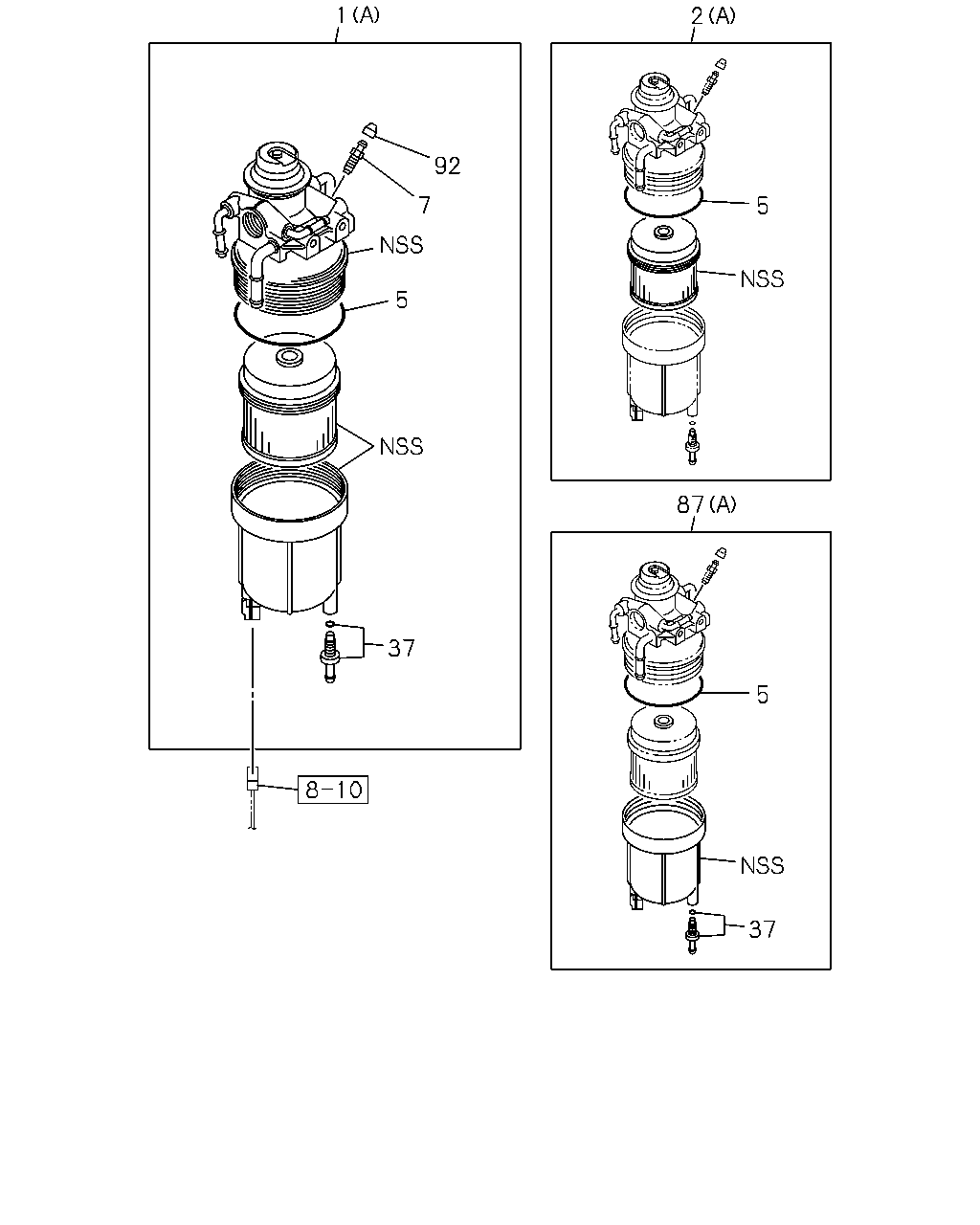

1-45 — WATER SEDIMENTER; FUEL (#36097) — 27 parça

1 2 92 7 5 5 87 37 5 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98086-193-1	01	1	0809-	●
1	SEDIMENTER; FUEL (A)	8-98023-327-2	01	1	0710-1002	●	●	●
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1003-	●	●	●
2	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<NT2> (B) BEST VALUE PARTS	1-87610-094-1	01	1	0809-	●
2	ELEMENT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1112-	●	●	●
2	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<NT2> (B)	8-98092-481-1	01	1	0809-	●
2	ELEMENT; FUEL FILTER (A)	8-98037-011-0	01	1	0710-1002	●	●	●
2	ELEMENT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1111	●	●	●
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1112-	●	●	●
5	GASKET; UPR COVER,SEDIMENTER	8-98037-015-0	01	1	0710-1111	●	●	●
5	GASKET; UPR COVER,SEDIMENTER	8-98203-600-0	01	1	1112-	●	●	●
7	PLUG; DRAIN,SEDIMENTER M8X10	8-98034-312-0	01	1	0710-	●	●	●
37	PLUG; SENSOR	8-98037-095-0	01	1	0710-	●	●	●
87	CASE ASM; SEDIMENTER EURO2 SPECIFICATION<NT2> (B)	8-98092-482-1	01	1	0809-	●
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	0710-	●	●	●
92	CAP; DRAIN	8-98034-314-0	01	1	0710-	●	●	●

1 2 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98086-193-1	01	1	0809-	●
1	SEDIMENTER; FUEL (A)	8-98023-327-2	01	1	0710-1002	●	●	●
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1003-	●	●	●
2	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<NT2> (B) BEST VALUE PARTS	1-87610-094-1	01	1	0809-	●
2	ELEMENT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1112-	●	●	●
2	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<NT2> (B)	8-98092-481-1	01	1	0809-	●
2	ELEMENT; FUEL FILTER (A)	8-98037-011-0	01	1	0710-1002	●	●	●
2	ELEMENT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1111	●	●	●
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1112-	●	●	●
87	CASE ASM; SEDIMENTER EURO2 SPECIFICATION<NT2> (B)	8-98092-482-1	01	1	0809-	●
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	0710-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
