Sayfa 1-41 - Isuzu EPC

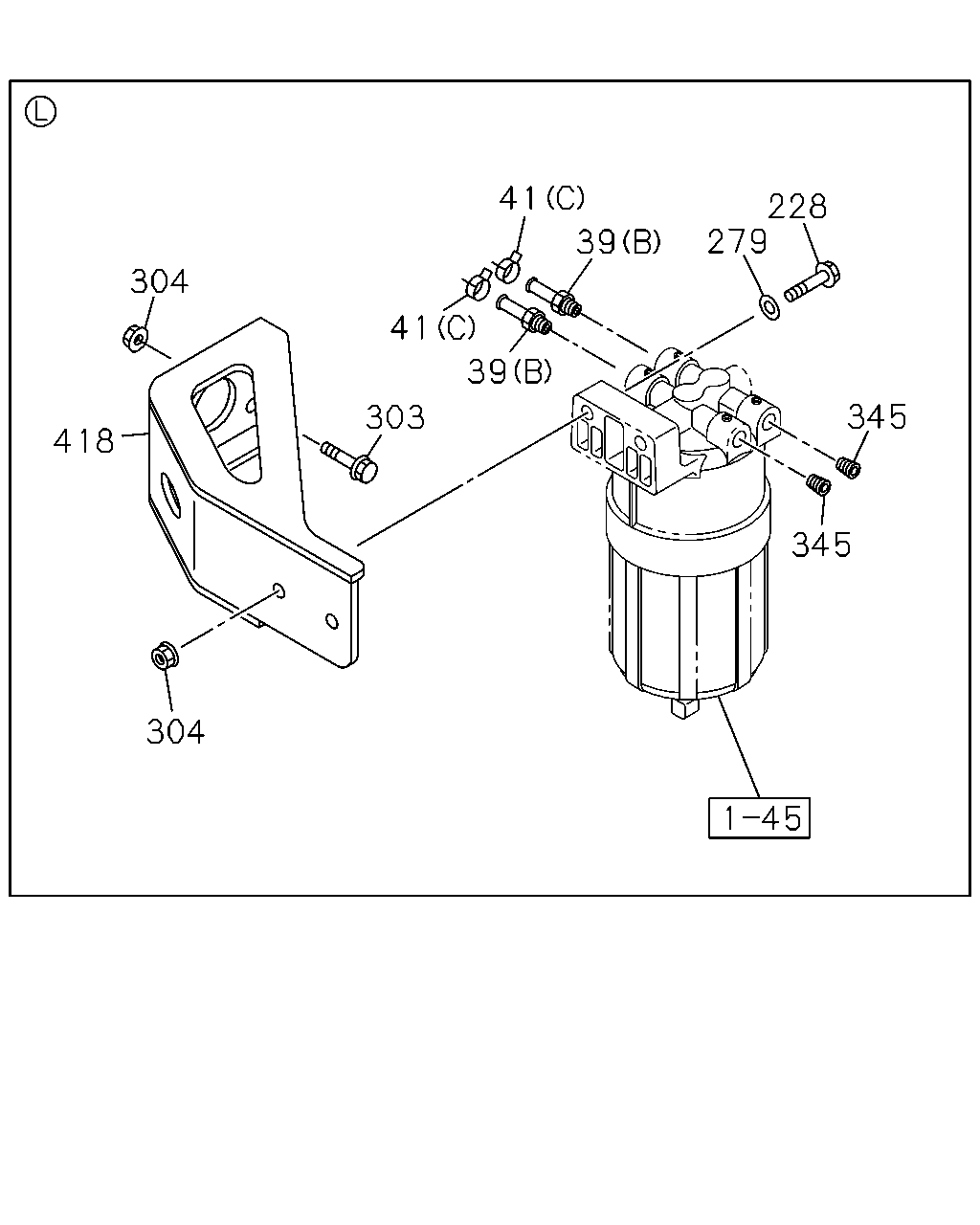

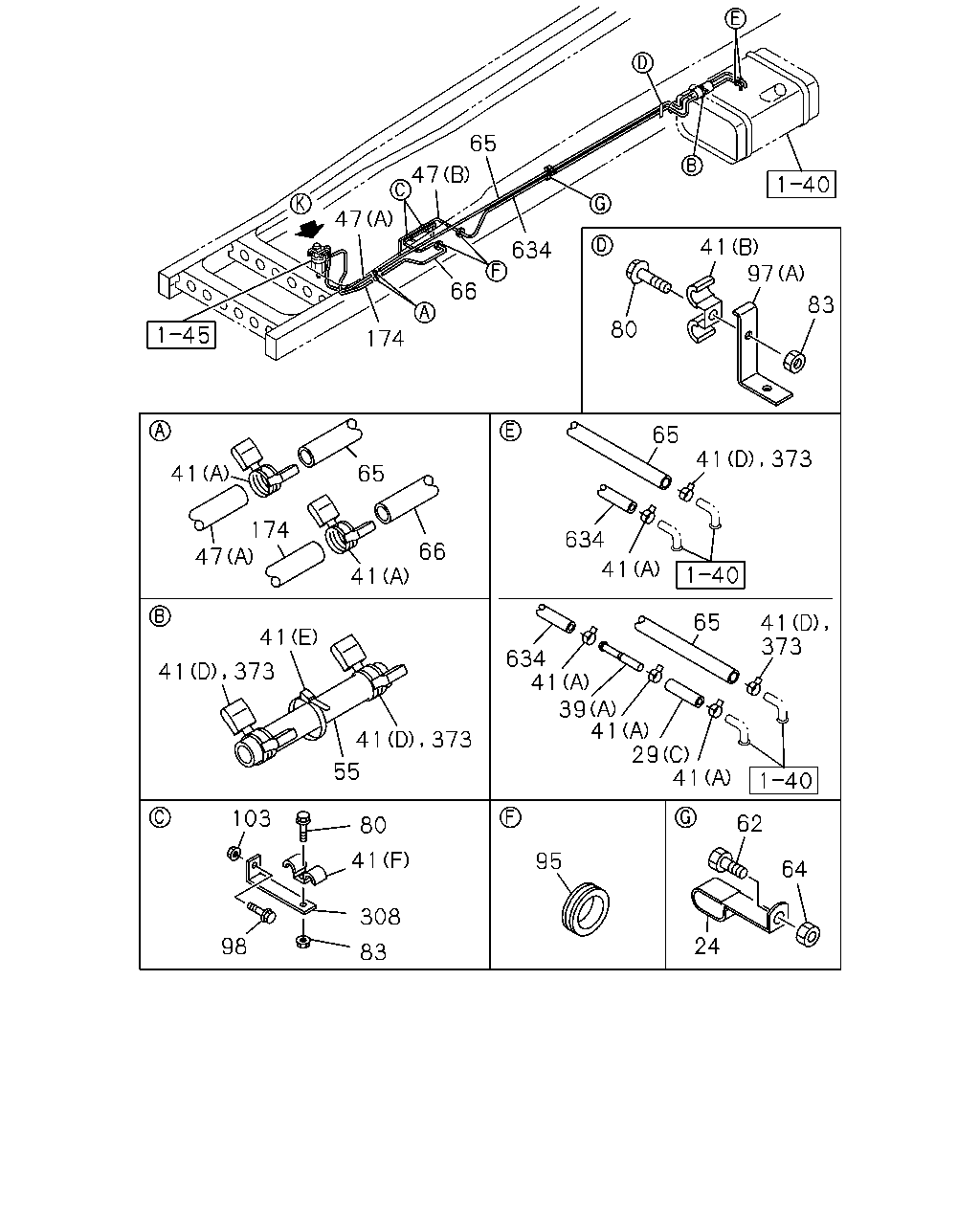

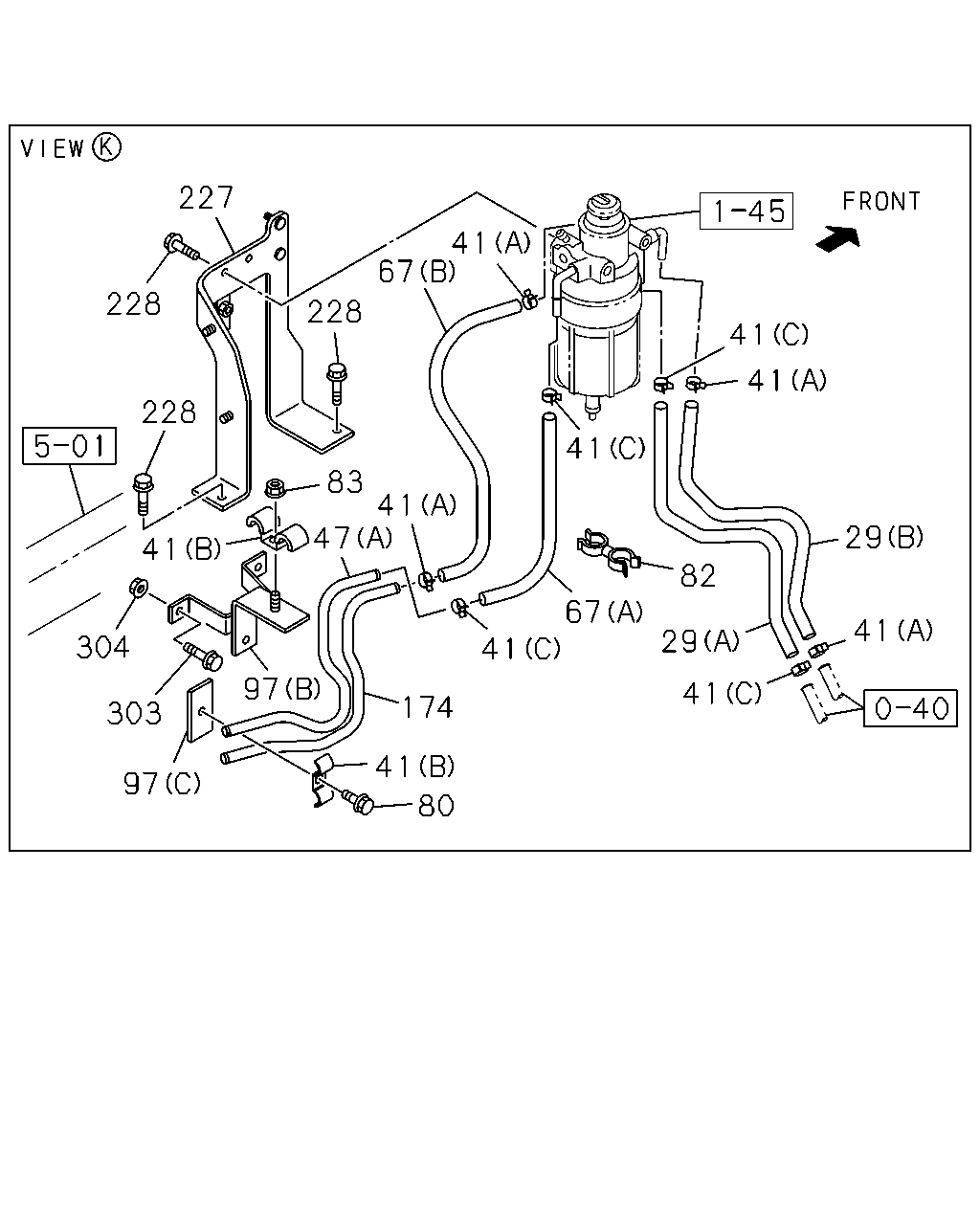

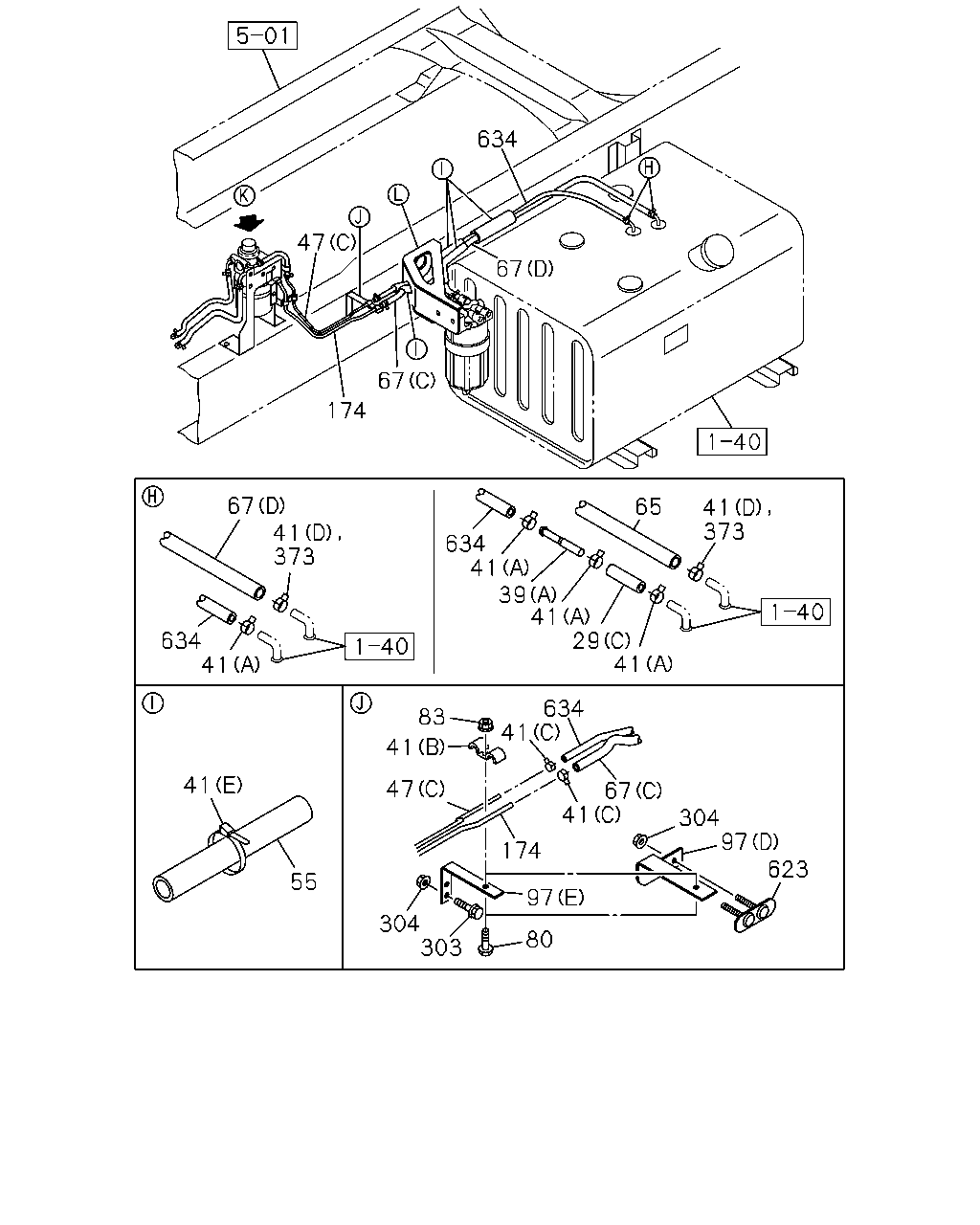

1-41 — FUEL PIPING; CHASSIS (#36096) — 549 parça

634 47 67 174 67 41 373 634 41 41 55 65 67 41 373 634 41 39 41 29 41 634 41 83 41 47 174 304 303 80 97 41 67 304 97 623

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-			●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903		●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-		●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0710-	●	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0710-			●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0804-0808			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0710			●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	0712-0808		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (A) ID=13	8-94238-571-0	08	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (C) L=539	8-98117-709-0	01	1	0809-		●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B)	8-98097-500-0	01	1	0710-0807		●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	0808-0808	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	0808-0808		●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	0809-	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-	●		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-0808			●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-			●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0803	●	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710			●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808			●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-			●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98128-785-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98157-880-0	01	1	0911-		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-0808	●		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0710-0808		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0809-	●		●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-		●
97	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0810-0812		●
97	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0810-0812		●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0901-		●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-	●		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-	●		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-	●		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0802-0808	●	●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809	●
303	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812	●
303	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0901-1008		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0801	●	●	●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0802-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0802-0808			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809	●
303	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-0809			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812	●
303	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0810-0812			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0901-1008			●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0804-	●	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	0804-			●
623	PLATE; STUD BOLT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0809-0809		●
623	PLATE; STUD BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0810-0812		●
623	PLATE; STUD BOLT EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0901-		●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808			●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-			●

65 47 47 41 97 634 66 83 80 174 65 65 41 174 634 66 47 41 41 65 41 373 41 634 41 39 41 29 41 55 103 62 80 41 95 64 308 24 98 83 41 373 41 373 41 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0801-0808	●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0801-0808		●
24	CLIP; FUEL HOSE ID=20 L=70	1-09701-033-0	01	1	0801-0808			●
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0809-0809	●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0809-0809		●
24	CLIP; FUEL HOSE ID=20 L=70	1-09701-033-0	01	1	0809-0809			●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0809-0905		●
24	CLIP; FUEL HOSE ID=20 L=70	1-09701-033-0	01	1	0809-0905			●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0906-		●
24	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0906-		●
24	CLIP; FUEL HOSE ID=20 L=70	1-09701-033-0	01	1	0906-			●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> ID=14X29 H=30 L=25	1-09701-101-0	01	1	0712-0808		●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> ID=14X29 H=30 L=25	1-09701-101-0	01	1	0809-0809		●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-			●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903		●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-		●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0710-	●	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0710-			●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0804-0808			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0710			●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	0712-0808		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (A) ID=13	8-94238-571-0	08	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (C) L=539	8-98117-709-0	01	1	0809-		●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B)	8-98097-500-0	01	1	0710-0807		●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	0808-0808	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	0808-0808		●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	0809-	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-	●		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-0808			●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-			●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0803	●	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710			●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	0712-0808		●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	0809-0809		●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	0809-0905		●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	0809-0905			●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	0906-		●
62	BOLT; CLIP FIX EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	0906-		●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	0906-			●
64	NUT; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0712-0808		●
64	NUT; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0809-0809		●
64	NUT; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0809-0905		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0809-0905			●
64	NUT; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0906-		●
64	NUT; CLIP EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0906-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-			●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808			●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-			●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●		●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808		●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●		●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-0808	●		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0710-0808		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0809-	●		●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-		●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	02	1	0712-0808	●	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-0711	●	●	●
95	BUSHING; PIPE,FUEL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	0712-0808	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	0712-0808		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0712-0808			●
95	BUSHING; PIPE,FUEL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-			●
97	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0810-0812		●
97	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0810-0812		●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0901-		●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-	●		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-	●		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-		●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●		●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0710-0808		●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0809-	●		●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0809-		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0808	●		●
103	NUT; BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0710-0808		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-	●		●
103	NUT; BRKT 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-	●		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-		●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0710-0808	●		●
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) L=75	1-47478-323-0	02	1	0710-0808		●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0809-	●		●
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=75	1-47478-323-0	02	1	0809-		●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0804-	●	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	0804-			●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808			●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-			●

41 228 279 39 304 41 39 345 303 418 345 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903		●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-		●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0710-	●	●
39	PIPE; FUEL (A)	8-98009-438-1	01	1	0710-			●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0804-0808			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0710			●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	0712-0808		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (A) ID=13	8-94238-571-0	08	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-		●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0809-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0802-0808	●	●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809	●
303	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812	●
303	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0901-1008		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0801	●	●	●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0802-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0802-0808			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809	●
303	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-0809			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812	●
303	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0810-0812			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0901-1008			●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0809-		●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98128-254-0	01	1	0809-		●

227 228 228 41 304 303 97 97 174 80 41 47 41 83 228 67 41 41 41 29 41 41 29 82 41 67 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-			●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0804-0808			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0809-			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0710			●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	0712-0808		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (A) ID=13	8-94238-571-0	08	1	0710-0808		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-	●		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (C) L=539	8-98117-709-0	01	1	0809-		●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B)	8-98097-500-0	01	1	0710-0807		●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	0808-0808	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	0808-0808		●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	0809-	●		●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=787	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-	●		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-		●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98128-785-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98157-880-0	01	1	0911-		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910		●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-0808	●		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0710-0808		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0809-	●		●
83	NUT; CLIP,FUEL TANK EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-		●
97	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (E)	8-98117-696-0	01	1	0810-0812		●
97	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-0809		●
97	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0810-0812		●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0901-		●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-	●		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-	●		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-	●		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-		●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-	●	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-		●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0802-0808	●	●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809	●
303	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0809-0809		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812	●
303	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0810-0812		●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0901-1008		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0801	●	●	●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0802-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0802-0808			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809	●
303	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-0809			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812	●
303	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0810-0812		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0810-0812			●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008	●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0901-1008		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0901-1008			●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009		●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
