Sayfa 1-40 - Isuzu EPC

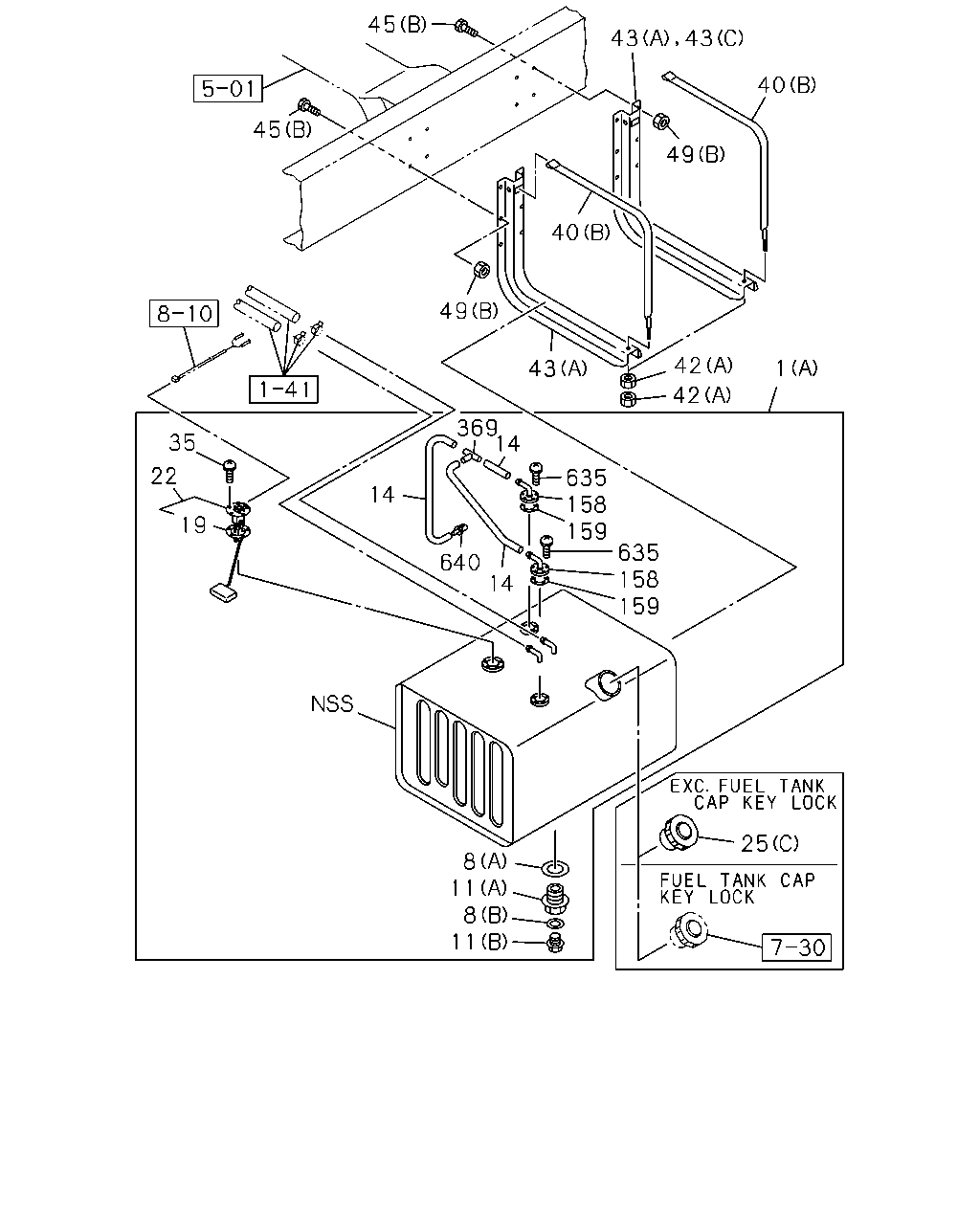

1-40 — FUEL TANK (#36095) — 147 parça

45 43 43 40 45 49 40 49 42 1 43 42 369 14 35 22 635 158 159 14 19 635 158 159 640 14 25 8 11 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98097-036-0	01	1	0710-0710	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98099-833-0	01	1	0710-0809	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98122-995-1	01	1	0810-1211	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 885X603X453 200L	8-98187-002-1	01	1	1212-	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X680X625 400L	1-87411-168-0	01	1	0710-1003	●	●
1	TANK; FUEL (B) 1020X680X625 400L	1-87411-168-0	01	1	0710-1003			●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X685X625 400L	1-87412-052-0	01	1	1004-	●	●
1	TANK; FUEL (B) 1020X685X625 400L	1-87412-052-0	01	1	1004-			●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) ID=30	8-98067-041-0	01	1	0710-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	0710-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=18.2 T=1.6	8-98030-453-0	01	1	0710-			●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M30	8-98067-038-0	01	1	0710-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	0710-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	0710-	●	●
11	PLUG; DRAIN,FUEL TANK (C) M18X12	0-92002-418-0	01	1	0710-			●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=170 SERVICED BY L=3000	0-01256-300-0	01	1	0810-	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=270 SERVICED BY L=3000	0-01256-300-0	02	1	0710-0809	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0810-	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0710-1003	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=540 SERVICED BY L=3000	0-01256-300-0	01	1	1004-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0710-1210	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0710-1210			●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-			●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0710-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98096-922-0	01	1	0710-0710	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98099-321-0	01	1	0710-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (B)	1-22440-057-2	01	1	0906-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	1-22440-057-2	01	1	0906-		●
25	CAP; FILLER,FUEL TANK (B)	1-22440-057-2	01	1	0906-			●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL TANK CAP KEY LOCK<N05> (C)	8-97387-179-0	01	1	0712-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-056-0	01	1	0710-0711	●	●
25	CAP; FILLER,FUEL TANK (A)	1-22440-056-0	01	1	0710-0711			●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-056-0	01	1	0712-0901	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05> (A)	1-22440-056-0	01	1	0712-0901		●
25	CAP; FILLER,FUEL TANK (A)	1-22440-056-0	01	1	0712-0901			●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (C)	1-22440-056-0	01	1	0902-	●	●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0902-			●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X12 W/LK WASHER	0-36220-512-0	05	1	0710-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	1-22550-261-0	02	1	0710-1110	●	●
40	BELT; SUPPORT,FUEL TANK (A) L=1210	1-22550-261-0	02	1	0710-1110			●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	8-98202-448-0	02	1	1111-	●	●
40	BELT; SUPPORT,FUEL TANK (A) L=1210	8-98202-448-0	02	1	1111-			●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=1070	8-98067-501-1	02	1	0710-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) M12	0-91110-512-0	04	1	0710-	●	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> (B) M10	0-91110-510-0	04	1	0710-	●	●
42	NUT; SUPPORT BELT (B) M10	0-91110-510-0	04	1	0710-			●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C)	8-98122-884-0	01	1	0810-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98010-733-0	02	1	0710-0809	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98010-733-0	01	1	0810-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	0710-	●	●
43	BRACKET; FUEL TANK (B)	1-53461-525-1	02	1	0710-			●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M12X35 FLANGE	0-28651-235-0	08	1	0710-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 400L<SDH> (A) M12X40 FLANGE	0-28051-240-0	12	1	0710-	●	●
45	BOLT; BRKT,FUEL TANK (A) M12X40 FLANGE	0-28051-240-0	12	1	0710-			●
49	NUT; BRKT 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	0811-	●
49	NUT; BRKT 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	0811-		●
49	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0710-0810	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906	●	●
49	NUT; BRKT 6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906	●
49	NUT; BRKT 6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906		●
49	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M12 FLANGE	0-91180-212-0	08	1	0907-	●	●
49	NUT; BRKT 6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0907-	●
49	NUT; BRKT 6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0907-		●
49	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0907-		●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0710-	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	12	1	0710-			●
158	VALVE; ROLL OVER & FLOAT FUEL TANK 200L FRAME SIDE<N20>	8-98067-039-0	02	1	0710-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> ID=45 OD=67	1-83149-003-0	02	1	0710-	●	●
369	JOINT; HOSE FUEL TANK 200L FRAME SIDE<N20>	8-98067-080-0	01	1	0710-	●	●
635	SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> M5X12 W/LK WASHER	0-36220-512-0	10	1	0710-	●	●
640	VENTILATOR; HOSE,BREATHER FUEL TANK 200L FRAME SIDE<N20>	8-98092-398-0	01	1	0810-	●	●

3 526 19 1 516 8 11 45 25 237 49 38 40 237 43 237 38 49 40 237 43 42 42 42 42 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98097-036-0	01	1	0710-0710	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98099-833-0	01	1	0710-0809	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98122-995-1	01	1	0810-1211	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 885X603X453 200L	8-98187-002-1	01	1	1212-	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X680X625 400L	1-87411-168-0	01	1	0710-1003	●	●
1	TANK; FUEL (B) 1020X680X625 400L	1-87411-168-0	01	1	0710-1003			●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X685X625 400L	1-87412-052-0	01	1	1004-	●	●
1	TANK; FUEL (B) 1020X685X625 400L	1-87412-052-0	01	1	1004-			●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-	●	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-			●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) ID=30	8-98067-041-0	01	1	0710-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	0710-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=18.2 T=1.6	8-98030-453-0	01	1	0710-			●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M30	8-98067-038-0	01	1	0710-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	0710-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	0710-	●	●
11	PLUG; DRAIN,FUEL TANK (C) M18X12	0-92002-418-0	01	1	0710-			●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0710-1210	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0710-1210			●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1211-	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-			●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0710-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (B)	1-22440-057-2	01	1	0906-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	1-22440-057-2	01	1	0906-		●
25	CAP; FILLER,FUEL TANK (B)	1-22440-057-2	01	1	0906-			●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL TANK CAP KEY LOCK<N05> (C)	8-97387-179-0	01	1	0712-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-056-0	01	1	0710-0711	●	●
25	CAP; FILLER,FUEL TANK (A)	1-22440-056-0	01	1	0710-0711			●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-056-0	01	1	0712-0901	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05> (A)	1-22440-056-0	01	1	0712-0901		●
25	CAP; FILLER,FUEL TANK (A)	1-22440-056-0	01	1	0712-0901			●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (C)	1-22440-056-0	01	1	0902-	●	●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0902-			●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0710-	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0710-			●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	1-22550-261-0	02	1	0710-1110	●	●
40	BELT; SUPPORT,FUEL TANK (A) L=1210	1-22550-261-0	02	1	0710-1110			●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	8-98202-448-0	02	1	1111-	●	●
40	BELT; SUPPORT,FUEL TANK (A) L=1210	8-98202-448-0	02	1	1111-			●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=1070	8-98067-501-1	02	1	0710-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) M12	0-91110-512-0	04	1	0710-	●	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> (B) M10	0-91110-510-0	04	1	0710-	●	●
42	NUT; SUPPORT BELT (B) M10	0-91110-510-0	04	1	0710-			●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C)	8-98122-884-0	01	1	0810-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98010-733-0	02	1	0710-0809	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98010-733-0	01	1	0810-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	0710-	●	●
43	BRACKET; FUEL TANK (B)	1-53461-525-1	02	1	0710-			●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M12X35 FLANGE	0-28651-235-0	08	1	0710-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 400L<SDH> (A) M12X40 FLANGE	0-28051-240-0	12	1	0710-	●	●
45	BOLT; BRKT,FUEL TANK (A) M12X40 FLANGE	0-28051-240-0	12	1	0710-			●
49	NUT; BRKT 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	0811-	●
49	NUT; BRKT 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	0811-		●
49	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0710-0810	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906	●	●
49	NUT; BRKT 6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906	●
49	NUT; BRKT 6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906		●
49	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0811-0906		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M12 FLANGE	0-91180-212-0	08	1	0907-	●	●
49	NUT; BRKT 6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0907-	●
49	NUT; BRKT 6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0907-		●
49	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	0907-		●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0710-	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	12	1	0710-			●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0710-	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	0710-			●
516	GASKET; CAP FUEL TANK 400L<SDH> ID=78	8-98259-383-0	01	1	0710-	●	●
516	GASKET; CAP ID=78	8-98259-383-0	01	1	0710-			●
526	SENDER; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0710-1210	●	●
526	SENDER; FUEL TANK	1-83141-132-0	01	1	0710-1210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
