◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#36093) — 106 parça

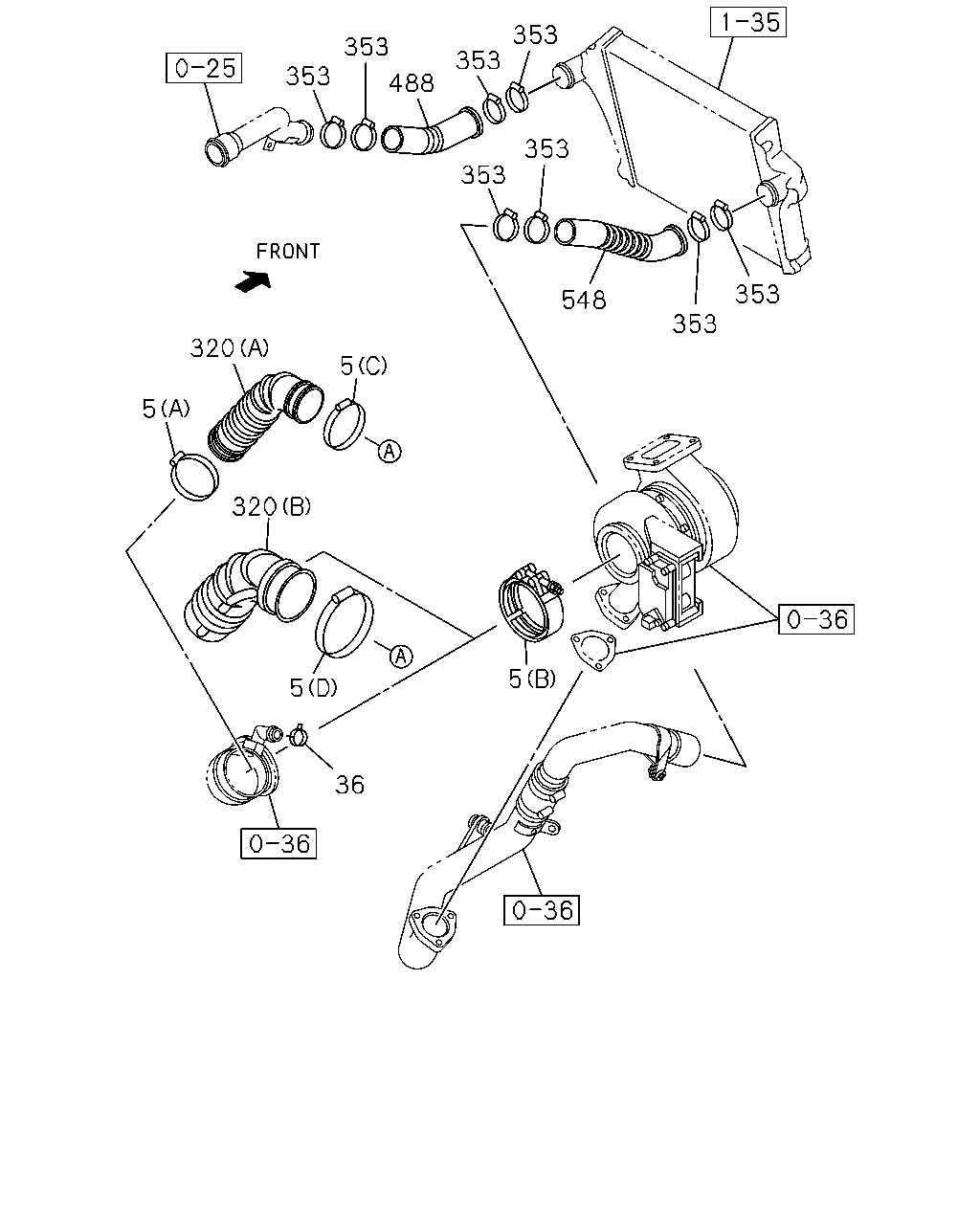

çizim 179540
353 353 353 353 488 353 353 353 548 353 320 5 5 320 5 5 36
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
FVR(FG****) EXC. KD PREPARATORY PACK<6HF> (C) ID=130-169 		8-98155-950-0 01 1 1002- ●
5 CLIP; AIR DUCT
GVR AIR SUS(GGD***) (C) ID=130-169 		8-98155-950-0 01 1 1002- ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006 ● ● ●
5 CLIP; AIR DUCT
GVR AIR SUS(GGD***) (A) ID=104-142 		1-09707-139-0 01 1 1002-1006 ● ● ●
5 CLIP; AIR DUCT
FVR AIR SUS(FGD***) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006 ●
5 CLIP; AIR DUCT
FVR(FG****) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006 ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007- ● ● ●
5 CLIP; AIR DUCT
GVR AIR SUS(GGD***) (A) ID=104-142 		1-09707-139-0 01 1 1007- ● ● ●
5 CLIP; AIR DUCT
FVR AIR SUS(FGD***) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007- ●
5 CLIP; AIR DUCT
FVR(FG****) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007- ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (D) ID=87-116 		1-09707-138-0 01 1 1002-1006 ● ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> (D) ID=87-116 		1-09707-138-0 01 1 1007- ● ● ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> (D) ID=87-113 		1-09707-199-0 01 1 0809-0811 ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> (D) ID=90-110 		8-98133-365-0 01 1 0812-1001 ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (D) ID=90-110 		8-98133-365-0 01 1 1002-1006 ● ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> (D) ID=90-110 		8-98133-365-0 01 1 1007- ● ● ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0710-0711 ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0712-0808 ● ● ●
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> (B) ID=114 		8-15178-030-0 01 1 0809- ● ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0809- ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0808 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0808 ● ●
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> (A) ID=104-139 		1-09707-200-0 01 1 0809-0812 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0809-0812 ● ●
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> (A) ID=100-120 		8-98133-366-0 01 1 0901-1001 ● ● ●
5 CLIP; AIR DUCT
FVR AIR SUS(FGD***) KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1002-1006 ● ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1002-1006 ● ● ●
5 CLIP; AIR DUCT
FVR AIR SUS(FGD***) KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1007- ● ● ●
5 CLIP; AIR DUCT
FVR LEAF SUS(FGR***) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=100-120 		8-98133-366-0 01 1 1007- ● ● ●
5 CLIP; AIR DUCT
(C) ID=130-165 		1-09707-201-0 01 1 0710-0810 ●
5 CLIP; AIR DUCT
(C) ID=130-150 		8-98133-360-0 01 1 0811-1001 ●
5 CLIP; AIR DUCT
FVR(FG****) KD PREPARATORY PACK<6HF> (C) ID=130-150 		8-98133-360-0 01 1 1002- ●
36 COVER; INT DUCT
ID=22 		8-94382-401-0 01 1 0712-0712 ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (B) 		8-98073-259-0 01 1 0809- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (B) 		8-98073-257-0 01 1 0809- ●
320 HOSE; CONN,ACL
(A) 		8-98012-859-2 01 1 0712-0808 ● ●
320 HOSE; CONN,ACL
(A) 		8-98012-859-2 01 1 0809- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (A) 		8-98012-859-2 01 1 0809- ●
320 HOSE; CONN,ACL
FVR(FG****) GVR AIR SUS(GGD***) (A) 		8-98021-990-2 01 1 0710-0808 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (A) 		8-98021-990-2 01 1 0809- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002- ● ● ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0710-0811 ● ● ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002- ● ● ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 0710- ● ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> 		8-98181-974-1 01 1 1102- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 0710-1101 ● ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> 		8-98065-044-0 01 1 1102- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1102- ●

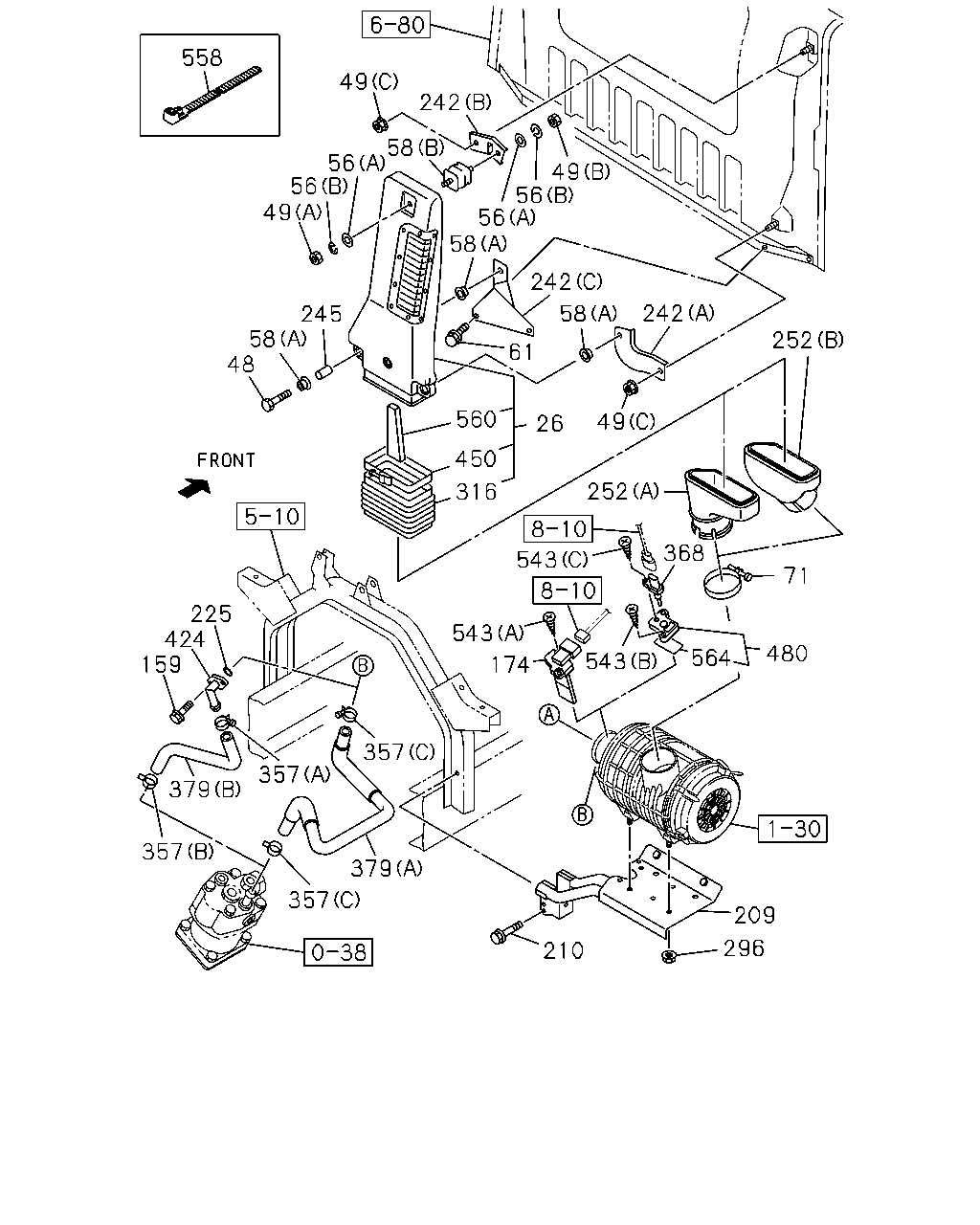

çizim 179584
558 49 242 58 56 56 49 49 56 56 58 242 242 58 245 61 58 48 252 560 49 26 450 252 316 368 543 71 225 424 159 543 480 564 543 174 357 357 379 357 379 357 209 296 210
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 0710- ● ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0710- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0710- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0710- ● ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0710- ● ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0710- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0710- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0710-0810 ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0710-0807 ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808- ● ● ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0712-0812 ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901- ● ●
71 CLIP; AIR DUCT
ID=130-165 		1-09707-201-0 01 1 0710-0810 ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 0811- ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0712- ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0711 ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712-0808 ● ● ●
174 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION<NT4> 		8-97601-967-0 01 1 0809- ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0809- ●
209 BRACKET; ACL 8-98021-995-1 01 1 0710- ● ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710- ● ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0712- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0710- ● ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 0710- ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0710- ● ● ●
252 DUCT; AIR INT
(B) 		8-98012-861-1 01 1 0712- ● ●
252 DUCT; AIR INT
(A) 		8-98021-989-1 01 1 0710- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 0712- ● ● ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 0712- ● ● ●
357 CLIP; RUBBER HOSE
(C) ID=26 		1-09707-091-0 02 1 0710-0711 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=26 		1-09707-091-0 02 1 0712- ● ● ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 0809- ● ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-97619-194-0 01 1 0712- ● ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98077-469-0 01 1 0712- ● ●
379 HOSE; RUBBER
(A) 		8-98077-470-0 01 1 0710- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 0712- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0710- ● ● ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 0809- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0809- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0809- ● ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0711 ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0808 ● ● ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0809- ● ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0809- ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 0712- ● ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 03 1 0710-0711 ● ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0712- ● ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0710- ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 0809- ● ●
