◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#36092) — 17 parça

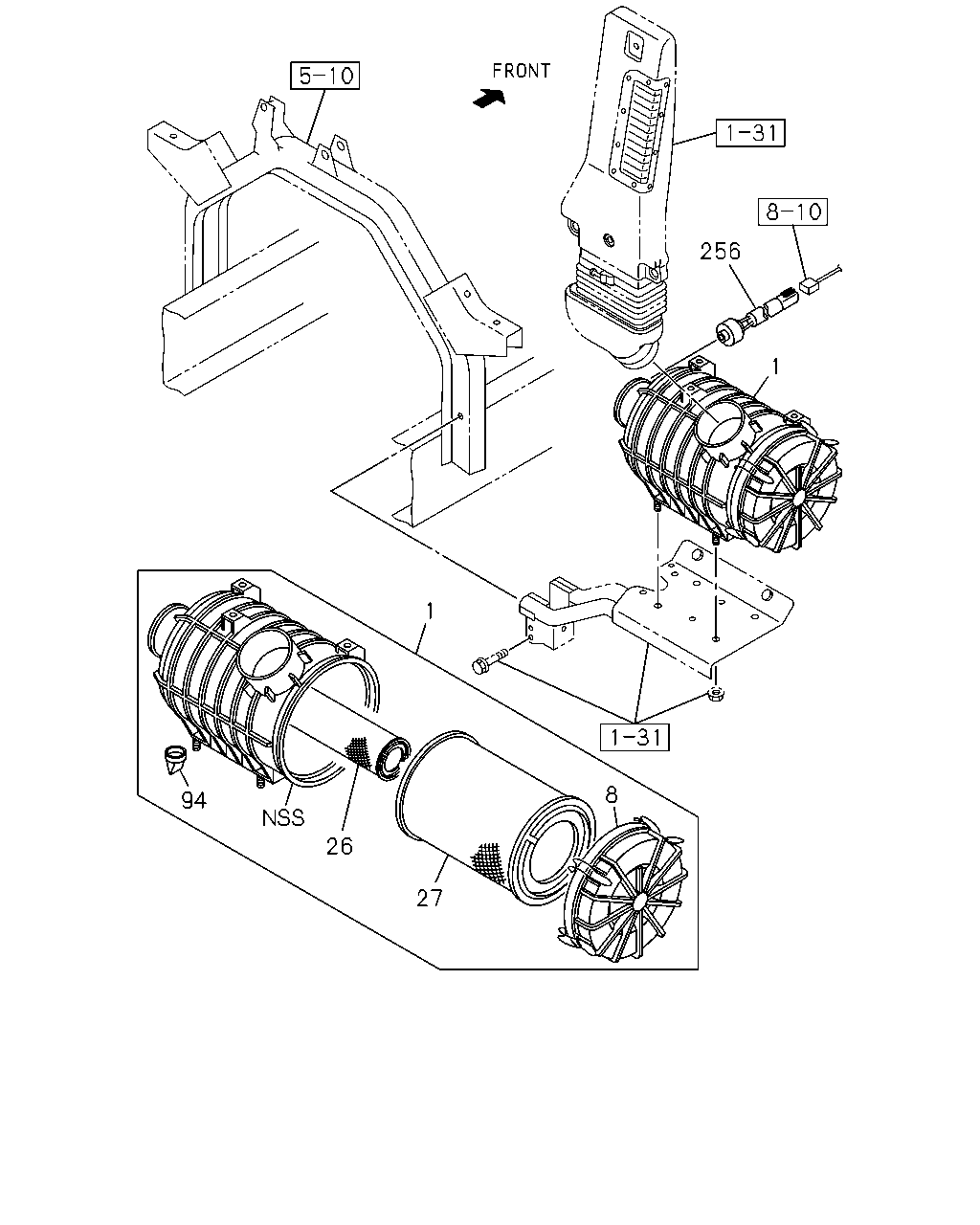

çizim 179550
256 1 1 8 94 26 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0712- ● ●
1 CLEANER ASM; AIR 8-98057-666-3 01 1 0710- ●
8 COVER ASM; ACL 8-98066-740-0 01 1 0712- ● ●
8 COVER ASM; ACL 8-98066-739-0 01 1 0710- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-116-1 01 1 0710- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 0712- ● ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0712- ● ●
26 FILTER; ACL,INNER 8-98071-424-0 01 1 0710- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-115-1 01 1 0710- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 0712- ● ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0712- ● ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-423-0 01 1 0710- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0710-0711 ●
94 VALVE; VACUATOR
FVR(FG****) GVR AIR SUS(GGD***) 		1-14219-279-0 01 1 0712- ●
94 VALVE; VACUATOR
FVR LEAF SUS(FGR***) 		1-14219-279-0 01 1 0712- ● ●
256 SENSOR; AIRFLOW 8-98071-103-1 01 1 0710-1002 ● ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1003- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
