1-10 — RADIATOR (#36090) — 137 parça

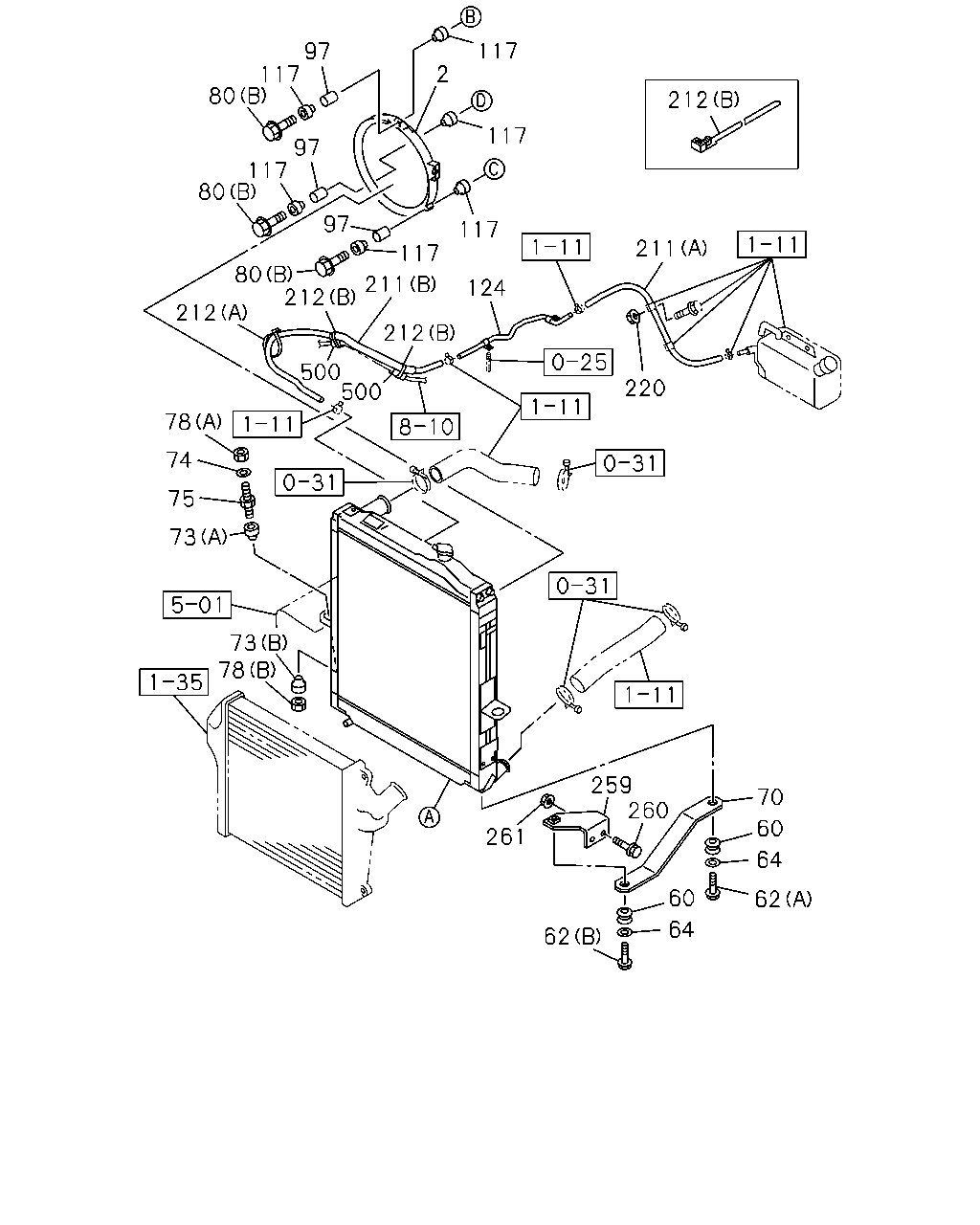

çizim 179500
117 97 117 80 2 212 117 97 117 80 97 117 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 259 260 70 60 261 64 60 62 64 62
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN 8-94393-779-1 01 1 0710-0711 ●
2 GUIDE; FAN 8-94393-779-1 01 1 0712- ● ● ●
60 GROMMET 1-09332-117-0 04 1 0710- ● ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0710- ● ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0710- ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0710- ● ● ●
70 STAY; RAD 8-98004-132-2 02 1 0710- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0710- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0710- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0710- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0710- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0710- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710-0711 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0712-1501 ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0710-0711 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0712- ● ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0710-0711 ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0712- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0710-0711 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0712- ● ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0712- ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98067-261-2 01 1 0710-0805 ● ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0806- ● ● ●
211 HOSE; RAD TO PIPE
(B) L=970 		8-98073-545-0 01 1 0710- ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 02 1 0809- ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 0809- ● ●
212 CLIP; HOSE
FVR(FG****) GVR AIR SUS(GGD***) (A) L=250 		5-09707-030-1 01 1 0710-0808 ● ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 01 1 0809- ● ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0809- ●
212 CLIP; HOSE
FVR(FG****) GVR AIR SUS(GGD***) (B) L=140 		5-09707-031-1 02 1 0710-0808 ● ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (B) L=140 		5-09707-031-1 02 1 0809- ● ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0809- ●
212 CLIP; HOSE
A/T<X9D> (C) ID=63 		1-09704-067-0 04 1 0710-0801 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 0710- ● ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 0710- ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ● ●
500 SLEEVE; RUBBER
FVR(FG****) GVR AIR SUS(GGD***) ID=17 OD=21 L=40 		1-09337-012-0 02 1 0710-0808 ● ● ●
500 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40 		1-09337-012-0 02 1 0809- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0809- ●
çizim 179502
167 148 167 212 144 212 212 212 150 167
BalonParca AdiParca NoAdetTipApplied Date A B C
144 HOSE; RUBBER,PIPE
A/T<X9D> 		8-98025-696-1 01 1 0710-0801 ●
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98079-561-3 01 1 0710-0803 ●
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98116-256-0 01 1 0804- ●
150 HOSE; OIL COOLER
A/T<X9D> 		8-98025-697-1 01 1 0710-0801 ●
167 CLIP; BYPASS HOSE
A/T<X9D> (B) ID=14-12 		8-94379-592-0 01 1 0710- ●
167 CLIP; BYPASS HOSE
A/T<X9D> (A) ID=11.5 		8-97375-638-0 02 1 0710- ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 02 1 0809- ● ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 0809- ● ●
212 CLIP; HOSE
FVR(FG****) GVR AIR SUS(GGD***) (A) L=250 		5-09707-030-1 01 1 0710-0808 ● ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 01 1 0809- ● ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0809- ●
212 CLIP; HOSE
FVR(FG****) GVR AIR SUS(GGD***) (B) L=140 		5-09707-031-1 02 1 0710-0808 ● ● ●
212 CLIP; HOSE
EURO4 SPECIFICATION<NT4> (B) L=140 		5-09707-031-1 02 1 0809- ● ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0809- ●
212 CLIP; HOSE
A/T<X9D> (C) ID=63 		1-09704-067-0 04 1 0710-0801 ●

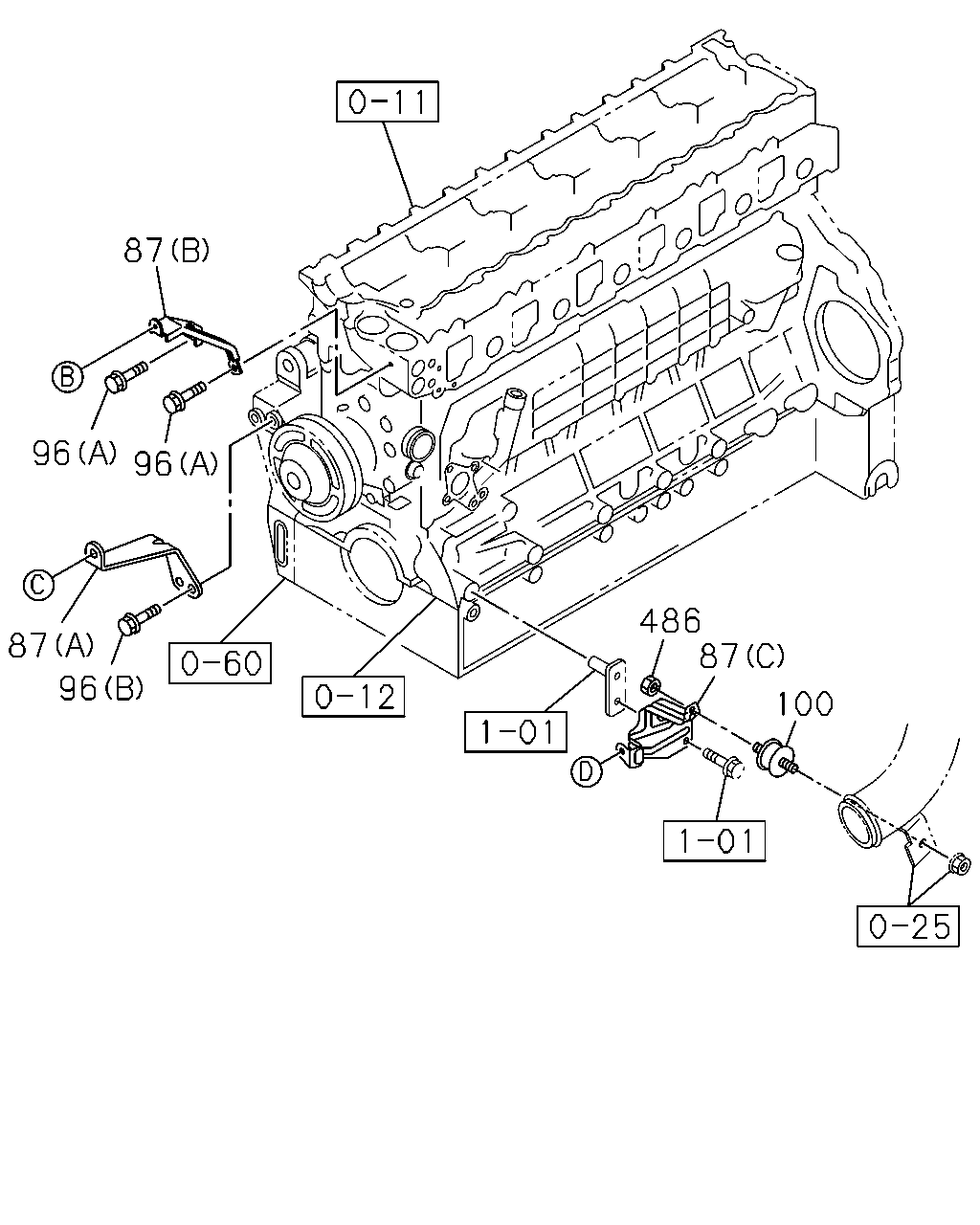

çizim 179541
87 96 96 486 87 87 96 100
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0710-0711 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0712- ● ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0710-0711 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0712- ● ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0710-0711 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0712- ● ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0710-0711 ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0712- ● ● ●
100 RUBBER; MTG 8-94394-268-1 01 1 0710-0711 ●
100 RUBBER; MTG 8-94394-268-1 01 1 0712-0910 ● ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●

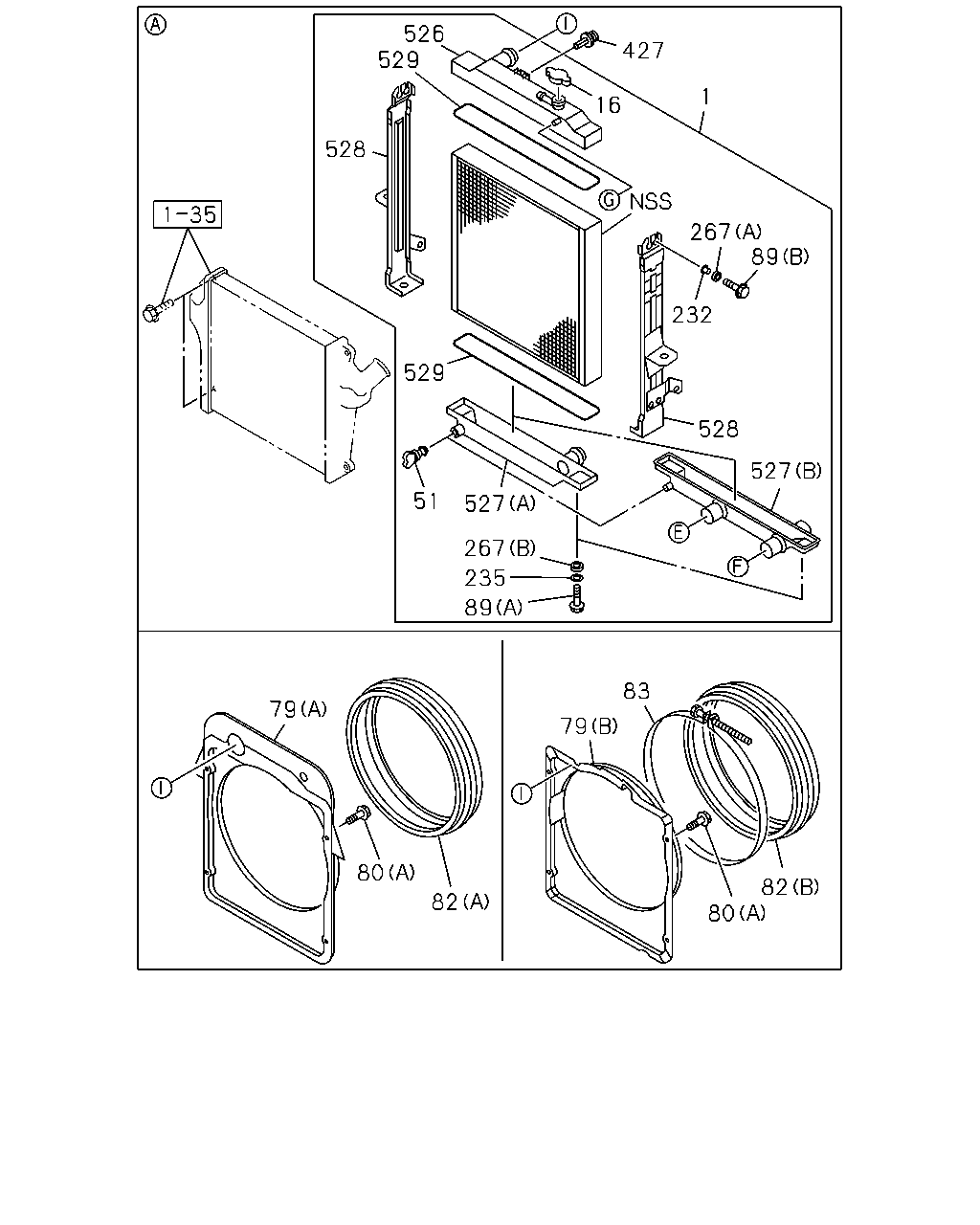

çizim 179578
526 529 528 427 16 267 232 528 527 89 235 267 527 51 529 83 82 80 79 82 80 79 89 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-843-3 01 1 0712-1505 ● ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-730-0 01 1 1506- ● ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-837-3 01 1 0712-1505 ● ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-728-0 01 1 1506- ● ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> 		8-98010-360-4 01 1 0710-1501 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> 		8-98299-734-0 01 1 1502- ●
1 RADIATOR ASM
A/T<X9D> 		8-98043-050-1 01 1 0710-1501 ●
1 RADIATOR ASM
A/T<X9D> 		8-98299-737-0 01 1 1502- ●
16 CAP; RAD 8-97239-187-0 01 1 0710-0711 ●
16 CAP; RAD 8-97239-187-0 01 1 0712- ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0710-0711 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0712- ● ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0712-1505 ● ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 0710-1501 ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1502- ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710-0711 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0712-1501 ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ● ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0710-0711 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0712-1501 ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0710-0711 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0712- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0710-0711 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0712- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0710-0711 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0712- ● ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0710-0711 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0712- ● ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0710-0711 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0712- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0710-0711 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0712- ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0710-0711 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0712-1501 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ● ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> 		8-98010-366-2 01 1 0710- ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> 		8-98004-202-2 01 1 0710-0711 ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> 		8-98004-202-2 01 1 0712- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0712- ● ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98010-365-0 01 1 0712- ● ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 0710- ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A) 		8-98004-203-0 01 1 0710-0711 ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A) 		8-98004-203-0 01 1 0712- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98004-203-0 01 1 0712- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0712- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0712- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-371-3 01 1 0710- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 0710- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0710-0711 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0712- ● ● ●
