0-57 — EMISSION PIPING (#36084) — 151 parça

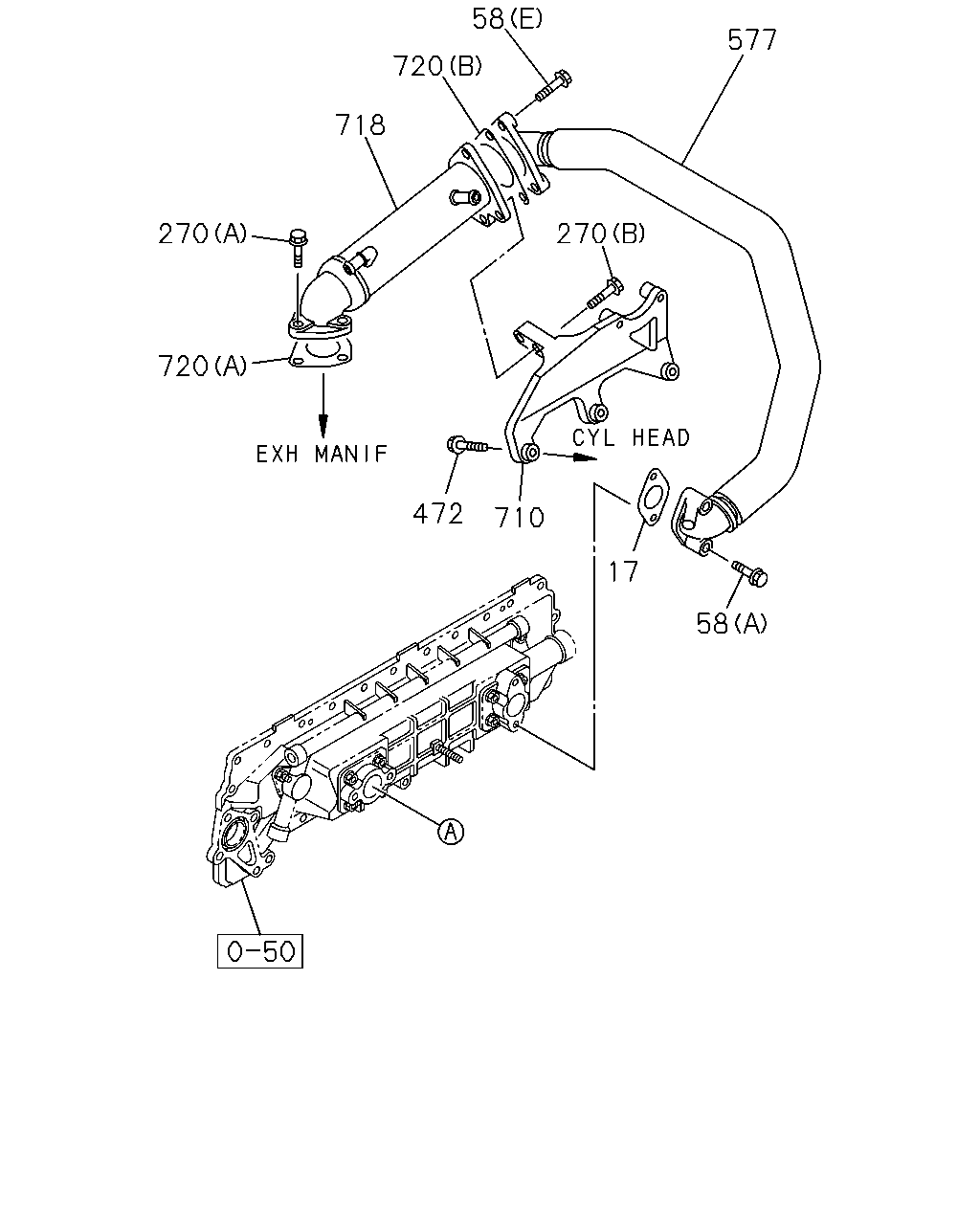

58 577 720 718 270 270 720 472 710 17 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5	8-97601-144-0	02	1	0710-0711	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5	8-97601-144-0	02	1	0712-0808	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>. ID=44.5	8-97601-144-0	02	1	0809-	●		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5	8-97601-144-0	02	1	0809-		●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-0711	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0712-0808	●	●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-	●		●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0710-0711	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0712-0808	●	●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809	●		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809		●
58	BOLT; PIPE EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809	●		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●	●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0710-0711	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0712-0808	●	●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-	●		●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-		●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0710-0711	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0712-	●	●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-0711	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-	●		●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-		●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0710-0711	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-	●		●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0710-0711	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-	●		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-		●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0710-0711	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-	●		●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-		●
472	BOLT; BRKT M8X35 FLANGE	0-28060-835-0	03	1	0710-0711	●
472	BOLT; BRKT M8X35 FLANGE	0-28060-835-0	03	1	0712-0808	●	●	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28060-835-0	03	1	0809-	●		●
472	BOLT; BRKT M8X35 FLANGE	0-28060-835-0	03	1	0809-		●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98147-787-0	01	1	0910-	●		●
577	PIPE; AIR,EGR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98147-787-0	01	1	0910-		●
577	PIPE; AIR,EGR	8-98031-049-0	01	1	0710-0711	●
577	PIPE; AIR,EGR	8-98031-049-0	01	1	0712-0808	●	●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4>	8-98031-049-0	01	1	0809-0909	●		●
577	PIPE; AIR,EGR	8-98031-049-0	01	1	0809-0909		●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98147-786-0	01	1	0910-	●		●
577	PIPE; AIR,EGR EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98147-786-0	01	1	0910-		●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0710-0711	●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0712-0808	●	●	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98030-581-0	01	1	0809-0810	●		●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0809-0810		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98125-359-0	01	1	0811-1202	●		●
710	BRACKET; EGR COOLER	8-98125-359-0	01	1	0811-1202		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98186-437-0	01	1	1203-	●		●
710	BRACKET; EGR COOLER	8-98186-437-0	01	1	1203-		●
718	COOLER; EGR	8-98030-582-3	01	1	0710-0711	●
718	COOLER; EGR	8-98030-582-3	01	1	0712-0808	●	●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4>	8-98030-582-3	01	1	0809-1401	●		●
718	COOLER; EGR	8-98030-582-3	01	1	0809-1401		●
718	COOLER; EGR EURO4 SPECIFICATION<NT4>	8-98250-860-0	01	1	1402-	●		●
718	COOLER; EGR	8-98250-860-0	01	1	1402-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	0710-0711	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	0712-0808	●	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>. (B) ID=80	8-97603-889-0	01	1	0809-	●		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	0809-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	0710-0711	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	0712-0808	●	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>. (A) ID=51.5	8-98046-192-1	01	1	0809-	●		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	0809-		●

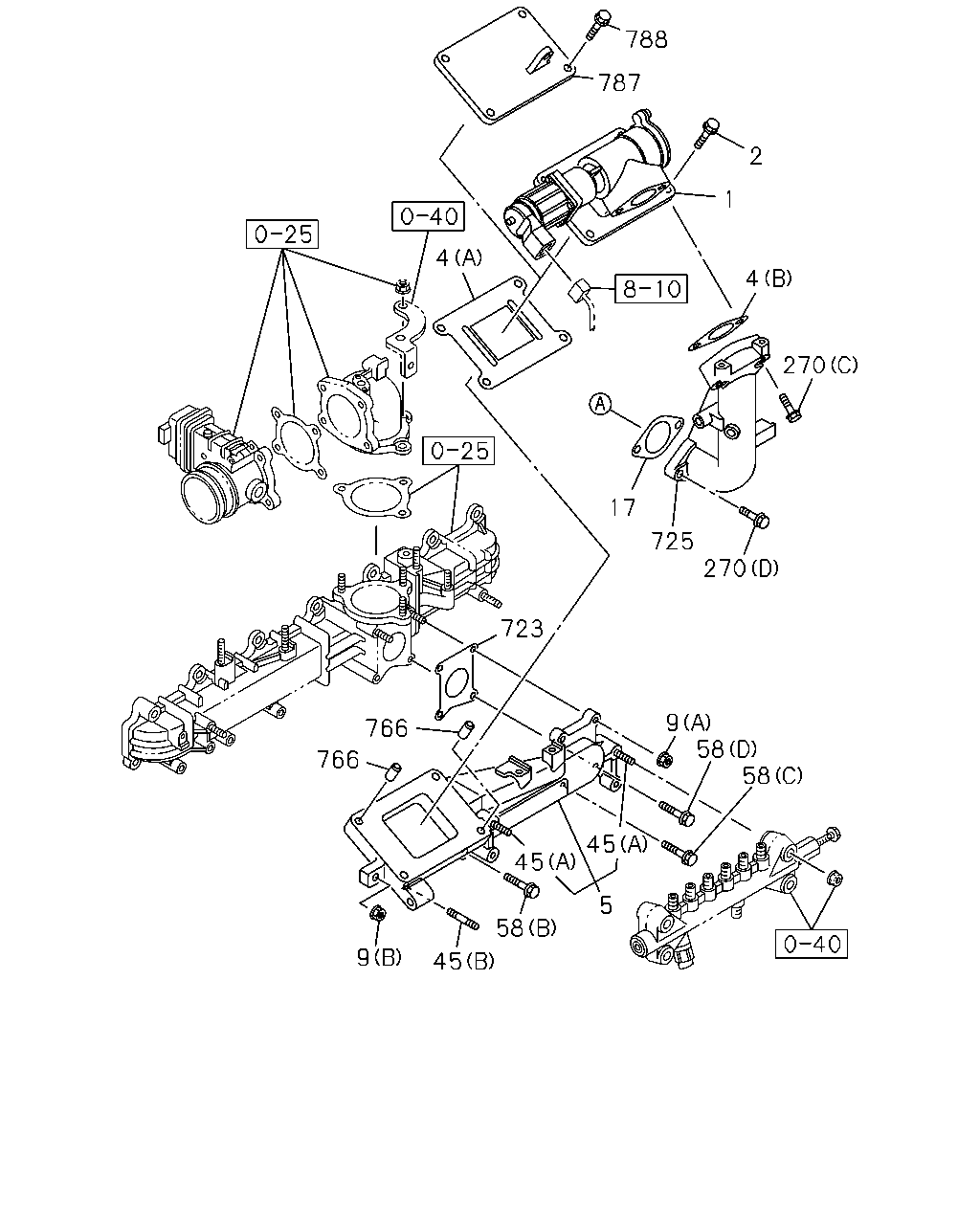

788 787 2 1 4 270 270 725 17 723 9 58 58 45 45 5 58 45 9 766 766 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR	8-97383-005-0	01	1	0710-0711	●
1	VALVE; EGR	8-97383-005-4	01	1	0712-0808	●	●	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	0809-	●		●
1	VALVE; EGR	8-97383-005-9	01	1	0809-		●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0710-0711	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0712-0808	●	●	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	0809-	●		●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0809-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	0710-0711	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	0712-0808	●	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>. (B) ID=47	8-97603-282-0	01	1	0809-	●		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	0809-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	0710-0711	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	0712-	●	●	●
5	ADAPTER ASM	8-97606-201-3	01	1	0710-0711	●
5	ADAPTER ASM	8-97606-201-3	01	1	0712-1305	●	●	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-	●	●	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	0710-0711	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5	8-97601-144-0	02	1	0710-0711	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5	8-97601-144-0	02	1	0712-0808	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>. ID=44.5	8-97601-144-0	02	1	0809-	●		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5	8-97601-144-0	02	1	0809-		●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	0710-0711	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	0712-	●	●	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	0710-0711	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	0712-	●	●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-0711	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0712-0808	●	●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-	●		●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0710-0711	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0712-0808	●	●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809	●		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809		●
58	BOLT; PIPE EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809	●		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●	●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0710-0711	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0712-0808	●	●	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-	●		●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-		●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0710-0711	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0712-	●	●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-0711	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-	●		●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-		●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0710-0711	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-	●		●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0710-0711	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-	●		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-		●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0710-0711	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0712-0808	●	●	●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-	●		●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-		●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	0710-0711	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	0712-	●	●	●
725	DUCT; EGR VLV	8-97604-972-2	01	1	0710-0711	●
725	DUCT; EGR VLV	8-97604-972-2	01	1	0712-0808	●	●	●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>	8-97604-972-2	01	1	0809-1305	●		●
725	DUCT; EGR VLV	8-97604-972-2	01	1	0809-1305		●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>	8-98240-120-0	01	1	1306-	●		●
725	DUCT; EGR VLV	8-98240-120-0	01	1	1306-		●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	0710-0711	●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	0712-0808	●	●	●
766	DOWEL; EGR VLV EURO4 SPECIFICATION<NT4> OD=14 L=10	9-11319-065-3	02	1	0809-	●		●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	0809-		●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98058-709-0	01	1	0809-1402	●		●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98238-416-0	01	1	1403-	●		●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28751-035-0	04	1	0809-1402	●		●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X25 FLANGE	0-28751-025-0	04	1	1403-	●		●
