0-30 — WATER PUMP AND CORROSION RESISTOR (#36070) — 67 parça

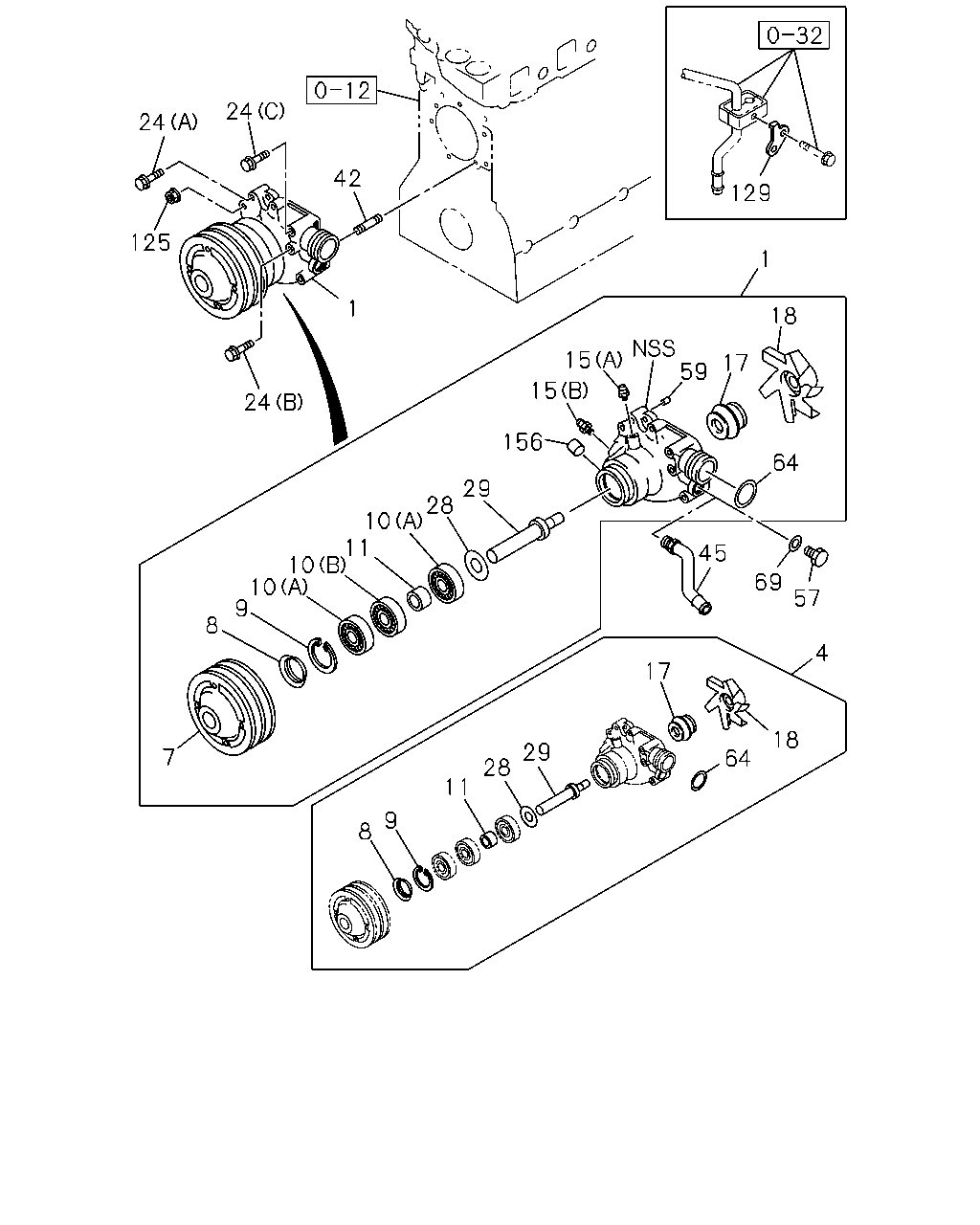

çizim 179585
24 24 125 24 1 42 1 129 18 17 59 15 15 156 29 28 10 11 10 10 9 8 7 8 28 11 9 29 17 64 18 4 57 69 45 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 8-98042-848-0 01 1 0710-0711 ●
1 PUMP ASM; WATER,W/GASKET 8-98042-848-2 01 1 0712-1208 ● ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-835-0 01 1 1209-1312 ● ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-902-0 01 1 1401-1405 ● ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-974-0 01 1 1406- ● ● ●
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0710-0711 ●
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0712-1208 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87813-949-0 01 1 1209-1312 ● ● ●
4 REPAIR KIT; WATER PUMP
EURO2 SPECIFICATION<NT2> 		1-87813-949-0 01 1 1401-1401 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-167-0 01 1 1401-1405 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-615-0 01 1 1406- ● ● ●
7 PULLEY; WATER PUMP 8-97616-657-0 01 1 0710-0711 ●
7 PULLEY; WATER PUMP 8-97616-657-0 01 1 0712-1405 ● ● ●
7 PULLEY; WATER PUMP 8-98281-099-0 01 1 1406- ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0710-0711 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0712- ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0710-0711 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0712- ● ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0710-0711 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0712- ● ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0710-0711 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0712- ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0710-0711 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0712- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710-0711 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0710-0711 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0712- ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0710-0711 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0712-1208 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0710-0711 ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0712- ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0710-0711 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0712- ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0710-0711 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0712- ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0710-0711 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0712- ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0710-0711 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0712- ● ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0710-0711 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0712-1405 ● ● ●
29 SHAFT; WATER PUMP 8-98280-700-0 01 1 1406- ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0710-0711 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0712- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> 		8-94392-827-1 01 1 0809- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94396-180-0 01 1 0710-0711 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94396-180-0 01 1 0712-0808 ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
EURO4 SPECIFICATION<NT4> 		8-94396-180-0 01 1 0809- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94396-180-0 01 1 0809- ●
57 PLUG; HTR,WATER PUMP
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M20 		9-99202-320-0 01 1 0809- ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0710-0711 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0712- ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0710-0711 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0712- ● ● ●
69 GASKET; PLUG,HTR
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=20.5 OD=28.0 		9-09571-420-0 01 1 0809- ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ● ●
129 BRACKET; CLIP 8-98066-087-0 01 1 0710-0711 ●
129 BRACKET; CLIP 8-98066-087-0 01 1 0712-0808 ● ● ●
129 BRACKET; CLIP
EURO4 SPECIFICATION<NT4> 		8-98066-087-0 01 1 0809- ● ●
129 BRACKET; CLIP 8-98066-087-0 01 1 0809- ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0710-0711 ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0712- ● ● ●
