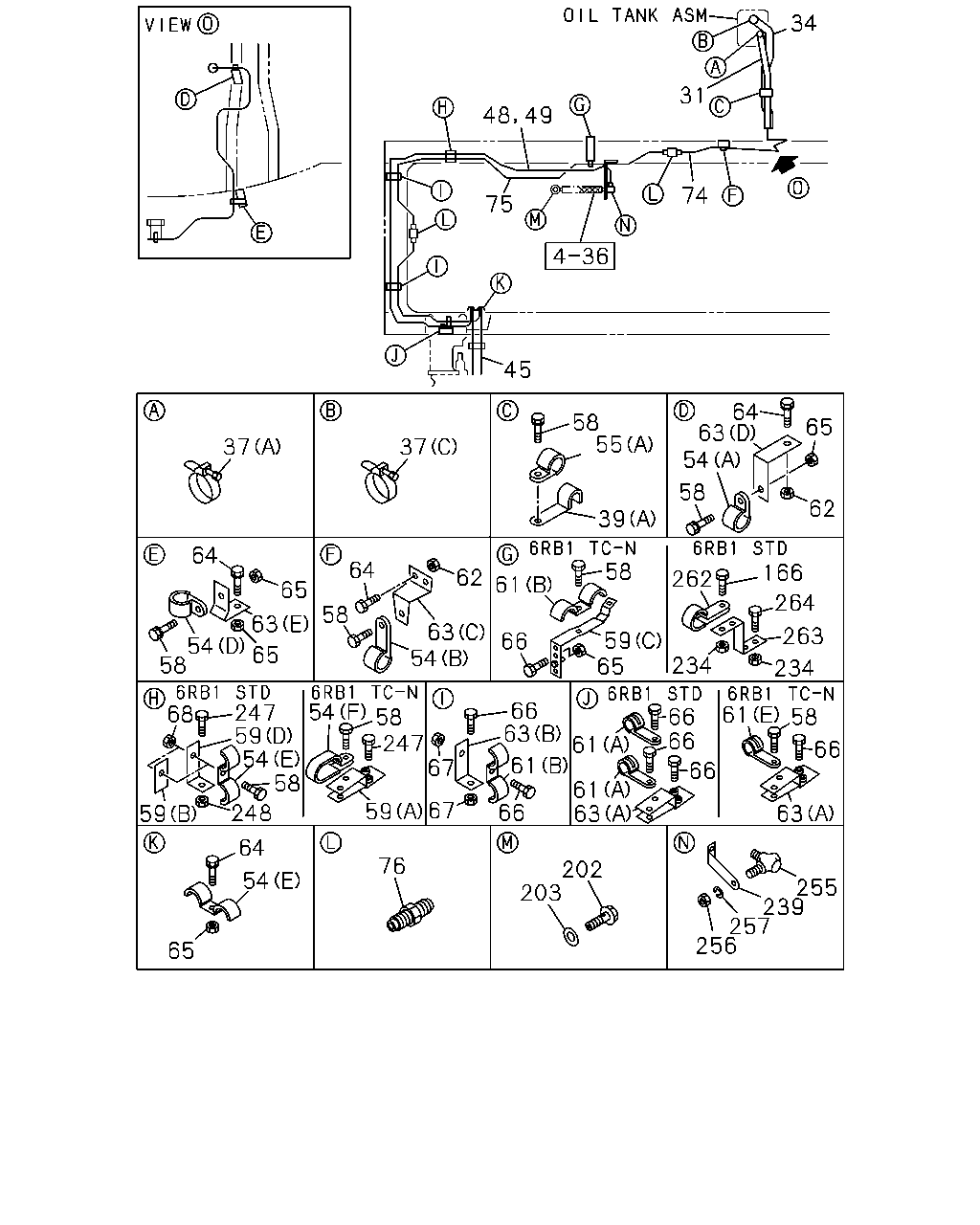

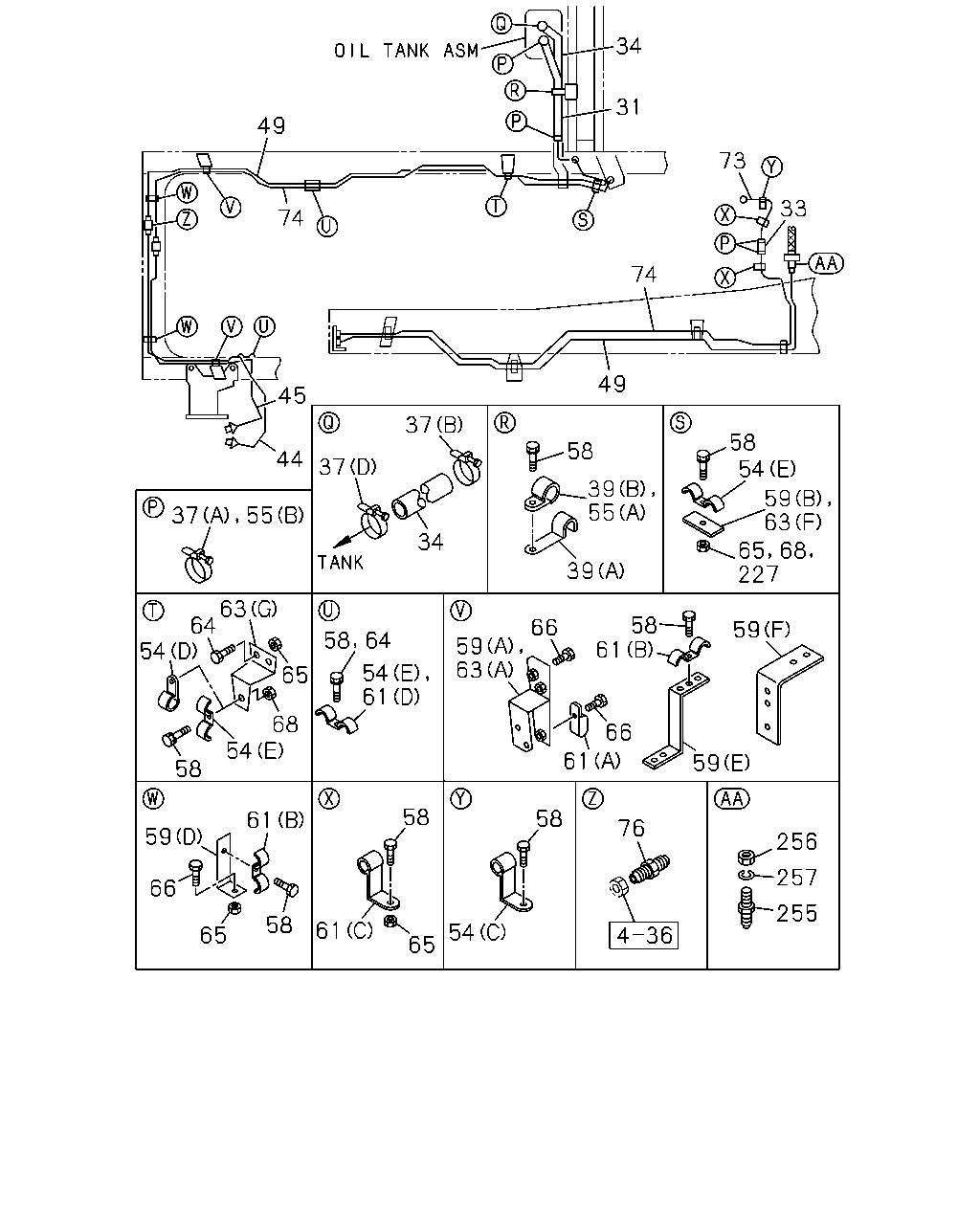

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#3607) — 405 parça

34 31 74 75 45 64 63 54 58 55 65 37 37 58 62 39 58 166 64 64 62 262 61 65 264 58 63 54 65 58 59 65 234 63 54 263 66 234 61 58 68 247 59 54 58 54 58 247 67 66 66 66 63 61 61 61 63 66 66 59 59 66 248 63 64 76 202 203 54 255 239 257 256 65 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21112-037-2	01	1	9002-
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21113-001-0	01	1	9307-
34	HOSE; P/S OIL TANK,OUTLET 12PD1 C ENG(43L)	1-21113-002-0	01	1	9307-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	9002-
37	CLIP; HOSE,P/S L TYPE ENG<90L> (C) ID=38	9-09915-666-1	02	1	9002-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9002-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (D) ID=38	9-09915-666-1	01	1	9002-
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	9002-
39	CLIP; FLEX HOSE V TYPE ENG<91L> (B) ID=32 L=75	1-09700-704-1	01	1	9002-9409
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L)	1-21114-821-0	01	1	9307-9310
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-821-0	01	1	9311-9503
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	1-21114-821-0	01	1	9504-
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 C ENG(43L)	1-21114-822-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L)	1-21113-686-0	01	1	9307-9310
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L)	1-21113-686-0	01	1	9311-9503
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9311-9503
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9504-
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ>	1-21113-686-0	01	1	9504-
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-685-0	01	1	9002-9002
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-686-0	01	1	9003-9306
45	PIPE; OIL,P/S UNIT TO UNION 6RB1TC-N ENG(29L)	1-21113-836-0	01	1	9012-9306
45	PIPE; OIL,P/S UNIT TO UNION 6RB1TC-N ENG(29L)	1-21114-898-0	01	1	9307-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6RB1 STD ENG(07L)	1-21114-434-1	01	1	9307-9310
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6RB1 STD ENG(07L)	1-21115-021-0	01	1	9311-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6RB1TC-N ENG(29L)	1-21114-897-1	01	1	9307-9401
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6RB1TC-N ENG(29L)	1-21114-972-0	01	1	9402-9404
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6RB1TC-N ENG(29L)	1-21115-132-0	01	1	9405-9412
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6RB1TC-N ENG(29L)	1-21115-278-0	01	1	9501-
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21113-529-0	01	1	9002-9306
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21114-815-0	01	1	9307-9307
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21114-950-0	01	1	9308-9310
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-950-0	01	1	9311-9503
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	1-21114-950-0	01	1	9504-
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ>	1-21115-319-0	01	1	9504-
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-435-0	01	1	9311-
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 C ENG(43L)	1-21114-870-0	01	1	9307-
49	PIPE; OIL,FLEX HOSE TO UNION 6RB1 STD ENG(07L)	1-21113-479-0	01	1	9002-9306
49	PIPE; OIL,FLEX HOSE TO UNION 6RB1TC-N ENG(29L)	1-21113-837-0	01	1	9012-9306
54	CLIP; OIL PIPE (D) ID=13 L=28	9-09525-256-0	01	1	9002-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> (A) L=50 ID=16 L=50	9-09525-586-0	01	1	9304-
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9002-
54	CLIP; OIL PIPE L TYPE ENG<90L> (A) L=16 ID=16	9-09525-525-0	01	1	9307-
54	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-
54	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-
54	CLIP; OIL PIPE 6RB1 STD ENG(07L),V TYPE ENG<91L> (E) L=43 ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-
54	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (F)	1-09701-025-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE (A) ID=28 L=30	1-09700-607-1	01	1	9002-
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9002-
58	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204
58	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-9306
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	01	1	9307-
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	05	1	9303-9306
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9307-
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	9002-9002
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
58	BOLT; CLIP 6RB1TC-N ENG(29L) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306
58	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9307-
58	BOLT; CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
58	BOLT; CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP V TYPE ENG<91L> M8X18 W/LK WASHER	9-01900-818-0	01	1	9002-9204
58	BOLT; CLIP V TYPE ENG<91L> M8X18 W/LK WASHER	0-50040-818-0	01	1	9205-9302
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302
58	BOLT; CLIP V TYPE ENG<91L> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
58	BOLT; CLIP V TYPE ENG<91L> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
58	BOLT; CLIP 6RB1 STD ENG(07L),V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9307-
58	BOLT; CLIP 6RB1TC-N ENG(29L) M8X16 FLANGE	0-28080-816-0	02	1	9405-
58	BOLT; CLIP 6RB1TC-N ENG(29L) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-9404
58	BOLT; CLIP V TYPE ENG<91L> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-9404
58	BOLT; CLIP V TYPE ENG<91L> M8X16 W/LK WASHER	0-50040-816-0	01	1	9405-
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) (A) 80X75	1-47475-081-4	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) (C)	1-47477-014-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE (D)	1-47475-519-0	03	1	9002-9306
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47475-519-0	02	1	9307-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (B) L=50	1-47475-299-2	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (D)	1-47475-519-0	01	1	9307-9310
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (D)	1-47475-519-0	01	1	9311-9503
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-47475-519-0	01	1	9311-9503
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (D)	1-47475-519-0	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-47475-519-0	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ> (D)	1-47475-519-0	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-47477-128-0	01	1	9307-9310
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (F) 80X75	1-47475-081-4	01	1	9311-9311
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-47475-963-1	01	1	9312-
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) (B) L=50	1-47475-299-2	01	1	9405-
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L),10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-47476-031-1	01	1	9307-9310
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L),10PD1 STD ENG(40L),12PD1 C ENG(43L) ANTI NOISE EQUIPMENT<SV9> (A)	1-47476-031-1	01	1	9311-9503
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (A)	1-47476-031-1	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A)	1-47476-031-1	01	1	9504-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9002-9306
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-
61	CLIP; OIL PIPE (A) ID=16 L=28	9-09525-556-0	01	1	9002-9306
61	CLIP; OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=16 L=28	9-09525-556-0	01	1	9307-
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16	9-09525-525-0	01	1	9002-9306
61	CLIP; OIL PIPE V TYPE ENG<91L> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-9310
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9311-
61	CLIP; OIL PIPE V TYPE ENG<91L> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9311-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9306
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-9310
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9311-9404
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9311-9404
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	02	1	9405-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=13 L=20	9-09525-235-0	01	1	9307-9310
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) ID=13 L=20	9-09525-235-0	01	1	9311-9503
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (A) ID=13 L=20	9-09525-235-0	01	1	9504-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9405-
61	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=13	9-09525-255-0	01	1	9307-9310
61	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=13	9-09525-255-0	01	1	9311-9503
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=13	9-09525-255-0	01	1	9311-9503
61	CLIP; OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=13	9-09525-255-0	01	1	9504-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ> (A) ID=13	9-09525-255-0	01	1	9504-
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (E)	1-09701-025-0	01	1	9307-
62	NUT; CLIP FIX L TYPE ENG<90L> M8	9-09110-408-0	03	1	9002-
63	BRACKET; CLIP,P/S (A)	1-47476-031-1	01	1	9002-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-298-0	01	1	9002-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	01	1	9002-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	02	1	9304-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (E)	1-47476-164-0	01	1	9002-9004
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (E)	1-34656-004-0	01	1	9005-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (B)	1-47475-519-0	02	1	9307-
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (G)	1-21119-100-1	01	1	9002-
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9307-
64	BOLT; CLIP BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	04	1	9303-
64	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
64	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
64	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9303-
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009
65	NUT; BRKT M8	9-09110-408-0	03	1	9002-9306
65	NUT; BRKT 6RB1TC-N ENG(29L) M8	9-09110-408-0	01	1	9307-
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-408-0	04	1	9002-
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9306
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	04	1	9307-
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9307-
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	05	1	9002-9204
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	05	1	9205-9302
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	05	1	9303-9306
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X30 FLANGE	0-28080-830-0	01	1	9307-
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X30 FLANGE	0-28080-830-0	02	1	9307-
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X16 FLANGE	0-28080-816-0	01	1	9307-
67	NUT; BRKT L TYPE ENG<90L> M8	9-09110-408-0	02	1	9307-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	05	1	9002-9306
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9307-9404
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9405-
68	NUT; CLIP,OIL PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	01	1	9405-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	03	1	9002-9306
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L>	1-21113-099-0	01	1	9002-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21113-538-0	01	1	9002-9306
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21114-824-0	01	1	9307-9307
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21114-951-0	01	1	9308-9310
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-951-0	01	1	9311-9503
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	1-21114-951-0	01	1	9504-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ>	1-21115-320-0	01	1	9504-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-538-0	01	1	9311-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 C ENG(43L)	1-21114-871-0	01	1	9307-
75	PIPE; OIL,P/S,UNION TO UNION 6RB1 STD ENG(07L)	1-21112-904-0	01	1	9002-
75	PIPE; OIL,P/S,UNION TO UNION 6RB1TC-N ENG(29L)	1-21114-823-0	01	1	9307-9404
75	PIPE; OIL,P/S,UNION TO UNION 6RB1TC-N ENG(29L)	1-21115-131-0	01	1	9405-
76	UNION; OIL PIPE L TYPE ENG<90L> M22	9-09233-015-1	01	1	9002-
76	UNION; OIL PIPE V TYPE ENG<91L> M20 STRAIGHT	9-09233-012-1	01	1	9002-
166	BOLT; CLIP 6RB1 STD ENG(07L) M8X20 FLANGE	0-28080-820-0	03	1	9307-
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X39	1-09675-114-0	01	1	9002-9310
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X36	1-09675-205-0	01	1	9311-
203	GASKET; EYE BOLT L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9002-
234	NUT; PIPE CLIP,P/S 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9307-
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47475-412-0	01	1	9002-
247	BOLT; BRKT,CLIP 6RB1 STD ENG(07L) M8X30 FLANGE	0-28080-830-0	01	1	9307-
247	BOLT; BRKT,CLIP 6RB1TC-N ENG(29L) M8X30 FLANGE	0-28080-830-0	02	1	9307-
248	NUT; BRKT,CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	01	1	9307-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9002-
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-
256	NUT; UNION M22	9-09111-422-0	01	1	9002-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-
262	CLIP; P/S PIPE 6RB1 STD ENG(07L) ID=16	9-09525-525-0	01	1	9307-
263	BRACKET; P/S PIPE 6RB1 STD ENG(07L)	1-47475-963-1	01	1	9307-
264	BOLT; PIPE BRKT 6RB1 STD ENG(07L) M8X30 FLANGE	0-28080-830-0	02	1	9307-

34 31 49 73 33 74 74 49 45 37 58 54 58 44 37 39 55 59 63 227 37 55 34 39 63 64 54 58 61 66 59 59 63 65 54 61 68 54 66 61 59 58 58 58 61 76 59 256 257 66 255 58 61 54 65 65 58 64 65 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-
33	HOSE; RUBBER,POWER STRG V TYPE ENG<91L> L=80	1-09360-570-0	01	1	9002-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21112-037-2	01	1	9002-
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21113-001-0	01	1	9307-
34	HOSE; P/S OIL TANK,OUTLET 12PD1 C ENG(43L)	1-21113-002-0	01	1	9307-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	9002-
37	CLIP; HOSE,P/S L TYPE ENG<90L> (C) ID=38	9-09915-666-1	02	1	9002-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9002-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (D) ID=38	9-09915-666-1	01	1	9002-
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	9002-
39	CLIP; FLEX HOSE V TYPE ENG<91L> (B) ID=32 L=75	1-09700-704-1	01	1	9002-9409
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L)	1-21113-355-0	01	1	9002-9306
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L)	1-21114-817-0	01	1	9307-9310
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-024-0	01	1	9311-9503
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	1-21115-024-0	01	1	9504-
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21115-023-0	01	1	9311-9503
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21115-023-0	01	1	9504-
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ>	1-21115-023-0	01	1	9504-
44	PIPE; OIL,P/S UNIT TO NIPPLE 12PD1 C ENG(43L)	1-21114-818-0	01	1	9307-9310
44	PIPE; OIL,P/S UNIT TO NIPPLE 12PD1 C ENG(43L)	1-21115-025-0	01	1	9311-
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L)	1-21114-821-0	01	1	9307-9310
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-821-0	01	1	9311-9503
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	1-21114-821-0	01	1	9504-
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 C ENG(43L)	1-21114-822-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L)	1-21113-686-0	01	1	9307-9310
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L)	1-21113-686-0	01	1	9311-9503
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9311-9503
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-686-0	01	1	9504-
45	PIPE; OIL,P/S UNIT TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ>	1-21113-686-0	01	1	9504-
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-685-0	01	1	9002-9002
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-686-0	01	1	9003-9306
45	PIPE; OIL,P/S UNIT TO UNION 6RB1TC-N ENG(29L)	1-21113-836-0	01	1	9012-9306
45	PIPE; OIL,P/S UNIT TO UNION 6RB1TC-N ENG(29L)	1-21114-898-0	01	1	9307-
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21113-529-0	01	1	9002-9306
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21114-815-0	01	1	9307-9307
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21114-950-0	01	1	9308-9310
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-950-0	01	1	9311-9503
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	1-21114-950-0	01	1	9504-
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ>	1-21115-319-0	01	1	9504-
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-435-0	01	1	9311-
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 C ENG(43L)	1-21114-870-0	01	1	9307-
49	PIPE; OIL,FLEX HOSE TO UNION 6RB1 STD ENG(07L)	1-21113-479-0	01	1	9002-9306
49	PIPE; OIL,FLEX HOSE TO UNION 6RB1TC-N ENG(29L)	1-21113-837-0	01	1	9012-9306
54	CLIP; OIL PIPE (D) ID=13 L=28	9-09525-256-0	01	1	9002-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> (A) L=50 ID=16 L=50	9-09525-586-0	01	1	9304-
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9002-
54	CLIP; OIL PIPE L TYPE ENG<90L> (A) L=16 ID=16	9-09525-525-0	01	1	9307-
54	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-
54	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-
54	CLIP; OIL PIPE 6RB1 STD ENG(07L),V TYPE ENG<91L> (E) L=43 ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-
54	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (F)	1-09701-025-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE (A) ID=28 L=30	1-09700-607-1	01	1	9002-
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9002-
58	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204
58	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-9306
58	BOLT; CLIP 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	01	1	9307-
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	05	1	9303-9306
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9307-
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	9002-9002
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
58	BOLT; CLIP 6RB1TC-N ENG(29L) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306
58	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9307-
58	BOLT; CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
58	BOLT; CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP V TYPE ENG<91L> M8X18 W/LK WASHER	9-01900-818-0	01	1	9002-9204
58	BOLT; CLIP V TYPE ENG<91L> M8X18 W/LK WASHER	0-50040-818-0	01	1	9205-9302
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302
58	BOLT; CLIP V TYPE ENG<91L> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
58	BOLT; CLIP V TYPE ENG<91L> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
58	BOLT; CLIP 6RB1 STD ENG(07L),V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9307-
58	BOLT; CLIP 6RB1TC-N ENG(29L) M8X16 FLANGE	0-28080-816-0	02	1	9405-
58	BOLT; CLIP 6RB1TC-N ENG(29L) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-9404
58	BOLT; CLIP V TYPE ENG<91L> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-9404
58	BOLT; CLIP V TYPE ENG<91L> M8X16 W/LK WASHER	0-50040-816-0	01	1	9405-
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) (A) 80X75	1-47475-081-4	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) (C)	1-47477-014-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE (D)	1-47475-519-0	03	1	9002-9306
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47475-519-0	02	1	9307-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (B) L=50	1-47475-299-2	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (D)	1-47475-519-0	01	1	9307-9310
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (D)	1-47475-519-0	01	1	9311-9503
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-47475-519-0	01	1	9311-9503
59	BRACKET; CLIP,OIL PIPE 6RB1 STD ENG(07L) (D)	1-47475-519-0	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-47475-519-0	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ> (D)	1-47475-519-0	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-47477-128-0	01	1	9307-9310
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (F) 80X75	1-47475-081-4	01	1	9311-9311
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-47475-963-1	01	1	9312-
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) (B) L=50	1-47475-299-2	01	1	9405-
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L),10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-47476-031-1	01	1	9307-9310
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L),10PD1 STD ENG(40L),12PD1 C ENG(43L) ANTI NOISE EQUIPMENT<SV9> (A)	1-47476-031-1	01	1	9311-9503
59	BRACKET; CLIP,OIL PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (A)	1-47476-031-1	01	1	9504-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) (A)	1-47476-031-1	01	1	9504-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9002-9306
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-
61	CLIP; OIL PIPE (A) ID=16 L=28	9-09525-556-0	01	1	9002-9306
61	CLIP; OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=16 L=28	9-09525-556-0	01	1	9307-
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16	9-09525-525-0	01	1	9002-9306
61	CLIP; OIL PIPE V TYPE ENG<91L> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-9310
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9311-
61	CLIP; OIL PIPE V TYPE ENG<91L> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9311-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9306
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-9310
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9311-9404
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9311-9404
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	02	1	9405-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=13 L=20	9-09525-235-0	01	1	9307-9310
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) ID=13 L=20	9-09525-235-0	01	1	9311-9503
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (A) ID=13 L=20	9-09525-235-0	01	1	9504-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9405-
61	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=13	9-09525-255-0	01	1	9307-9310
61	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=13	9-09525-255-0	01	1	9311-9503
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=13	9-09525-255-0	01	1	9311-9503
61	CLIP; OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=13	9-09525-255-0	01	1	9504-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ> (A) ID=13	9-09525-255-0	01	1	9504-
61	CLIP; OIL PIPE 6RB1TC-N ENG(29L) (E)	1-09701-025-0	01	1	9307-
63	BRACKET; CLIP,P/S (A)	1-47476-031-1	01	1	9002-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-298-0	01	1	9002-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	01	1	9002-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47475-369-0	02	1	9304-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (E)	1-47476-164-0	01	1	9002-9004
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (E)	1-34656-004-0	01	1	9005-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (B)	1-47475-519-0	02	1	9307-
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (G)	1-21119-100-1	01	1	9002-
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9307-
64	BOLT; CLIP BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	04	1	9303-
64	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
64	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
64	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9303-
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009
65	NUT; BRKT M8	9-09110-408-0	03	1	9002-9306
65	NUT; BRKT 6RB1TC-N ENG(29L) M8	9-09110-408-0	01	1	9307-
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-408-0	04	1	9002-
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9306
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	04	1	9307-
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9307-
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	9-01900-830-0	05	1	9002-9204
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	05	1	9205-9302
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	05	1	9303-9306
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X30 FLANGE	0-28080-830-0	01	1	9307-
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X30 FLANGE	0-28080-830-0	02	1	9307-
66	BOLT; BRKT,OIL PIPE 6RB1TC-N ENG(29L) M8X16 FLANGE	0-28080-816-0	01	1	9307-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	05	1	9002-9306
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9307-9404
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9405-
68	NUT; CLIP,OIL PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	01	1	9405-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	03	1	9002-9306
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L> L=390	1-21111-975-1	01	1	9002-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L>	1-21113-099-0	01	1	9002-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21113-538-0	01	1	9002-9306
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21114-824-0	01	1	9307-9307
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L)	1-21114-951-0	01	1	9308-9310
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21114-951-0	01	1	9311-9503
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> TAIWAN EQUIPMENT(WW5)	1-21114-951-0	01	1	9504-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> BRAKE REGULATION HONG KONG<TCZ>	1-21115-320-0	01	1	9504-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21113-538-0	01	1	9311-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 C ENG(43L)	1-21114-871-0	01	1	9307-
76	UNION; OIL PIPE L TYPE ENG<90L> M22	9-09233-015-1	01	1	9002-
76	UNION; OIL PIPE V TYPE ENG<91L> M20 STRAIGHT	9-09233-012-1	01	1	9002-
227	NUT; PIPE CLIP V TYPE ENG<91L> M8	9-09110-408-0	01	1	9307-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9002-
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-
256	NUT; UNION M22	9-09111-422-0	01	1	9002-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-

2 1 7 2 8 20 3 19 5 12 19 25 15 26 2 1 3 22 8 21 20 4 25 12 191 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S DESERT ZONE PACKAGE(W01) (B)	1-21210-203-0	01	1	9002-
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-127-5	01	1	9002-9202
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-195-2	01	1	9203-
2	CAP; OIL TANK,P/S DESERT ZONE PACKAGE(W01) (C)	1-21241-009-0	01	1	9002-
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (A) WO/GAUGE	1-21241-003-5	01	1	9002-
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (B) W/GAUGE	1-21241-006-3	01	1	9002-
3	GASKET; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09630-106-0	01	1	9002-
3	GASKET; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-006-2	01	1	9002-
4	FILTER; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21231-002-0	01	1	9002-
5	STRAINER; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-006-1	01	1	9002-
7	RING; GASKET,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-005-0	01	1	9002-
8	SPRING; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09580-365-0	01	1	9002-
8	SPRING; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-09580-319-1	01	1	9002-
12	FILTER; MICROBON,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21235-005-0	01	1	9002-
12	FILTER; MICROBON,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-004-1	01	1	9002-
15	PLATE; FILTER,OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21249-007-1	04	1	9002-
19	SEAT; OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21262-001-0	02	1	9002-
20	HOLDER; FILTER,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21239-005-0	01	1	9002-
20	HOLDER; FILTER,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21239-001-2	01	1	9002-
21	GASKET; OIL GAUGE,P/S TANK DESERT ZONE PACKAGE(W01)	1-09630-095-1	01	1	9002-
22	GAUGE; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21240-001-1	01	1	9002-
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9303-
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9002-
191	FILTER; BREATHER,P/S TANK DESERT ZONE PACKAGE(W01)	1-21219-076-1	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
