0-28 — VENTILATION SYSTEM (#36069) — 102 parça

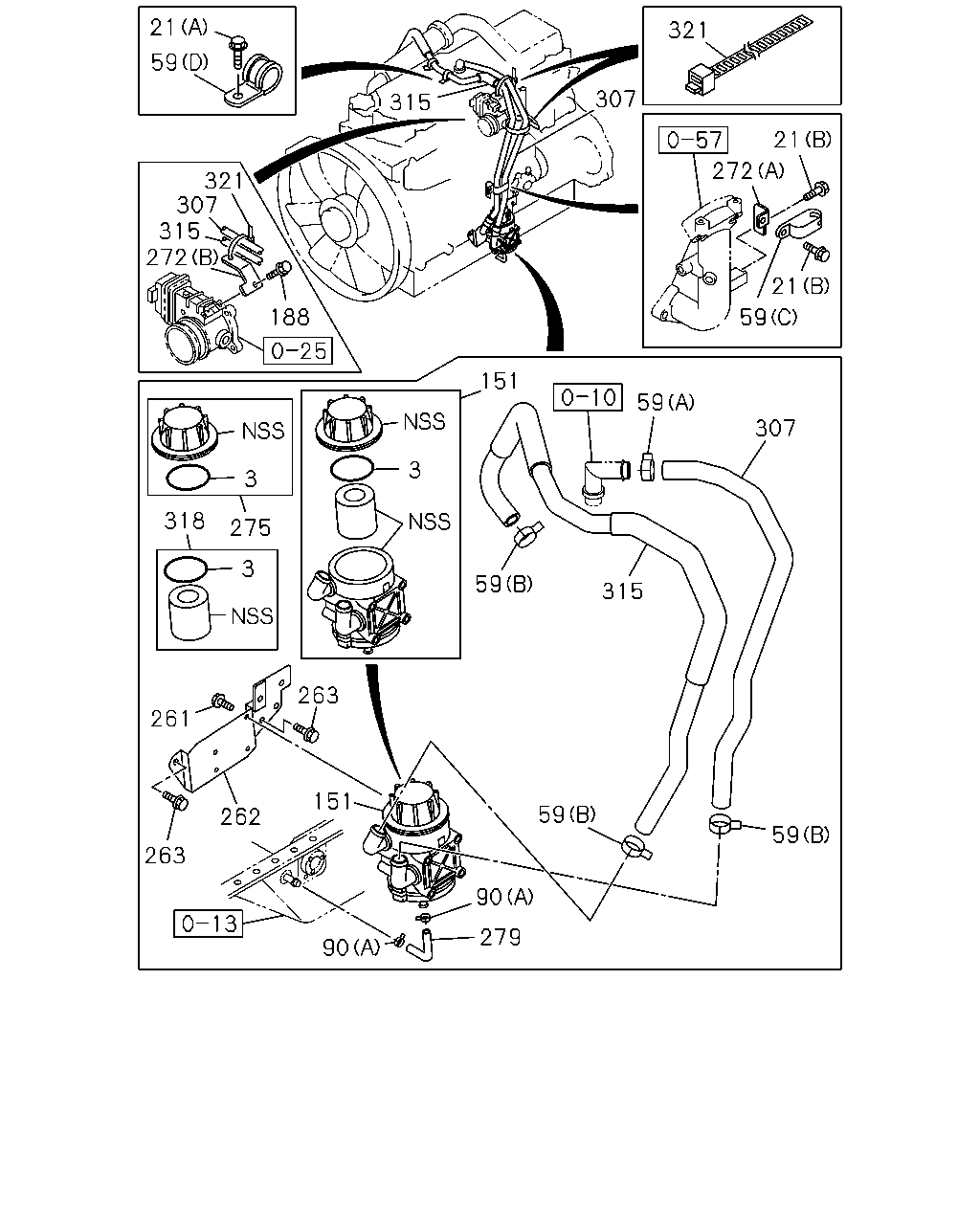

21 59 321 307 315 272 188 3 3 275 318 263 261 262 263 151 90 279 90 59 59 307 315 59 151 59 3 272 21 321 307 21 59 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0710-0711	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0712-0808	●	●	●
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	0809-	●		●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0809-		●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-0711	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0712-0808	●	●	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●		●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0809-		●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0808	●	●	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-	●		●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-		●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0710-0711	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0712-0808	●	●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (D) ID=35 L=33	1-09700-945-0	02	1	0809-	●		●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0809-		●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0710-0711	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0712-0808	●	●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (C) ID=30X2 L=28	1-09701-266-0	01	1	0809-	●		●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0809-		●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0710-0711	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0712-0808	●	●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) ID=28.5	1-09707-150-0	03	1	0809-	●		●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0809-		●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0710-0711	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0712-0808	●	●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) ID=31.2	8-97237-146-0	01	1	0809-	●		●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0809-		●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0809-	●		●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0710-0711	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0712-0808	●	●	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=14	1-09704-102-0	02	1	0809-	●		●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0809-		●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0710-0711	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0712-0808	●	●	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	0809-	●		●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0809-		●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0710-0711	●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0712-0808	●	●	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	0809-	●		●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0809-		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0710-0711	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0712-0808	●	●	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	0809-	●		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0809-		●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0710-0711	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0712-0808	●	●	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-97610-919-1	01	1	0809-	●		●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0809-		●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0710-0711	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0712-0808	●	●	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	0809-	●		●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0809-		●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0710-0711	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0712-0808	●	●	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (A)	8-97607-396-1	01	1	0809-	●		●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0809-		●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0710-0711	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0712-0808	●	●	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-97607-397-0	01	1	0809-	●		●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0809-		●
275	CAP; PCV	8-97606-319-0	01	1	0710-0711	●
275	CAP; PCV	8-97606-319-0	01	1	0712-0808	●	●	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	0809-	●		●
275	CAP; PCV	8-97606-319-0	01	1	0809-		●
279	HOSE; RUBBER,OIL DRAIN L=190	0-02709-190-0	01	1	0710-0711	●
279	HOSE; RUBBER,OIL DRAIN L=190	0-02709-190-0	01	1	0712-0808	●	●	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> L=190	0-02709-190-0	01	1	0809-	●		●
279	HOSE; RUBBER,OIL DRAIN L=190	0-02709-190-0	01	1	0809-		●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0710-0711	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0712-0808	●	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO4 SPECIFICATION<NT4>	8-98054-285-2	01	1	0809-	●		●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-2	01	1	0809-		●
315	HOSE; RUBBER	8-98054-286-1	01	1	0710-0711	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0712-0808	●	●	●
315	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98054-286-2	01	1	0809-	●		●
315	HOSE; RUBBER	8-98054-286-2	01	1	0809-		●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0710-0711	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0712-0808	●	●	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	0809-	●		●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0809-		●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0710-0711	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0712-0808	●	●	●
321	CLIP; HOSE,SEPARATOR EURO4 SPECIFICATION<NT4> L=300	1-09707-001-1	02	1	0809-	●		●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0809-		●

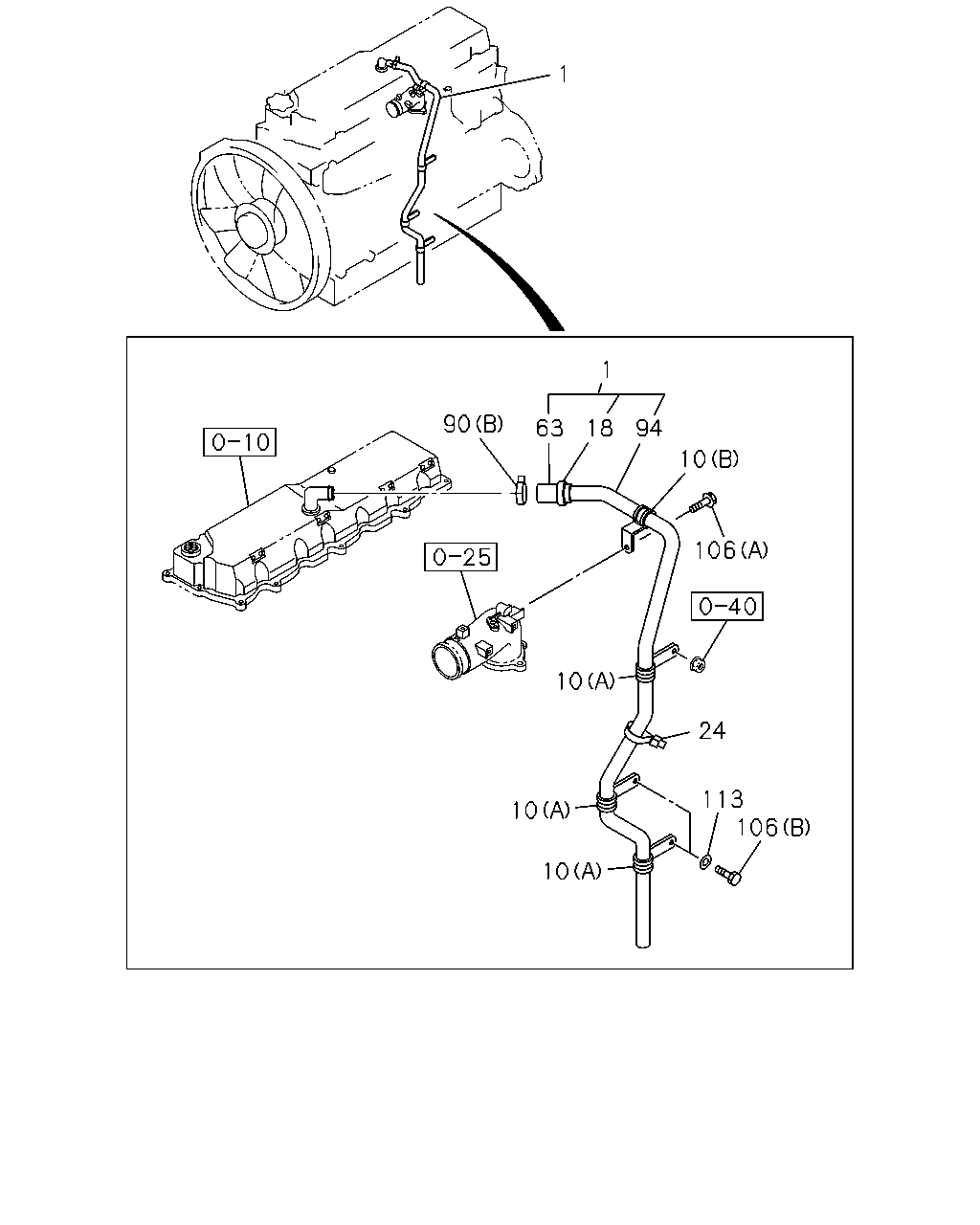

1 1 90 63 18 94 10 106 10 24 113 106 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BREATHER; AIR EURO2 SPECIFICATION<NT2>	8-94392-083-3	01	1	0809-	●		●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (A) ID=32 L=75	1-09700-704-1	03	1	0809-	●		●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-	●		●
18	CLIP; RUBBER HOSE,AIR BREATHER EURO2 SPECIFICATION<NT2> ID=33.6	8-94362-518-0	01	1	0809-	●		●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0903-1205	●		●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	8-98216-430-0	01	1	1206-	●		●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02828-070-0	01	1	0809-1005	●		●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02728-070-0	01	1	1006-	●		●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0809-	●		●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0710-0711	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0712-0808	●	●	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=14	1-09704-102-0	02	1	0809-	●		●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0809-		●
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<NT2> L=1260	8-94392-082-0	01	1	0809-	●		●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (A) M6X12 FLANGE	0-28050-612-0	01	1	0809-	●		●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	02	1	0809-	●		●
113	WASHER; PL,CLIP EURO2 SPECIFICATION<NT2> ID=10.5	0-91610-510-0	02	1	0809-	●		●
