Sayfa 0-25 - Isuzu EPC

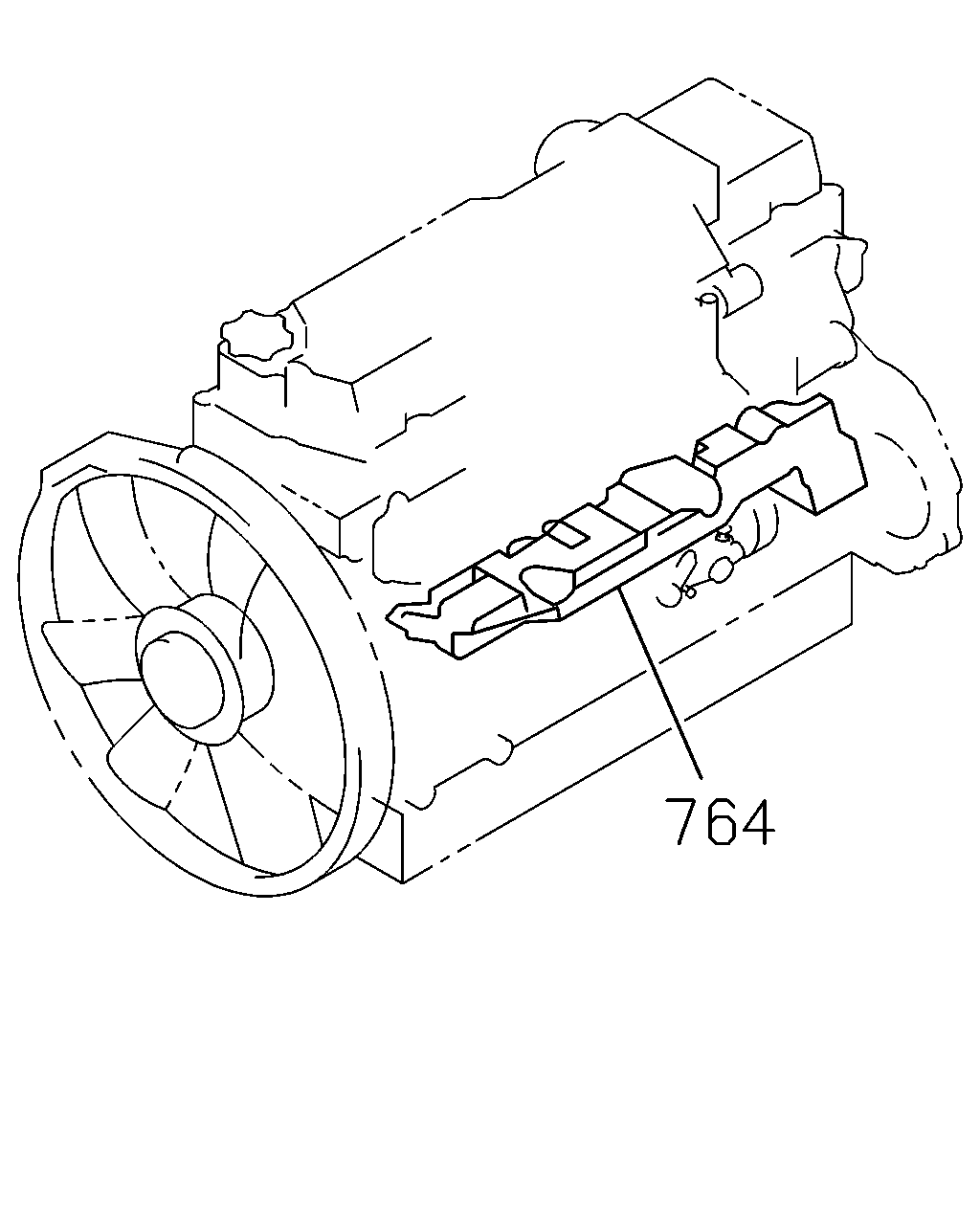

764

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
764	SPACER; INL COVER	8-98023-639-1	01	1	0710-0711	●
764	SPACER; INL COVER	8-98023-639-1	01	1	0712-0808	●	●	●
764	SPACER; INL COVER EURO4 SPECIFICATION<NT4>	8-98023-639-2	01	1	0809-	●		●
764	SPACER; INL COVER	8-98023-639-2	01	1	0809-		●

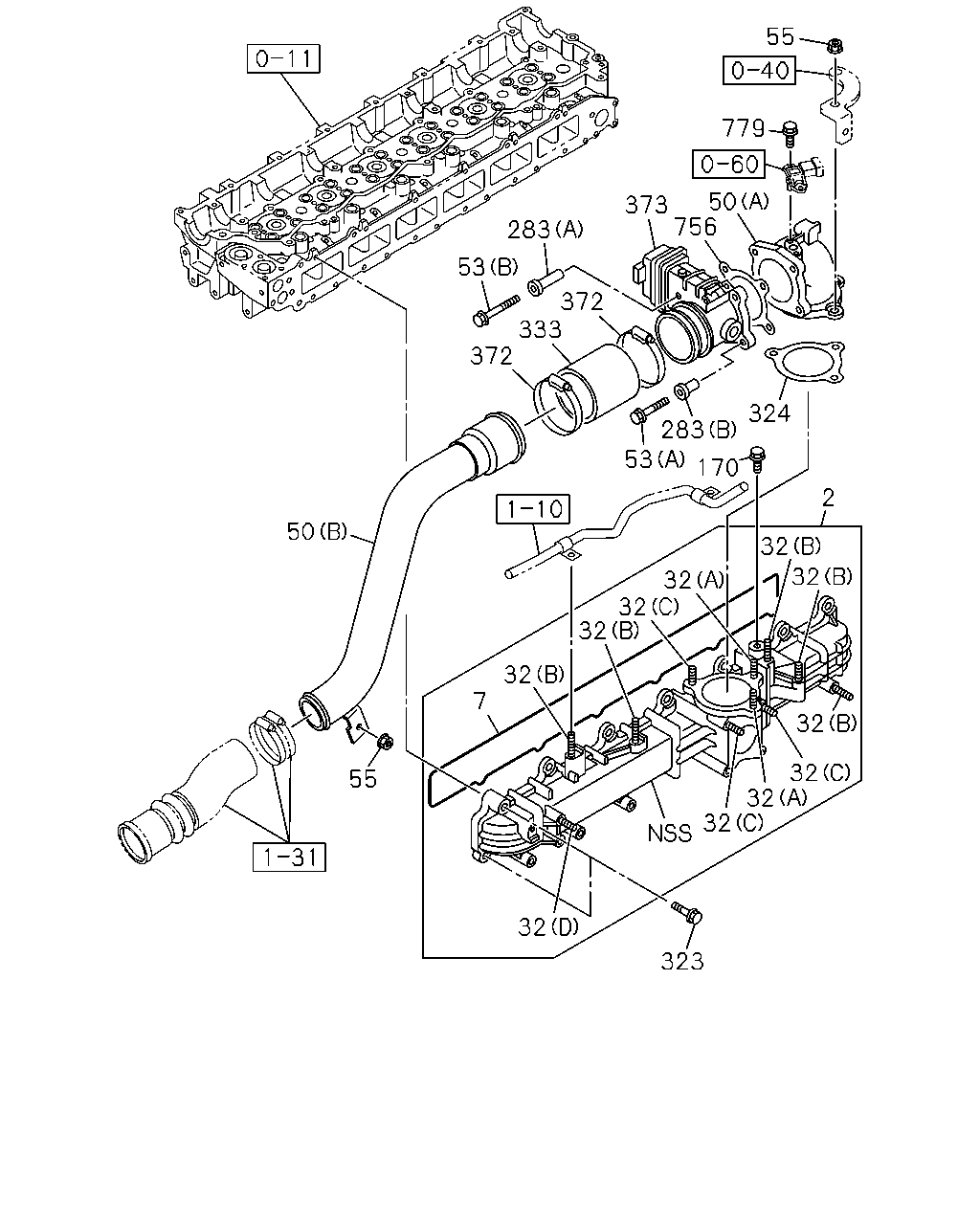

55 779 373 50 756 283 53 372 333 372 324 283 53 170 2 50 32 32 32 32 32 32 7 32 32 32 32 55 32 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	8-98061-091-0	01	1	0710-0711	●
2	COVER; INL	8-98061-091-0	01	1	0712-	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0710-0711	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0712-	●	●	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	0710-0711	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	0712-	●	●	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	0710-0711	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	0712-	●	●	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	0710-0711	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	0712-	●	●	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	0710-0711	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	0712-	●	●	●
50	PIPE; INL (A)	8-97604-940-0	01	1	0710-0711	●
50	PIPE; INL (A)	8-97604-940-0	01	1	0712-0808	●	●	●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (A)	8-97604-940-0	01	1	0809-1305	●		●
50	PIPE; INL (A)	8-97604-940-0	01	1	0809-1305		●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (A)	8-98239-524-0	01	1	1306-	●		●
50	PIPE; INL (A)	8-98239-524-0	01	1	1306-		●
50	PIPE; INL (B)	8-97607-412-2	01	1	0710-0711	●
50	PIPE; INL (B)	8-97607-412-2	01	1	0712-0808	●	●	●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (C)	8-98061-804-1	01	1	0809-	●		●
50	PIPE; INL (B)	8-97607-412-2	01	1	0809-	●	●	●
53	BOLT; INL PIPE (A) M8X30 FLANGE	0-28050-830-0	02	1	0710-0711	●
53	BOLT; INL PIPE (A) M8X30 FLANGE	0-28050-830-0	02	1	0712-0808	●	●	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28050-830-0	02	1	0809-	●		●
53	BOLT; INL PIPE (A) M8X30 FLANGE	0-28050-830-0	02	1	0809-		●
53	BOLT; INL PIPE (B) M8X70 FLANGE	0-28050-870-0	02	1	0710-0711	●
53	BOLT; INL PIPE (B) M8X70 FLANGE	0-28050-870-0	02	1	0712-0808	●	●	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	0809-	●		●
53	BOLT; INL PIPE (B) M8X70 FLANGE	0-28050-870-0	02	1	0809-		●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	0712-	●	●	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	0710-0711	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	0712-	●	●	●
283	RUBBER (B) L=18	8-97219-650-0	02	1	0710-0711	●
283	RUBBER (B) L=18	8-97219-650-0	02	1	0712-0808	●	●	●
283	RUBBER EURO4 SPECIFICATION<NT4> (B) L=18	8-97219-650-0	02	1	0809-	●		●
283	RUBBER (B) L=18	8-97219-650-0	02	1	0809-		●
283	RUBBER (A) L=58	8-97387-995-0	02	1	0710-0711	●
283	RUBBER (A) L=58	8-97387-995-0	02	1	0712-0808	●	●	●
283	RUBBER EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	02	1	0809-	●		●
283	RUBBER (A) L=58	8-97387-995-1	02	1	0809-		●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	0710-0711	●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	0712-	●	●	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	0710-0711	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	0712-	●	●	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	0710-0711	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	0712-	●	●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	0710-0711	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	0712-	●	●	●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	0710-0711	●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	0712-	●	●	●
372	CLIP; HOSE ID=77-95	1-09707-198-0	02	1	0710-0711	●
372	CLIP; HOSE ID=77-95	1-09707-198-0	02	1	0712-0810	●	●	●
372	CLIP; HOSE ID=75-95	8-98133-357-0	02	1	0811-0902	●	●	●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	0903-	●	●	●
373	THROTTLE ASM; INT	8-98061-061-1	01	1	0710-0711	●
373	THROTTLE ASM; INT	8-98061-061-1	01	1	0712-0808	●	●	●
373	THROTTLE ASM; INT EURO4 SPECIFICATION<NT4>	8-98061-061-3	01	1	0809-	●		●
373	THROTTLE ASM; INT	8-98061-061-3	01	1	0809-		●
756	GASKET; INTAKE,THROTTLE ID=88	8-97387-009-0	01	1	0710-0711	●
756	GASKET; INTAKE,THROTTLE ID=88	8-97387-009-0	01	1	0712-0808	●	●	●
756	GASKET; INTAKE,THROTTLE EURO4 SPECIFICATION<NT4> ID=88	8-97387-009-0	01	1	0809-	●		●
756	GASKET; INTAKE,THROTTLE ID=88	8-97387-009-0	01	1	0809-		●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-98040-191-0	02	1	0710-0711	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-98040-191-0	02	1	0712-0712	●	●	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	0801-	●	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98196-271-0	01	1	1107-	●		●
	8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98196-271-0	01	1	1107-		●

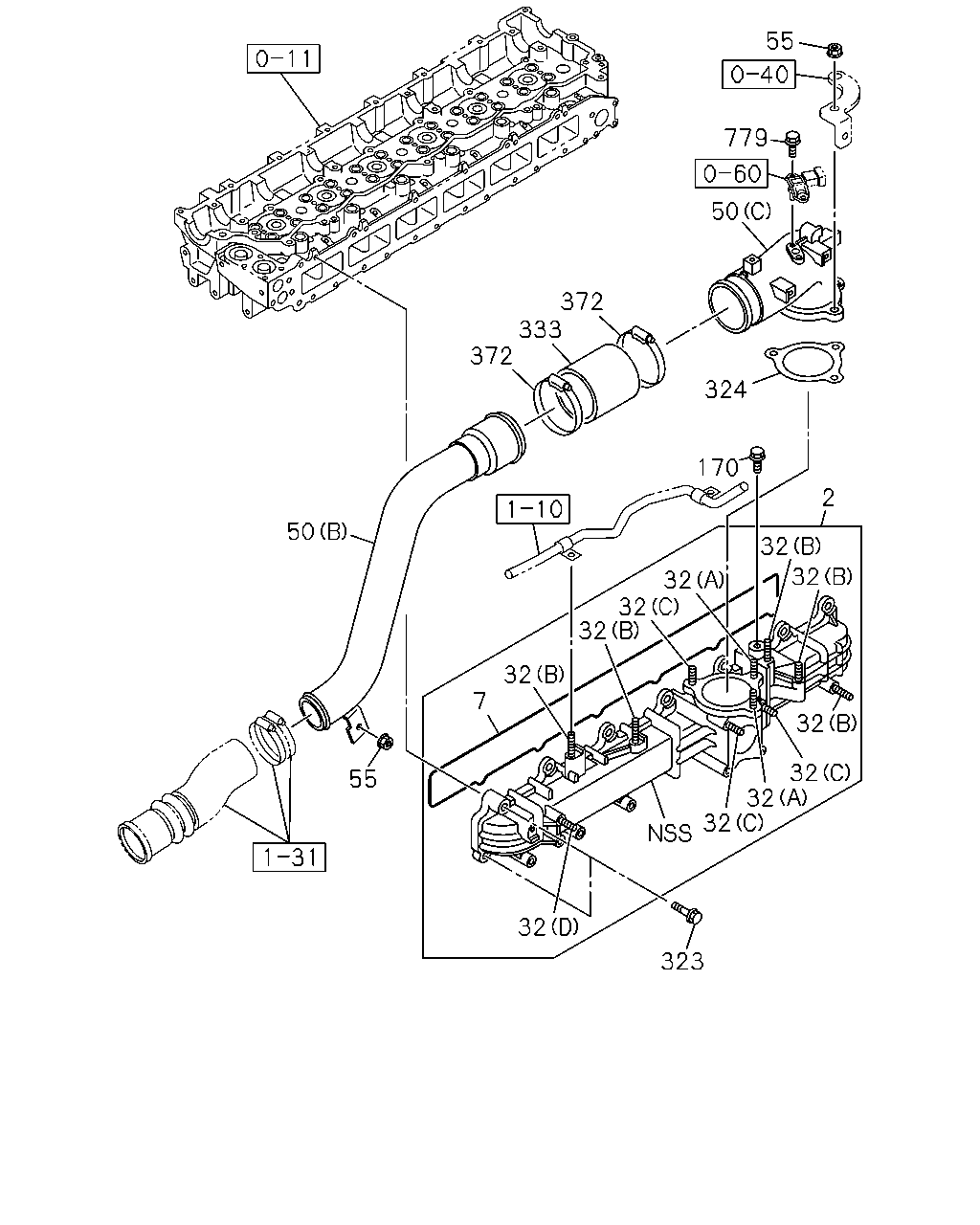

55 779 50 372 333 372 324 170 2 50 32 32 32 32 32 32 7 32 32 32 32 55 32 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	8-98061-091-0	01	1	0710-0711	●
2	COVER; INL	8-98061-091-0	01	1	0712-	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0710-0711	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0712-	●	●	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	0710-0711	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	0712-	●	●	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	0710-0711	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	0712-	●	●	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	0710-0711	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	0712-	●	●	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	0710-0711	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	0712-	●	●	●
50	PIPE; INL (A)	8-97604-940-0	01	1	0710-0711	●
50	PIPE; INL (A)	8-97604-940-0	01	1	0712-0808	●	●	●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (A)	8-97604-940-0	01	1	0809-1305	●		●
50	PIPE; INL (A)	8-97604-940-0	01	1	0809-1305		●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (A)	8-98239-524-0	01	1	1306-	●		●
50	PIPE; INL (A)	8-98239-524-0	01	1	1306-		●
50	PIPE; INL (B)	8-97607-412-2	01	1	0710-0711	●
50	PIPE; INL (B)	8-97607-412-2	01	1	0712-0808	●	●	●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (C)	8-98061-804-1	01	1	0809-	●		●
50	PIPE; INL (B)	8-97607-412-2	01	1	0809-	●	●	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	0712-	●	●	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	0710-0711	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	0712-	●	●	●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	0710-0711	●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	0712-	●	●	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	0710-0711	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	0712-	●	●	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	0710-0711	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	0712-	●	●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	0710-0711	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	0712-	●	●	●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	0710-0711	●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	0712-	●	●	●
372	CLIP; HOSE ID=77-95	1-09707-198-0	02	1	0710-0711	●
372	CLIP; HOSE ID=77-95	1-09707-198-0	02	1	0712-0810	●	●	●
372	CLIP; HOSE ID=75-95	8-98133-357-0	02	1	0811-0902	●	●	●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	0903-	●	●	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-98040-191-0	02	1	0710-0711	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-98040-191-0	02	1	0712-0712	●	●	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	0801-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
