0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#36064) — 81 parça

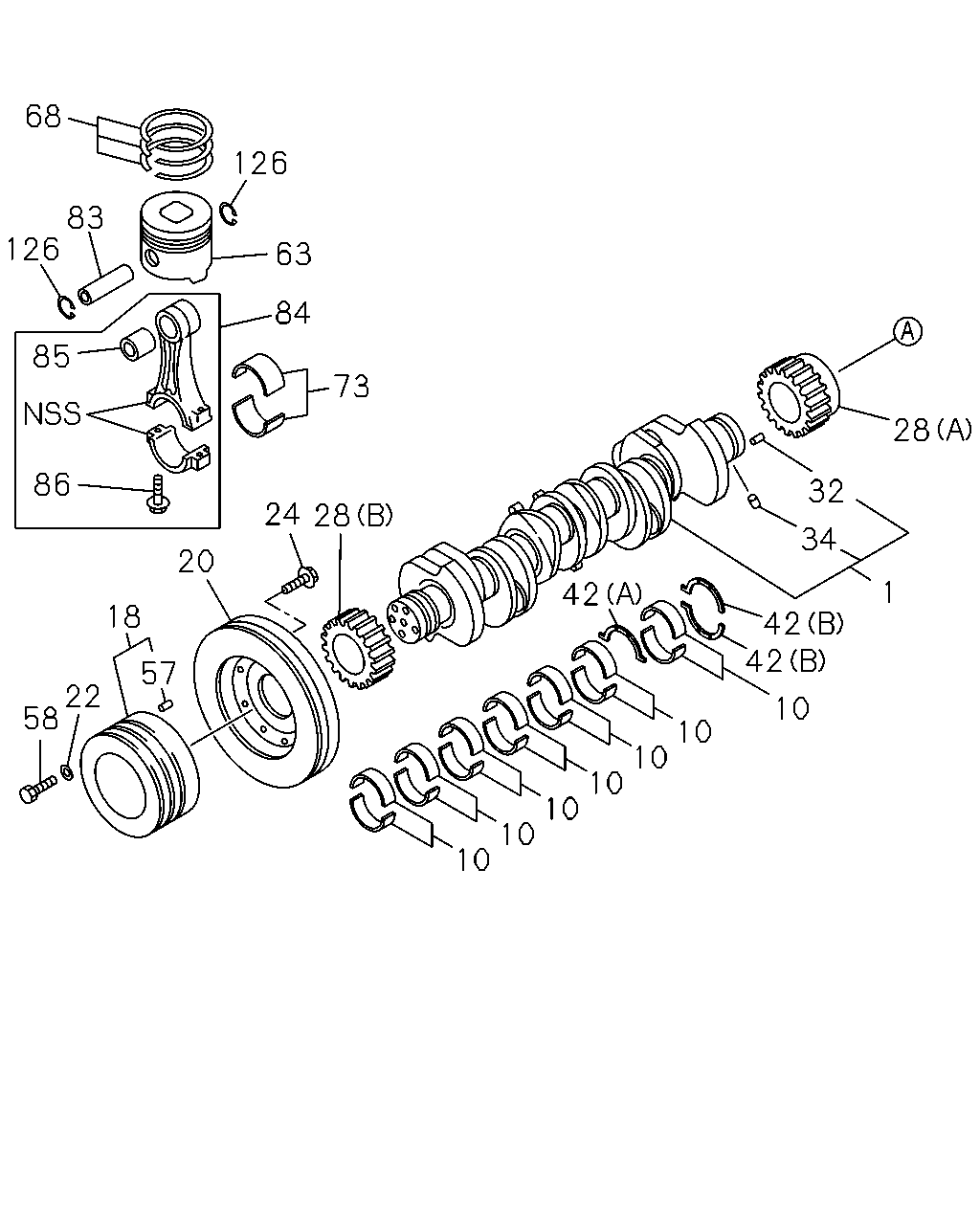

68 126 83 126 63 84 85 73 28 86 32 34 20 1 42 18 42 42 57 22 58 10 10 10 10 10 10 10 24 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-97603-004-0	01	1	0710-0711	●
1	CRANKSHAFT	8-97603-004-0	01	1	0712-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0710-0711	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0712-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0710-0711	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0712-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0710-0711	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0712-	●	●	●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0710-0711	●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0712-	●	●	●
20	DAMPER; CR/SHF	8-94392-276-2	01	1	0712-1004		●	●
20	DAMPER; CR/SHF	8-97613-696-0	01	1	0710-1004	●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1005-	●	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0710-0711	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0712-	●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0710-0711	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0712-	●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	0710-0711	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	0712-	●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0710-0711	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0712-	●	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0710-0711	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0712-	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0710-0711	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0712-	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0710-0711	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0712-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0710-0711	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0712-	●	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0710-0711	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0712-	●	●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0710-0711	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0712-	●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-0	06	1	0710-0711	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	0712-	●	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0710-0711	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0712-	●	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0710-0711	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0712-	●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0710-0711	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0712-	●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0710-0711	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0712-	●	●	●
84	ROD ASM; CONN	8-98018-425-0	06	1	0710-0711	●
84	ROD ASM; CONN	8-98018-425-3	06	1	0712-	●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0710-0711	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0712-	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0710-0711	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0712-1004	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0710-0711	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0712-	●	●	●

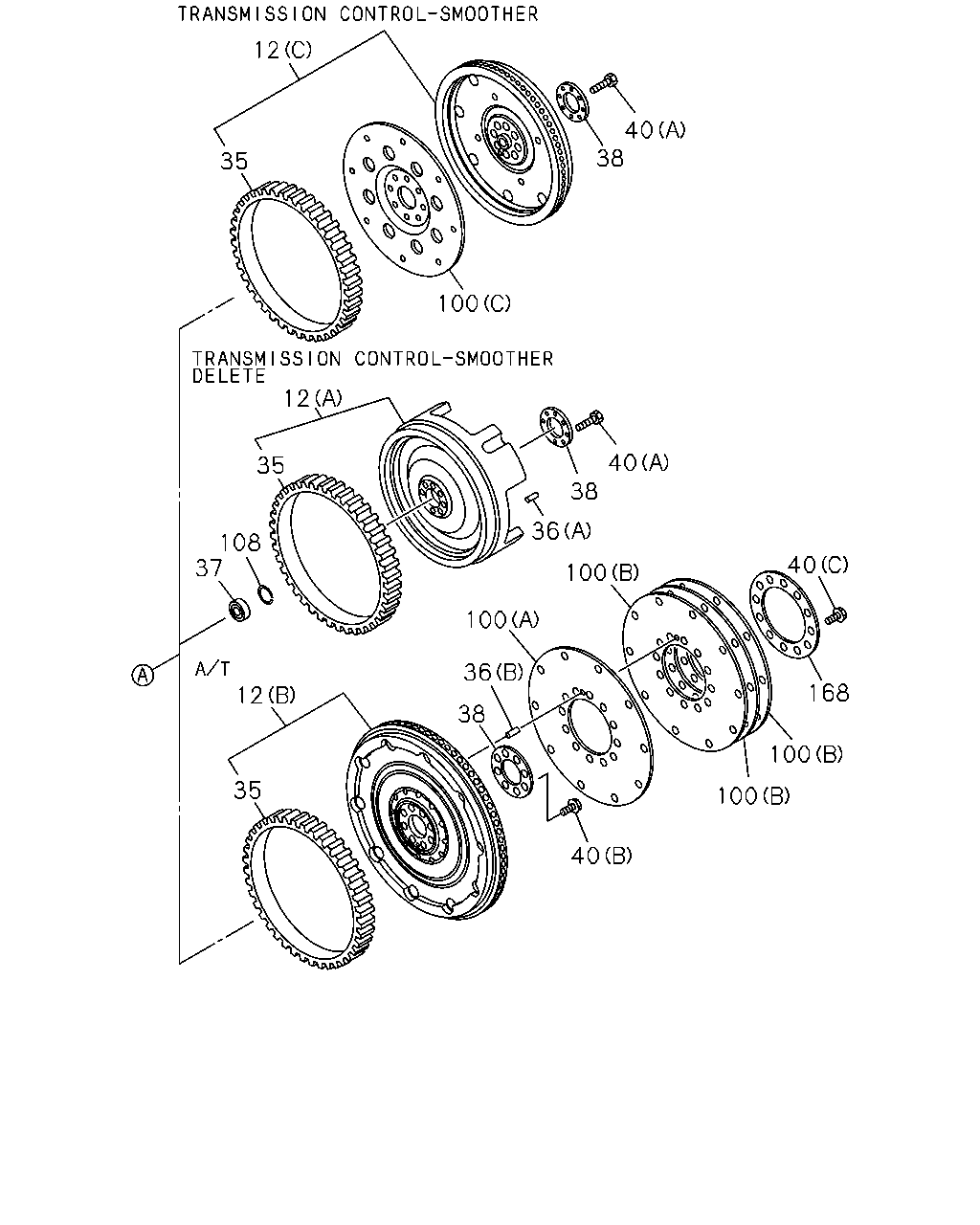

12 40 38 35 100 12 40 38 35 36 108 37 40 100 100 12 36 168 38 100 35 100 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	FLYWHEEL A/T<X9D> (B)	8-97610-682-1	01	1	0710-	●
12	FLYWHEEL MANUAL TRANSMISSION<X9C> (A)	8-97602-463-0	01	1	0710-0711	●
12	FLYWHEEL MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97602-463-2	01	1	0712-	●	●	●
12	FLYWHEEL MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97604-545-2	01	1	0712-		●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0710-0711	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0712-	●	●	●
36	PIN; FLYWHEEL MANUAL TRANSMISSION<X9C> (A) OD=10 L=22	9-08151-022-0	02	1	0710-0711	●
36	PIN; FLYWHEEL MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=10 L=22	9-08151-022-0	02	1	0712-	●	●	●
36	PIN; FLYWHEEL A/T<X9D> (B) OD=6 L=16	9-08160-616-0	01	1	0710-	●
37	BEARING; PILOT,TOP GEAR SHAFT MANUAL TRANSMISSION<X9C>	8-94392-288-0	01	1	0710-0711	●
37	BEARING; PILOT,TOP GEAR SHAFT MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	0712-	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT MANUAL TRANSMISSION<X9C> BEST VALUE PARTS	1-87610-157-0	01	1	0710-0711	●
37	BEARING; PILOT,TOP GEAR SHAFT MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	0712-	●	●	●
38	WASHER; FLYWHEEL MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120	8-98001-510-0	01	1	0712-1009		●	●
38	WASHER; FLYWHEEL MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120	8-98176-500-0	01	1	1010-		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0710-0711	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0712-	●
38	WASHER; FLYWHEEL MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=55 OD=110	8-94397-496-1	01	1	0712-		●	●
40	BOLT; FLYWHEEL MANUAL TRANSMISSION<X9C> (A) M16X62	8-94393-070-2	08	1	0710-0711	●
40	BOLT; FLYWHEEL MANUAL TRANSMISSION<X9C> (A) M16X62	8-94393-070-2	08	1	0712-	●	●	●
40	BOLT; FLYWHEEL A/T<X9D> (C) M12X30	8-11505-501-0	12	1	0710-	●
40	BOLT; FLYWHEEL A/T<X9D> (B) M16X79	8-97606-638-0	08	1	0710-	●
100	PLATE; FLEX MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97304-287-0	01	1	0712-1007		●	●
100	PLATE; FLEX MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98148-782-1	01	1	1008-		●	●
100	PLATE; FLEX A/T<X9D> (A)	8-29538-154-0	01	1	0710-	●
100	PLATE; FLEX A/T<X9D> (B)	8-29538-155-0	03	1	0710-	●
108	RING; SNAP,BRG SET MANUAL TRANSMISSION<X9C> OD=59.2	9-09180-155-0	01	1	0710-0711	●
108	RING; SNAP,BRG SET MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	0712-	●	●	●
168	PLATE; WEAR A/T<X9D> ID=119 OD=177	8-29538-157-0	01	1	0710-	●
