0-14 — CAMSHAFT AND VALVE (#36063) — 88 parça

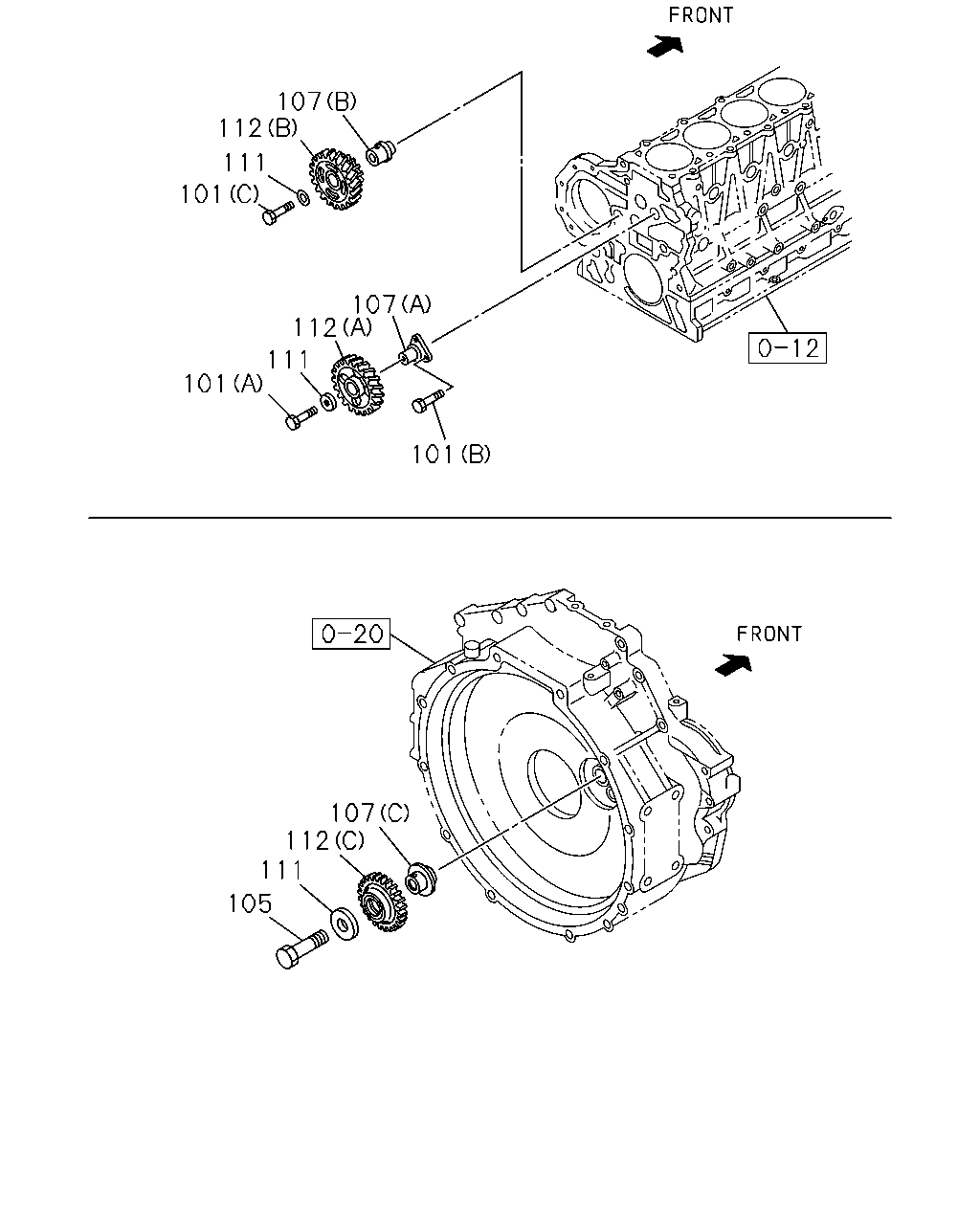

107 112 111 101 107 112 111 101 101 107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	0710-0711	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	0712-	●	●	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	0710-0711	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	0712-	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0710-0711	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0712-	●	●	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0710-0711	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0712-	●	●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-0	01	1	0710-0711	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0712-	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0710-0711	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0712-	●	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0710-0711	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0712-	●	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0710-0711	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0712-	●	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0710-0711	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0712-1402	●	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0710-0711	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0712-	●	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	0710-0711	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	0712-	●	●	●

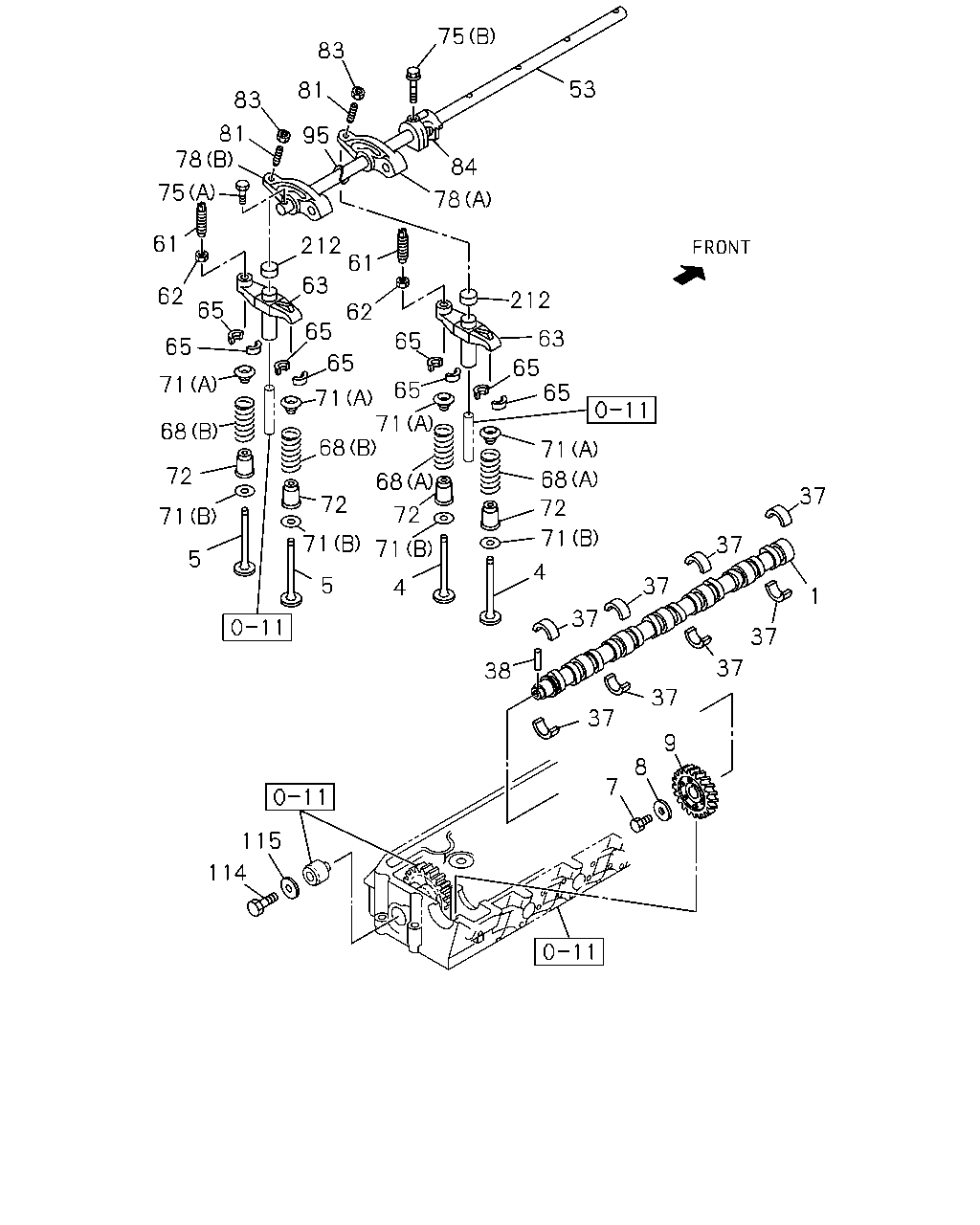

114 115 9 8 7 1 37 37 37 37 37 37 37 37 38 4 4 5 5 71 71 71 71 72 72 72 72 68 68 68 68 71 71 71 71 65 65 65 65 65 65 65 63 65 62 63 61 212 212 62 61 75 78 81 83 81 83 75 53 84 78 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	8-97601-438-0	01	1	0710-0711	●
1	CAMSHAFT	8-97601-438-0	01	1	0712-1311	●	●	●
1	CAMSHAFT	8-98227-261-1	01	1	1312-	●	●	●
4	VALVE; INL	8-94395-882-1	12	1	0710-0711	●
4	VALVE; INL	8-94395-882-2	12	1	0712-	●	●	●
5	VALVE; EXH	8-97209-876-2	12	1	0710-0711	●
5	VALVE; EXH	8-97209-876-4	12	1	0712-	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0710-0711	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0712-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0710-0711	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0712-	●	●	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	0710-0711	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	0712-	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0710-0711	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0712-	●	●	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0710-0711	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0712-	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0710-0711	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0712-	●	●	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0710-0711	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0712-	●	●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0710-0711	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0712-	●	●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0710-0711	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0712-	●	●	●
63	BRIDGE	8-94392-002-3	12	1	0710-0711	●
63	BRIDGE	8-94392-002-3	12	1	0712-	●	●	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0710-0711	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0712-	●	●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	0710-0711	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	0712-0808	●	●	●
68	SPRING; VLV EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	0809-	●		●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	0809-		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	0710-0711	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	0712-0808	●	●	●
68	SPRING; VLV EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0809-	●		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	0809-	●	●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	0710-0711	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	0712-	●	●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	0710-0711	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	0712-	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0710-0711	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0712-	●	●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0710-0711	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0712-	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0710-0711	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0712-	●	●	●
78	ARM; ROCKER (A) INLET	8-97306-421-2	06	1	0710-0711	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	0712-	●	●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-2	06	1	0710-0711	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	0712-	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0710-0711	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0712-	●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0710-0711	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0712-	●	●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0710-0711	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0712-	●	●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0710-0711	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0712-	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0710-0711	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0712-	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0710-0711	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0712-	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0710-0711	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0712-	●	●	●
