◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#36062) — 53 parça
çizim 179495
10 8 49 2 193 192 193 9 9 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 0710- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 0710-0711 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 0712- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 0710- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0710-0711 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0712- ● ● ●
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 0710-0711 ●
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 0712- ● ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 0710- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0710- ● ● ●

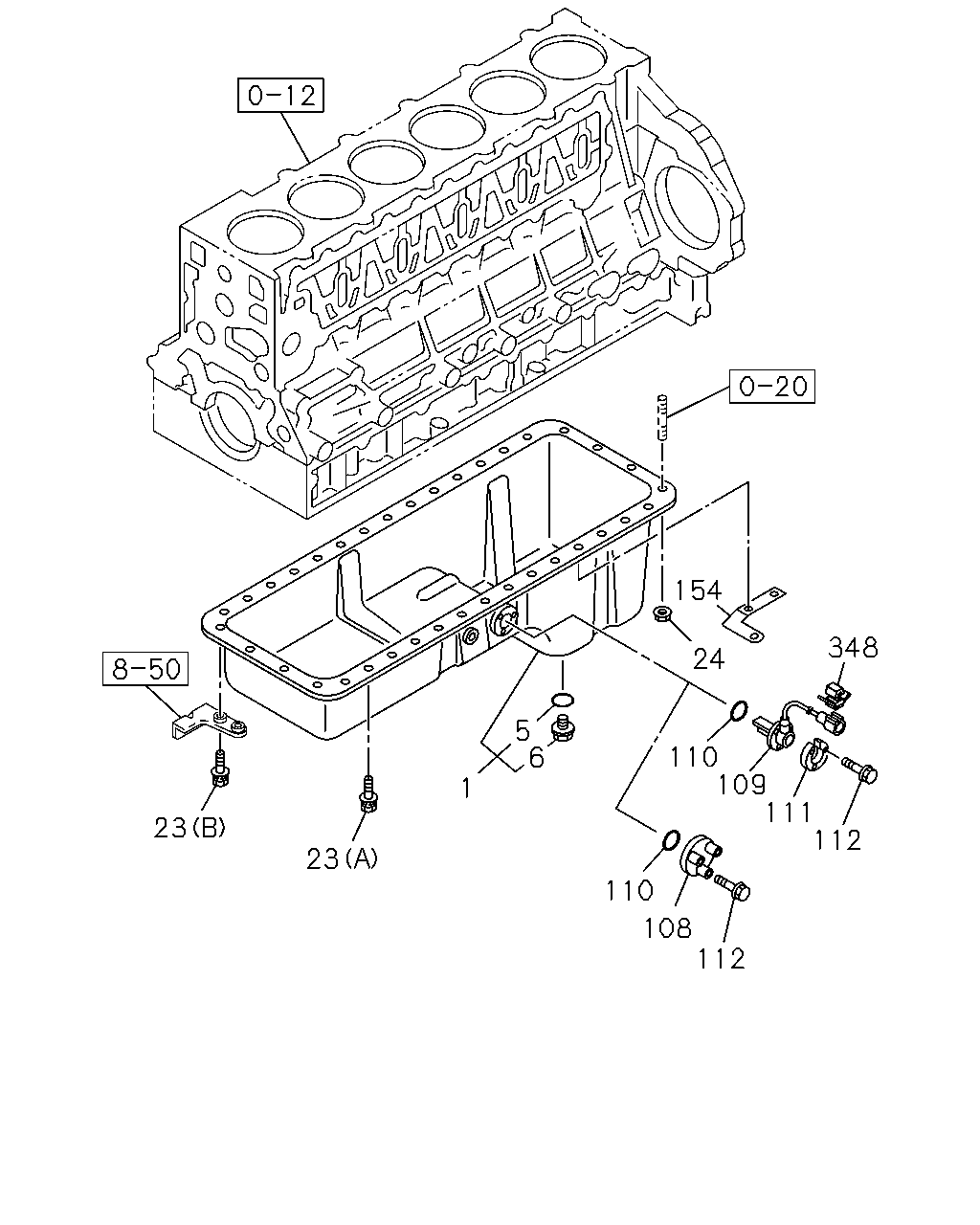

çizim 179510
154 348 24 5 6 110 109 111 112 1 23 23 110 108 112
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-97602-326-2 01 1 0809-1010 ● ●
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-98179-005-0 01 1 1011- ● ●
1 PAN ASM; OIL 8-98061-544-0 01 1 0710-0711 ●
1 PAN ASM; OIL 8-98061-544-0 01 1 0712-0808 ● ● ●
1 PAN ASM; OIL
EURO4 SPECIFICATION<NT4> 		8-98061-544-0 01 1 0809- ● ●
1 PAN ASM; OIL 8-98061-544-0 01 1 0809- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0710-0711 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0712- ● ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0710-0711 ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0712- ● ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0710-0711 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0712- ● ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 0710-0711 ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 0712- ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ● ●
108 COVER; OIL PAN
EURO2 SPECIFICATION<NT2> 		8-97609-994-0 01 1 0809-1010 ● ●
109 SWITCH; OIL LEVEL 8-97601-121-0 01 1 0710-0711 ●
109 SWITCH; OIL LEVEL 8-97601-121-0 01 1 0712-0808 ● ● ●
109 SWITCH; OIL LEVEL
EURO4 SPECIFICATION<NT4> 		8-97601-121-0 01 1 0809- ● ●
109 SWITCH; OIL LEVEL 8-97601-121-0 01 1 0809- ●
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 0710-0711 ●
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 0712-1010 ● ● ●
110 GASKET; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> ID=27 		8-98056-488-0 01 1 1011- ● ●
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 1011- ●
111 SPACER; SW,OIL LEVEL 5-11369-072-0 01 1 0710-0711 ●
111 SPACER; SW,OIL LEVEL 5-11369-072-0 01 1 0712-0808 ● ● ●
111 SPACER; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> 		5-11369-072-0 01 1 0809- ● ●
111 SPACER; SW,OIL LEVEL 5-11369-072-0 01 1 0809- ●
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 0710-0711 ●
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 0712-1010 ● ● ●
112 BOLT; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> M6X25 FLANGE 		0-28050-625-0 03 1 1011- ● ●
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 1011- ●
154 BRACKET; CLIP,ENG HARNESS 8-98064-103-0 01 1 0710-0711 ●
154 BRACKET; CLIP,ENG HARNESS 8-98064-103-0 01 1 0712-0808 ● ● ●
154 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> 		8-98064-103-0 01 1 0809- ● ●
154 BRACKET; CLIP,ENG HARNESS 8-98064-103-0 01 1 0809- ●
348 CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
348 CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0712-0808 ● ● ●
348 CONNECTOR
EURO4 SPECIFICATION<NT4> OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
348 CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0809- ●
