0-11 — CYLINDER HEAD (#36060) — 121 parça

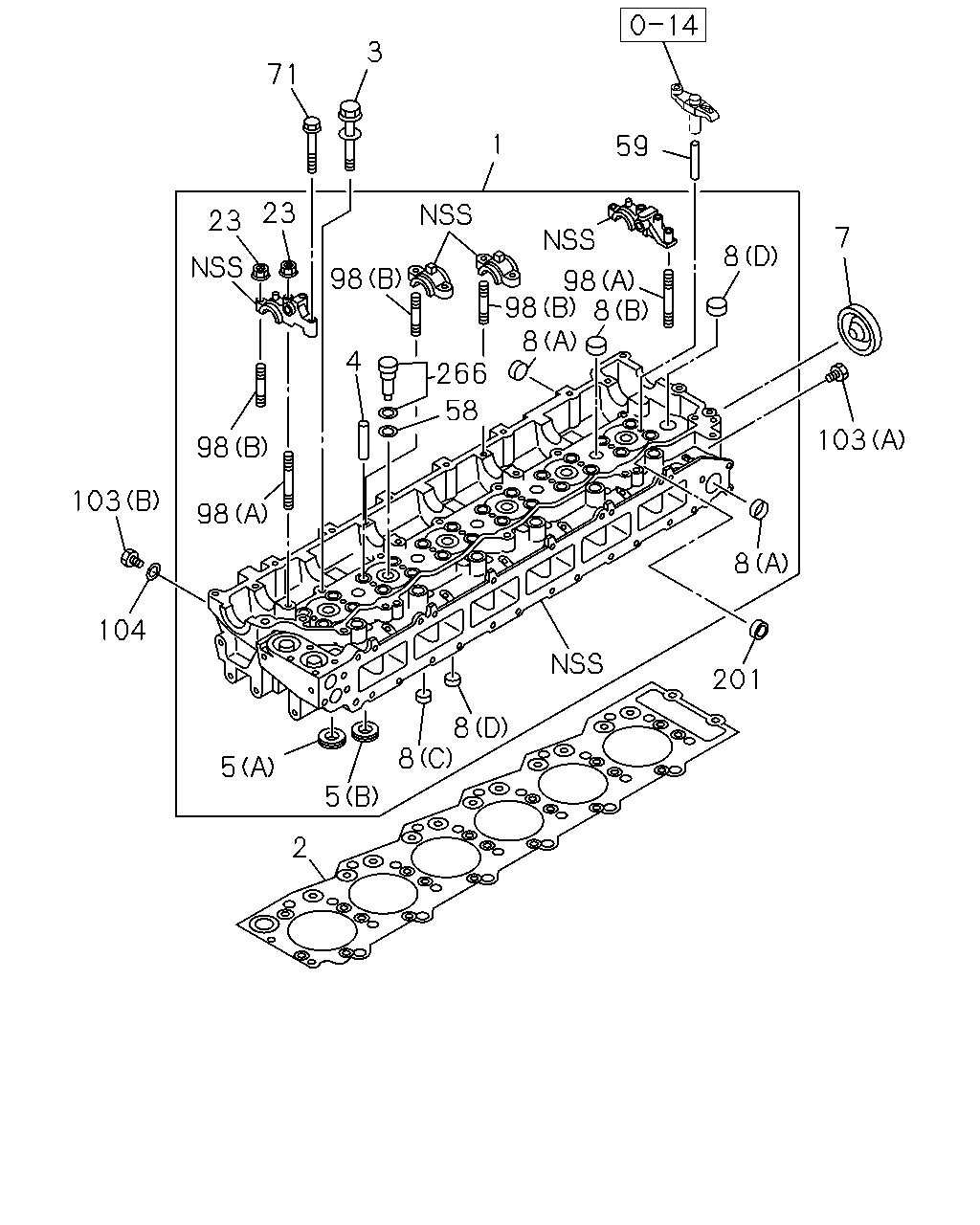

çizim 179527
2 5 8 8 201 8 103 7 8 59 1 98 8 8 98 266 58 98 4 5 98 98 23 23 71 3 103 104
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 8-97604-903-7 01 1 0712-1305 ● ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-97604-901-7 01 1 0710-1305 ●
1 HEAD ASM; CYL 8-98243-823-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-4 01 1 0710-0711 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 0712- ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0710-0711 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0712-0901 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ●
4 GUIDE; VLV
L=57 		8-97376-719-1 24 1 0710-0711 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0712- ● ● ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 12 1 0710-0711 ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 12 1 0712- ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0710-0711 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0712- ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0710-0711 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0712- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0712-0808 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 0809-0906 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0907-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 0911-1105 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 1106- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 07 1 0710-0711 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 0712-0808 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0809-0906 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 0907-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0911-1105 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 1106- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0710-0711 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0712- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0710-0711 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0712- ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0710-0711 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0712- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0710-0711 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0712- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 0710-0711 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 0712- ● ● ●
59 GUIDE; BRIDGE 8-97381-603-0 12 1 0710-0711 ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0712- ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0710-0711 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0712- ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0710-0711 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0712- ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0710-0711 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0712- ● ● ●
103 PLUG; HD
(A) M8X10 		8-98003-416-0 01 1 0809- ● ● ●
103 PLUG; HD
(A) M8X10 		8-98003-416-0 01 1 0710-0711 ●
103 PLUG; HD
(A) M8X10 		8-98003-416-0 01 1 0712-0808 ● ● ●
103 PLUG; HD
EURO2 SPECIFICATION<NT2> (B) M14X14 		9-09862-156-0 01 1 0809- ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-1312 ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0710-0711 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0712- ● ● ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0710-0711 ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0712- ● ● ●

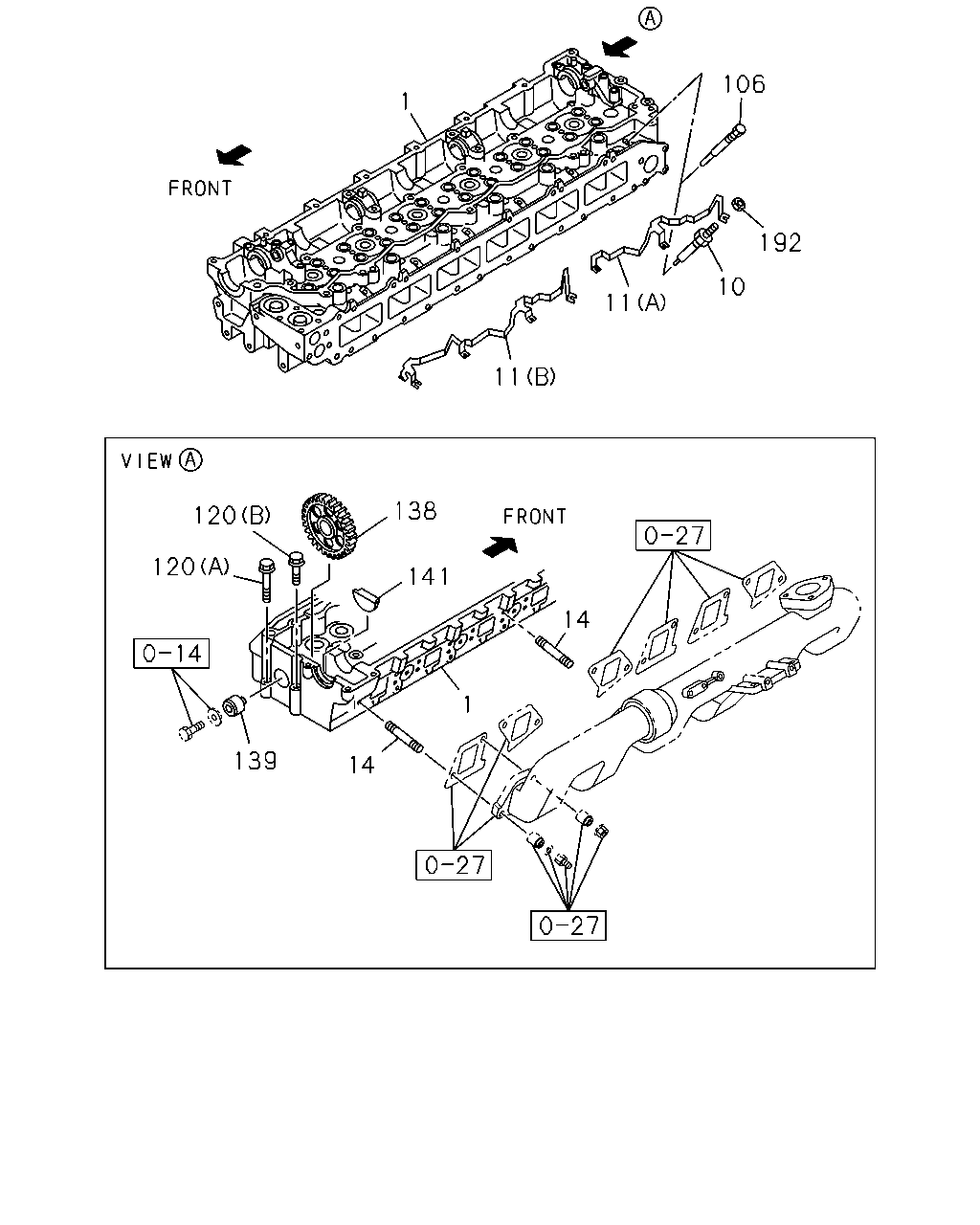

çizim 179532
1 10 192 106 11 11 138 141 14 1 14 139 120 120
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 8-97604-903-7 01 1 0712-1305 ● ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-97604-901-7 01 1 0710-1305 ●
1 HEAD ASM; CYL 8-98243-823-0 01 1 1306- ●
10 PLUG; GLOW
NGK 		8-94390-777-5 06 1 0710-0711 ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0712-1311 ● ● ●
10 PLUG; GLOW
EURO4 SPECIFICATION<NT4> NGK 		8-94390-777-6 06 1 1312- ● ●
10 PLUG; GLOW
EURO2 SPECIFICATION<NT2> EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 06 1 1312- ● ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 1312- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0710-0711 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0712-1311 ● ● ●
11 CONNECTOR; GLOW PLUG
EURO4 SPECIFICATION<NT4> (B) 		8-98040-648-0 01 1 1312- ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<NT2> EXC. GLOW SYSTEM DELETE<7RK> (B) 		8-98040-648-0 01 1 1312- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 1312- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0710-0711 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0712-1311 ● ● ●
11 CONNECTOR; GLOW PLUG
EURO4 SPECIFICATION<NT4> (A) 		8-98040-649-0 01 1 1312- ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<NT2> EXC. GLOW SYSTEM DELETE<7RK> (A) 		8-98040-649-0 01 1 1312- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 1312- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0710-0711 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0712- ● ● ●
106 PLUG; GLOW PLUG HOLE
EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 06 1 1312- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0710-0711 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0712- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0710-0711 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0712- ● ● ●
138 GEAR; IDLE
EURO2 SPECIFICATION<NT2> Z=41 		8-97606-929-0 01 1 0809- ● ●
138 GEAR; IDLE
Z=41 		8-98058-321-1 01 1 0710-0711 ●
138 GEAR; IDLE
Z=41 		8-98058-321-1 01 1 0712-0808 ● ● ●
138 GEAR; IDLE
EURO4 SPECIFICATION<NT4> Z=41 		8-98058-321-1 01 1 0809- ● ●
138 GEAR; IDLE
Z=41 		8-98058-321-1 01 1 0809- ●
139 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<NT2> 		8-97186-398-1 01 1 0809- ● ●
139 SHAFT; IDLE GEAR 8-97606-990-1 01 1 0710-0711 ●
139 SHAFT; IDLE GEAR 8-97606-990-1 01 1 0712-0808 ● ● ●
139 SHAFT; IDLE GEAR
EURO4 SPECIFICATION<NT4> 		8-97606-990-1 01 1 0809- ● ●
139 SHAFT; IDLE GEAR 8-97606-990-1 01 1 0809- ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0710-0711 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0712-1005 ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0710-0711 ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0712-1311 ● ● ●
192 NUT; GLOW PLUG
EURO4 SPECIFICATION<NT4> M4 FLANGE 		8-97368-853-0 06 1 1312- ● ●
192 NUT; GLOW PLUG
EURO2 SPECIFICATION<NT2> EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE 		8-97368-853-0 06 1 1312- ● ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 1312- ●

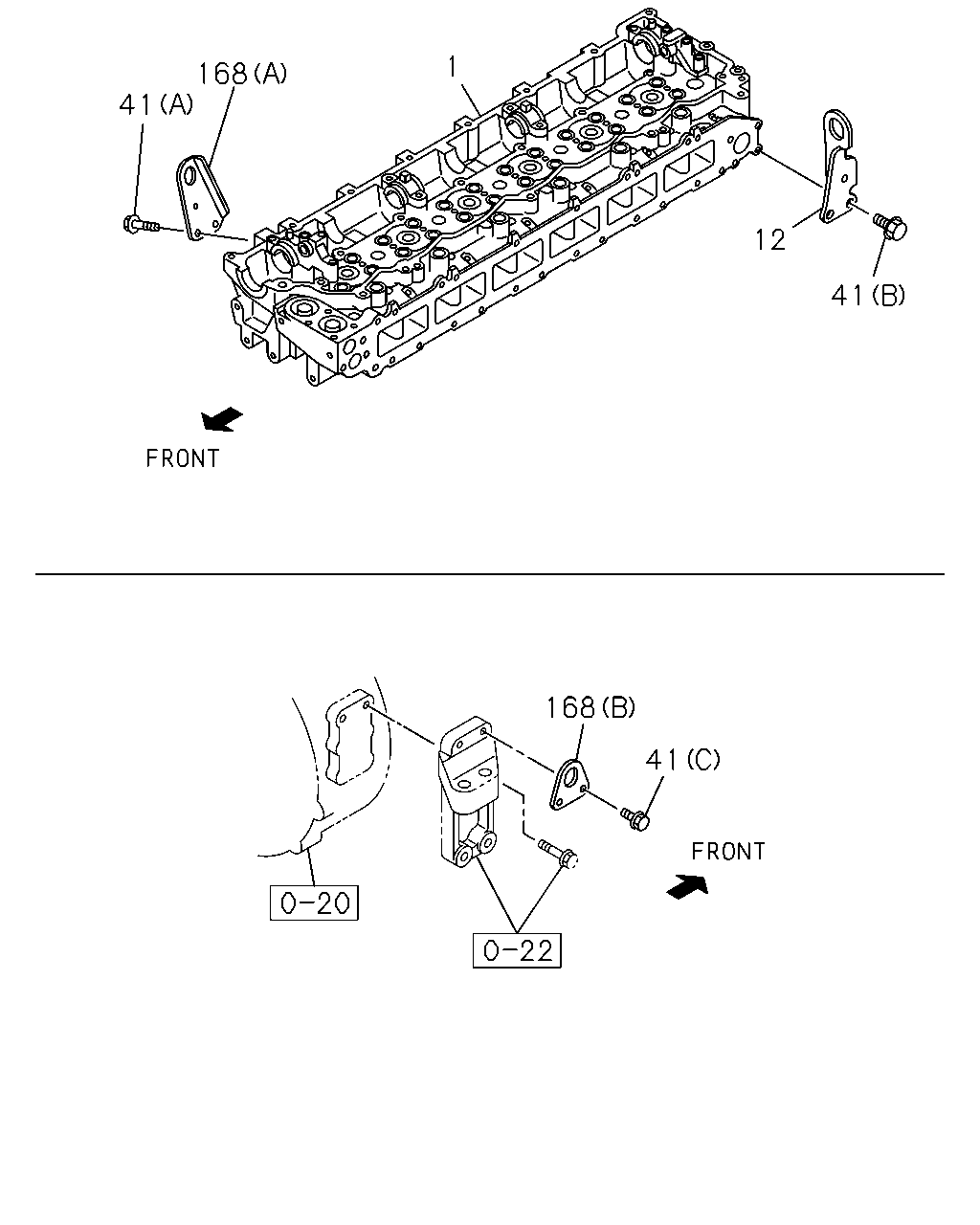

çizim 179545
41 168 1 12 41 168 41
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 8-97604-903-7 01 1 0712-1305 ● ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-97604-901-7 01 1 0710-1305 ●
1 HEAD ASM; CYL 8-98243-823-0 01 1 1306- ●
12 HANGER; ENG,RR 8-94392-081-1 01 1 0710-0711 ●
12 HANGER; ENG,RR 8-94392-081-1 01 1 0712- ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0710-0711 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0712- ● ● ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0710-0711 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0712- ● ● ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 0710-0711 ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 0712- ● ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 0710-0711 ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 0712-0808 ● ● ●
168 HANGER; ENG,FRT
EURO2 SPECIFICATION<NT2> (A) 		8-94394-071-2 01 1 0809- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-1 01 1 0809- ● ● ●
168 HANGER; ENG,FRT
(A) 		8-98043-134-0 01 1 0710-0711 ●
168 HANGER; ENG,FRT
(A) 		8-98043-134-0 01 1 0712-0808 ● ● ●
168 HANGER; ENG,FRT
EURO4 SPECIFICATION<NT4> (A) 		8-98043-134-0 01 1 0809- ● ●
168 HANGER; ENG,FRT
(A) 		8-98043-134-0 01 1 0809- ●
