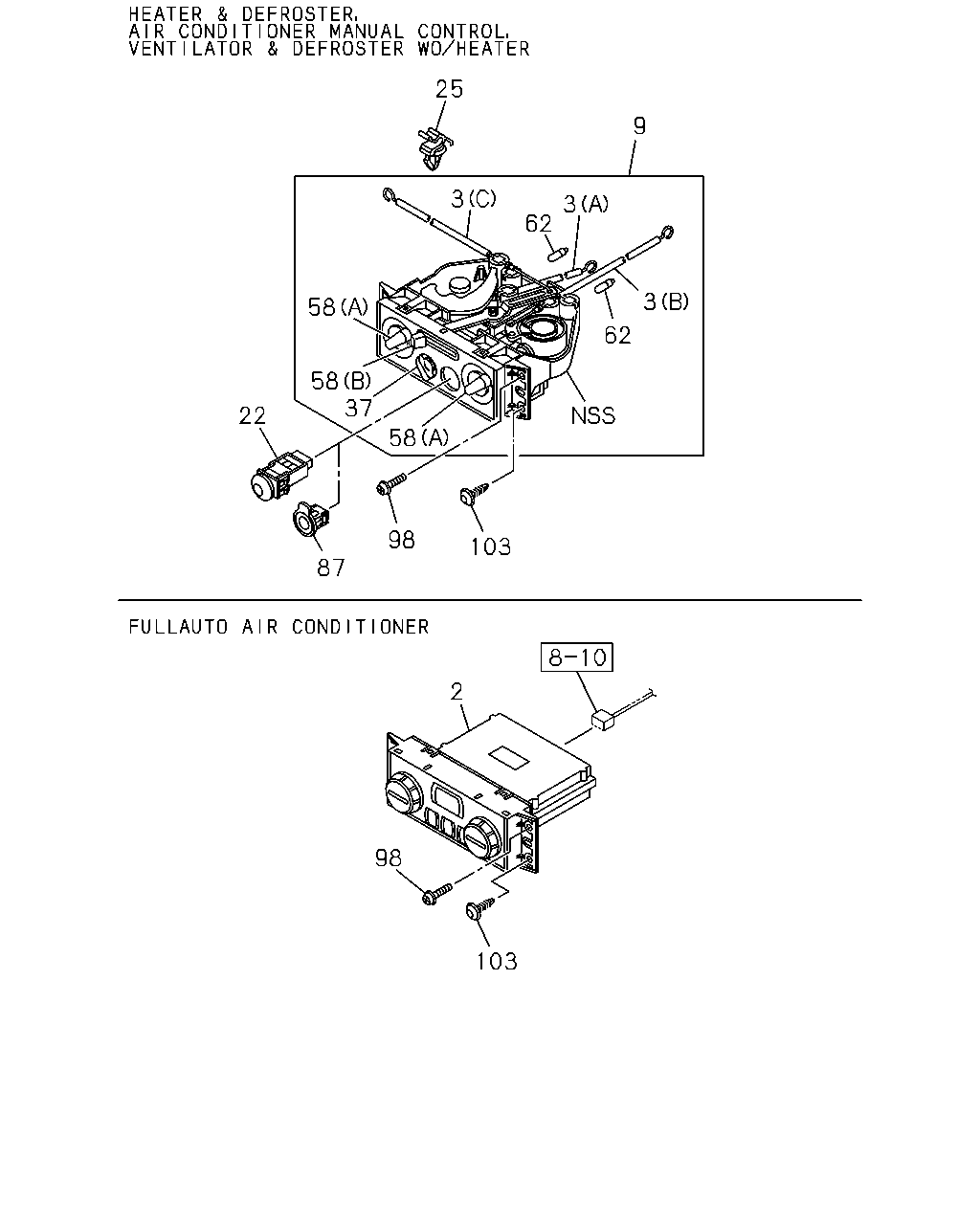

8-65 — CONTROL LEVER; HEATER AND AIR CON (#36050) — 34 parça

25 9 3 3 62 3 58 62 58 37 58 22 98 103 87 2 98 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PANEL ASM; CONT,ILLUMINATION FULLAUTO AIR CONDITIONER(C68)	8-98021-984-0	01	1	0710-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M	8-98041-502-0	01	1	0710-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) MODE	8-98041-503-1	01	1	0710-0808	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) MODE	8-98041-503-1	01	1	0809-	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MODE	8-98041-503-1	01	1	0809-		●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) R/F	8-98041-505-2	01	1	0710-0808	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) R/F	8-98041-505-2	01	1	0809-	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) R/F	8-98041-505-2	01	1	0809-		●
9	LEVER ASM; HTR & A/C CONT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98062-807-1	01	1	0809-		●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-319-2	01	1	0710-	●	●
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONTROL(C60)	8-98021-982-0	01	1	0710-	●	●
25	CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=4.8	8-94128-483-0	03	1	0710-0808	●	●
25	CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=4.8	8-94128-483-0	03	1	0809-	●
25	CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8	8-94128-483-0	03	1	0809-		●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98037-368-0	01	1	0710-0808	●	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98037-368-0	01	1	0809-	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98037-368-0	01	1	0809-		●
58	KNOB; LVR,HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98037-369-0	01	1	0809-		●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98037-369-0	02	1	0710-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98037-370-0	01	1	0710-0808	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98037-370-0	01	1	0809-	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98037-370-0	01	1	0809-		●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.1W	8-98037-371-0	02	1	0710-0808	●	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.1W	8-98037-371-0	02	1	0809-	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.1W	8-98037-371-0	02	1	0809-		●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	0710-0808	●	●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	0809-	●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98006-089-0	01	1	0809-		●
98	SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0710-0808	●	●
98	SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0809-	●
98	SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0809-		●
103	CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY	8-97098-326-0	01	1	0710-0808	●	●
103	CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY	8-97098-326-0	01	1	0809-	●
103	CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) DARK GRAY	8-97098-326-0	01	1	0809-		●
