◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#3605) — 131 parça

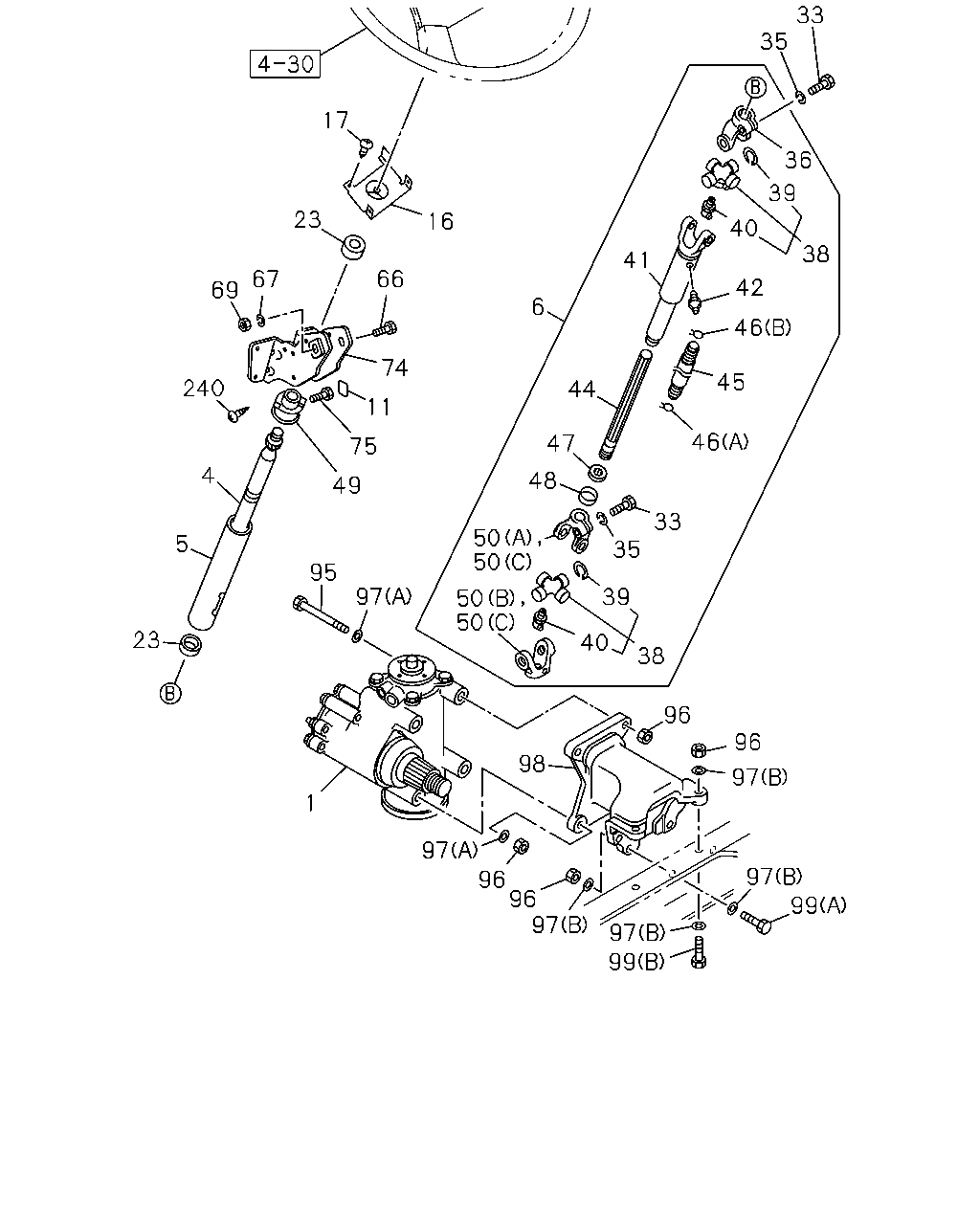

çizim 5047
33 35 17 36 39 23 16 40 38 41 66 67 42 69 6 46 74 45 240 44 11 46 47 75 4 48 49 33 50 50 5 35 95 97 39 50 50 23 40 38 96 96 98 97 1 97 97 96 96 97 99 97 99
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-765-3 01 1 9002-9306
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-826-0 01 1 9307-
4 SHAFT; STRG 1-44131-118-1 01 1 9002-
5 COLUMN; STRG
STEERING COLUMN WO/TILT<WV6> 		1-44211-045-0 01 1 9002-
5 COLUMN; STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44211-043-1 01 1 9002-
6 SHAFT; STRG LWR 1-44130-399-1 01 1 9002-
11 SEAL; JOURNAL,STRG
STEERING COLUMN WO/TILT<WV6> 		1-44139-077-0 02 1 9002-
16 BRACKET; COMB SW 1-44227-074-2 01 1 9002-
17 SCREW; BRKT
STEERING COLUMN WO/TILT<WV6> M5X10 W/LK WASHER 		9-03910-510-0 03 1 9002-
17 SCREW; BRKT
EXC. STEERING COLUMN WO/TILT<WV6> M5X10 		9-93490-510-0 03 1 9002-
23 BEARING; BALL,STRG SHAFT 1-09800-157-0 02 1 9002-
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9002-9304
33 BOLT; STRG SHAFT TO UNIT
EXC. STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 01 1 9002-9304
33 BOLT; STRG SHAFT TO UNIT
STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 02 1 9002-9304
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9305-
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9002-9304
35 WASHER; LK,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 01 1 9002-9304
35 WASHER; LK,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 02 1 9002-9304
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9305-
36 YOKE; STRG SHAFT 1-44135-179-0 01 1 9002-
38 JOURNAL; STRG SHAFT 1-44135-098-0 02 1 9002-
39 RING; SNAP,JOURNAL
T=1.2 		1-09587-061-1 08 1 9002-
40 NIPPLE; GREASE,JOURNAL 1-09380-004-0 02 1 9002-
41 YOKE; SLEEVE,STRG 1-44135-156-0 01 1 9002-
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9002-
44 SHAFT; SPLINE,STRG 1-44131-109-2 01 1 9002-
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9002-
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9002-
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9002-
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9002-
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9002-
49 COVER; UPR,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> 		1-44139-108-0 01 1 9002-
50 YOKE; SPLINE,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> (A),(B) 		1-44135-179-0 02 1 9002-9304
50 YOKE; SPLINE,STRG SHAFT
(C) 		1-44135-179-0 01 1 9305-
50 YOKE; SPLINE,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> (C) 		1-44135-179-0 01 1 9305-
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (A) 		1-44135-090-1 01 1 9002-
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (B) 		1-44135-179-0 01 1 9002-9304
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		9-91056-275-0 02 1 9002-9005
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		0-10806-275-0 02 1 9006-
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		9-01900-620-0 03 1 9002-9204
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205-
67 WASHER; LK,BRKT,STRG COLUMN
STEERING COLUMN WO/TILT<WV6> 		9-09150-512-0 02 1 9002-
67 WASHER; LK,BRKT,STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-082-0 02 1 9002-
69 NUT; TILT CENTER
STEERING COLUMN WO/TILT<WV6> M12 		9-99110-412-0 02 1 9002-
74 BRACKET; SUPPORT,STRG
STEERING COLUMN WO/TILT<WV6> 		1-44221-045-1 01 1 9002-
74 BRACKET; SUPPORT,STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44221-049-1 01 1 9002-
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		9-01970-825-0 04 1 9002-9005
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9006-
95 BOLT; STRG UNIT
M16X177 		1-09000-426-0 02 1 9002-
95 BOLT; STRG UNIT
M16X166 		1-09000-427-0 02 1 9002-
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9002-
96 NUT; STRG UNIT
M16 		9-99110-516-0 02 1 9002-
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 9002-
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 12 1 9002-
98 BRACKET; STRG GEAR BOX 1-44226-109-3 01 1 9002-
99 BOLT; BRKT TO FRAME
(B) M14X55 		1-09000-425-0 04 1 9002-
99 BOLT; BRKT TO FRAME
(A) M14X55 		9-92061-455-0 02 1 9002-
240 SCREW; CLIP
M6X8 W/LK WASHER 		1-09981-040-0 01 1 9002-

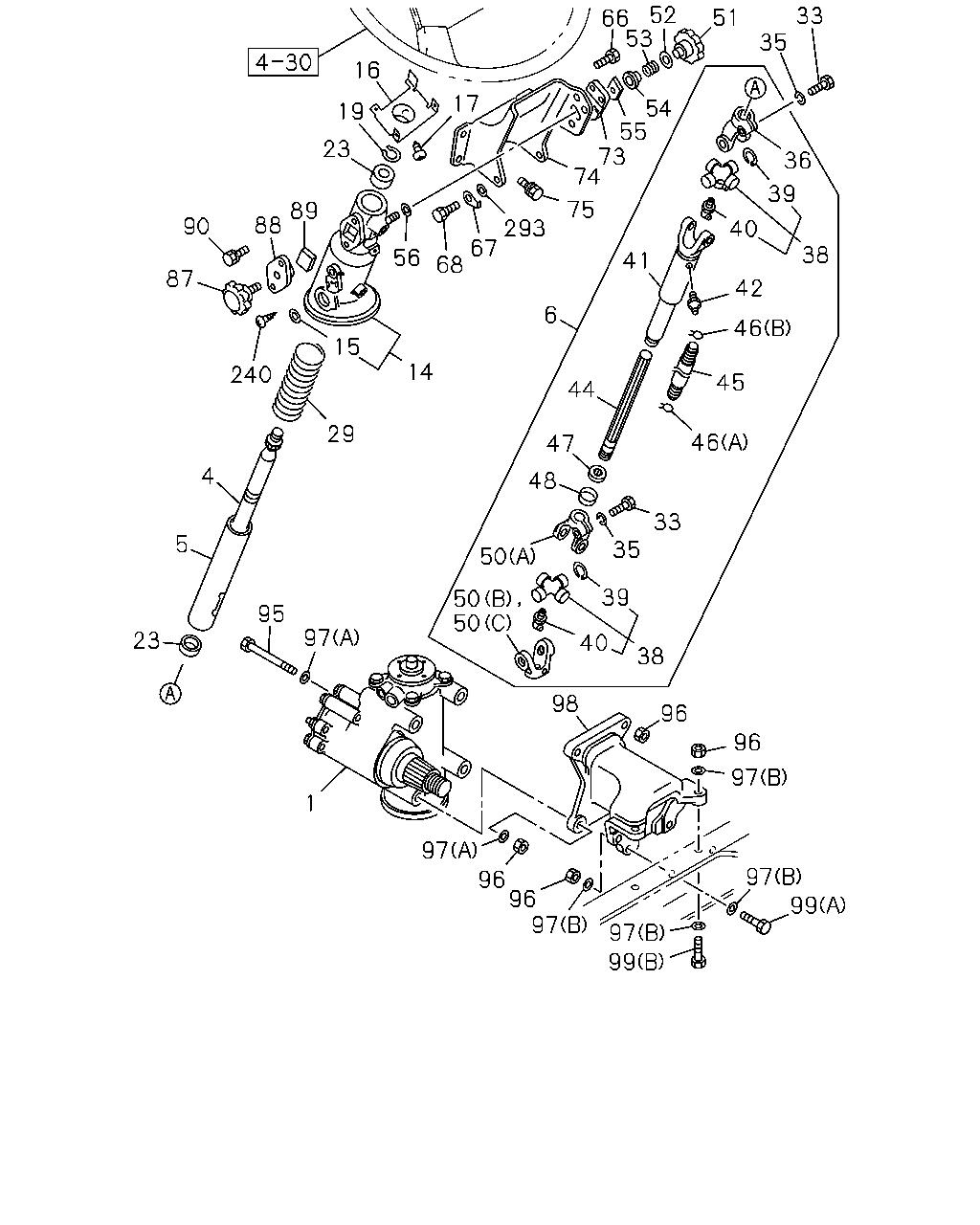

çizim 5050
66 52 53 33 35 51 16 17 54 55 73 74 19 23 36 39 75 89 88 90 293 67 68 40 38 56 41 87 42 6 46 15 14 240 45 44 29 46 47 4 48 33 5 35 50 39 50 50 95 97 23 40 38 98 96 96 97 1 97 97 96 96 97 99 97 99
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-765-3 01 1 9002-9306
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-826-0 01 1 9307-
4 SHAFT; STRG 1-44131-118-1 01 1 9002-
5 COLUMN; STRG
STEERING COLUMN WO/TILT<WV6> 		1-44211-045-0 01 1 9002-
5 COLUMN; STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44211-043-1 01 1 9002-
6 SHAFT; STRG LWR 1-44130-399-1 01 1 9002-
14 CASE ASM; STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44221-046-3 01 1 9002-
15 WASHER; TILT CENTER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-077-1 02 1 9002-
16 BRACKET; COMB SW 1-44227-074-2 01 1 9002-
17 SCREW; BRKT
STEERING COLUMN WO/TILT<WV6> M5X10 W/LK WASHER 		9-03910-510-0 03 1 9002-
17 SCREW; BRKT
EXC. STEERING COLUMN WO/TILT<WV6> M5X10 		9-93490-510-0 03 1 9002-
19 RING; SNAP,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> ID=23.4 T=1.5 		1-09588-140-0 02 1 9002-
23 BEARING; BALL,STRG SHAFT 1-09800-157-0 02 1 9002-
29 SPRING; COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-09583-223-0 01 1 9002-
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9002-9304
33 BOLT; STRG SHAFT TO UNIT
EXC. STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 01 1 9002-9304
33 BOLT; STRG SHAFT TO UNIT
STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 02 1 9002-9304
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9305-
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9002-9304
35 WASHER; LK,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 01 1 9002-9304
35 WASHER; LK,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 02 1 9002-9304
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9305-
36 YOKE; STRG SHAFT 1-44135-179-0 01 1 9002-
38 JOURNAL; STRG SHAFT 1-44135-098-0 02 1 9002-
39 RING; SNAP,JOURNAL
T=1.2 		1-09587-061-1 08 1 9002-
40 NIPPLE; GREASE,JOURNAL 1-09380-004-0 02 1 9002-
41 YOKE; SLEEVE,STRG 1-44135-156-0 01 1 9002-
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9002-
44 SHAFT; SPLINE,STRG 1-44131-109-2 01 1 9002-
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9002-
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9002-
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9002-
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9002-
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9002-
50 YOKE; SPLINE,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> (A),(B) 		1-44135-179-0 02 1 9002-9304
50 YOKE; SPLINE,STRG SHAFT
(C) 		1-44135-179-0 01 1 9305-
50 YOKE; SPLINE,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> (C) 		1-44135-179-0 01 1 9305-
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (A) 		1-44135-090-1 01 1 9002-
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (B) 		1-44135-179-0 01 1 9002-9304
51 KNOB; TILT
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-099-0 01 1 9002-
52 WASHER; PL,ADJ LEVER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-086-0 01 1 9002-
53 SPRING; TILT KNOB
EXC. STEERING COLUMN WO/TILT<WV6> 		1-09580-343-0 01 1 9002-
54 GUIDE; SPR
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-072-0 01 1 9002-
55 PLATE; GUIDE
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-091-0 01 1 9002-
56 WASHER; LOCATING PLATE
EXC. STEERING COLUMN WO/TILT<WV6> 		1-09503-127-1 01 1 9002-
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		9-91056-275-0 02 1 9002-9005
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		0-10806-275-0 02 1 9006-
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		9-01900-620-0 03 1 9002-9204
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205-
67 WASHER; LK,BRKT,STRG COLUMN
STEERING COLUMN WO/TILT<WV6> 		9-09150-512-0 02 1 9002-
67 WASHER; LK,BRKT,STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-082-0 02 1 9002-
68 PIN; TILT CENTER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-080-1 02 1 9002-
73 PLATE; LOCATING
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-092-0 01 1 9002-
74 BRACKET; SUPPORT,STRG
STEERING COLUMN WO/TILT<WV6> 		1-44221-045-1 01 1 9002-
74 BRACKET; SUPPORT,STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44221-049-1 01 1 9002-
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		9-01970-825-0 04 1 9002-9005
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9006-
87 KNOB; TELESCOPIC
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-098-0 01 1 9002-
88 FLANGE; KNOB
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-056-1 01 1 9002-
89 PLUNGER; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-093-0 01 1 9002-
90 BOLT; FLANGE
EXC. STEERING COLUMN WO/TILT<WV6> M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204
90 BOLT; FLANGE
EXC. STEERING COLUMN WO/TILT<WV6> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-
95 BOLT; STRG UNIT
M16X177 		1-09000-426-0 02 1 9002-
95 BOLT; STRG UNIT
M16X166 		1-09000-427-0 02 1 9002-
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9002-
96 NUT; STRG UNIT
M16 		9-99110-516-0 02 1 9002-
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 9002-
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 12 1 9002-
98 BRACKET; STRG GEAR BOX 1-44226-109-3 01 1 9002-
99 BOLT; BRKT TO FRAME
(B) M14X55 		1-09000-425-0 04 1 9002-
99 BOLT; BRKT TO FRAME
(A) M14X55 		9-92061-455-0 02 1 9002-
240 SCREW; CLIP
M6X8 W/LK WASHER 		1-09981-040-0 01 1 9002-
293 WASHER; TILT CENTER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-077-1 02 1 9002-
