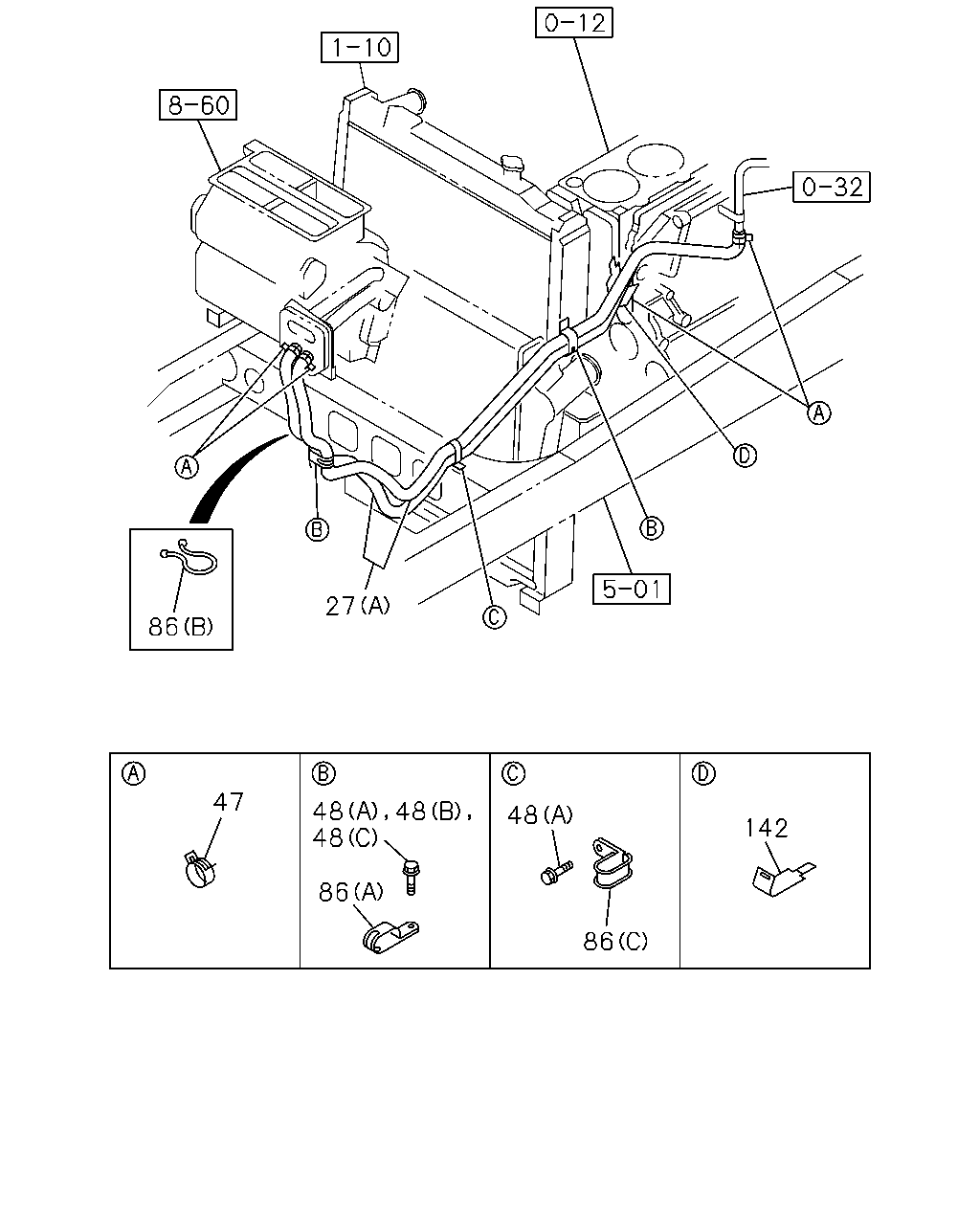

8-45 — HEATER PIPING (#36046) — 82 parça

27 86 47 48 48 142 86 86 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	0809-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0808	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0809-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98010-679-3	01	1	0809-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1004-	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0710-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) M8X16 FLANGE	0-28050-816-0	01	1	0809-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0710-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	02	1	0809-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0710-0808	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0710-0808	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0809-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0809-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	01	1	0809-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	0710-1008	●	●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	1009-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98029-677-0	01	1	0710-	●	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	1-83574-139-0	01	1	0710-1205	●	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	8-98166-021-0	01	1	1206-	●	●

27 56 103 56 56 63 103 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	0809-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0808	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0809-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98010-679-3	01	1	0809-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1004-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0710-	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0710-0808	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0809-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98117-223-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0710-0808	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0809-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (B)	8-98117-224-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0710-0808	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0809-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C)	8-98117-225-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (D)	8-98113-054-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (E)	8-98113-055-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (F)	8-98113-056-0	01	1	0809-	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	0710-	●	●

27 56 103 56 56 63 103 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	0809-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0808	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0809-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98010-679-3	01	1	0809-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1004-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0710-	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0710-0808	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0809-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98117-223-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0710-0808	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0809-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (B)	8-98117-224-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0710-0808	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0809-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C)	8-98117-225-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (D)	8-98113-054-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (E)	8-98113-055-0	01	1	0809-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (F)	8-98113-056-0	01	1	0809-	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	0710-	●	●

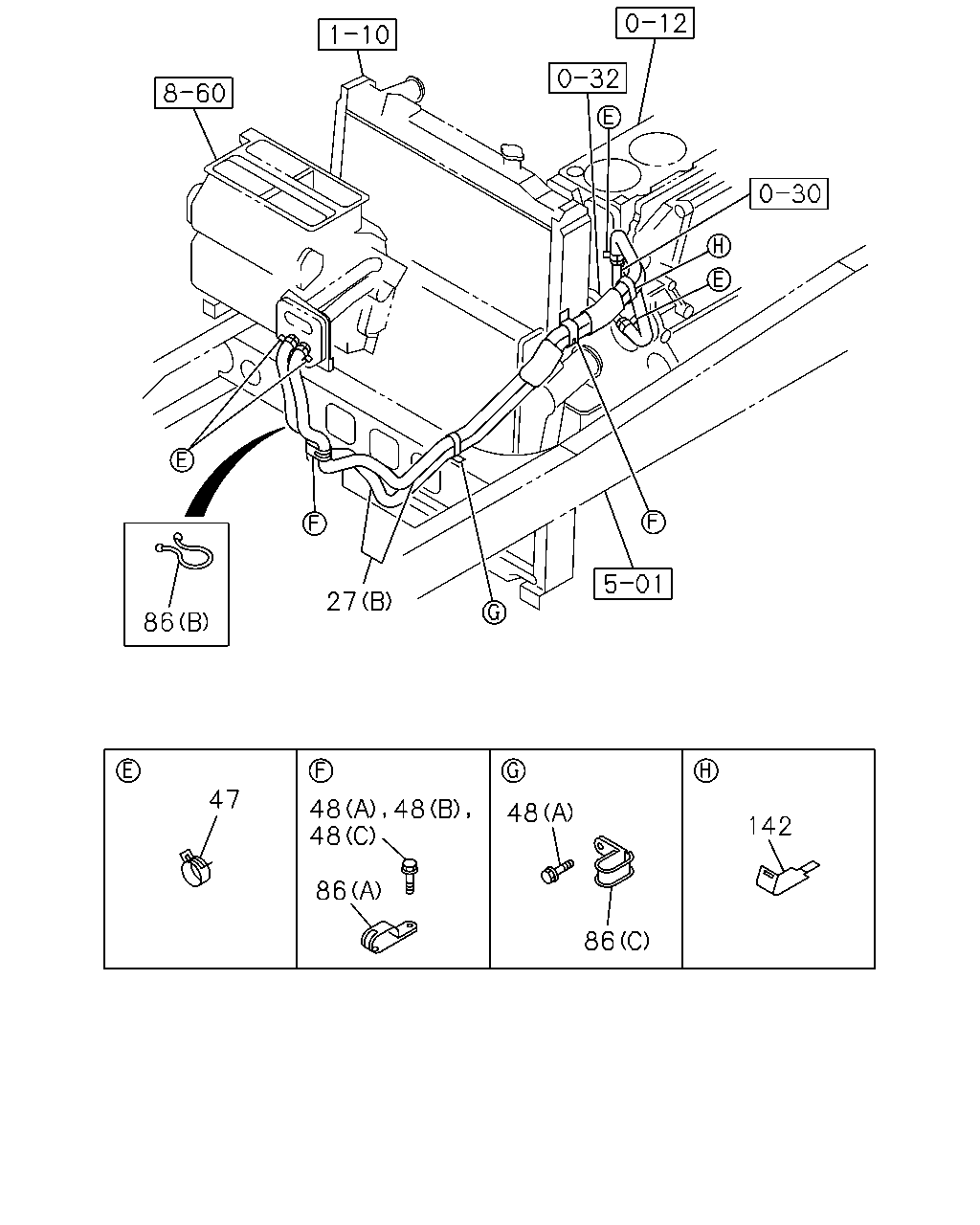

27 86 47 48 48 142 86 86 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	0809-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0808	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0809-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98010-679-3	01	1	0809-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1004-	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0710-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) M8X16 FLANGE	0-28050-816-0	01	1	0809-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0710-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	02	1	0809-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0710-0808	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0710-0808	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0809-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	01	1	0809-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	01	1	0809-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	0710-1008	●	●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	1009-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98029-677-0	01	1	0710-	●	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	1-83574-139-0	01	1	0710-1205	●	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	8-98166-021-0	01	1	1206-	●	●
