Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#36044) — 375 parça

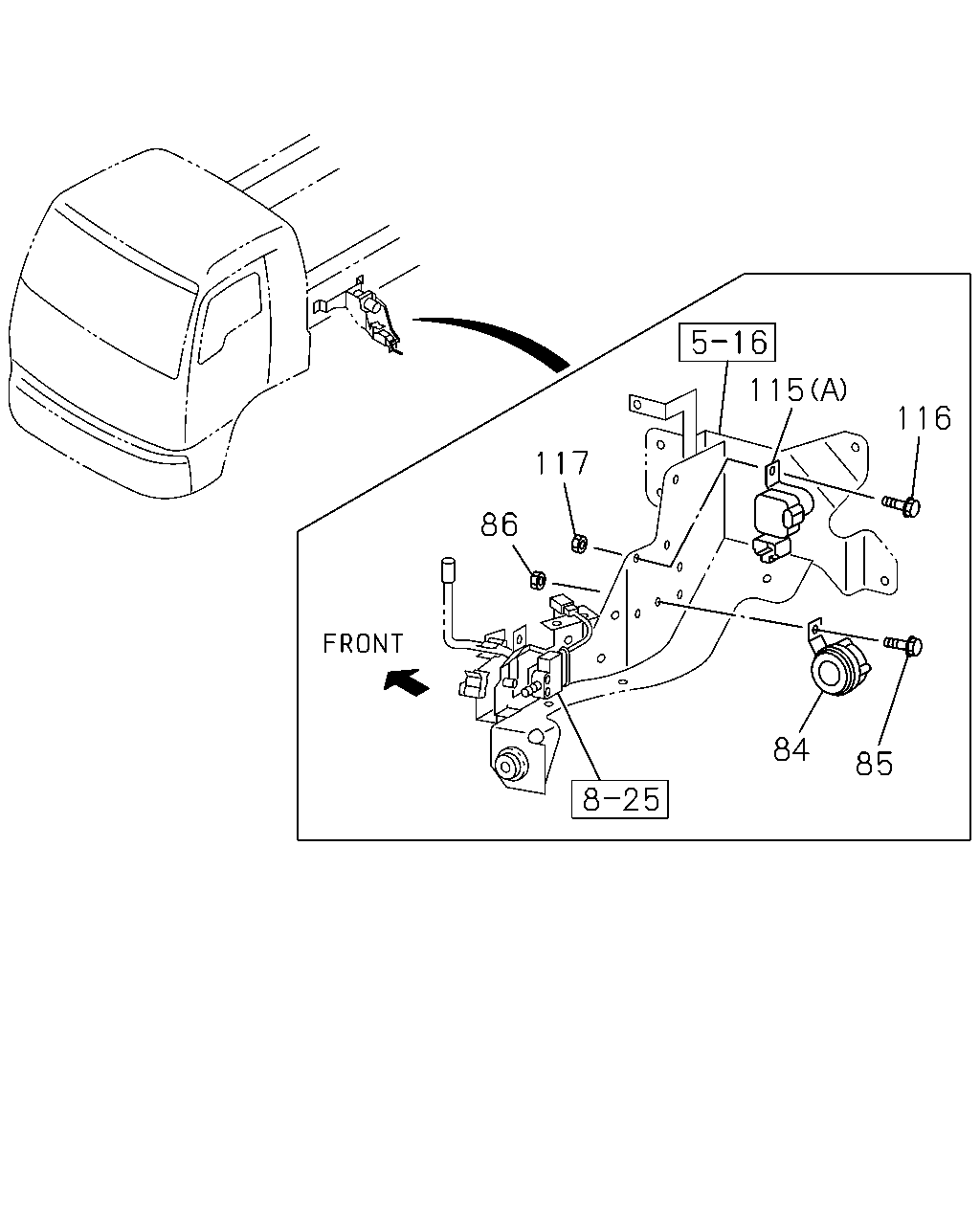

115 116 117 86 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0710-0808	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0809-	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> METRO DENSO	8-98069-860-0	01	1	0809-		●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0710-0808	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	01	1	0809-		●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0710-0808	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0809-	●
86	NUT; BUZZER AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	01	1	0809-		●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0808	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-		●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-0	01	1	0710-0808	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0809-	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	0809-		●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0809-	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0809-		●

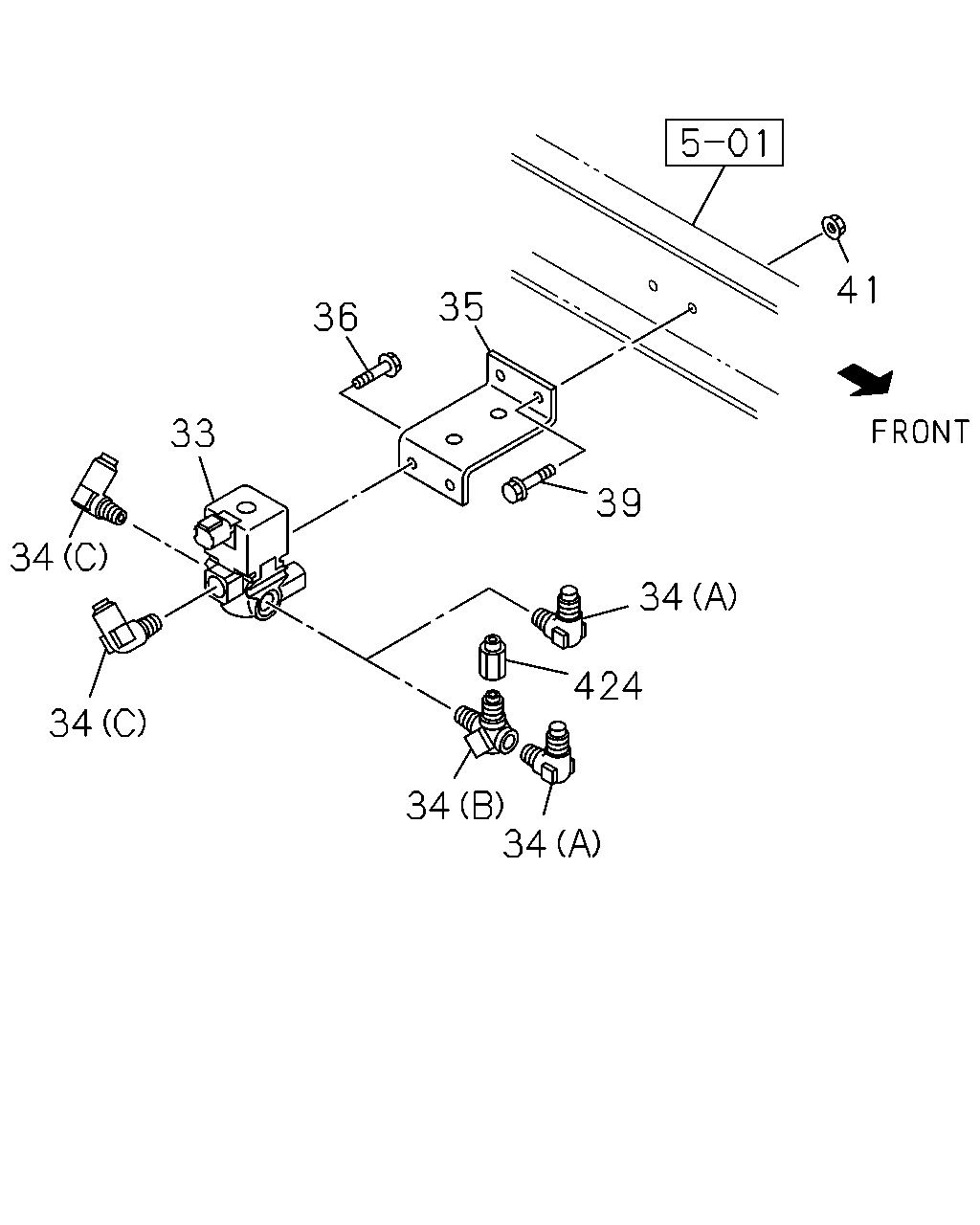

41 35 36 33 39 34 34 424 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>	1-82563-871-2	01	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-		●
35	BRACKET; MAG VLV,PTO CONT PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>	1-47471-374-1	01	1	0809-1004		●
35	BRACKET; MAG VLV,PTO CONT PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>	8-98154-633-0	01	1	1005-		●
36	BOLT; MAG VLV,PTO CONT PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
39	BOLT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
39	BOLT; BRKT,MAG VLV EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0710-0710	●	●
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0710-0809	●	●
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0810-	●
39	BOLT; BRKT,MAG VLV EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	0810-		●
39	BOLT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-		●
41	NUT; BRKT,MAG VLV EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0809-0809	●	●
41	NUT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-0809		●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0810-	●
41	NUT; BRKT,MAG VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0810-		●
41	NUT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0810-		●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0802-0802	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0803-0808	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-	●
424	ADAPTER H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
424	ADAPTER EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
424	ADAPTER H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
424	ADAPTER PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●

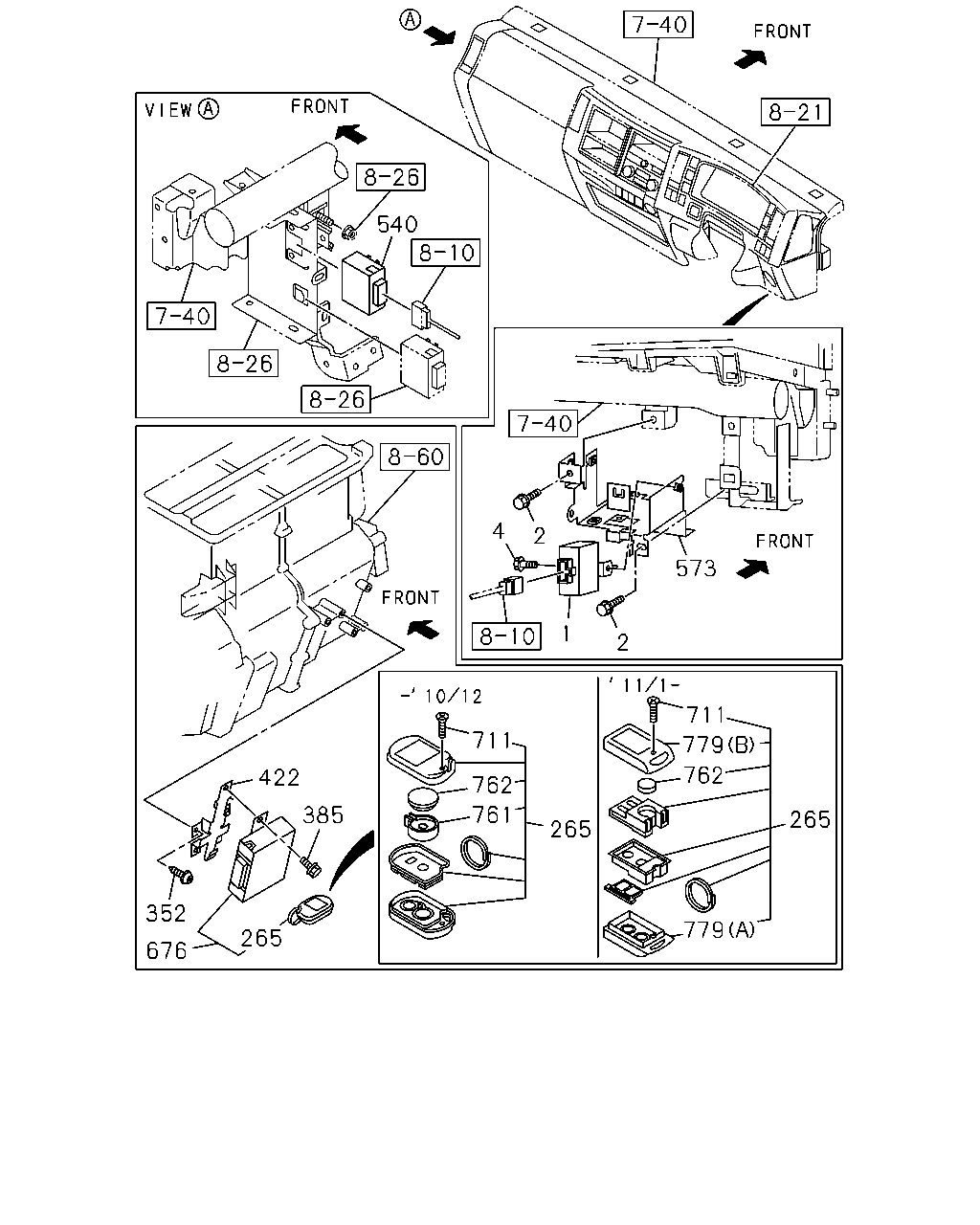

540 4 2 1 2 573 711 779 762 265 779 265 761 762 711 385 422 265 352 676

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0710-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0710-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0710-0808	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0809-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0809-1012		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-		●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-0808	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-	●
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-		●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0710-0808	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0809-	●
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0809-		●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0710-0808	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0809-	●
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0809-		●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0710-0808	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0809-1308	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0809-1308		●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-		●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0710-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0710-0808	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0809-1012	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98017-258-1	01	1	0809-1012		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98181-809-0	01	1	1101-1205		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1206-		●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0710-0808	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0809-1205	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0809-1205		●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-		●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0710-0808	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0809-1012	●
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0809-1012		●
762	BATTERY	8-98078-061-0	02	1	0710-0808	●	●
762	BATTERY	8-98078-061-0	02	1	0809-	●
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0809-		●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1206-		●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-243-0	02	1	1206-		●

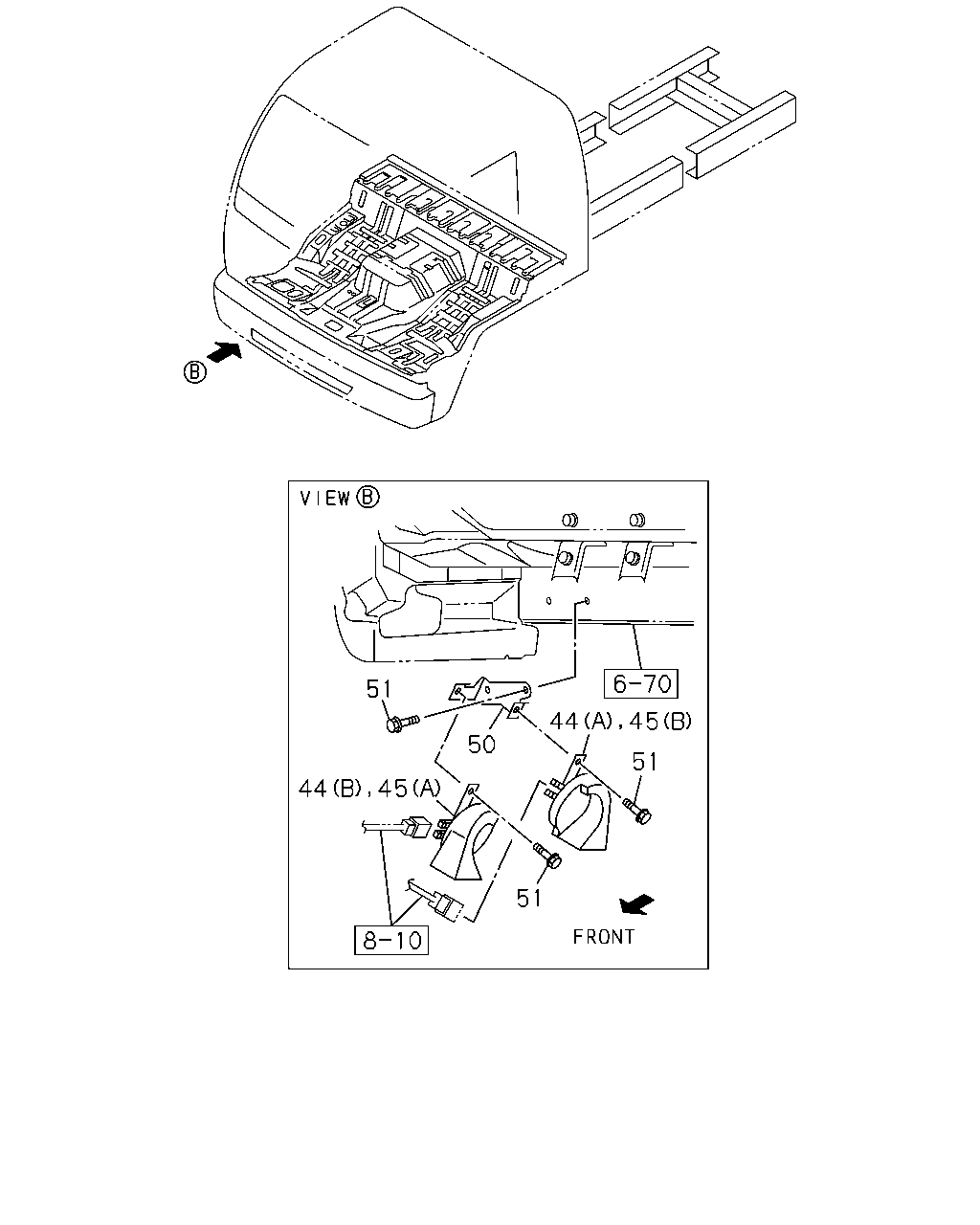

51 45 44 50 51 51 44 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-022-0	01	1	0809-1001		●
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> (B)	8-98022-022-0	01	1	1002-		●
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0710-0808	●	●
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0809-	●
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7> (A)	8-97611-677-2	01	1	0809-		●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-023-0	01	1	0809-		●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0710-0808	●	●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0809-	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7> (A)	8-97611-676-2	01	1	0809-		●
50	BRACKET; HORN	8-97613-300-2	01	1	0710-	●	●
51	BOLT; HORN TO BRKT EXC. ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1002-		●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0710-1001	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-		●

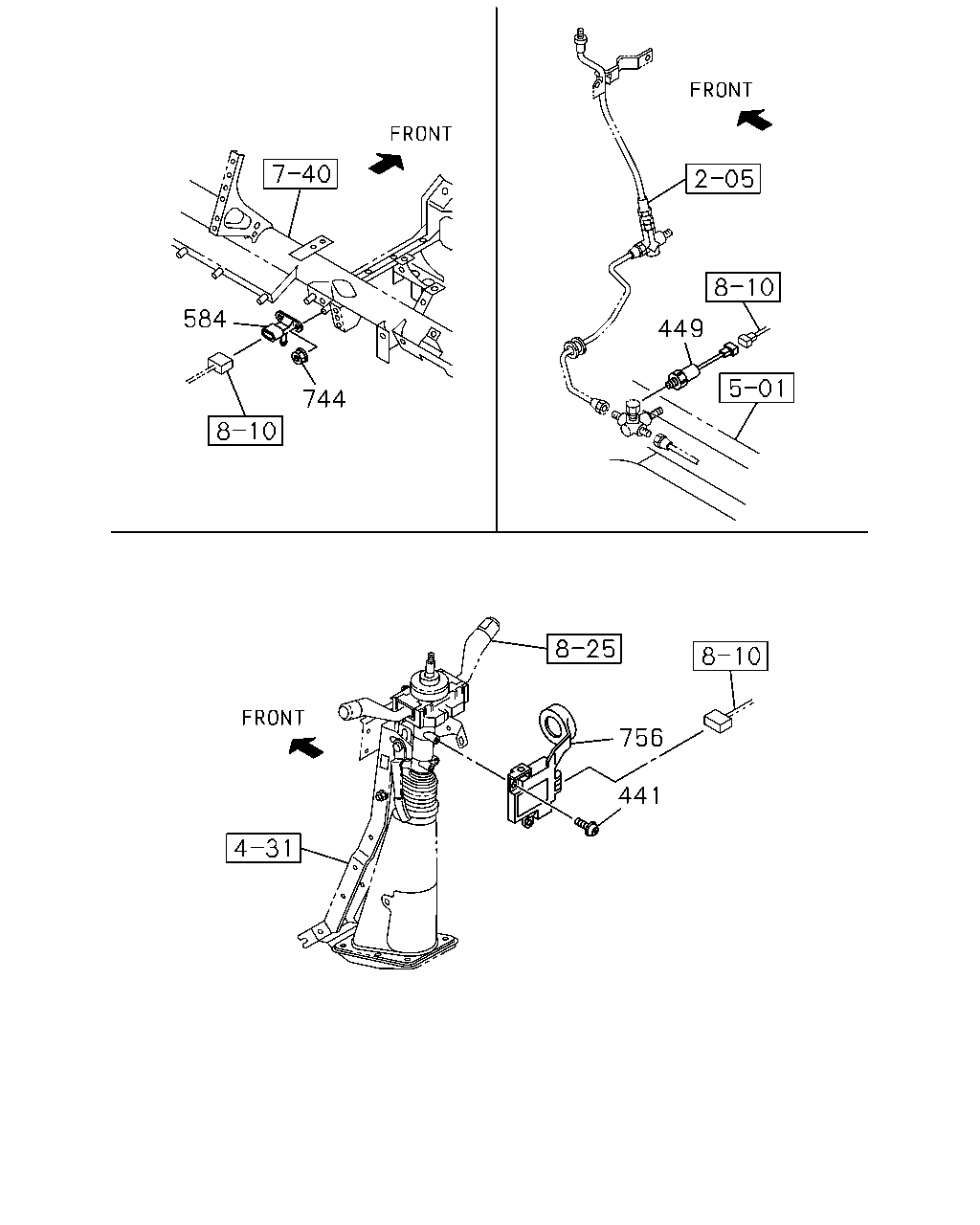

584 449 744 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0710-0808	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0809-	●
441	SCREW; CONT UNIT IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0809-		●
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	0710-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0710-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0710-0711	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-0808	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0809-1005	●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98097-554-0	01	1	0809-1005		●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-	●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98158-127-0	01	1	1006-		●

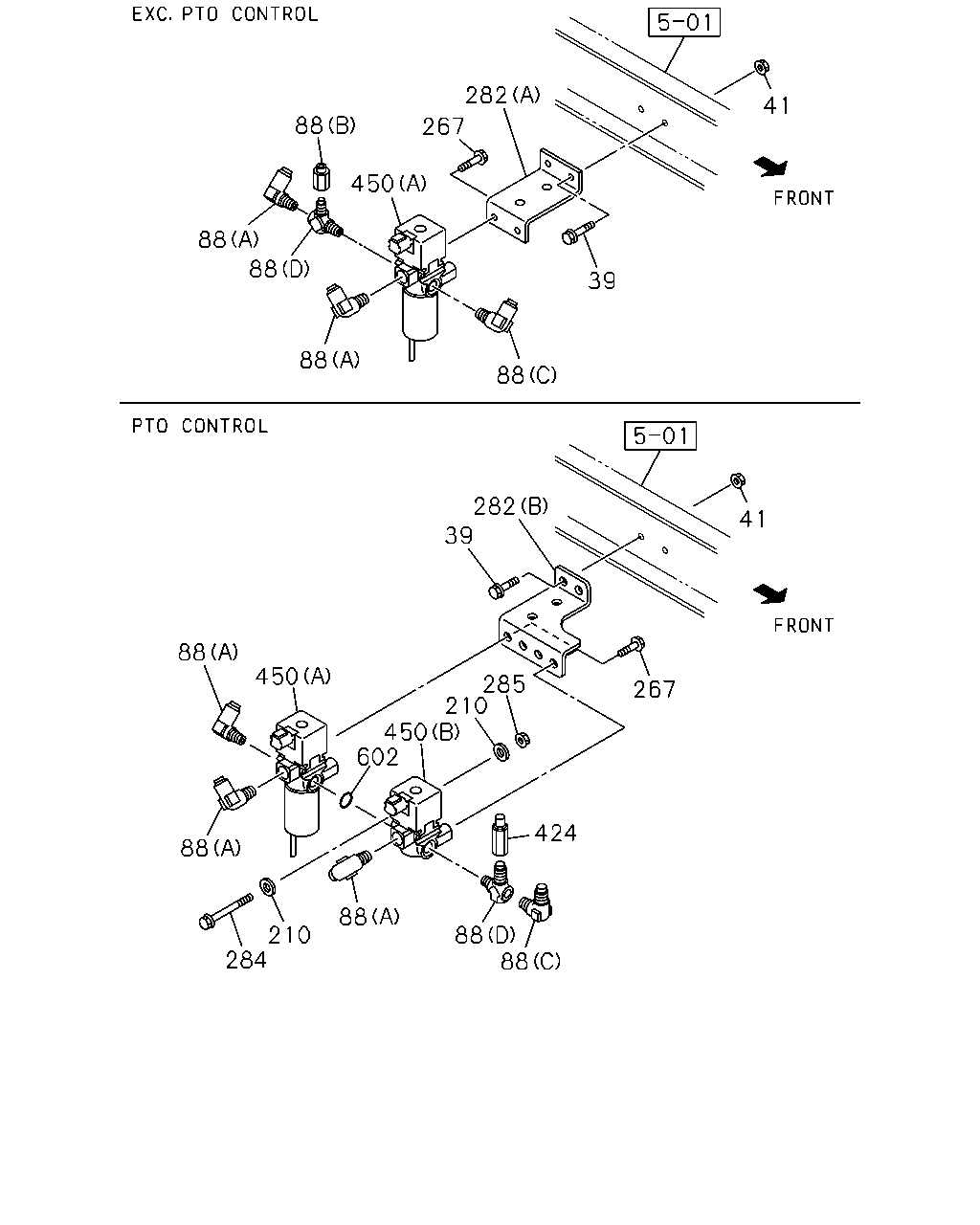

282 41 88 267 450 88 88 39 88 88 282 41 39 88 450 285 210 450 602 267 424 88 88 210 284 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809		●
39	BOLT; BRKT,MAG VLV EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0710-0710	●	●
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0710-0809	●	●
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0810-	●
39	BOLT; BRKT,MAG VLV EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	0810-		●
39	BOLT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-		●
41	NUT; BRKT,MAG VLV EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0809-0809	●	●
41	NUT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-0809		●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0810-	●
41	NUT; BRKT,MAG VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0810-		●
41	NUT; BRKT,MAG VLV EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0810-		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-1011		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0710	●	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0711	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-	●
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011	●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-	●
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-		●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP>	1-82569-266-0	02	1	0802-0802	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-0808	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	0809-	●
210	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6>	1-82569-266-0	02	1	0809-		●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0710-0801	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	0802-0802	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0802-0802	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0803-0808	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
267	BOLT; VLV TO BRKT EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B)	8-98101-296-0	01	1	0802-0802	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	8-98101-296-0	01	1	0803-0808	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	8-98101-296-0	01	1	0809-	●
282	BRACKET; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B)	8-98101-296-0	01	1	0809-		●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	1-47471-374-0	01	1	0710-0808	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	1-47471-374-1	01	1	0809-1004	●
282	BRACKET; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A)	1-47471-374-1	01	1	0809-1004		●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-98154-633-0	01	1	1005-	●
282	BRACKET; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A)	8-98154-633-0	01	1	1005-		●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE	0-28050-650-0	01	1	0802-0802	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE	0-28050-650-0	01	1	0803-0808	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE	0-28050-650-0	01	1	0809-	●
284	BOLT; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> M6X50 FLANGE	0-28050-650-0	01	1	0809-		●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6 FLANGE	0-91180-106-0	01	1	0802-0802	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0803-0808	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0809-	●
285	NUT; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0809-		●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0802-0802	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0803-0808	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-	●
424	ADAPTER H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
424	ADAPTER EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
424	ADAPTER H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
424	ADAPTER PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0710-0710	●	●
450	VALVE; MAG (B)	1-82563-871-2	01	1	0710-0711	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0712-0801	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0803-0808	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0808	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0809-1008	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-1008	●
450	VALVE; MAG ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	0809-1008		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	0809-1008		●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-1008		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1009-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1009-	●
450	VALVE; MAG ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1009-		●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1009-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1009-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0710-0801	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97376-939-3	01	1	0803-0808	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> (A)	8-97633-075-0	01	1	0911-		●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> ID=16.8	9-09565-117-0	01	1	0802-0802	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-0808	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0809-	●
602	GASKET; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0809-		●

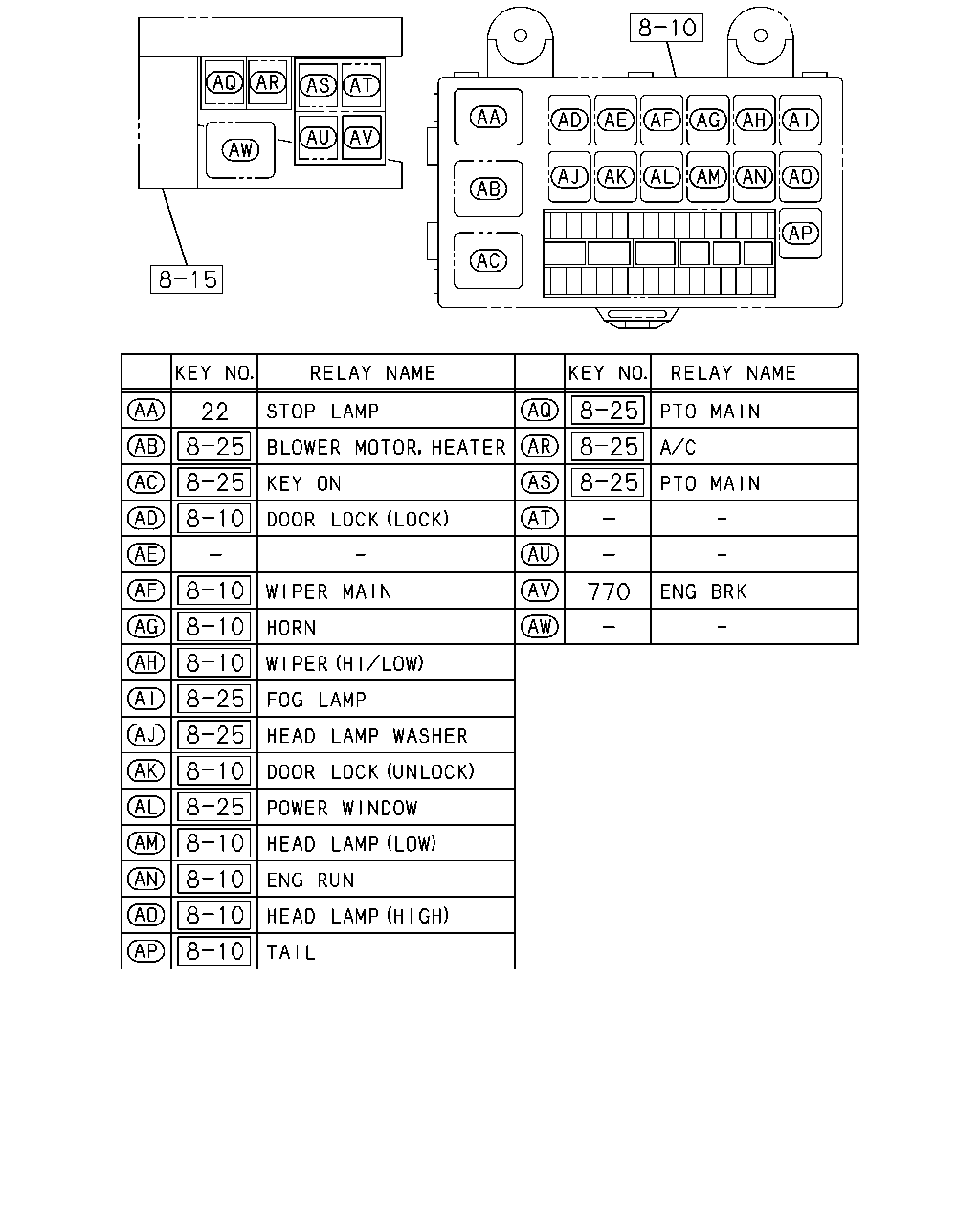

22 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0808	●	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-		●

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0808	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-		●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-0	01	1	0710-0808	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0809-	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	0809-		●
531	RELAY; MAIN 24V 30A MITUBA	8-97238-540-0	01	1	0710-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

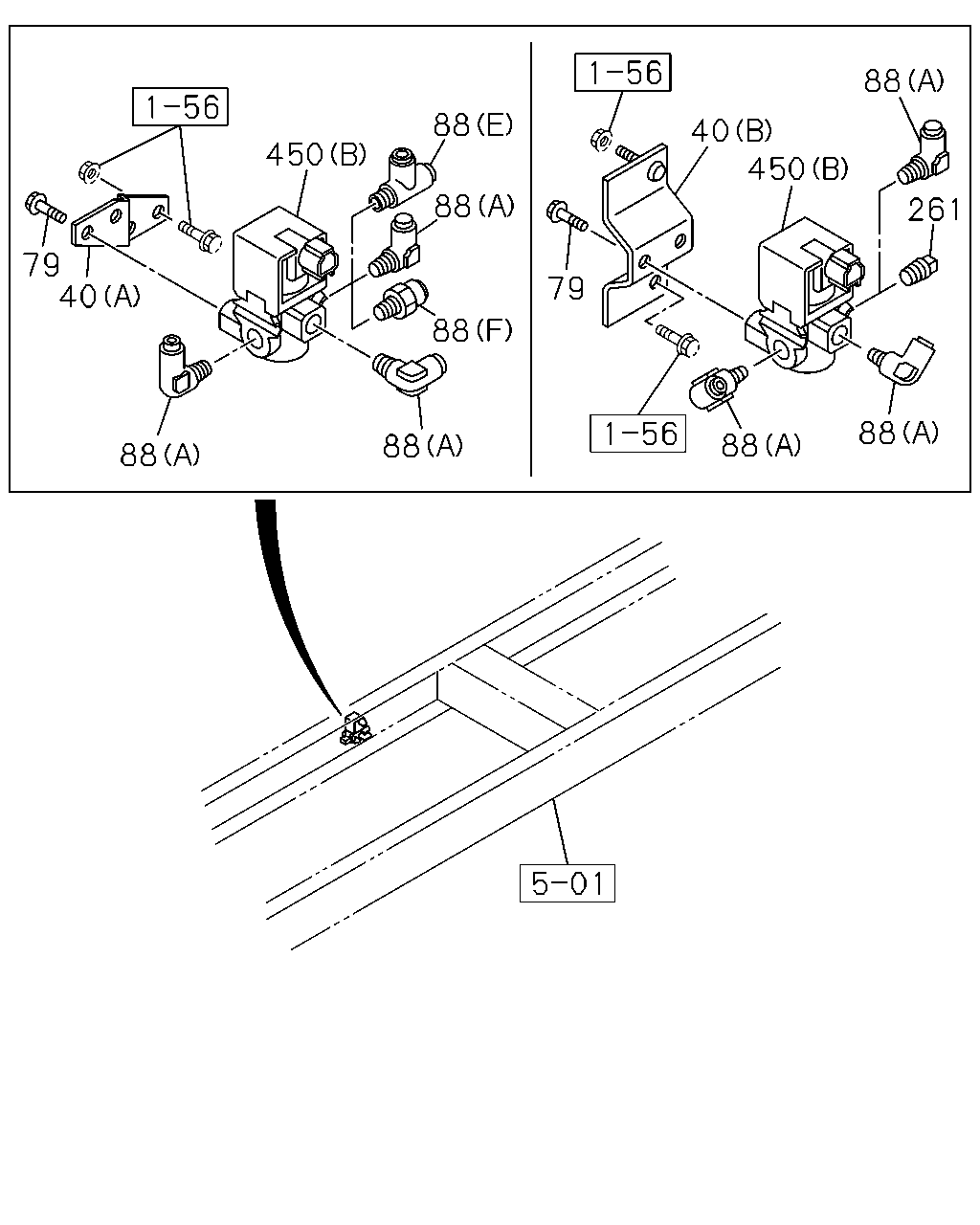

88 88 40 450 450 88 261 79 40 79 88 88 88 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (B)	8-98174-365-0	01	1	1012-		●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) (A)	8-98057-863-0	01	1	0710-0710	●	●
40	BRACKET; MAG VLV (A)	8-98057-863-0	01	1	0710-0711	●	●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) (A)	8-98057-863-0	01	1	0712-0808	●	●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) (A)	8-98057-863-0	01	1	0809-1008	●
40	BRACKET; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A)	8-98057-863-0	01	1	0809-1008		●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98057-863-0	01	1	0809-1008		●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) (A)	8-98057-863-0	01	1	1009-1011	●
40	BRACKET; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A)	8-98057-863-0	01	1	1009-1011		●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (A)	8-98057-863-0	01	1	1009-1011		●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) (A)	8-98057-863-0	01	1	1012-	●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (A)	8-98057-863-0	01	1	1012-		●
40	BRACKET; MAG VLV EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98057-863-0	01	1	1012-		●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●	●
79	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0712-0808	●	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0809-1008	●
79	BOLT; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0809-1008		●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0809-1008		●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	1009-	●
79	BOLT; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1009-		●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1009-		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-1011		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0710	●	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0711	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-	●
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0809-1008		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011	●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1011		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0803-0808	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-	●
88	CONNECTOR; MAG VLV H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-		●
261	PLUG; MAG VLV ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> PT1/4	9-99204-513-0	01	1	1012-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0710-0710	●	●
450	VALVE; MAG (B)	1-82563-871-2	01	1	0710-0711	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0712-0801	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0803-0808	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0808	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0809-1008	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-1008	●
450	VALVE; MAG ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	0809-1008		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	0809-1008		●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-1008		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1009-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1009-	●
450	VALVE; MAG ZF6S1000 M/T(Y5D) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1009-		●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1009-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1009-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0710-0801	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97376-939-3	01	1	0803-0808	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG EURO4 SPECIFICATION<NT4> (A)	8-97633-075-0	01	1	0911-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
