8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#36042) — 177 parça

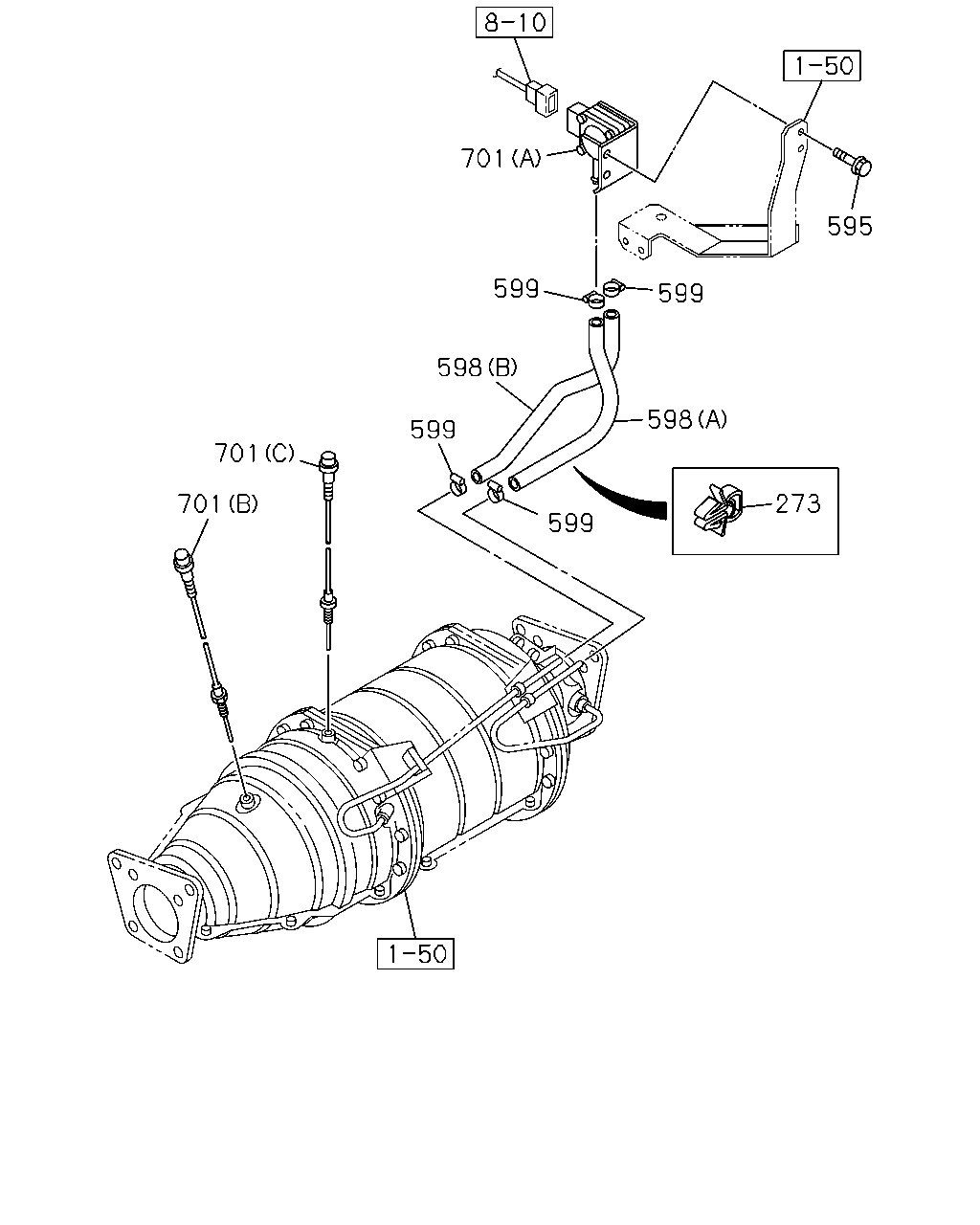

çizim 179081
701 595 599 599 598 598 599 701 273 701 599
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS
6HK1-TCS ENG(80L) 		8-94225-098-0 01 1 0710-0802 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0808 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
595 BOLT; SENSOR
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98088-940-0 01 1 0710-0808 ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98088-940-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) 		8-98088-940-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98088-941-0 01 1 0710-0808 ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98088-941-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) 		8-98088-941-0 01 1 0809- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710-0808 ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0809- ●
599 CLIP; HOSE
EURO4 SPECIFICATION<NT4> ID=13 		8-97329-627-0 04 1 0809- ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (B) 		8-97359-987-5 01 1 0710-0808 ● ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (B) 		8-97359-987-5 01 1 0809- ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 0809- ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (C) 		8-97359-989-5 01 1 0710-0808 ● ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (C) 		8-97359-989-5 01 1 0809- ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 0809- ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (A) 		8-97360-368-2 01 1 0710-0808 ● ●
701 SENSOR; DPD
6HK1-TCS ENG(80L) (A) 		8-97360-368-2 01 1 0809- ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 0809- ●

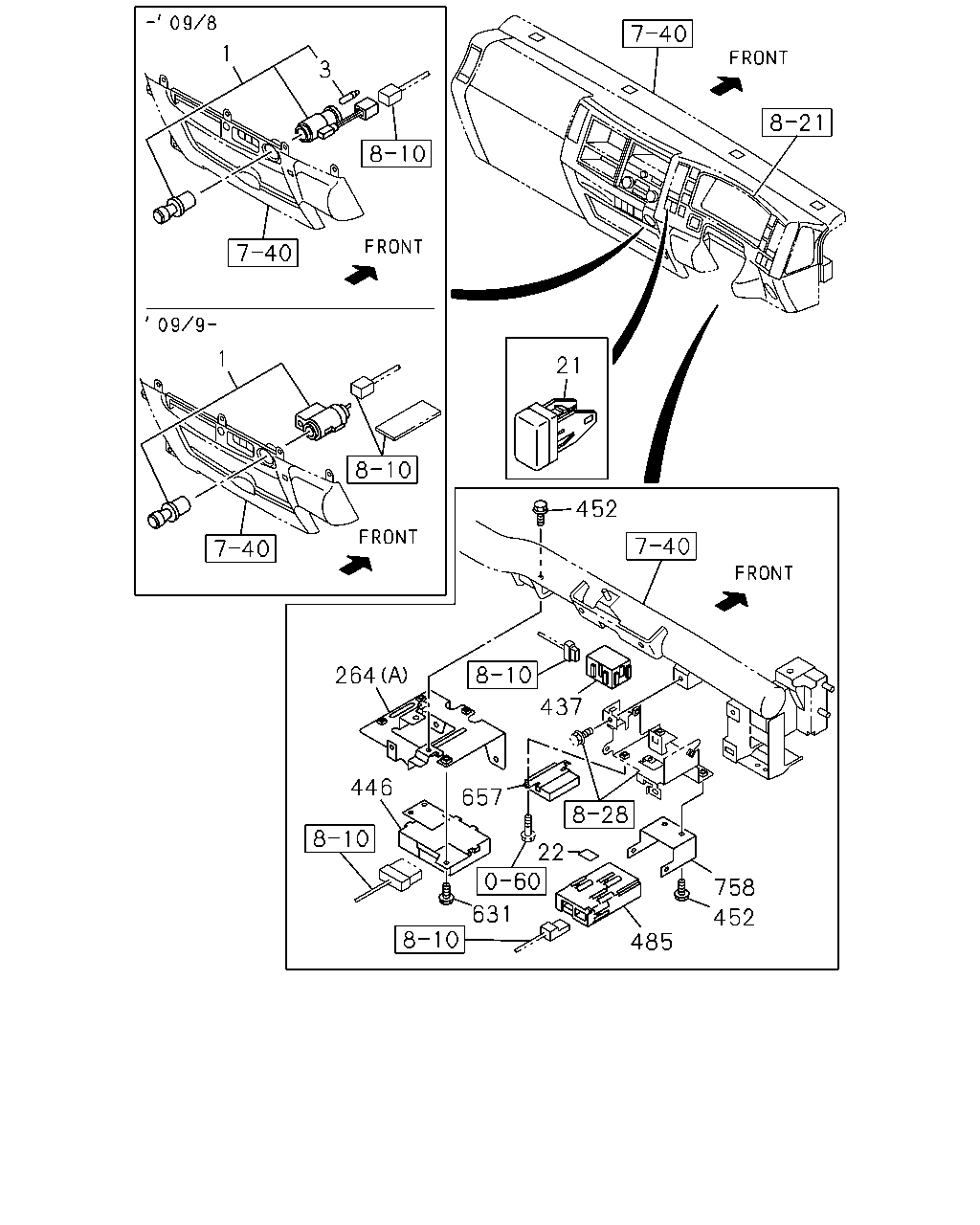

çizim 179095
1 3 1 21 452 437 758 452 485 657 631 22 264 446
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710-0808 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0809-0912 ●
21 COVER; HOLE
EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98025-954-1 01 1 0809-0912 ●
21 COVER; HOLE 8-98025-954-1 01 1 1001- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0710-0808 ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0809-1212 ●
22 SEAL; TAPE
AUSTRALIA EQUIPMENT(B13) 		1-80199-006-0 01 1 0809-1212 ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301- ●
22 SEAL; TAPE
AUSTRALIA EQUIPMENT(B13) 		8-98166-639-0 01 1 1301- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-1 01 1 0710-0812 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 0901- ● ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0808 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0808 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0809- ● ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0809- ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 0809- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 0710- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0812 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0809-1401 ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-0 01 1 1402- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0710- ● ●

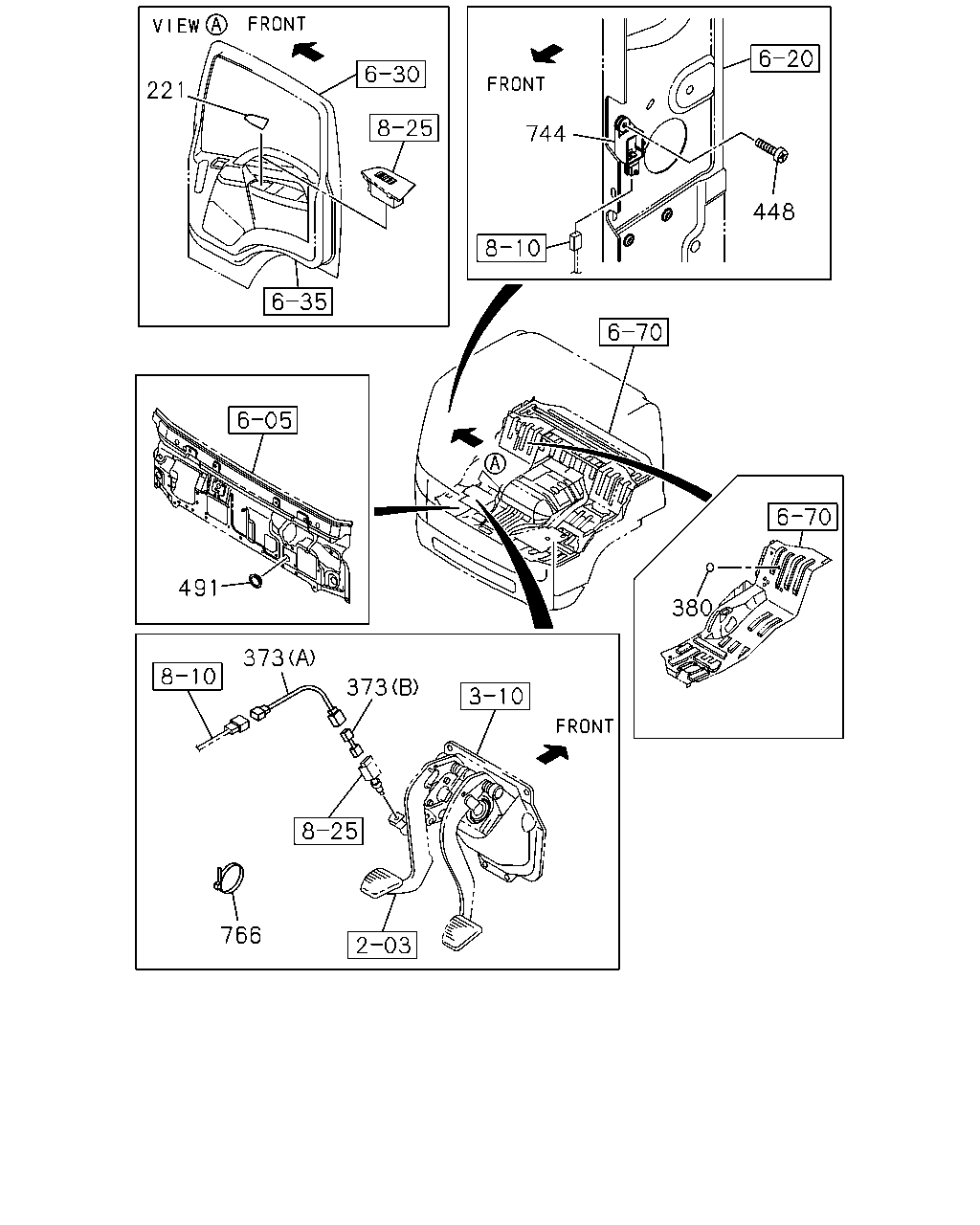

çizim 179102
221 744 448 491 380 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0809- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0809- ●
373 HARNESS; CLU SWITCH
ZF6S1000 M/T(Y5D) (A) 		8-98059-419-2 01 1 0809- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98059-419-2 01 1 0809- ●
373 HARNESS; CLU SWITCH
(B) 		8-98105-661-0 01 1 0712-0809 ● ●
373 HARNESS; CLU SWITCH
(A) 		8-98053-829-3 01 1 0710-0808 ● ●
373 HARNESS; CLU SWITCH
(A) 		8-98053-829-3 01 1 0809- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98053-829-3 01 1 0809- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0710- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0710- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0808 ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0809- ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0809- ●

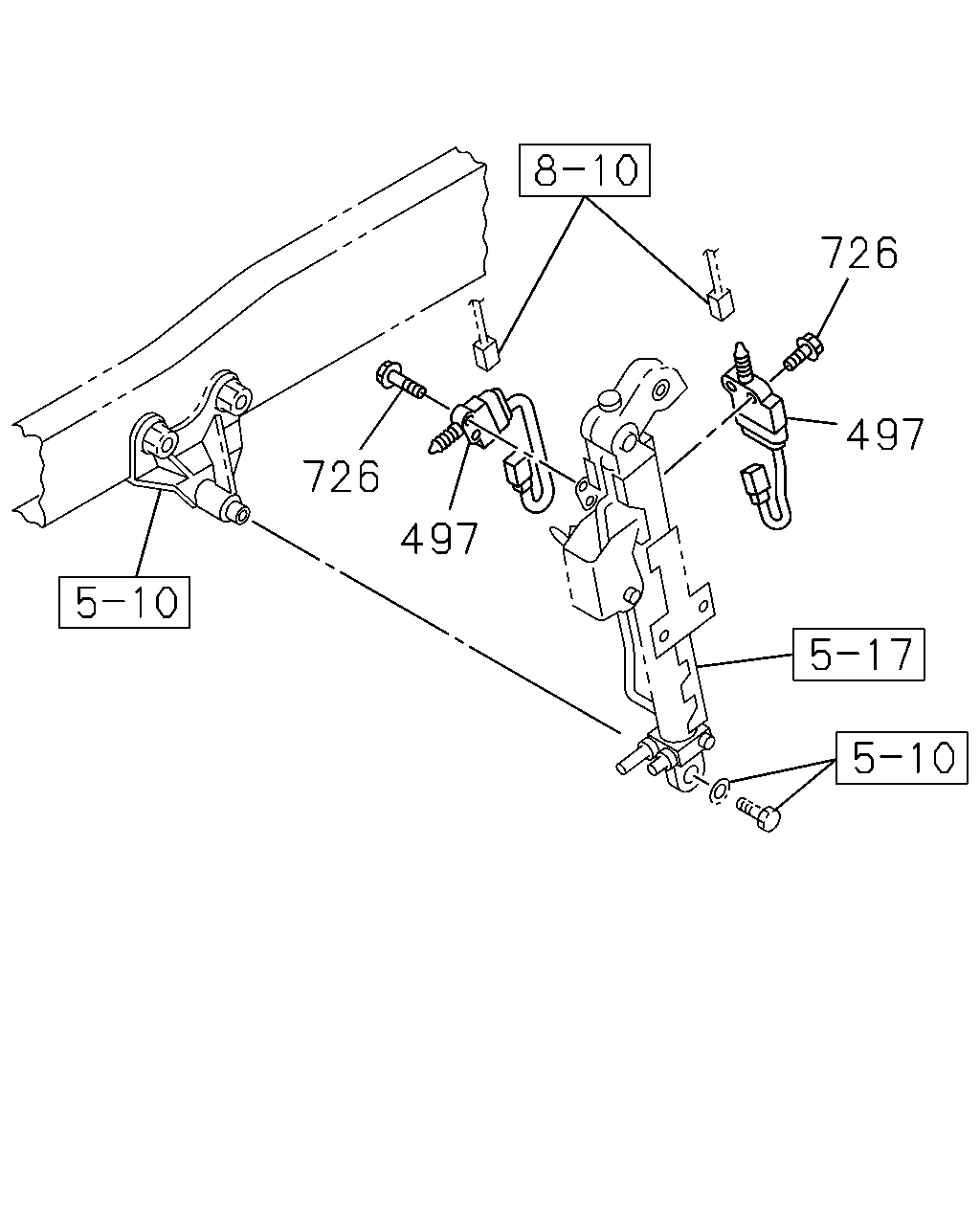

çizim 179113
726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0711-0808 ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0809- ●
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 02 1 0809- ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0711-0808 ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0809- ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE 		0-28050-625-0 04 1 0809- ●

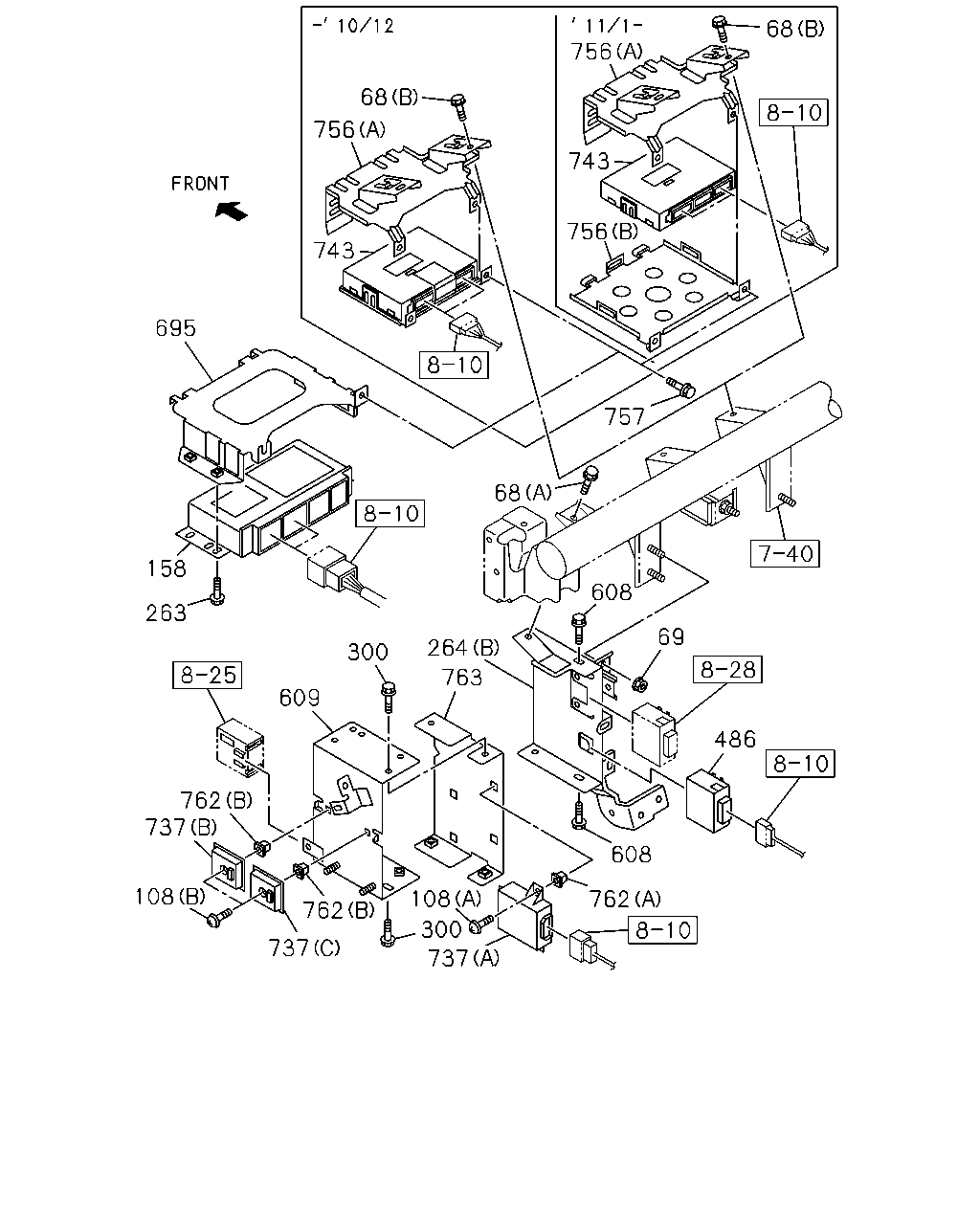

çizim 179163
756 68 68 756 743 756 743 695 757 68 158 608 263 69 264 300 763 609 486 762 737 608 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710-0808 ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0809- ●
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0809- ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0809- ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 0710-0808 ● ●
108 BOLT; TRANS CONT MODULE
(B) M4X25 TAPPING 		0-74160-425-0 02 1 0809- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 0809- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0808 ● ●
108 BOLT; TRANS CONT MODULE
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1008-1201 ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0710-0803 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) 		1-80119-261-0 01 1 0804-0805 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 0806-0808 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 0809-0812 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT 10.00-20-14 RIB RR 10.00-20-14 LUG(11X), TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T) ,TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 10.00-20-16 LUG(51R),TIRE 11.00R-22.5-16 RIB(55N),TIRE 11.00-20-16RIB(80R),TIRE 11.00-20-16 LUG(81R),TIRE 11.00R20-16 RIB(85R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE6X2(99N) 		1-80119-261-0 01 1 0809-0812 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 0901-0901 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 11.00R-22.5-16 RIB(55N),TIRE 11.00R20-16 RIB(85R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 0901-0901 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 0901-0912 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 0901-0912 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1), TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 1001-1005 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 1001-1005 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1), TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		8-98170-648-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		8-98170-648-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1), TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		8-98170-648-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1), TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT295/80R22.5 RR11R22.5-16 EXP 6X2(5P1),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		8-98170-648-0 01 1 1202- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0808 ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0809- ●
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 0809- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 0710-0808 ● ●
300 BOLT; CONT UNIT BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0809- ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 0809- ●
486 CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97610-202-0 01 1 0809-0912 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 05 1 0710-0808 ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 05 1 0809- ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0809- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0809- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0809- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98095-337-0 01 1 0710-0808 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98095-337-0 01 1 0809-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0809-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0809-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0809-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0710-0808 ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0809- ●
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 0809- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 0710-0808 ● ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 0809- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0809- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 0710-0808 ● ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 0809- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0809- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 0710-0808 ● ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 0809- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0809- ●
743 CONTROL UNIT; BCM 8-98089-297-0 01 1 0710-0802 ● ●
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0803-0808 ● ●
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0809-0901 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0809-0901 ●
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ●
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ●
743 CONTROL UNIT; BCM 8-98182-026-3 01 1 1101- ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0710-0808 ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0809- ●
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0809- ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0809- ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0710-0808 ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0809- ●
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 0809- ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 0809- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0710-0808 ● ●
762 GROMMET; TRANS CONT MODULE
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0809- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0809- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0710-0808 ● ●
762 GROMMET; TRANS CONT MODULE
(B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0809- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0809- ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) 		8-98085-587-0 01 1 0710-0808 ● ●
763 BRACKET; TRANS CONT MODULE 8-98085-587-0 01 1 0809- ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 0809- ●
çizim 179165
726 497 726 497 507
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0711-0808 ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0809- ●
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 02 1 0809- ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0711-0808 ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0809- ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE 		0-28050-625-0 04 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
