Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#36041) — 198 parça

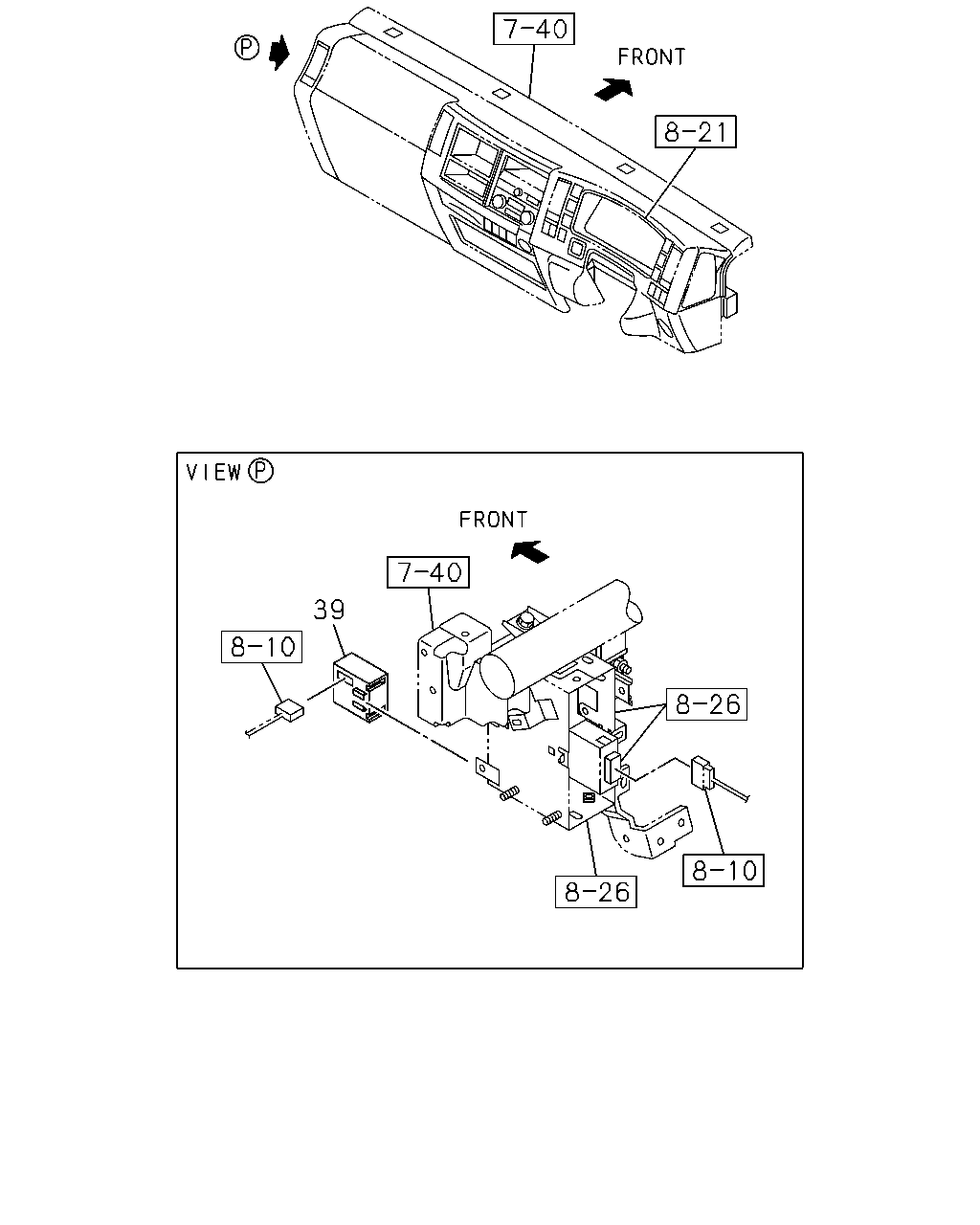

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	39	RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0809-	●

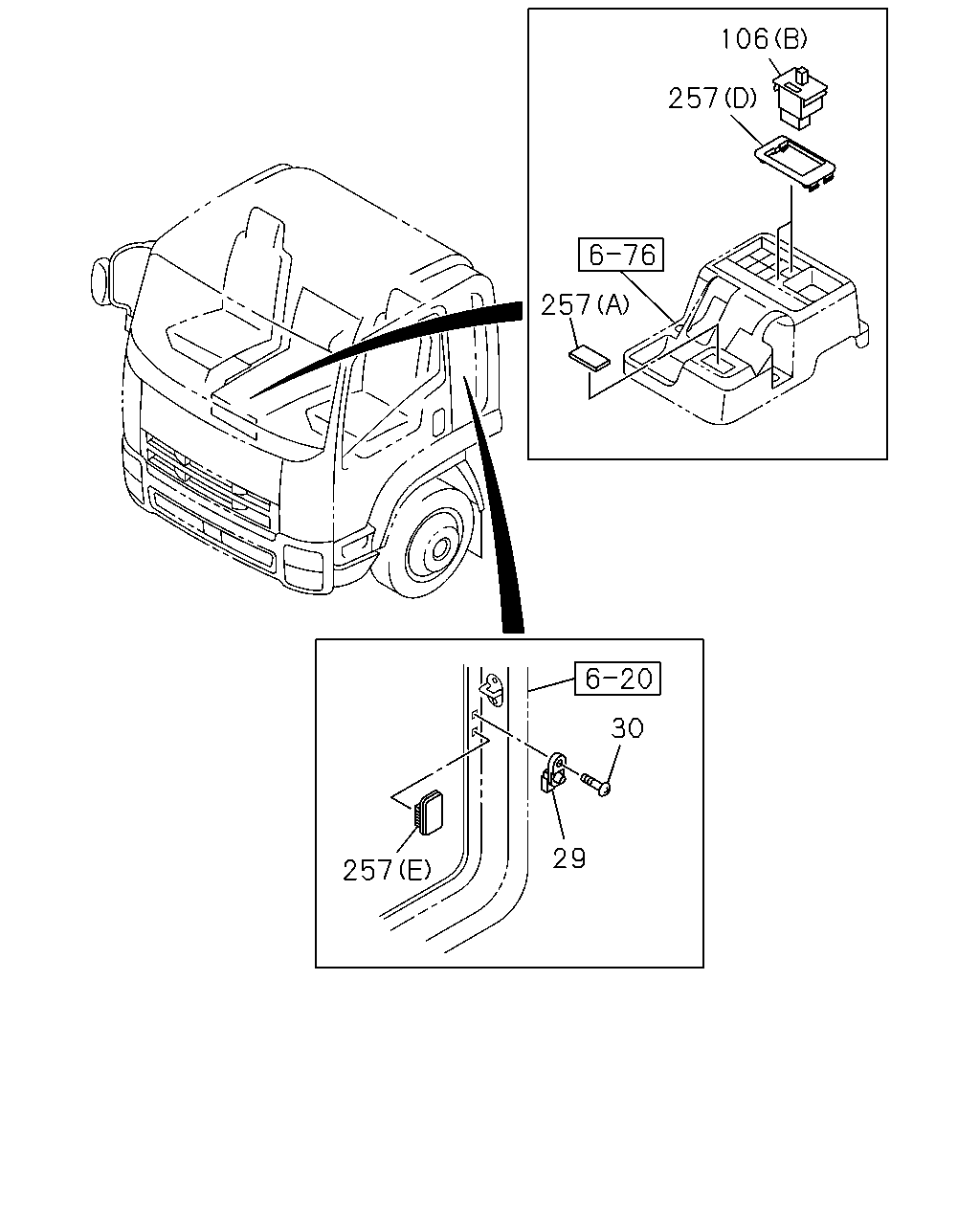

106 257 257 30 29 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0710-0808	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0710-0808	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0809-	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0809-		●
29	SWITCH; DOOR H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	0809-	●
29	SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	0809-	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0710-0808	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0710-0808	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0809-	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0809-		●
30	SCREW; DOOR SW H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	0809-	●
30	SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	0809-	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97173-294-1	01	1	0809-	●
106	SWITCH; REMOTE CONT MIRROR (B)	1-82350-223-0	02	1	0710-0808	●	●
106	SWITCH; REMOTE CONT MIRROR (B)	1-82350-223-0	02	1	0809-		●
106	SWITCH; REMOTE CONT MIRROR AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0809-	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (E)	8-98029-917-0	01	1	0809-	●
257	COVER; HOLE,SW (A) GRAY	8-97409-339-0	01	1	0710-0710	●	●
257	COVER; HOLE,SW (D)	8-97619-254-1	02	1	0710-0808	●	●
257	COVER; HOLE,SW (D)	8-97619-254-1	02	1	0809-		●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0809-	●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0710-	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0809-		●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) (B)	8-98029-914-1	01	1	0809-	●
257	COVER; HOLE,SW EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	8-98029-914-1	01	1	0809-	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM) (C)	8-98025-954-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0710-0808		●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0710-0808	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM) (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM) (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1004-		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	1004-	●

237

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	237	NUT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●

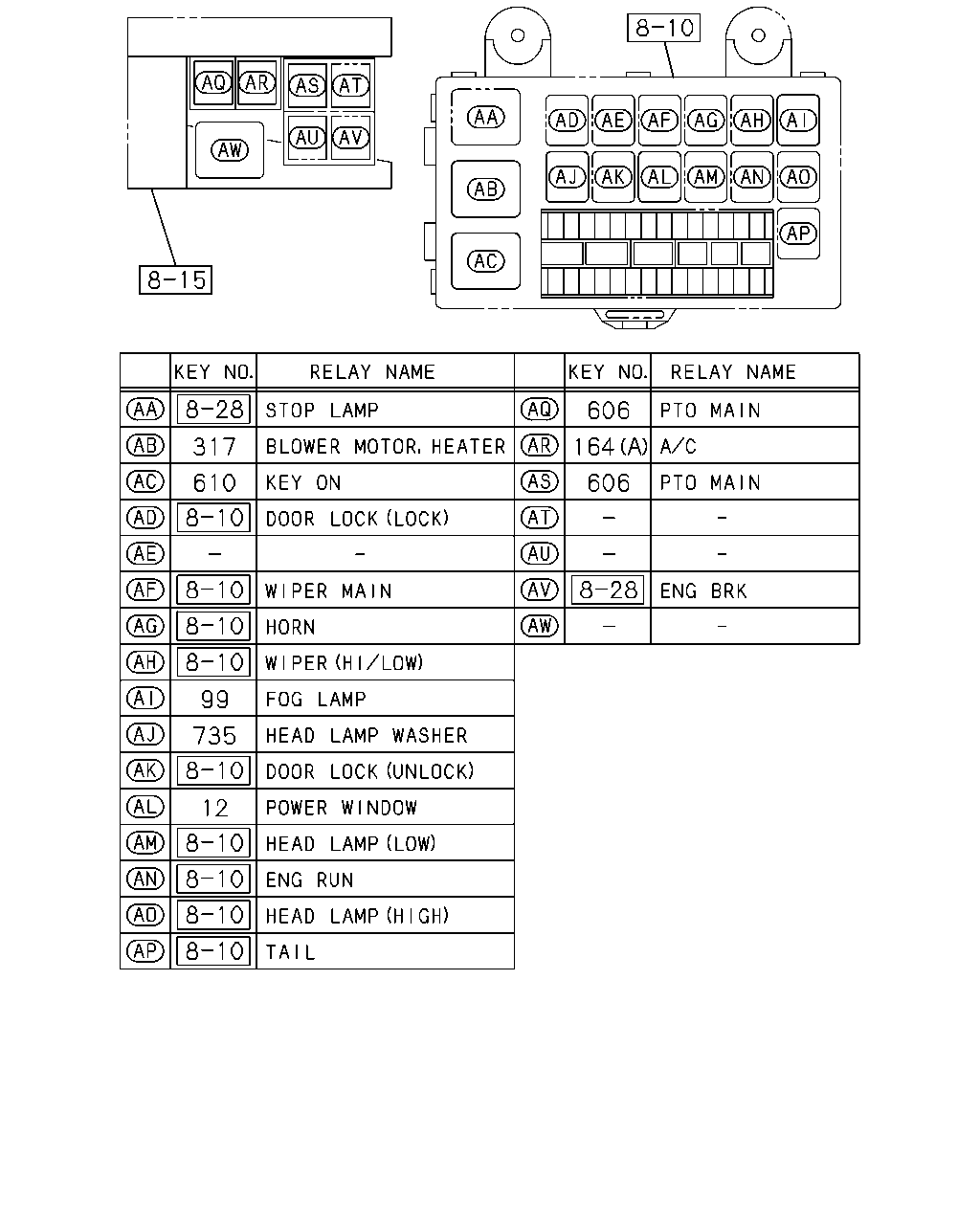

606 317 164 610 606 99 735 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0808	●	●
12	RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0809-		●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
99	RELAY; FOG LAMP 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0908	●	●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0909-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0806	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-0808	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-		●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-	●
606	RELAY; PTO MAIN PTO ZF TRANS RR(BDM) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0808	●	●
606	RELAY; PTO MAIN PTO ZF TRANS RR(BDM) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0808	●	●
606	RELAY; PTO MAIN PTO ZF TRANS RR(BDM) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●	●
606	RELAY; PTO MAIN PTO ZF TRANS RR(BDM) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-		●
606	RELAY; PTO MAIN PTO ZF TRANS RR(BDM) MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
735	RELAY; HEAD LAMP WASHER HEAD LAMP WASHER<CE4> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1003		●

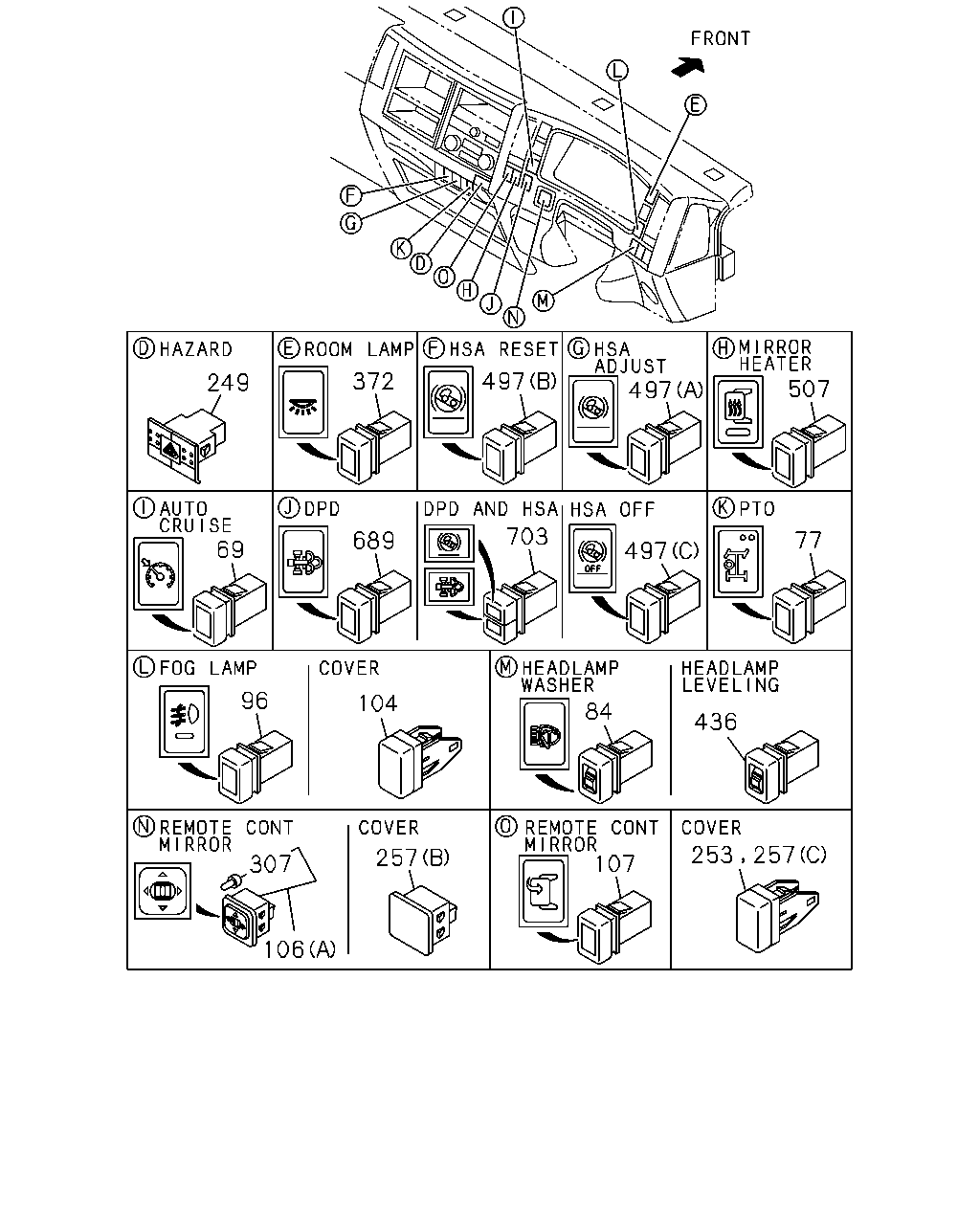

507 497 372 497 249 69 703 689 77 497 84 96 104 436 107 257 307 106 253 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	SWITCH; AUTO CRUISE AUTO CRUISE<K30>	8-98011-344-1	01	1	0710-	●	●
77	SWITCH; PTO PTO ZF TRANS RR(BDM)	8-97615-488-2	01	1	0710-	●	●
84	SWITCH; WASHER,HEADLAMP HEAD LAMP WASHER<CE4>	8-97614-052-0	01	1	0710-1003		●
96	SWITCH; FOG LAMP	8-97387-031-3	01	1	0710-0908	●	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0909-	●	●
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	0909-	●	●
104	COVER; SW HOLE,FOG LAMP	8-98025-954-1	01	1	0710-0710	●	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97173-294-1	01	1	0809-	●
106	SWITCH; REMOTE CONT MIRROR (B)	1-82350-223-0	02	1	0710-0808	●	●
106	SWITCH; REMOTE CONT MIRROR (B)	1-82350-223-0	02	1	0809-		●
106	SWITCH; REMOTE CONT MIRROR AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0809-	●
107	SWITCH; REMOTE CONT,MIRROR O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-98011-343-1	01	1	0809-0912	●
249	SWITCH; HAZARD	8-97386-922-1	01	1	0710-	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	0710-	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0710-	●	●
253	COVER; SW HOLE	8-98025-954-1	02	1	0710-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (E)	8-98029-917-0	01	1	0809-	●
257	COVER; HOLE,SW (A) GRAY	8-97409-339-0	01	1	0710-0710	●	●
257	COVER; HOLE,SW (D)	8-97619-254-1	02	1	0710-0808	●	●
257	COVER; HOLE,SW (D)	8-97619-254-1	02	1	0809-		●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0809-	●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0710-	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0809-		●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) (B)	8-98029-914-1	01	1	0809-	●
257	COVER; HOLE,SW EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	8-98029-914-1	01	1	0809-	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM) (C)	8-98025-954-1	01	1	0710-0808	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0710-0808		●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0710-0808	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM) (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM) (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1004-		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	1004-	●
307	BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 24V	8-98226-896-0	01	1	0809-	●
372	SWITCH; ROOM LAMP	8-97386-917-1	01	1	0710-0808	●	●
372	SWITCH; ROOM LAMP	8-97386-917-2	01	1	0809-		●
372	SWITCH; ROOM LAMP FLUORESCENT LAMP<6UC>	8-97386-917-2	01	1	0809-	●
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	0710-	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) OFF	8-97386-923-2	01	1	0809-	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-97386-967-2	01	1	0710-0806	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-98119-946-0	01	1	0807-	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-97386-985-1	01	1	0710-0806	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	0807-	●	●
507	SWITCH; MIRROR HEATER	8-97386-924-2	01	1	0710-0808	●	●
507	SWITCH; MIRROR HEATER	8-97386-924-3	01	1	0809-		●
507	SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97386-924-3	01	1	0809-	●
689	SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-1	01	1	0710-0808	●	●
689	SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0809-		●
689	SWITCH; DPD CATALYSIS CONTROL WITH DPD<8JM> EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0809-	●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-1	01	1	0710-0808	●	●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-2	01	1	0809-		●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM>	8-98011-346-2	01	1	0809-	●

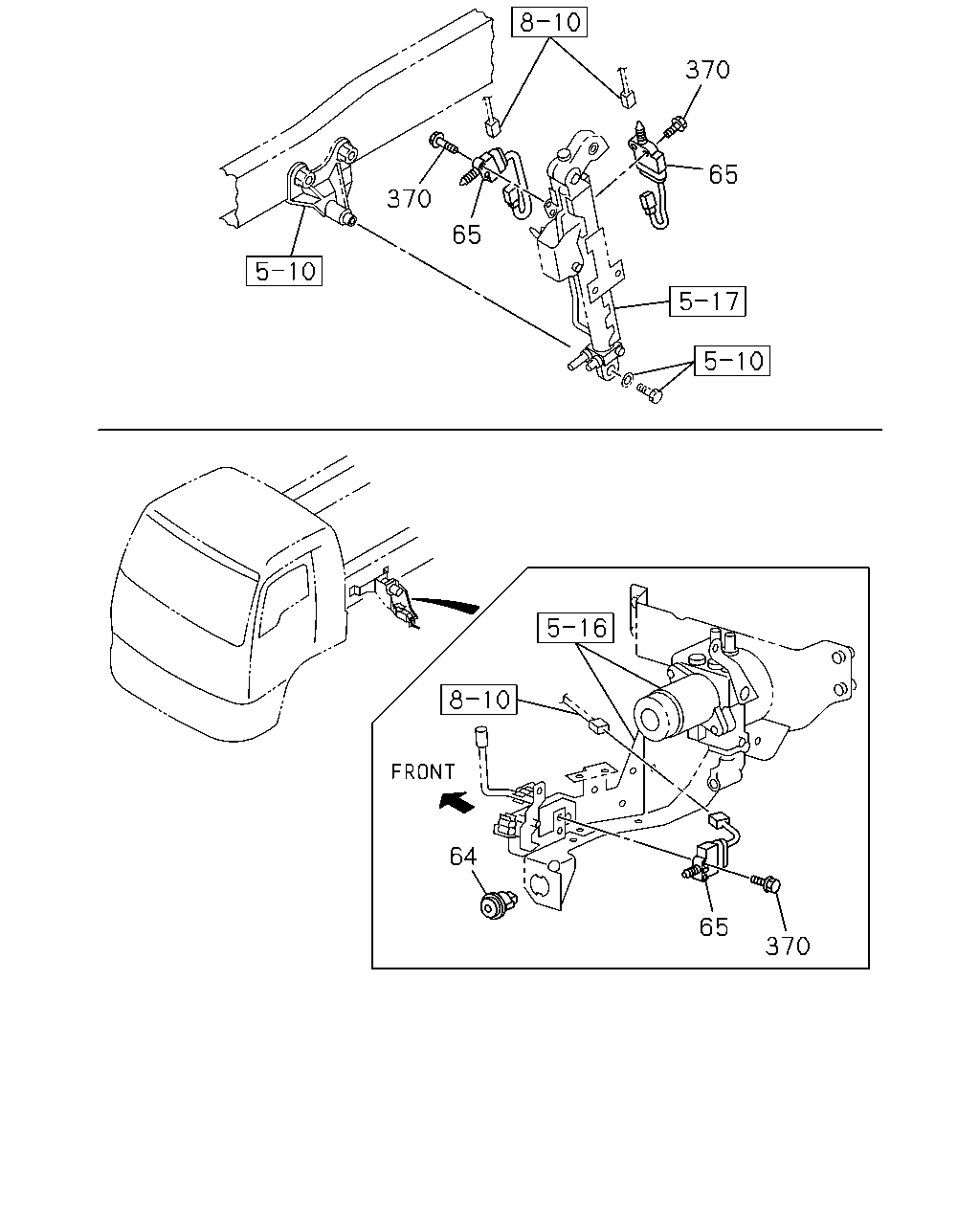

370 65 370 65 64 65 370

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SWITCH; CAB TILT MAIN	1-82380-173-2	01	1	0710-0808	●	●
64	SWITCH; CAB TILT MAIN	1-82380-173-2	01	1	0809-		●
64	SWITCH; CAB TILT MAIN AUTO CAB TILT<WV2>	1-82380-173-2	01	1	0809-	●
65	SWITCH; CAB TILT LK STAMP NO	1-82380-172-1	03	1	0710-0710	●	●
65	SWITCH; CAB TILT LK STAMP NO	1-82380-172-1	01	1	0711-0808	●	●
65	SWITCH; CAB TILT LK STAMP NO	1-82380-172-1	01	1	0809-		●
65	SWITCH; CAB TILT LK AUTO CAB TILT<WV2> STAMP NO	1-82380-172-1	01	1	0809-	●
370	BOLT; SW M6X30 FLANGE	0-28650-630-0	06	1	0710-0710	●	●
370	BOLT; SW M6X30 FLANGE	0-28650-630-0	02	1	0711-0808	●	●
370	BOLT; SW M6X30 FLANGE	0-28650-630-0	02	1	0809-		●
370	BOLT; SW AUTO CAB TILT<WV2> M6X30 FLANGE	0-28650-630-0	02	1	0809-	●

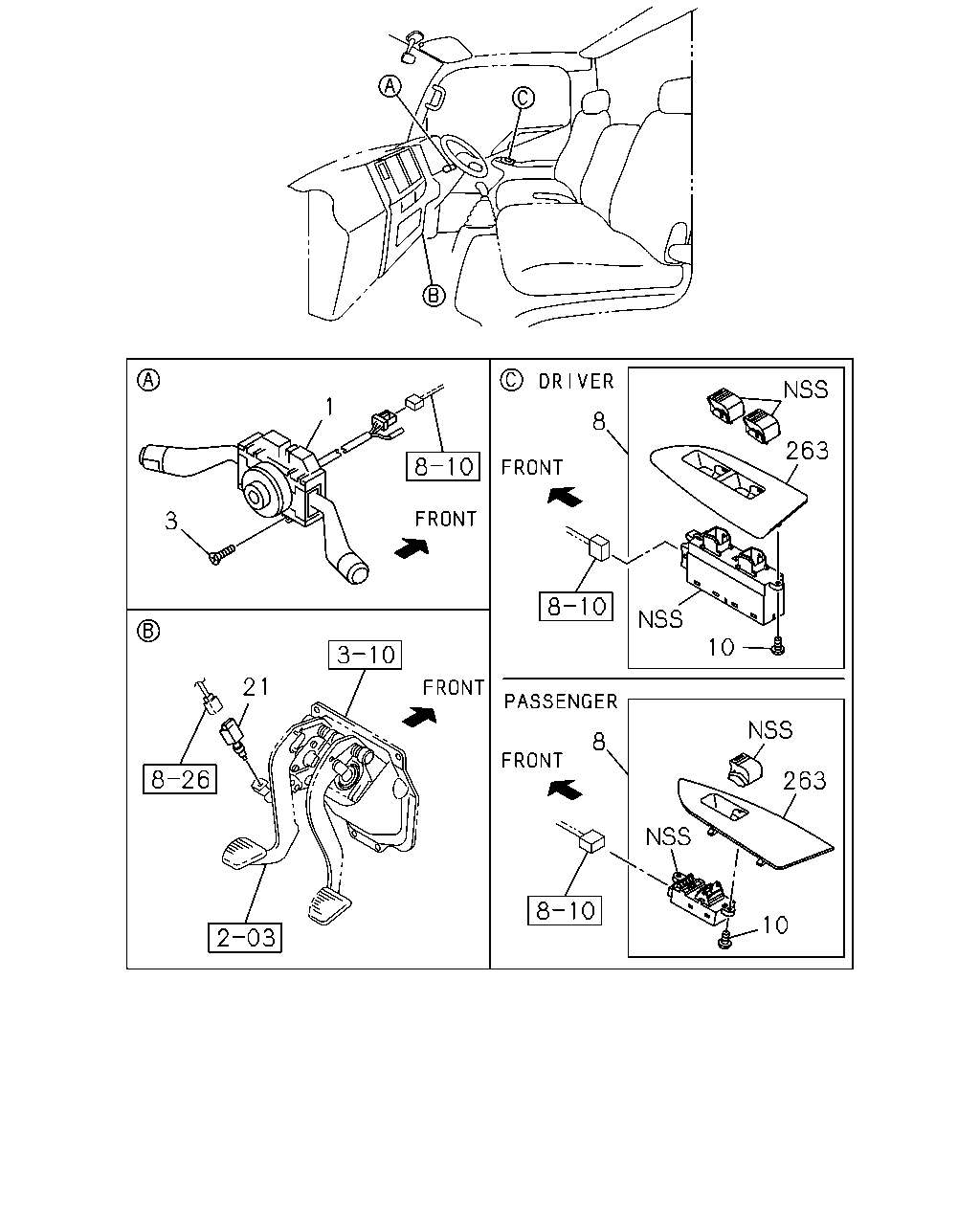

1 8 263 3 10 21 8 263 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>	8-98064-894-2	01	1	0809-1310	●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>	8-98243-706-0	01	1	1311-	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98064-763-1	01	1	0710-0808	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98064-763-1	01	1	0809-0905		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98064-763-1	01	1	0809-0905	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98146-619-0	01	1	0906-1210		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98146-619-0	01	1	0906-1210	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0710-0808	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0809-0905		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0809-0905	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0906-1210		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0906-1210	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98024-269-1	01	1	0710-0808	●	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98024-269-1	01	1	0809-1310		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98024-269-1	01	1	0809-1310	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98243-705-0	01	1	1311-		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98243-705-0	01	1	1311-	●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98060-302-1	01	1	0710-0808	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98060-302-1	01	1	0809-1310		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98060-302-1	01	1	0809-1310	●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0710-	●	●
8	SWITCH; POWER WINDOW PASSENGER	8-97387-034-2	01	1	0710-0808	●	●
8	SWITCH; POWER WINDOW PASSENGER	8-97387-034-2	01	1	0809-		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-97387-034-2	01	1	0809-	●
8	SWITCH; POWER WINDOW DRIVER	8-98003-785-1	01	1	0710-0808	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98003-785-1	01	1	0809-0809		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98003-785-1	01	1	0809-0809	●
8	SWITCH; POWER WINDOW DRIVER	8-98129-844-0	01	1	0810-1001		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98129-844-0	01	1	0810-1001	●
8	SWITCH; POWER WINDOW DRIVER	8-98159-543-0	01	1	1002-		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98159-543-0	01	1	1002-	●
10	SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0710-0808	●	●
10	SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0809-		●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	0809-	●
21	SWITCH; CLU PTO ZF TRANS RR(BDM)	8-94337-761-0	01	1	0710-	●	●
21	SWITCH; CLU EXC. PTO ZF TRANS RR(BDM)	8-97358-248-0	01	1	0710-	●	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0710-0808	●	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0809-		●
263	COVER; SW POWER WINDOW FRT DOOR<A32> DRIVER	8-98153-836-0	01	1	0809-	●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0710-0808	●	●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0809-		●
263	COVER; SW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98153-841-0	01	1	0809-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
